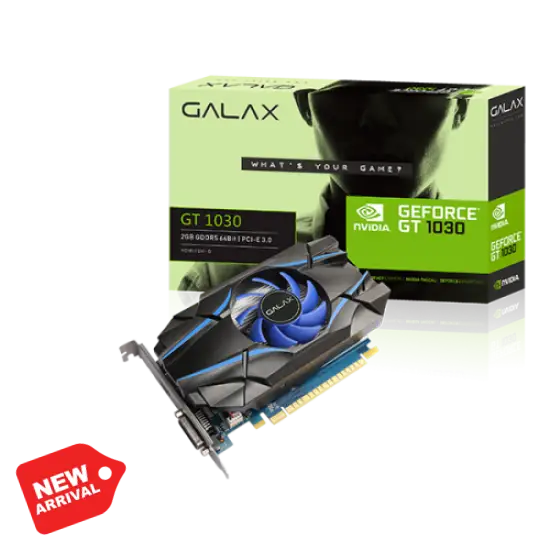

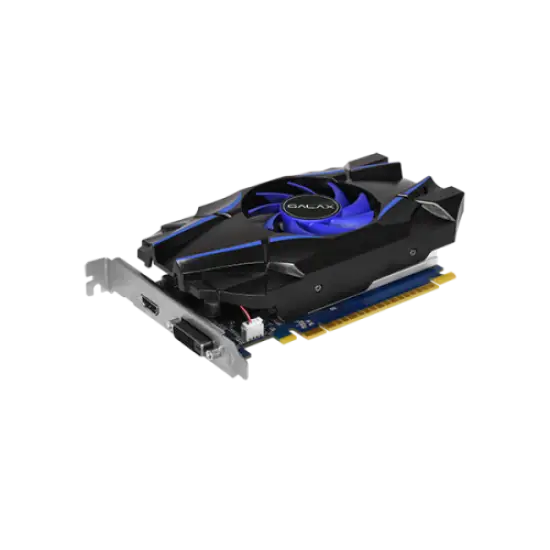

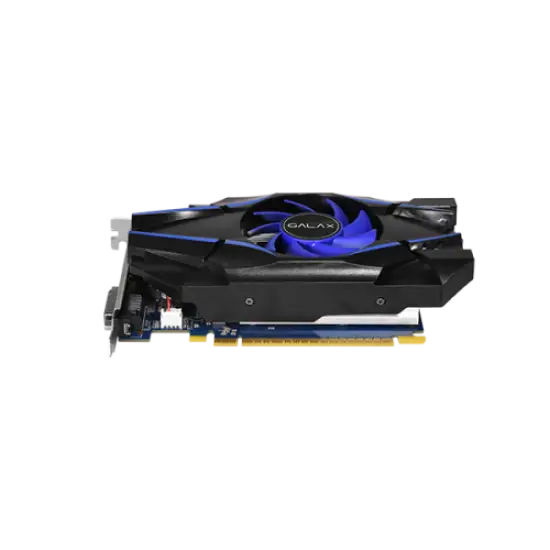

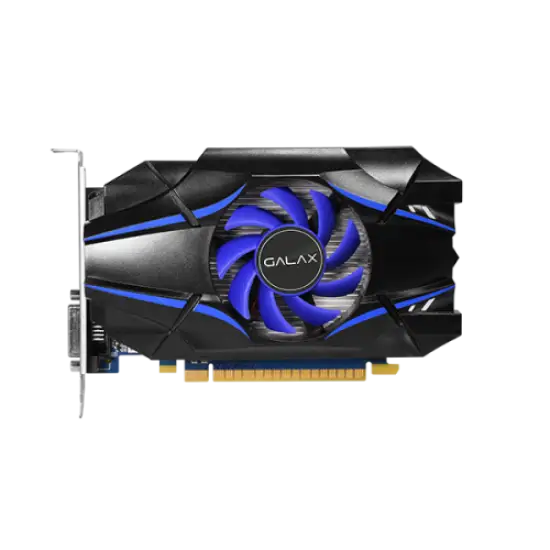

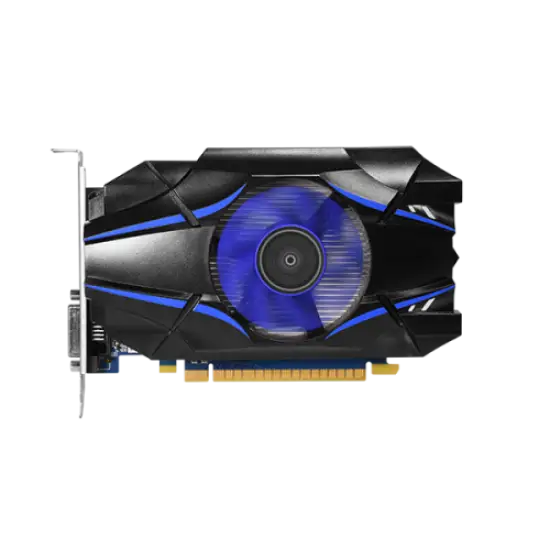

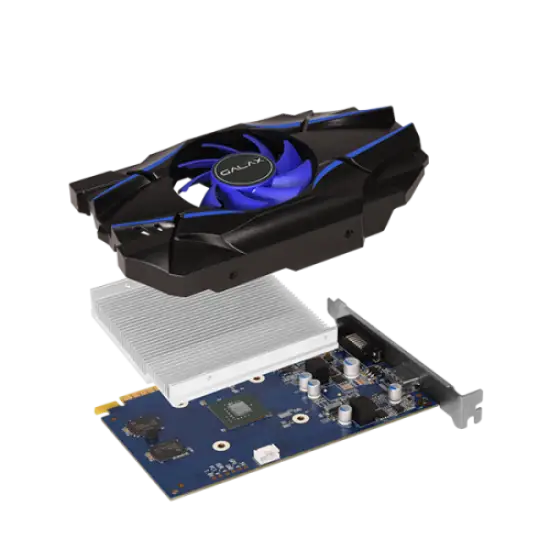

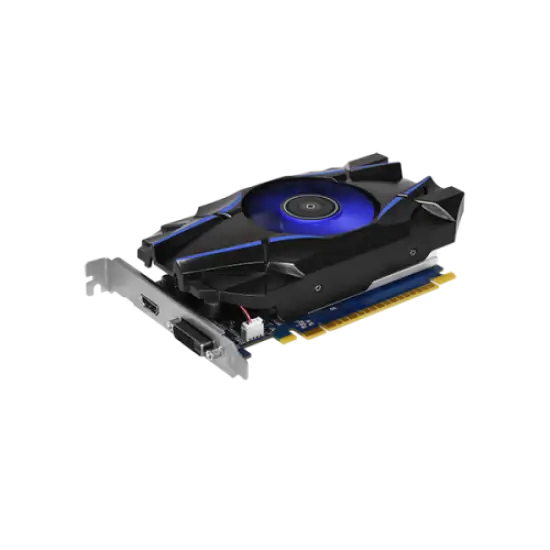

The new GeForce GT 1030 accelerates your entire PC experience. Its powerful graphics engine and state-of-the-art technologies give you a performance upgrade to drive today’s most demanding PC applications. It makes a great upsell from a basic PC with integrated graphics.
DESCRIPTIONS
NVIDIA® GPU Boost™
Microsoft® DirectX®
Vulkan API
Open GL 4.5 Support
PCIe 3.0
OS Certification - Windows 7-10, Linux, Free85BSDx86
Display Connectors – HDMI 2.0b, Dual Link-DVI
HDCP 2.2
All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.
SPECIFICATIONS
GPU Engine Specs:
Streaming Processing Unit (SP): 384
Base Clock (MHz) 1227
Boost Clock (MHz) 1468
Memory Specs:
Memory Clock 2048MB
Memory Interface Width 64-bit GDDR5
Memory Bandwidth (GB/sec) 48
Feature Support:
OpenGL 4.5
Bus Support PCI-E 3.0
Certified for Windows 7-10, Linux, Free85BSDx86
Supported Technologies Microsoft® DirectX® 12
Virtual Reality Ready Yes
SLI Options
Display Support:
Multi Monitor 3 Displays
HDCP Yes
HDMI Yes

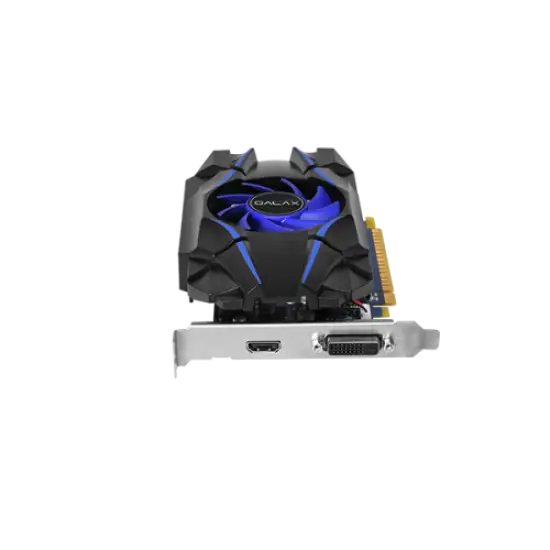

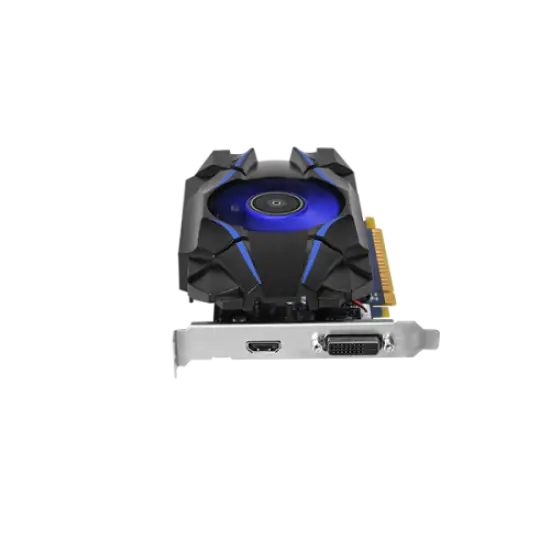

Standard Display Connectors DVI-D, HDMI
Audio Input for HDMI Internal
Power Specs:
Maximum Graphics Card Power (W) 30W
Minimum System Power Requirement (W) 300W
Supplementary Power Connectors 1x8pin
Model:
Product Code 30NPH4HVQ4ST
UPC Code 4895147126753
Dimensions:
Dimensions(with Bracket): 180*121*41 mm
Dimensions(without Bracket): 166*107*18.1*38 mm
REQUIREMENTS
PCI Express-compliant motherboard with one dual-width x 16 graphics slot
