GIGABYTE GeForce RTX™ 3060 GAMING OC 8G (rev. 1.0) rev. 2.0 (GV-N3060GAMING-OC-8GD-2.0)

KEY FEATURE

• NVIDIA Ampere Streaming Multiprocessors
• 2nd Generation RT Cores
• 3rd Generation Tensor Cores
• Powered by GeForce RTX™ 3060
• Integrated with 8GB GDDR6 128-bit memory interface

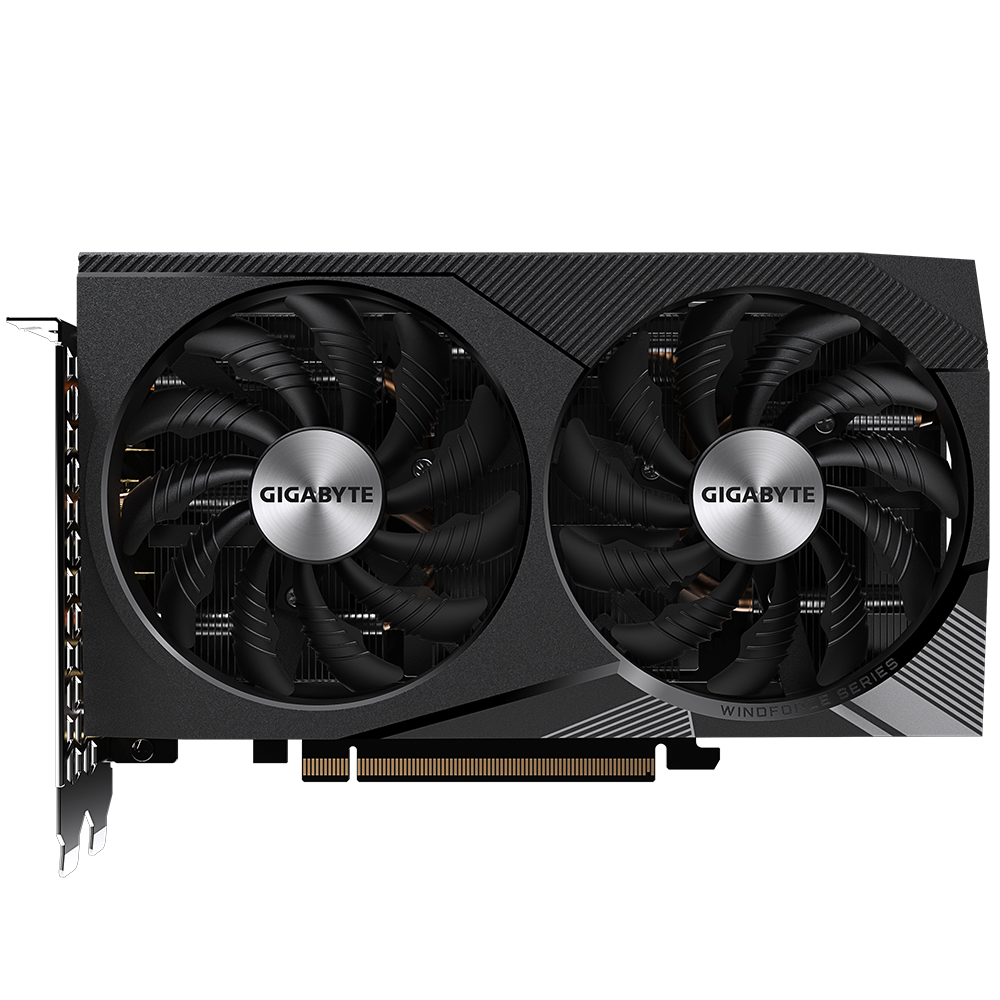

• WINDFORCE 2X Cooling System with alternate spinning fans
• Screen cooling
• 200 mm compact card size

CORE CLOCK

• 1807 MHz (Reference Card: 1777 MHz)


SPECIFICATION

• Graphics Processing
  GeForce RTX™ 3060
• Core Clock
  1807 MHz (Reference Card: 1777 MHz)
• CUDA® Cores
  3584
• Memory Clock
  15000 MHz
• Memory Size
  8 GB
• Memory Type
  GDDR6
• Memory Bus
  128 bit
• Memory Bandwidth (GB/sec)
  240 GB/s
• Card Bus
  PCI-E 4.0
• Digital max resolution
  7680x4320
• Multi-view
  4
• Card size
  L=198 W=121 H=39 mm
• PCB Form
  ATX
• DirectX
  12 Ultimate
• OpenGL
  4.6
• Recommended PSU
  550W
• Power Connectors
  8 pin*1

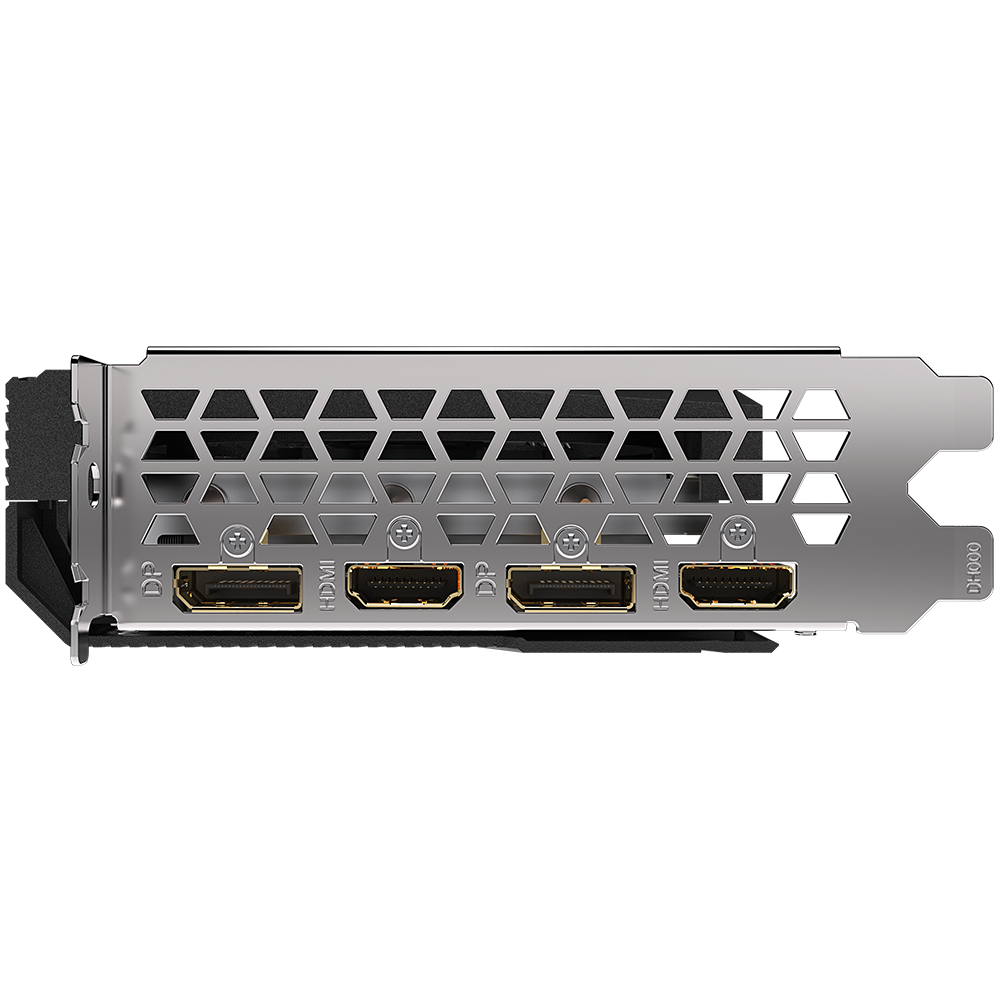

• Output
  DisplayPort 1.4a *2
  HDMI 2.1 *2
• SLI Support
  N/A
• Accessories
  Quick guide
