GIGABYTE GeForce RTX™ 4060 EAGLE OC 8G (GV-N4060EAGLE-OC-8GD)

KEY FEATURE

• Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
• 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
• 3rd Generation RT Cores: Up to 2X ray tracing performance
• Powered by GeForce RTX™ 4060
• Integrated with 8GB GDDR6 128bit memory interface
• WINDFORCE cooling system
• Dual BIOS
• Protection back plate

CORE CLOCK

• 2505 MHz (Reference card: 2460 MHz)

SPECIFICATION

• Graphics Processing
  GeForce RTX™ 4060
• Core Clock
  2505 MHz (Reference card: 2460 MHz)
• CUDA® Cores
  3072
• Memory Clock
  17 Gbps
• Memory Size
  8 GB
• Memory Type
  GDDR6
• Memory Bus
  128 bit
• Card Bus
  PCI-E 4.0
• Digital max resolution
  7680x4320
• Multi-view
  4
• Card size
  L=272 W=115 H=40 mm
• PCB Form
  ATX
• DirectX
  12 Ultimate
• OpenGL
  4.6
• Recommended PSU
  450W
• Power Connectors
  8 Pin*1
• Output

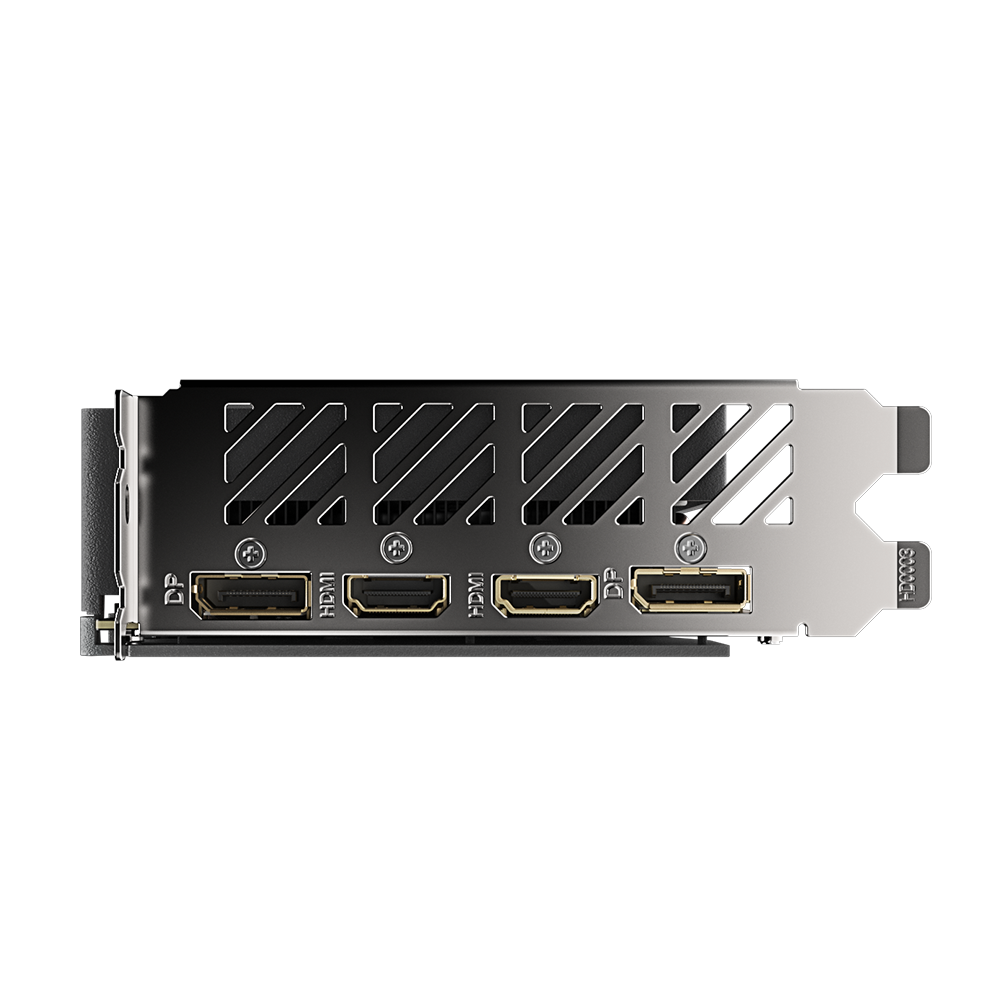

  DisplayPort 1.4a *2
  HDMI 2.1a *2
• Accessories
  Quick guide
