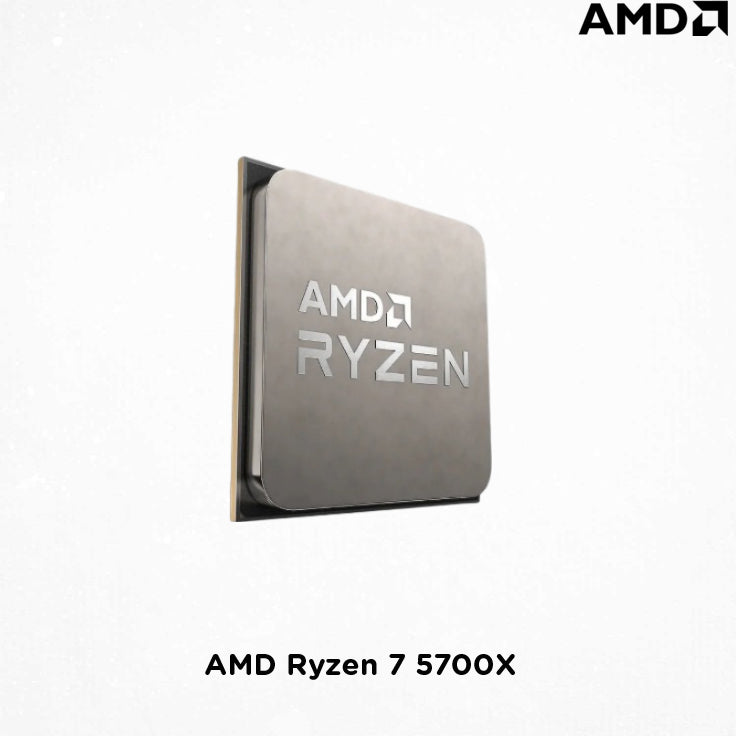

AMD Ryzen 7 5700X (Tray Type) with FREE CPU COOLER

Name AMD Ryzen 7 5700X

Family Ryzen

Series Ryzen 5000 Series

Form Factor Desktops , Boxed Processor

Market Segment Enthusiast Desktop

Consumer Use Yes

Regional Availability Global , China , NA , EMEA , APJ , LATAM

Former Codename Vermeer

Architecture Zen 3

# of CPU Cores 8

# of Threads 16

Max. Boost Clock Up to 4.6 GHz

Base Clock 3.4 GHz

L1 Cache 512 KB

L2 Cache 4 MB

L3 Cache 32 MB

Default TDP 65W

Processor Technology for CPU Cores TSMC 7nm FinFET

Processor Technology for I/O Die 12nm (Globalfoundries)

CPU Compute Die (CCD) Size 74mm²

I/O Die (IOD) Size 125mm²

Package Die Count 2

Unlocked for Overclocking Yes

CPU Socket AM4

Supporting Chipsets X570 , X470 , X370 , B550 , B450 , B350 , A520

CPU Boost Technology Precision Boost 2

Instruction Set x86-64

Supported Extensions AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE ,                                         SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB) Not Included

Max. Operating Temperature (Tjmax) 90°C

Launch Date 04/04/2022

*OS Support Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL                             x86 64-Bit , Ubuntu x86 64-Bit

Native USB 3.2 Gen 2 (10Gbps) Ports 4

Native USB 3.2 Gen 1 (5Gbps) Ports 0

Native USB 2.0 (480Mbps) Ports 0

Native SATA Ports 2

PCI Express® Version PCIe® 4.0

Native PCIe® Lanes (Total/Usable) 24 , 20

Additional Usable PCIe Lanes from Motherboard

NVMe Support Boot , RAID0 , RAID1 , RAID10

System Memory Type DDR4

Memory Channels 2

Max. Memory 128 GB

System Memory Subtype UDIMM

System Memory Specification Up to 3200 MT/s

Max Memory Speed

ECC Support Yes (Requires mobo support)

Graphics Model Discrete Graphics Card Required

Product ID Tray 100-000000926

Supported Technologies AMD StoreMI Technology , AMD Ryzen™ VR-Ready Premium
