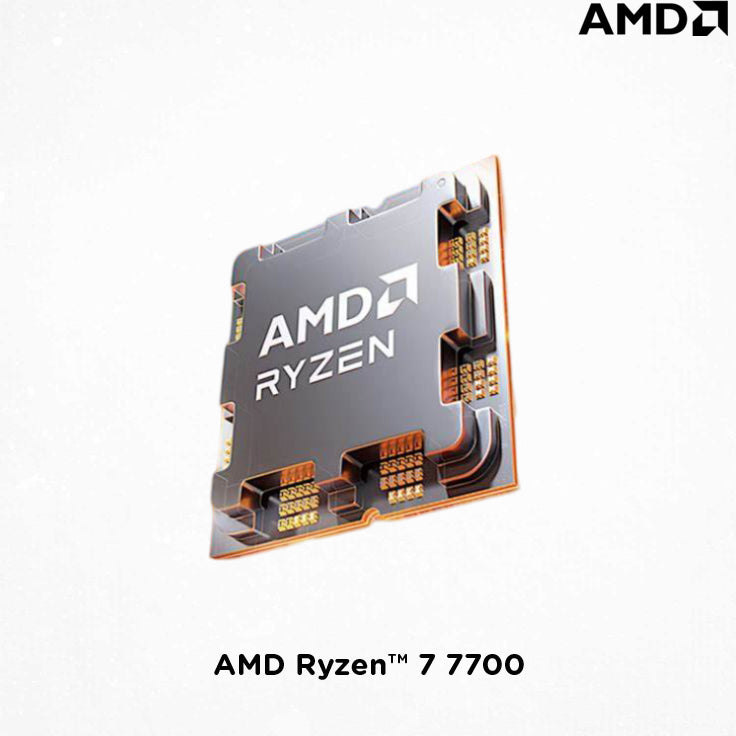

AMD Ryzen 7 7700 (Tray Type) with FREE CPU Cooler

Name AMD Ryzen 7 7700

Family Ryzen

Series Ryzen 7000 Series

Form Factor Desktops , Boxed Processor

Market Segment Enthusiast Desktop

AMD PRO Technologies No

Consumer Use Yes

Regional Availability Global

Former Codename Raphael AM5

Architecture Zen 4

# of CPU Cores 8

Multithreading (SMT)   Yes

# of Threads 16

Max. Boost Clock Up to 5.3 GHz

Base Clock 3.8 GHz

L1 Cache 512 KB

L2 Cache 8 MB

L3 Cache 32 MB

Default TDP 65W

Processor Technology for CPU Cores TSMC 5nm FinFET

Processor Technology for I/O Die TSMC 6nm FinFET

CPU Compute Die (CCD) Size71mm²

I/O Die (IOD) Size122mm²

Package Die Count 2

Unlocked for Overclocking Yes

AMD EXPO™ Memory Overclocking Technology Yes

Precision Boost Overdrive Yes

Curve Optimizer Voltage Offsets Yes

AMD Ryzen™ Master Support Yes

CPU Socket AM5

Supporting Chipsets A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

CPU Boost Technology Precision Boost 2

Instruction Set x86-64

Supported Extensions AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus ,                               SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB) AMD Wraith Prism

Max. Operating Temperature (Tjmax) 95°C

Launch Date 01/14/2023

*OS Support Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86                       64-Bit , Ubuntu x86 64-Bit

Native USB 3.2 Gen 2 (10Gbps) Ports 4

Native USB 3.2 Gen 1 (5Gbps) Ports 0

Native USB 2.0 (480Mbps) Ports 1

Native SATA Ports 0

PCI Express® Version PCIe®  5.0

Native PCIe® Lanes (Total/Usable) 28, 24

Additional Usable PCIe Lanes from Motherboard

NVMe Support Boot , RAID0 , RAID1 , RAID10

System Memory Type DDR5

Memory Channels 2

Max. Memory 128 GB

System Memory Subtype UDIMM

Max Memory Speed

ECC Support Yes (Requires mobo support)

Graphics Model AMD Radeon™ Graphics

Graphics Core Count 2

Graphics Frequency 2200 MHz

USB Type-C® Display Port™ Alternate ModeYes

Supported Technologies AMD EXPO™ Technology , AMD Ryzen™ Technologies
