General Specifications

Platform

Desktop

Product Family

AMD Ryzen™ Processors

Product Line

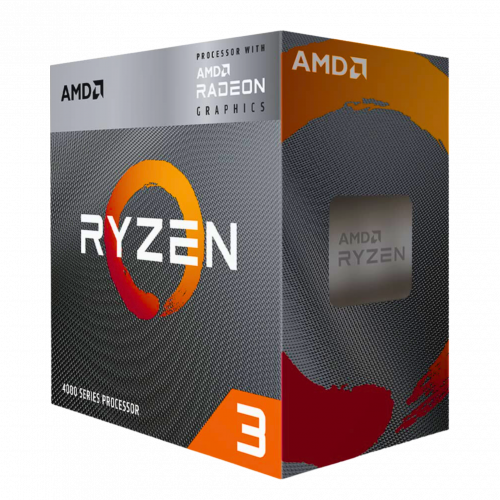

AMD Ryzen™ 3 4000 G-Series Desktop Processors with Radeon™ Graphics

Former Codename

"Renoir"

# of CPU Cores

4

# of Threads

8

Max. Boost Clock

Up to 4.0GHz

Base Clock

3.8GHz

L1 Cache

256KB

L2 Cache

2MB

L3 Cache

4MB

Default TDP

65W

AMD Configurable TDP (cTDP)

45-65W

Processor Technology for CPU Cores

TSMC 7nm FinFET

Unlocked for Overclocking

Yes

CPU Socket

AM4

Max. Operating Temperature (Tjmax)

95°C

Launch Date

7/21/2020

*OS Support

Windows 11 - 64-Bit Edition

Windows 10 - 64-Bit Edition

RHEL x86 64-Bit

Ubuntu x86 64-Bit

*Operating System (OS) support will vary by manufacturer.

Connectivity

PCI Express® Version

PCIe® 3.0

System Memory Type

DDR4

Memory Channels

2

System Memory Specification

Up to 3200MT/s

Graphics Capabilities

Integrated Graphics

Yes

Graphics Model

Radeon™ Graphics

Graphics Core Count

6

Graphics Frequency

1700 MHz

Product IDs

Product ID Tray

100-000000144
