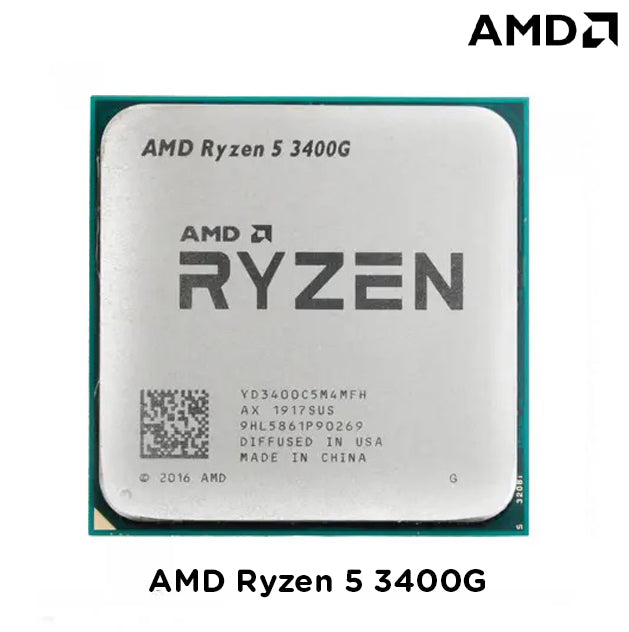

AMD Ryzen 5 3400G 3.7GHz Socket AM4 Processor - Tray Type (Processor Only)

The AMD Ryzen 5 3400G is a desktop processor with 4 cores, launched in July 2019, at an MSRP of $149. It is part of the Ryzen 5 lineup, using the Zen+ (Picasso) architecture with Socket AM4. Thanks to AMD Simultaneous Multithreading (SMT) the core-count is effectively doubled, to 8 threads. Ryzen 5 3400G has 4 MB of L3 cache and operates at 3.7 GHz by default, but can boost up to 4.2 GHz, depending on the workload. AMD is making the Ryzen 5 3400G on a 12 nm production node using 4,940 million transistors. The silicon die of the chip is not fabricated at AMD, but at the foundry of GlobalFoundries. You may freely adjust the unlocked multiplier on Ryzen 5 3400G, which simplifies overclocking greatly, as you can easily dial in any overclocking frequency.

With a TDP of 65 W, the Ryzen 5 3400G consumes typical power levels for a modern PC. AMD's processor supports DDR4 memory with a dual-channel interface. The highest officially supported memory speed is 2933 MT/s, but with overclocking (and the right memory modules) you can go even higher. For communication with other components in the machine, Ryzen 5 3400G uses a PCI-Express Gen 3 connection. This processor features the Radeon RX Vega 11 integrated graphics solution.
Hardware virtualization is available on the Ryzen 5 3400G, which greatly improves virtual machine performance. Programs using Advanced Vector Extensions (AVX) can run on this processor, boosting performance for calculation-heavy applications. Besides AVX, AMD is including the newer AVX2 standard, too, but not AVX-512.

Physical
Socket:    AMD Socket AM4
Foundry:    GlobalFoundries
Process Size:    12 nm
Transistors:    4,940 million
Die Size:    210 mm²
Package:    µOPGA-1331
tJMax:    95°C
Processor
Market:    Desktop
Production Status:    Active
Release Date:    Jul 7th, 2019
Launch Price:    $149
Part#:    YD3400C5M4MFH YD3400C5FHBOX
Performance
Frequency:    3.7 GHz
Turbo Clock:    up to 4.2 GHz
Base Clock:    100 MHz
Multiplier:    37.0x
Multiplier Unlocked:    Yes
TDP:    65 W
Configurable TDP:    45W
Architecture
Codename:    Picasso
Generation:    Ryzen 5
(Zen+ (Picasso))
Memory Support:    DDR4
Rated Speed:    2933 MT/s
Memory Bus:    Dual-channel
ECC Memory:    No
PCI-Express:    Gen 3
Chipsets:    AMD 300 series, AMD 400 Series, AMD 500 Series
Core Config
# of Cores:    4
# of Threads:    8
SMP # CPUs:    1
Integrated Graphics:    Radeon RX Vega 11
Cache
Cache L1:    96 KB (per core)
Cache L2:    512 KB (per core)
Cache L3:    4 MB (shared)
