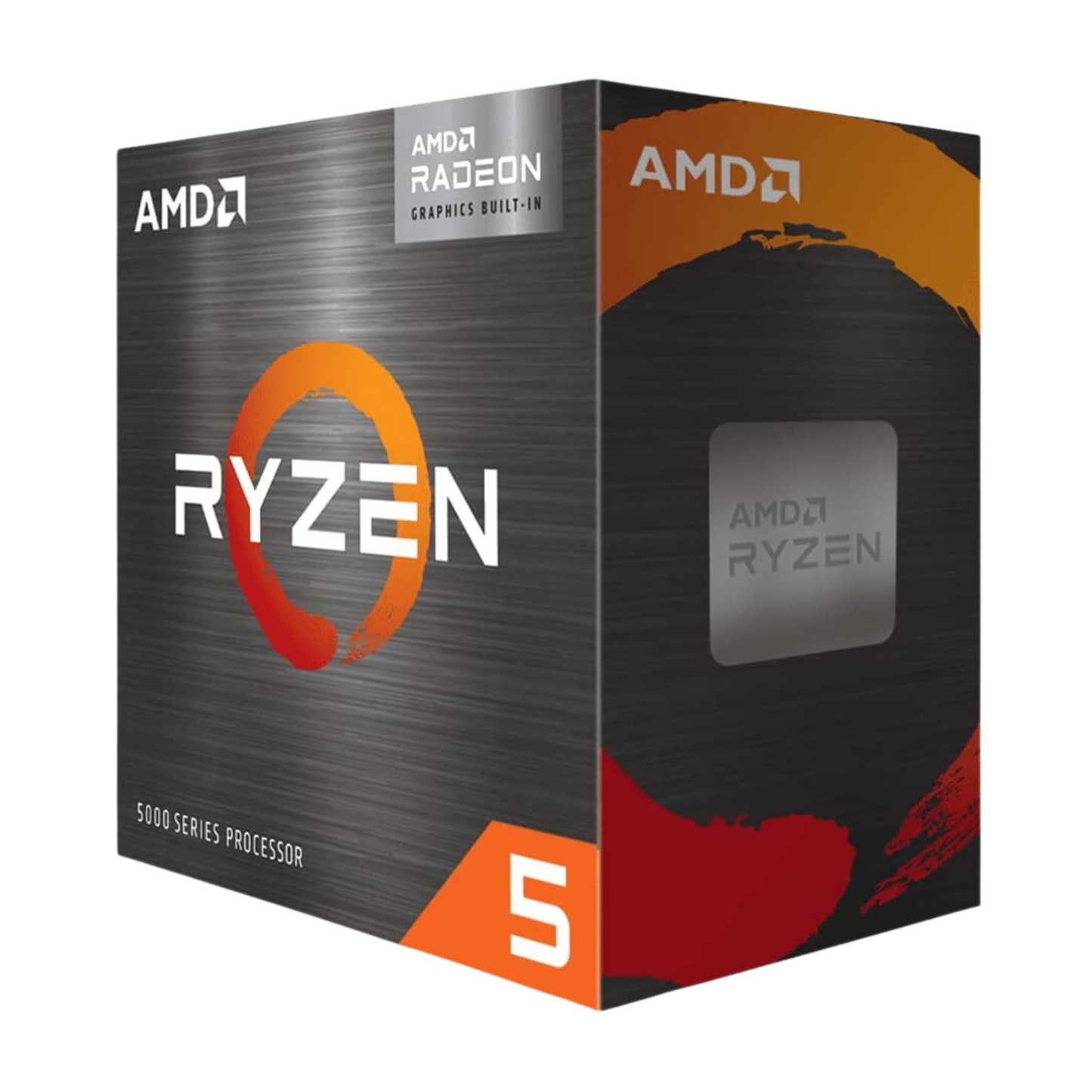

AMD RYZEN 5 5600G AM4 PIB CPU

General Specifications

Platform

Boxed Processor

Product Family

AMD Ryzen™ Processors

Product Line

AMD Ryzen™ 5 5000 G-Series Desktop Processors with Radeon™ Graphics

Former Codename

"Cezanne"

# of CPU Cores

6

# of Threads

12

Max. Boost Clock

Up to 4.4GHz

Base Clock

3.9GHz

L2 Cache

3MB

L3 Cache

16MB

Default TDP

65W

AMD Configurable TDP (cTDP)

45-65W

Processor Technology for CPU Cores

TSMC 7nm FinFET

Unlocked for Overclocking

Yes

CPU Socket

AM4

Thermal Solution (PIB)

Wraith Stealth

Max. Operating Temperature (Tjmax)

95°C

Launch Date

4/13/2021

*OS Support

Windows 11 - 64-Bit Edition

Windows 10 - 64-Bit Edition

RHEL x86 64-Bit

Ubuntu x86 64-Bit

*Operating System (OS) support will vary by manufacturer.

Connectivity

PCI Express® Version

PCIe® 3.0

System Memory Type

DDR4

Memory Channels

2

System Memory Specification

Up to 3200MT/s

Graphics Capabilities

Integrated Graphics

Yes

Graphics Model

Radeon™ Graphics

Graphics Core Count

7

Graphics Frequency

1900 MHz

Product IDs

Product ID Boxed

100-100000252BOX

Product ID Tray

100-000000252

Product ID MPK

100-100000252MPK
