Description
General Specifications
Platform

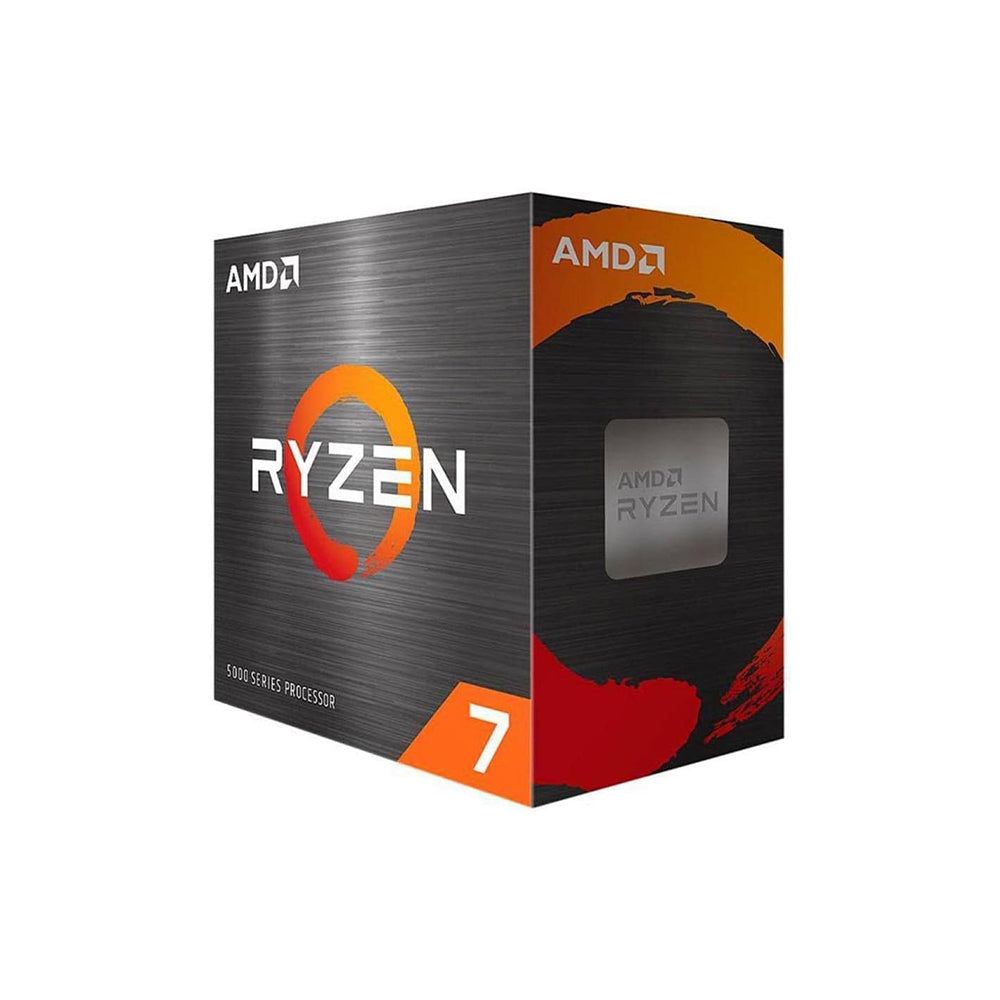

Boxed Processor
Product Family
AMD Ryzen™ Processors
Product Line
AMD Ryzen™ 7 5000 G-Series Desktop Processors with Radeon™ Graphics
Former Codename
"Cezanne"
# of CPU Cores
8
# of Threads
16
Max. Boost Clock
Up to 4.6GHz
Base Clock
3.8GHz
L2 Cache
4MB
L3 Cache
16MB
Default TDP
65W
AMD Configurable TDP (cTDP)
45-65W
Processor Technology for CPU Cores
TSMC 7nm FinFET
Unlocked for Overclocking
Yes
CPU Socket
AM4
Thermal Solution (PIB)
Wraith Stealth
Max. Operating Temperature (Tjmax)
95°C
Launch Date
4/13/2021
*OS Support
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
PCI Express® Version
PCIe® 3.0
System Memory Type
DDR4
Memory Channels
2
System Memory Specification
Up to 3200MT/s
Graphics Capabilities
Integrated Graphics
Yes
Graphics Model
Radeon™ Graphics
Graphics Core Count
8
Graphics Frequency
2000 MHz
Product IDs
Product ID Boxed
100-100000263BOX
Product ID Tray
100-000000263
Product ID MPK
100-100000263MPK
