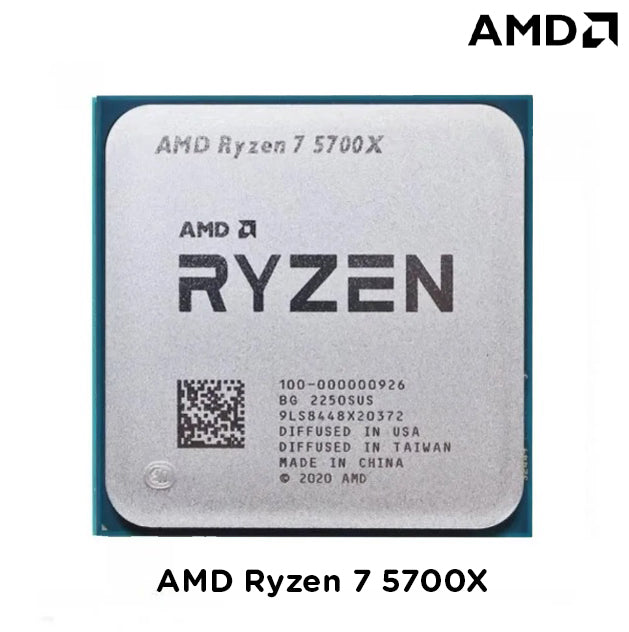

AMD Ryzen 7 5700X 3.4GHz Socket AM4 Processor - Tray Type (Processor Only)

The AMD Ryzen 7 5700X is a desktop processor with 8 cores, launched in April 2022, at an MSRP of $299. It is part of the Ryzen 7 lineup, using the Zen 3 (Vermeer) architecture with Socket AM4. Thanks to AMD Simultaneous Multithreading (SMT) the core-count is effectively doubled, to 16 threads. Ryzen 7 5700X has 32 MB of L3 cache and operates at 3.4 GHz by default, but can boost up to 4.6 GHz, depending on the workload. AMD is building the Ryzen 7 5700X on a 7 nm production process using 4,150 million transistors. The silicon die of the chip is not fabricated at AMD, but at the foundry of TSMC. You may freely adjust the unlocked multiplier on Ryzen 7 5700X, which simplifies overclocking greatly, as you can easily dial in any overclocking frequency.

With a TDP of 65 W, the Ryzen 7 5700X consumes typical power levels for a modern PC. AMD's processor supports DDR4 memory with a dual-channel interface. The highest officially supported memory speed is 3200 MT/s, but with overclocking (and the right memory modules) you can go even higher. ECC memory is supported, too, which is an important capability for mission-critical systems, to avoid data corruption. For communication with other components in the system, Ryzen 7 5700X uses a PCI-Express Gen 4 connection. This processor does not have integrated graphics, you will need a separate graphics card.
Hardware virtualization is available on the Ryzen 7 5700X, which greatly improves virtual machine performance. Programs using Advanced Vector Extensions (AVX) will run on this processor, boosting performance for calculation-heavy applications. Besides AVX, AMD is including the newer AVX2 standard, too, but not AVX-512.

Physical
Socket:    AMD Socket AM4
Foundry:    TSMC
Process Size:    7 nm
Transistors:    4,150 million
Die Size:    74 mm²
I/O Process Size:    12 nm
I/O Die Size:    125 mm²
Package:    µOPGA-1331
tCaseMax:    95°C
Processor
Market:    Desktop
Production Status:    Active
Release Date:    Apr 4th, 2022
Launch Price:    $299
Part#:    100-000000926
100-100000926WOF
Bundled Cooler:    None
Performance
Frequency:    3.4 GHz
Turbo Clock:    up to 4.6 GHz
Base Clock:    100 MHz
Multiplier:    34.0x
Multiplier Unlocked:    Yes
TDP:    65 W
PPT:    88 W
Architecture
Codename:    Vermeer
Generation:    Ryzen 7
(Zen 3 (Vermeer))
Memory Support:    DDR4
Rated Speed:    3200 MT/s
Memory Bus:    Dual-channel
ECC Memory:    Yes
PCI-Express:    Gen 4, 20 Lanes
(CPU only)
Chipsets:    AMD 300 Series*, AMD 400 Series, AMD 500 Series
Core Config
# of Cores:    8
# of Threads:    16
SMP # CPUs:    1
Integrated Graphics:    N/A
Cache
Cache L1:    64 KB (per core)
Cache L2:    512 KB (per core)
Cache L3:    32 MB (shared)
