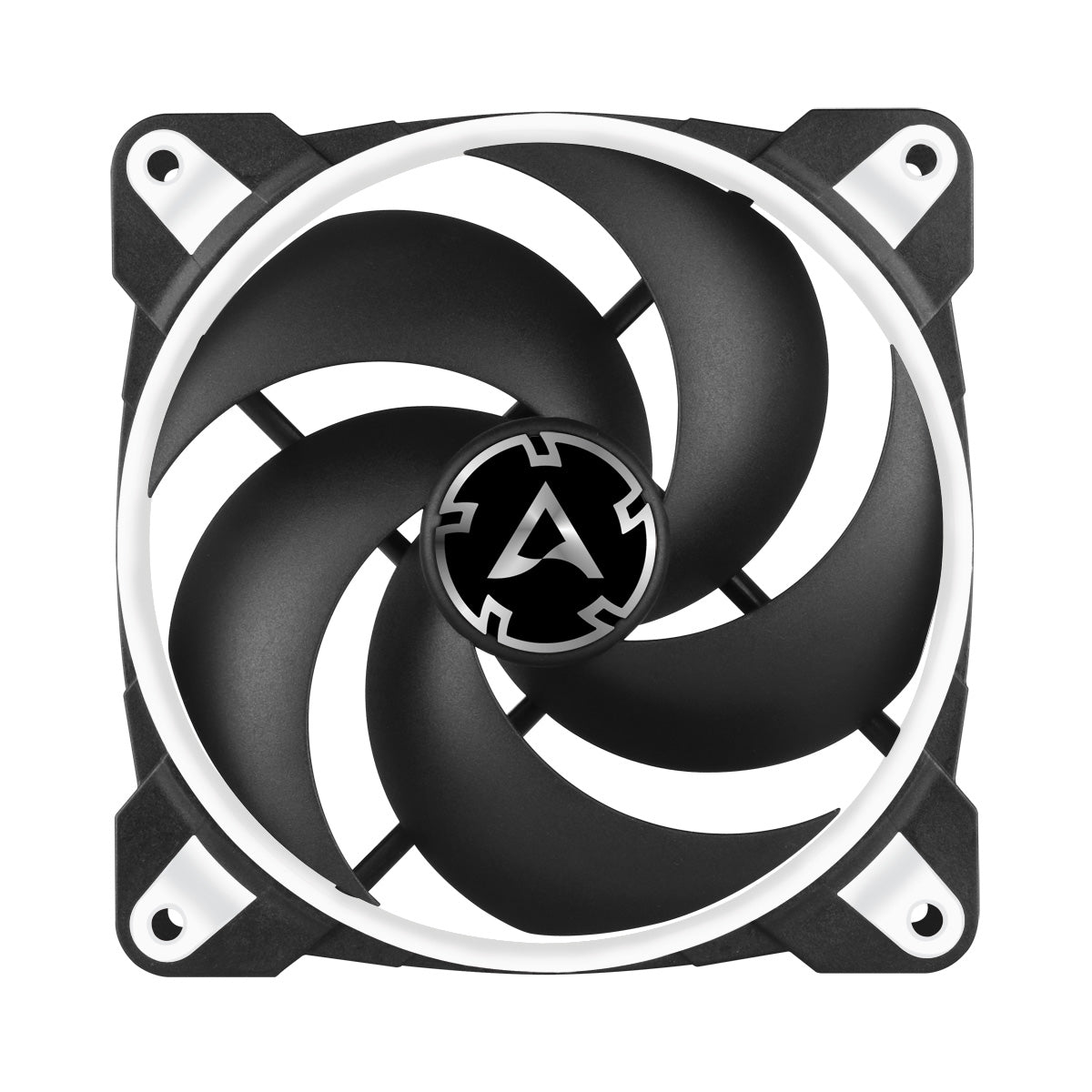

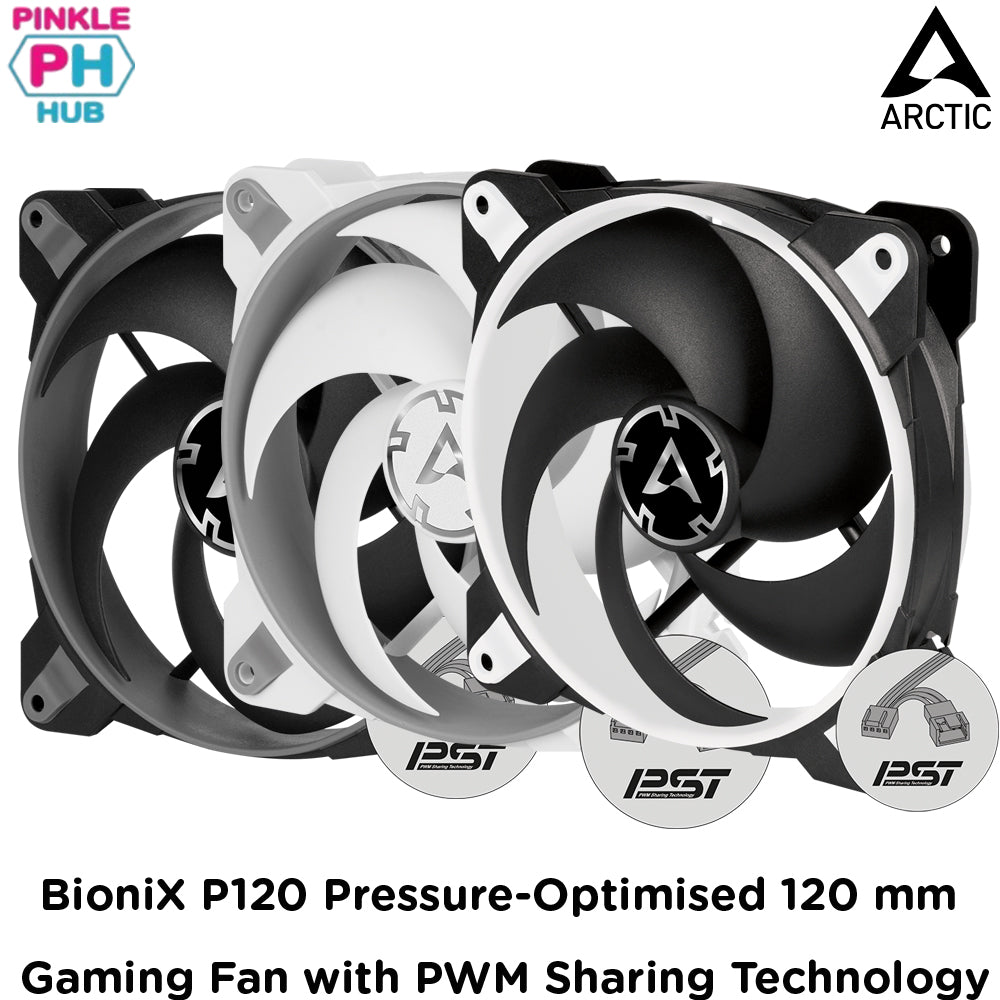

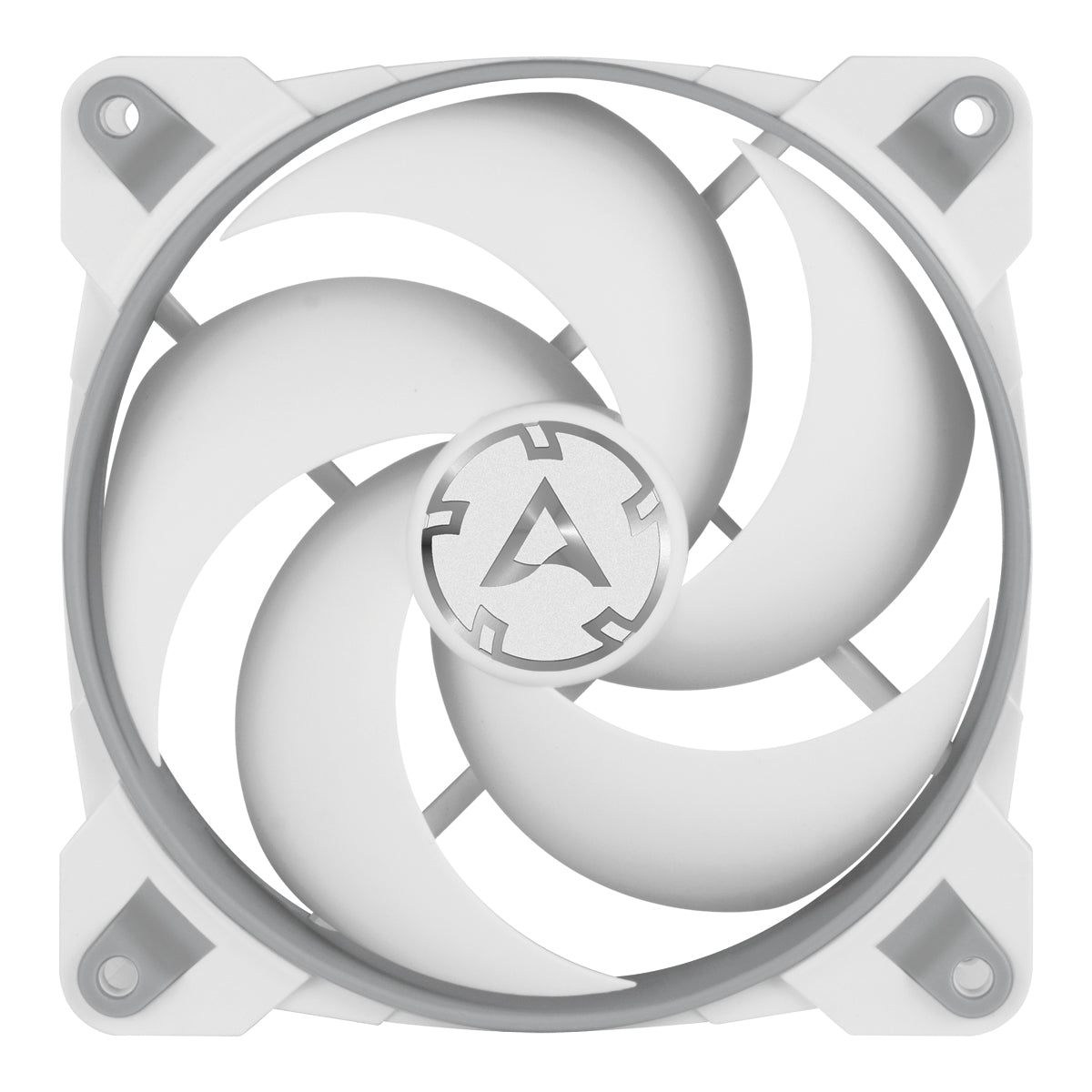

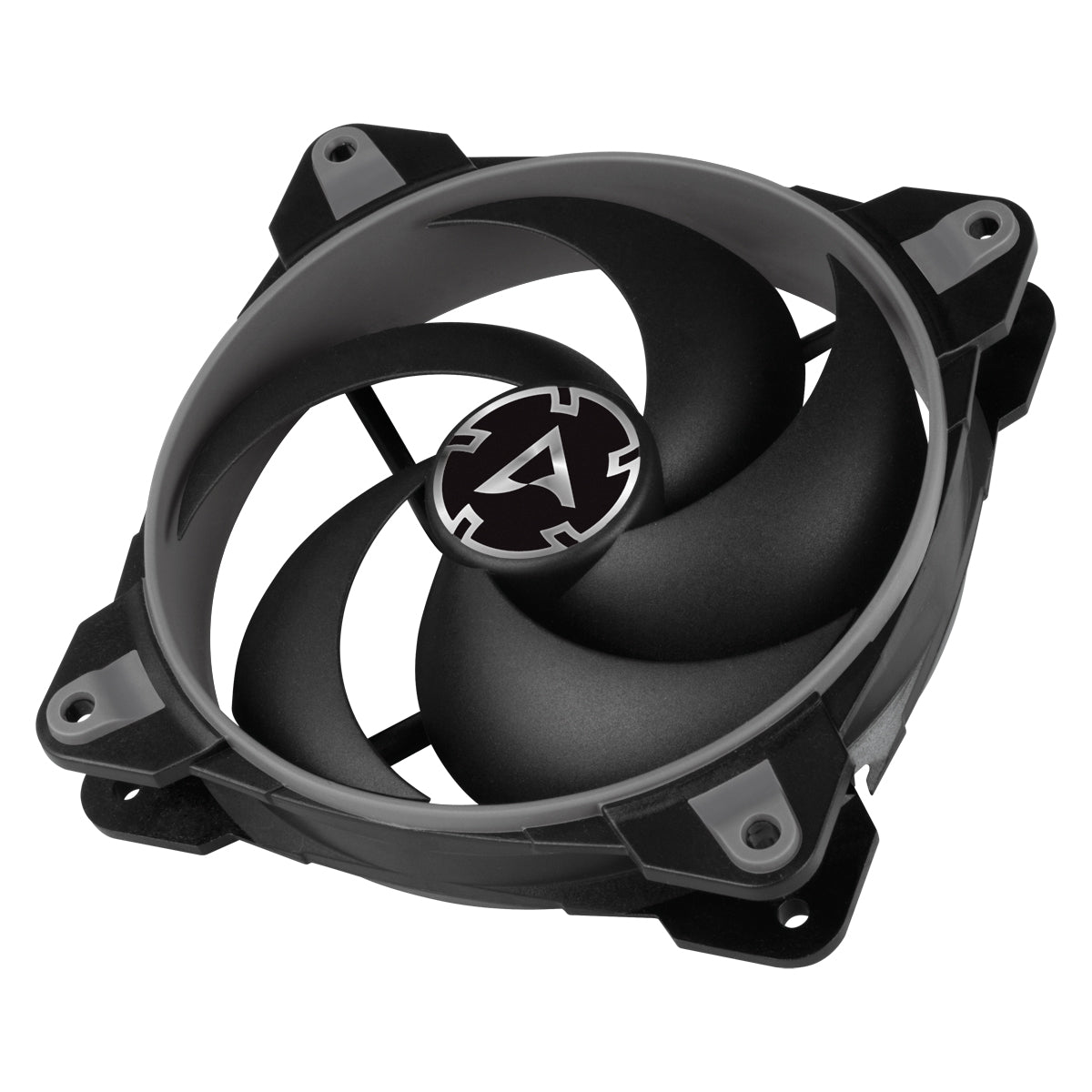

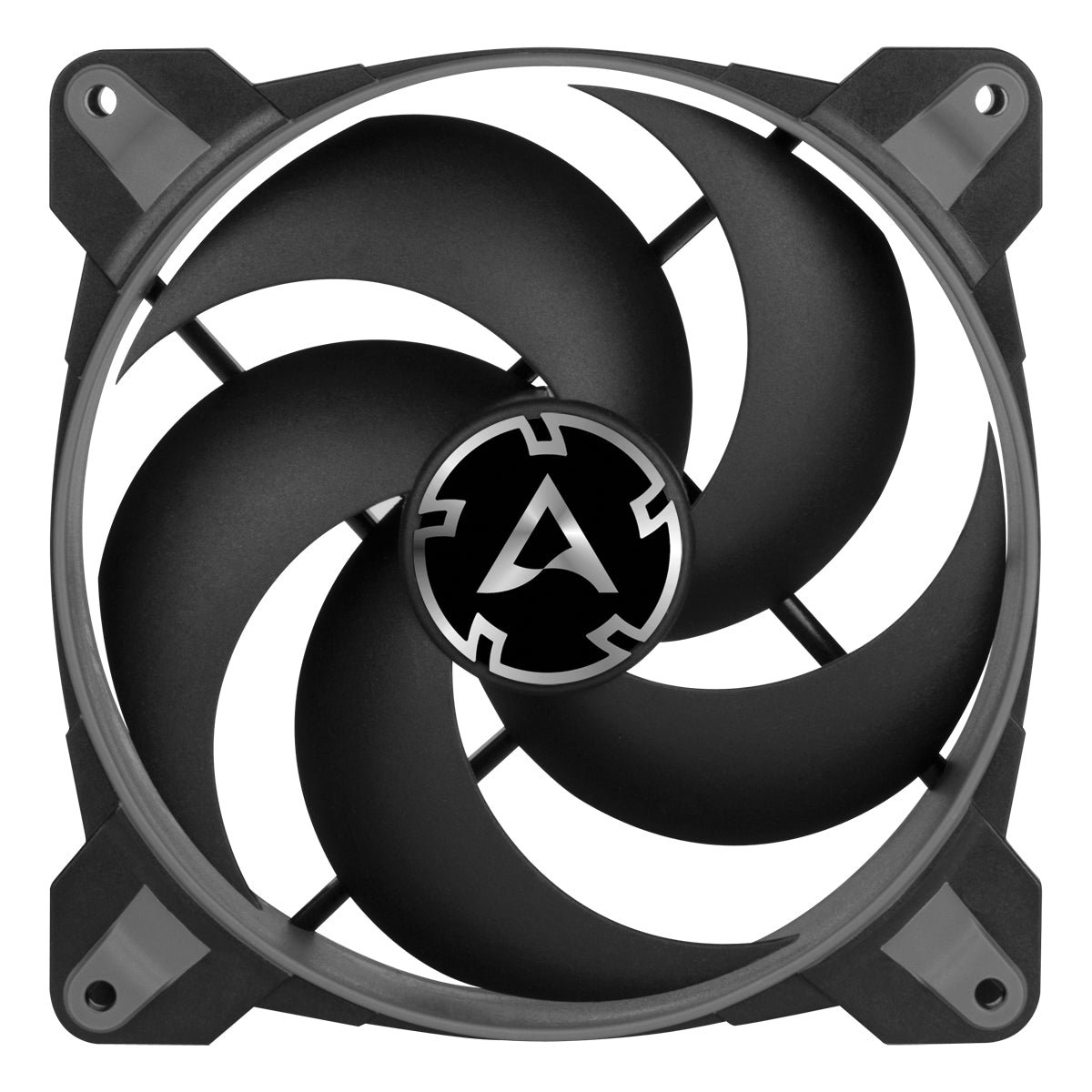

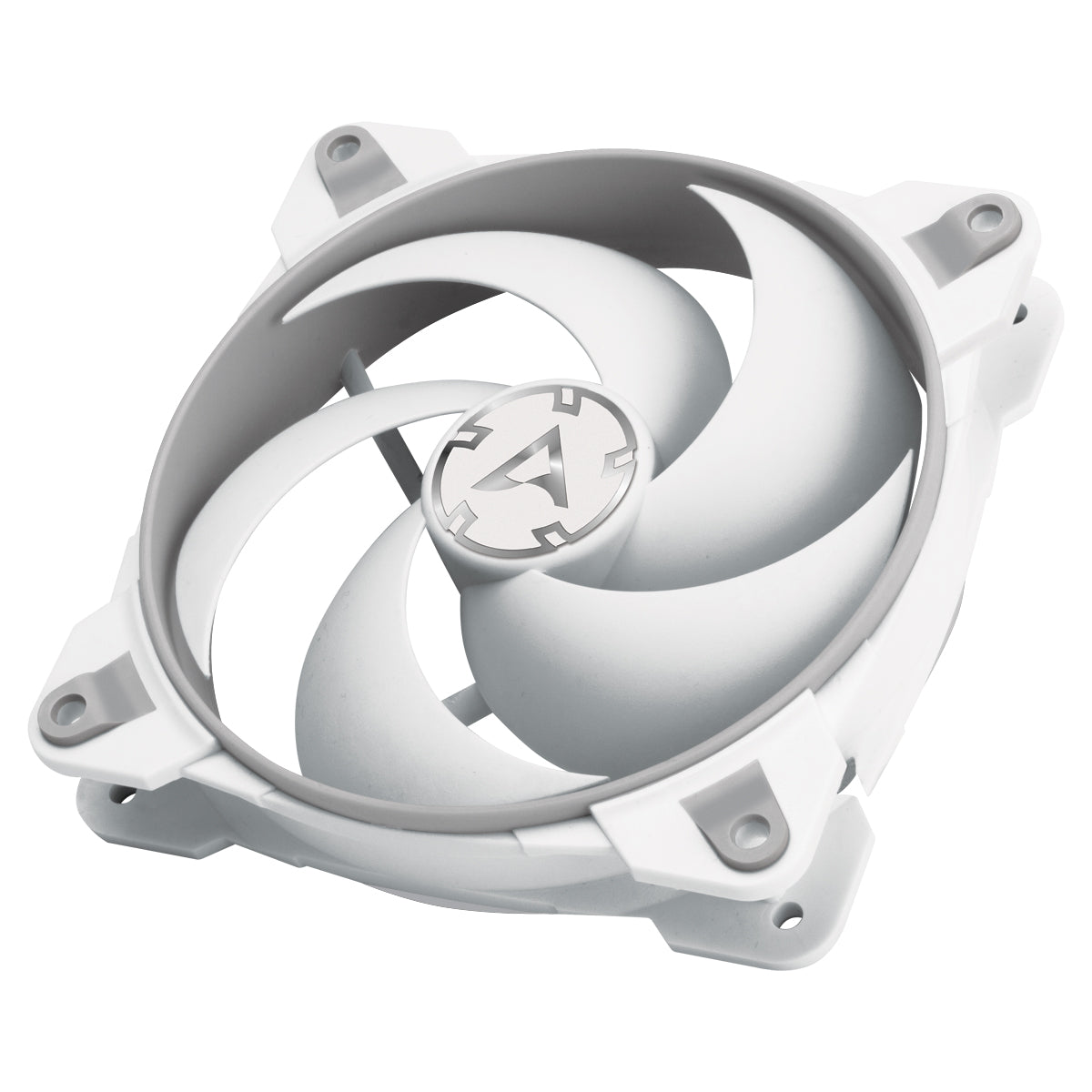

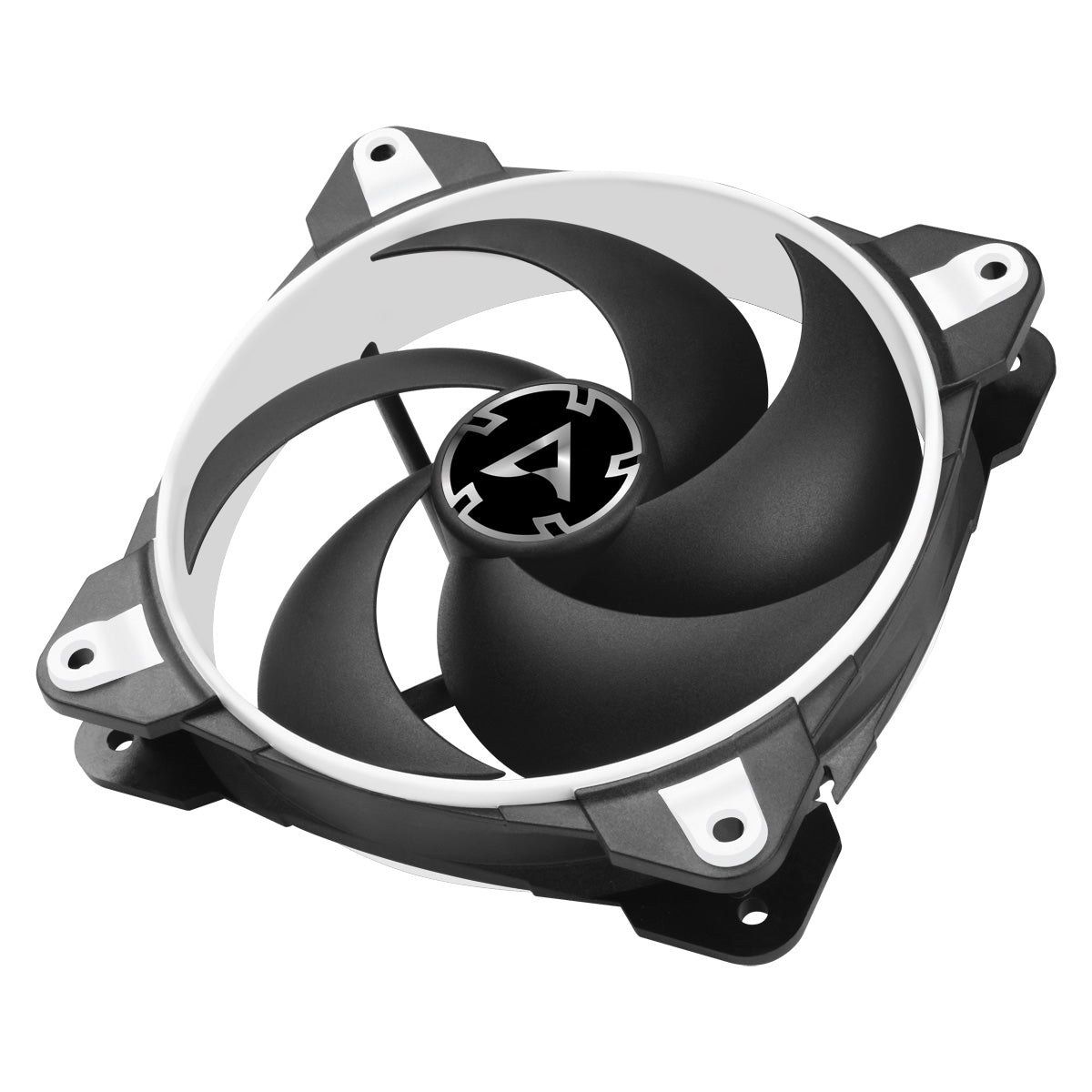

Arctic BioniX P120 Pressure-Optimised 120 mm Gaming Fan with PWM Sharing Technology
Arctic BioniX P120 Pressure-Optimised 120 mm Gaming Fan with PWM Sharing Technology
Brand : Arctic Cooling
SKU: SKU: ACFAN00116A
30 in stock
Couldn't load pickup availability
Optimised for Static Pressure
During the development of the new BioniX P120, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the BioniX P120 is particularly suitable for use on heatsinks and radiators.
Strong Cooling Performance
Numerous improvements, such as updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans. In internal performance tests leveled to 28 dB (A), the new P-fans left many competitors behind. More information can be found in our FAQ.
More Efficient Technology
The motor is powered by a PWM IC of the newest generation, which allows the new BioniX P120 to run much more efficiently than its predecessors. This saves energy without compromising performance.
Maximum Quietness, Minimum Vibration
Even at low speeds, the operating sound of the new ARCTIC motor is barely noticeable. Due to sinus-magnetizing the new motor only creates about 5 % of the vibration from the commutation of a regular DC motor without a filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
200 to 2100 rpm Regulated via PWM PST
With a wide range of regulations and the PWM Sharing Technology (PST), the BioniX P120 fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.
High-Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Two Way Installation
- Blow warm air out of the case
- Draw cool air into your case
TECHNICAL SPECIFICATIONS & MANUAL
General Data
Performance
Fan Speed: 200—2100 rpm
Airflow: 67.56 cfm | 114.9 m³/h
Static Pressure: 2.75 mmH2O
Noise Level: 0.45 Sone
Operating Ambient Temperature: 0—40 °C
Fan Frame: BioniX
Control Type: PWM PST
Connector: 4-Pin Connector + 4-Pin Socket
Fan Bearing: Fluid Dynamic Bearing
Electric Characteristics
Typical Voltage: 12 V DC
Starting Voltage: 4.3 V
Current | Voltage: 0.13 A | 12 V DC
Cable Length: 400 mm
Size & Weight
Length: 120 mm
Width: 120 mm

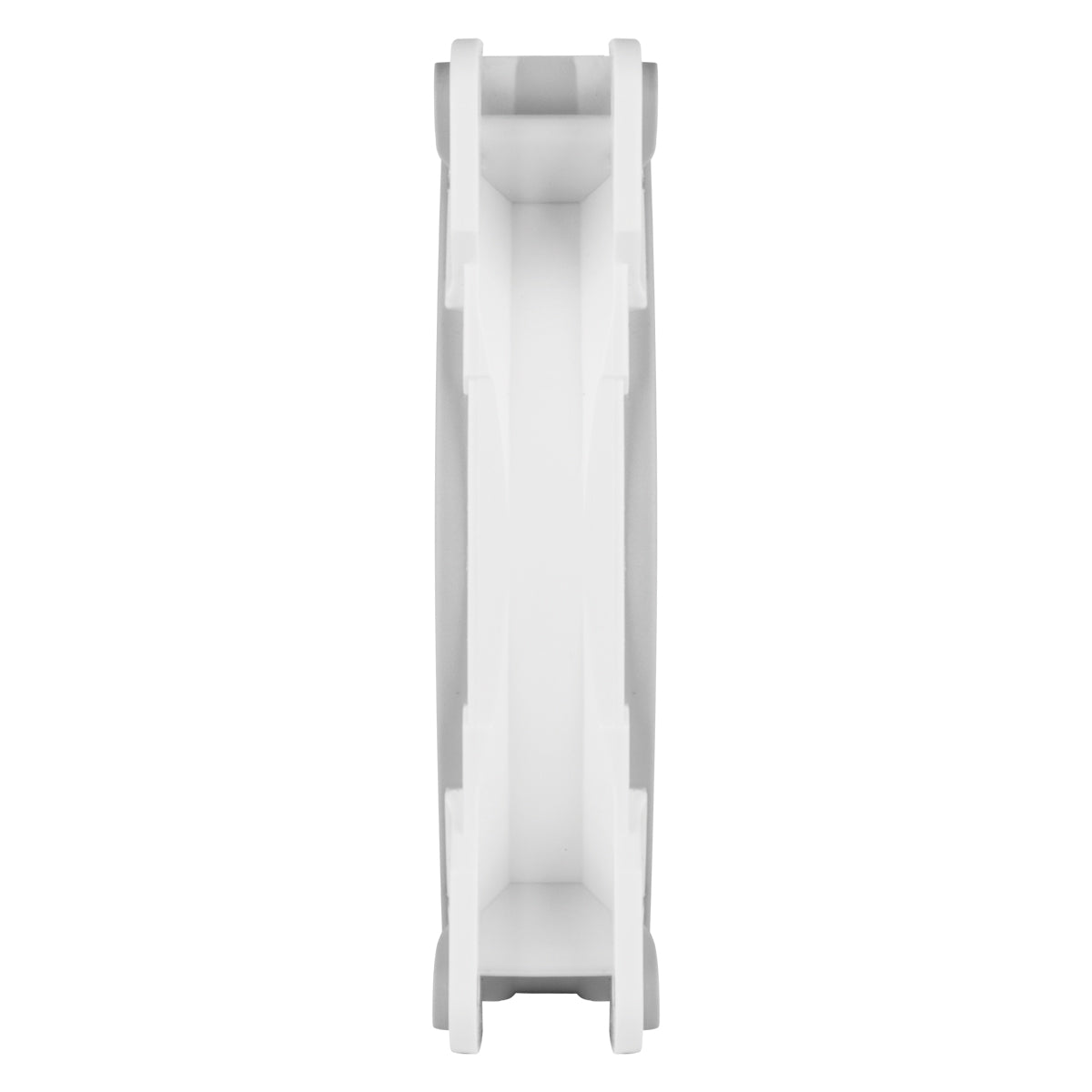

Height: 27 mm
Weight: 140 g
