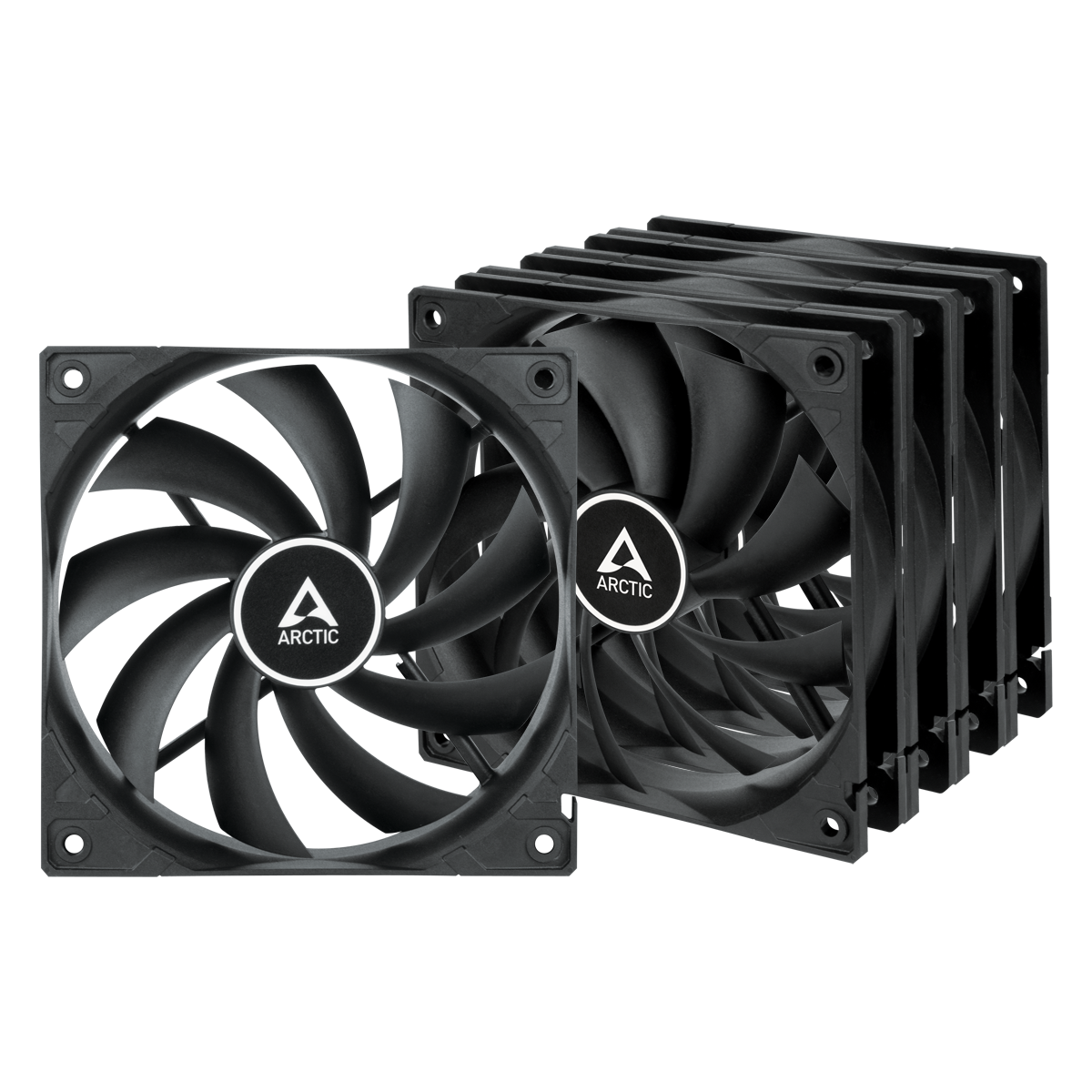

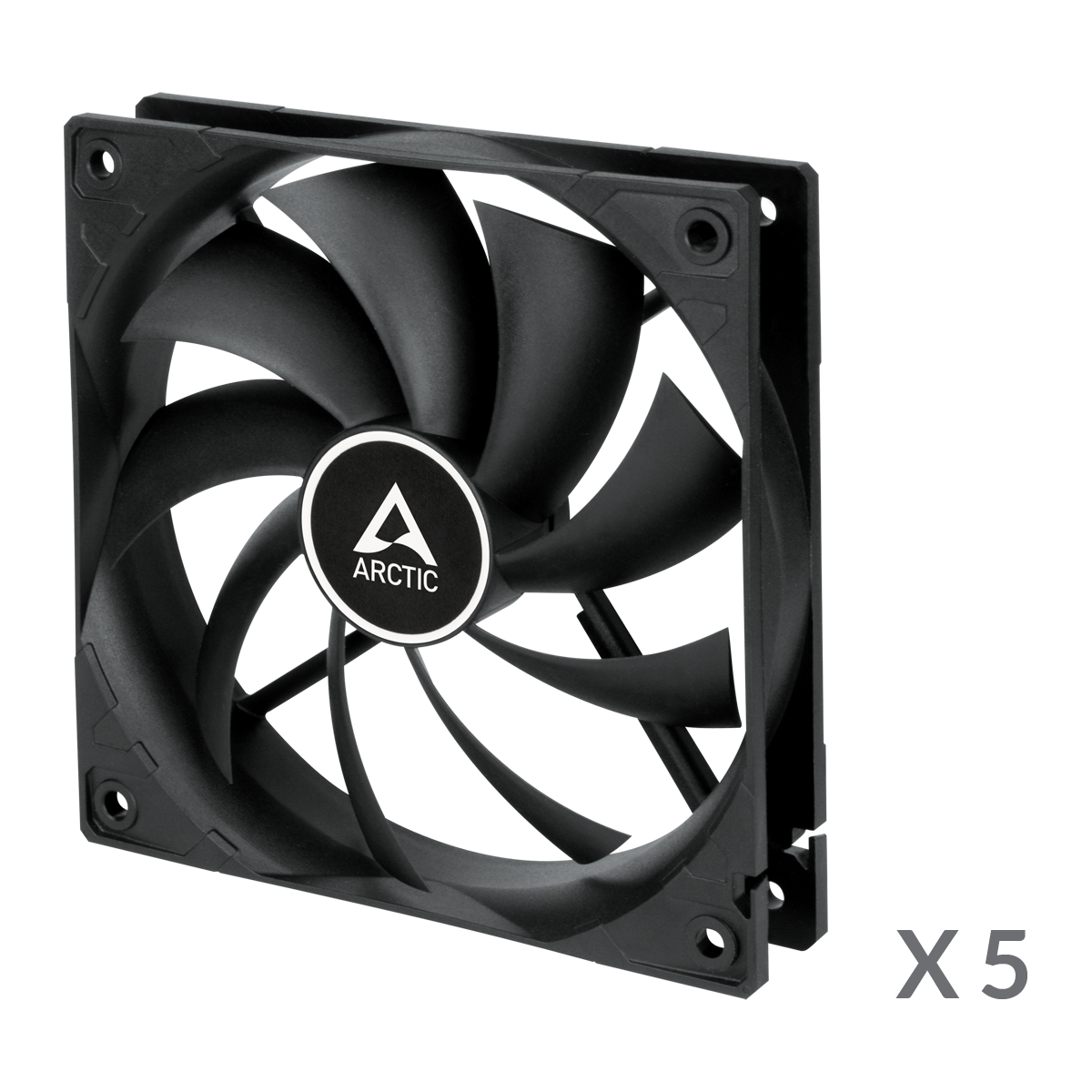

Arctic F12 120 mm Standard Case fan (Pack of 5 Value Pack) Low Noise, quiet motor, Fan Speed: 1350 RPM (ACFAN00248A)
Arctic F12 120 mm Standard Case fan (Pack of 5 Value Pack) Low Noise, quiet motor, Fan Speed: 1350 RPM (ACFAN00248A)
Brand : Arctic Cooling
Regular price
Couldn't load pickup availability
Maximum Quietness, Minimum Vibration
Even at low speeds, the operating sound of the new ARCTIC motor is barely noticeable. Due to sinus-magnetizing the new motor only creates about 5 % of the vibration from the commutation of a regular DC motor without a filter.
Innovative Design Enables Quiet and Efficient Ventilation
The innovative design of the fan blades improves the airflow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimising the noise level yet delivering the desired airflow and pressure.
Long Service Life
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life.
Two Way Installation
- Blow warm air out of the case
- Draw cool air into your case
TECHNICAL SPECIFICATIONS & MANUAL
General Data
Performance
Fan Speed: 1350 rpm
Airflow: 53 cfm | 90.1 m³/h
Static Pressure: 1.00 mmH2O
Noise Level: 0.3 Sone
Fan Frame: Standard
Control Type: Fixed Speed
Connector: 3-Pin Connector
Fan Bearing: Fluid Dynamic Bearing
Operating Ambient Temperature: 0—40 °C
Electric Characteristics
Typical Voltage: 12 V DC
Starting Voltage: 2.7 V
Current | Voltage: 0.12 A | 12 V DC
Cable Length: 400 mm
Size & Weight
Length: 120 mm
Width: 120 mm
Height: 25 mm
Weight: 107 g
Description
Maximum Quietness, Minimum Vibration
Even at low speeds, the operating sound of the new ARCTIC motor is barely noticeable. Due to sinus-magnetizing the new motor only creates about 5 % of the vibration from the commutation of a regular DC motor without a filter.
Innovative Design Enables Quiet and Efficient Ventilation
The innovative design of the fan blades improves the airflow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimising the noise level yet delivering the desired airflow and pressure.
Long Service Life
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life.
Two Way Installation
- Blow warm air out of the case
- Draw cool air into your case
TECHNICAL SPECIFICATIONS & MANUAL
General Data
Performance
Fan Speed: 1350 rpm
Airflow: 53 cfm | 90.1 m³/h
Static Pressure: 1.00 mmH2O
Noise Level: 0.3 Sone
Fan Frame: Standard
Control Type: Fixed Speed
Connector: 3-Pin Connector
Fan Bearing: Fluid Dynamic Bearing
Operating Ambient Temperature: 0—40 °C
Electric Characteristics
Typical Voltage: 12 V DC
Starting Voltage: 2.7 V
Current | Voltage: 0.12 A | 12 V DC
Cable Length: 400 mm
Size & Weight
Length: 120 mm
Width: 120 mm
Height: 25 mm
Weight: 107 g
