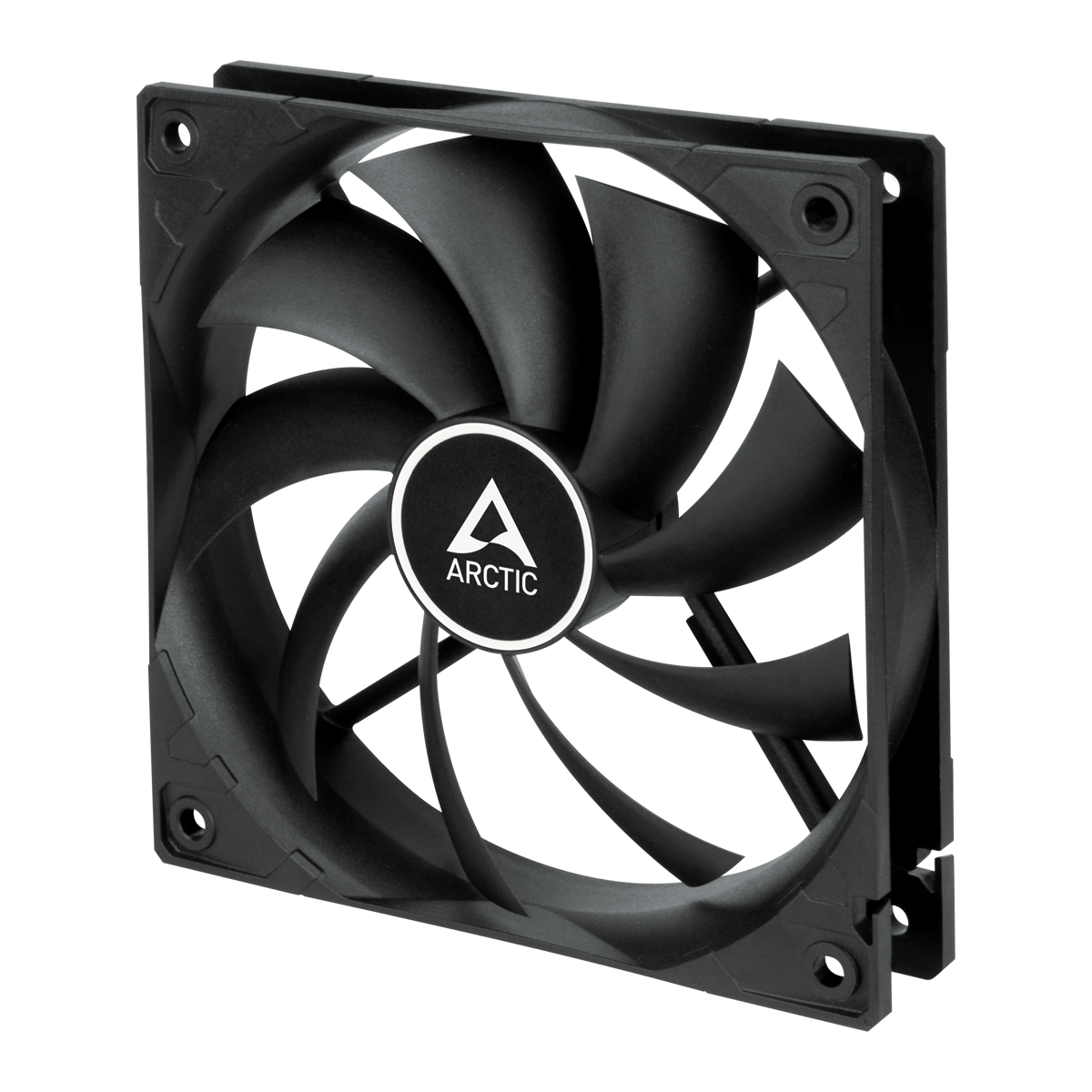

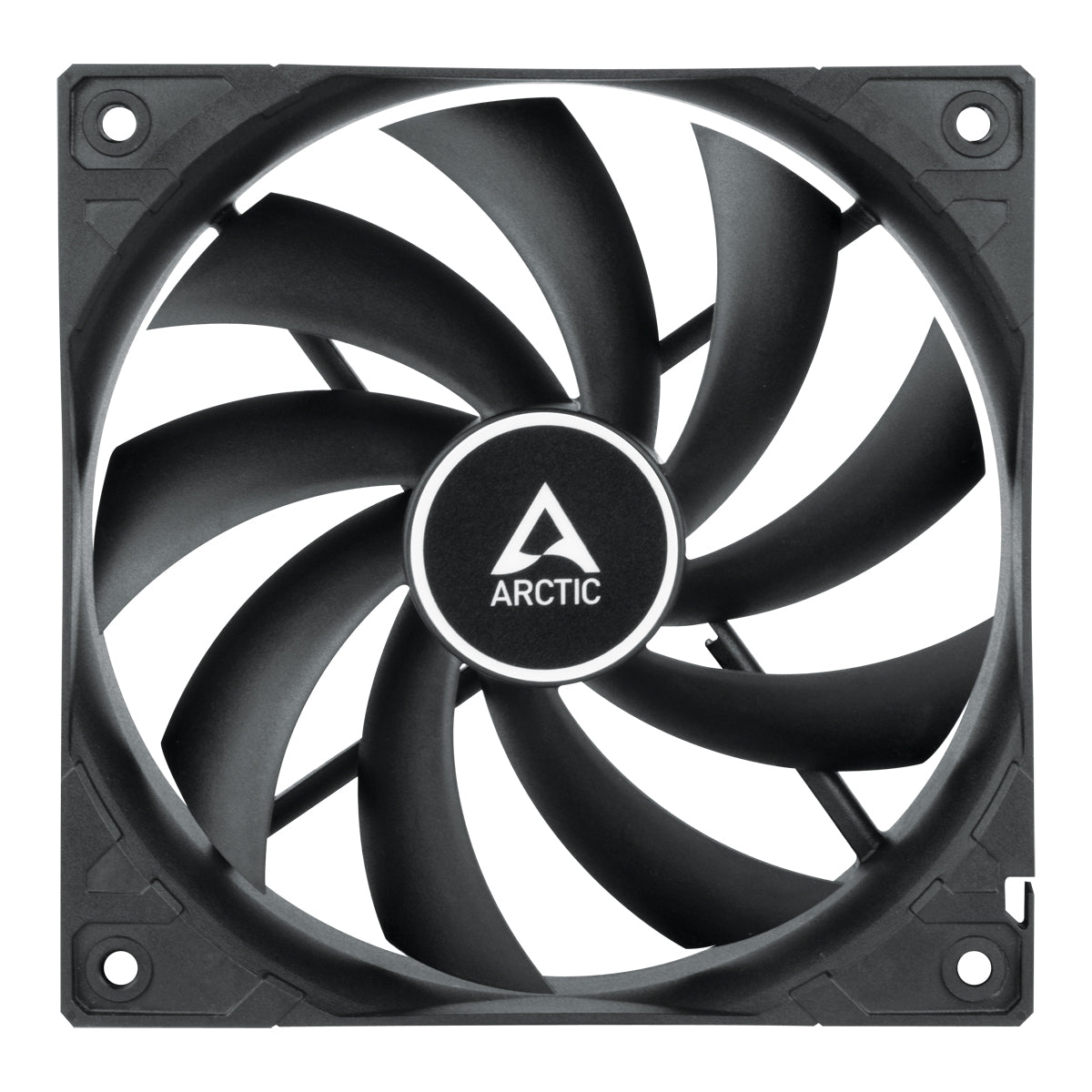

Arctic F12 PWM 120 mm 4-Pin Case Fan with PWM (ACFAN00203A)
Arctic F12 PWM 120 mm 4-Pin Case Fan with PWM (ACFAN00203A)
Brand : Arctic Cooling
SKU: SKU: ACFAN00203A
50 in stock
Couldn't load pickup availability
Arctic F12 PWM 120 mm 4-Pin Case Fan with PWM (ACFAN00203A)
Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter.
Perfect Case Fan Regulation with PWM
The PWM function allows the motherboard to run the fan precisely at its necessary speed. This guarantees the required cooling and minimizes the noise level.
Long Service Life
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life
Innovative Design Enables Quiet and Efficient Ventilation
The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.
Two Way installation
- Blow warm air out of the case
- Draw cool air into your case
TECHNICAL SPECIFICATIONS & MANUAL
General Data
Performance
Fan Speed: 230—1350 rpm
Airflow: 53 cfm | 90.1 m³/h
Static Pressure: 1.00 mmH2O
Noise Level: 0.3 Sone
Fan Frame: Standard
Control Type: PWM
Connector: 4-Pin Connector
Fan Bearing: Fluid Dynamic Bearing
Operating Ambient Temperature: 0—40 °C
Electric Characteristics:
Typical Voltage: 12 V DC
Starting Voltage: 6 V
Current | Voltage: 0.12 A | 12 V DC
Cable Length: 400 mm
Size & Weight
Length: 120 mm
Width: 120 mm
Height: 25 mm
Weight: 105 g
