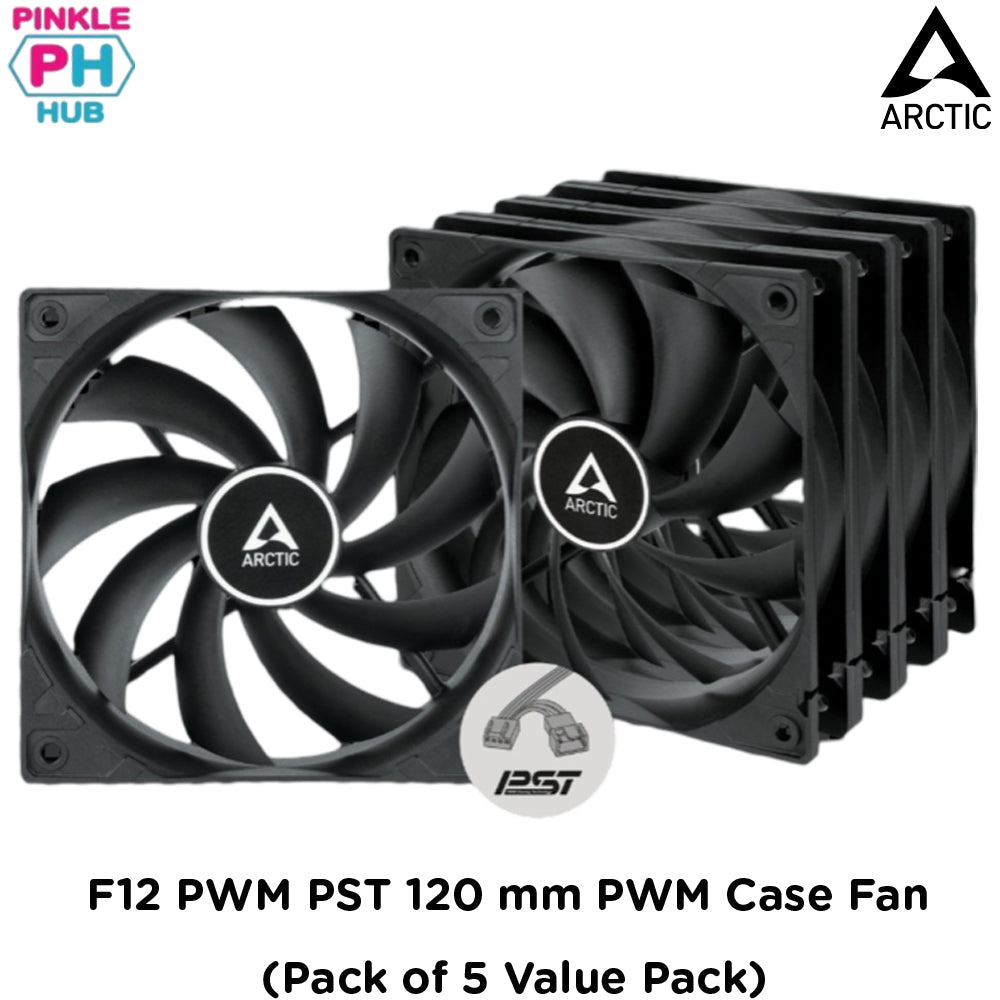

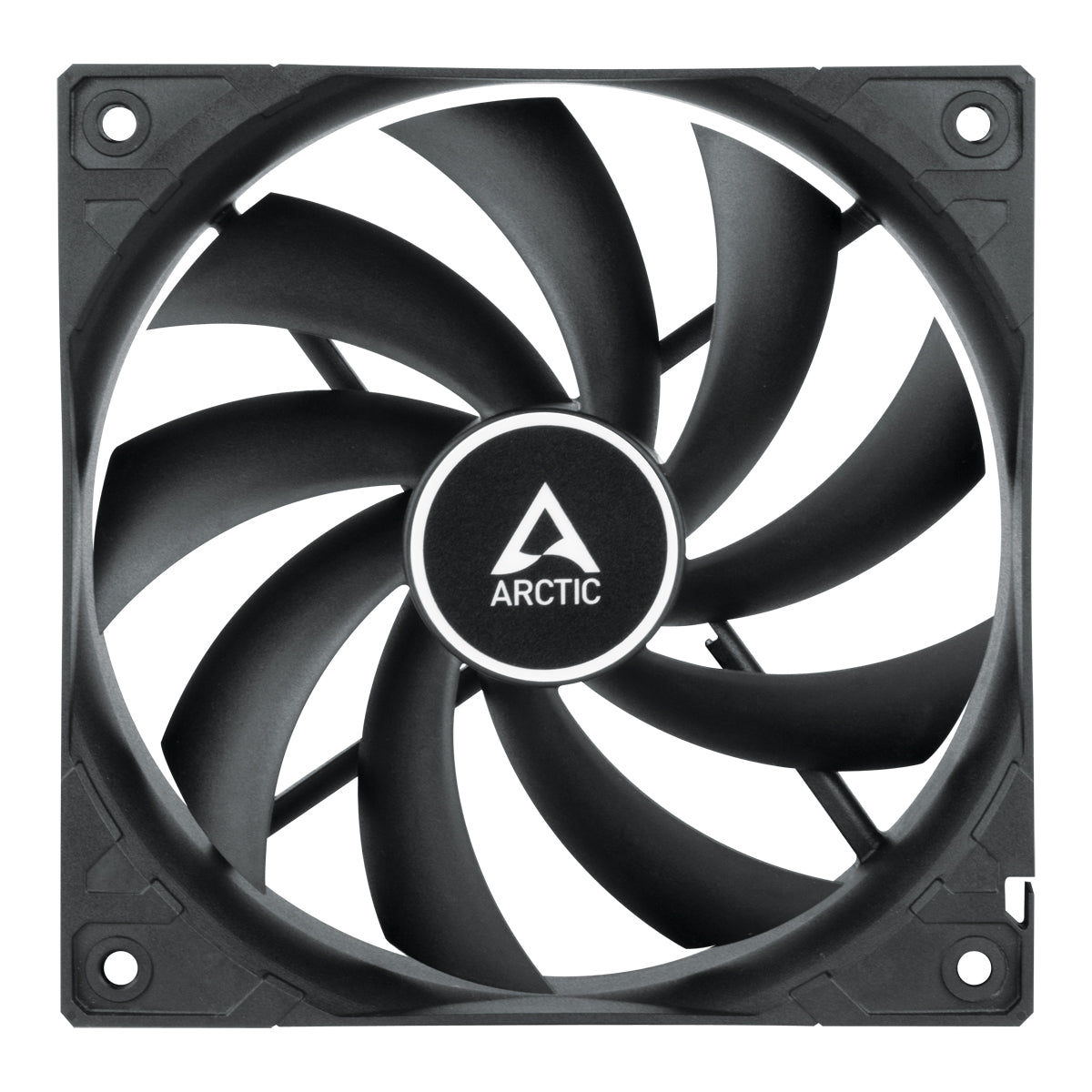

Arctic F12 PWM PST 120 mm PWM Case Fan (Pack of 5 Value Pack) (ACFAN00250A)
Arctic F12 PWM PST 120 mm PWM Case Fan (Pack of 5 Value Pack) (ACFAN00250A)
Brand : Arctic Cooling
SKU: SKU: ACFAN00250A
Low stock: 10 left
Couldn't load pickup availability
Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter.
Perfect Case Fan Regulation with PWM
The PWM function allows the motherboard to run the fan precisely at its necessary speed. This guarantees the required cooling and minimizes the noise level.
PWM Sharing Technology (PST) Lowers Noise
If you want to improve the cooling efficiency of your computer you get several case fans working in parallel (since it takes ten fans to double the noise level). But what does it help if they don't work together? The PST assures that all of your fans listen to one control signal. E.g. you share the CPU Cooler's PWM signal and assure that your case fans stand down at low load and spin up whenever necessary.
Innovative Design Enables Quiet and Efficient Ventilation
The innovative design of the fan blades improves the airflow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimising the noise level yet delivering the desired airflow and pressure.
Two Way Installation
- Blow warm air out of the case
- Draw cool air into your case
Long Service Life
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life.
TECHNICAL SPECIFICATIONS & MANUAL
General Data
Performance
Fan Speed: 230—1350 rpm
Airflow: 53 cfm | 90.1 m³/h
Static Pressure: 1 mmH2O
Noise Level: 0.3 Sone
Fan Frame: Standard
Control Type: PWM PST
Connector: 4-Pin Connector + 4-Pin Socket
Fan Bearing: Fluid Dynamic Bearing
Operating Ambient Temperature: 0—40 °C
Electric Characteristics
Typical Voltage: 12 V DC
Starting Voltage: 6 V
Current | Voltage: 0.12 A | 12 V DC
Cable Length: 400 mm
Size & Weight
Length: 120 mm
Width: 120 mm
Height: 25 mm
Weight: 109 g
