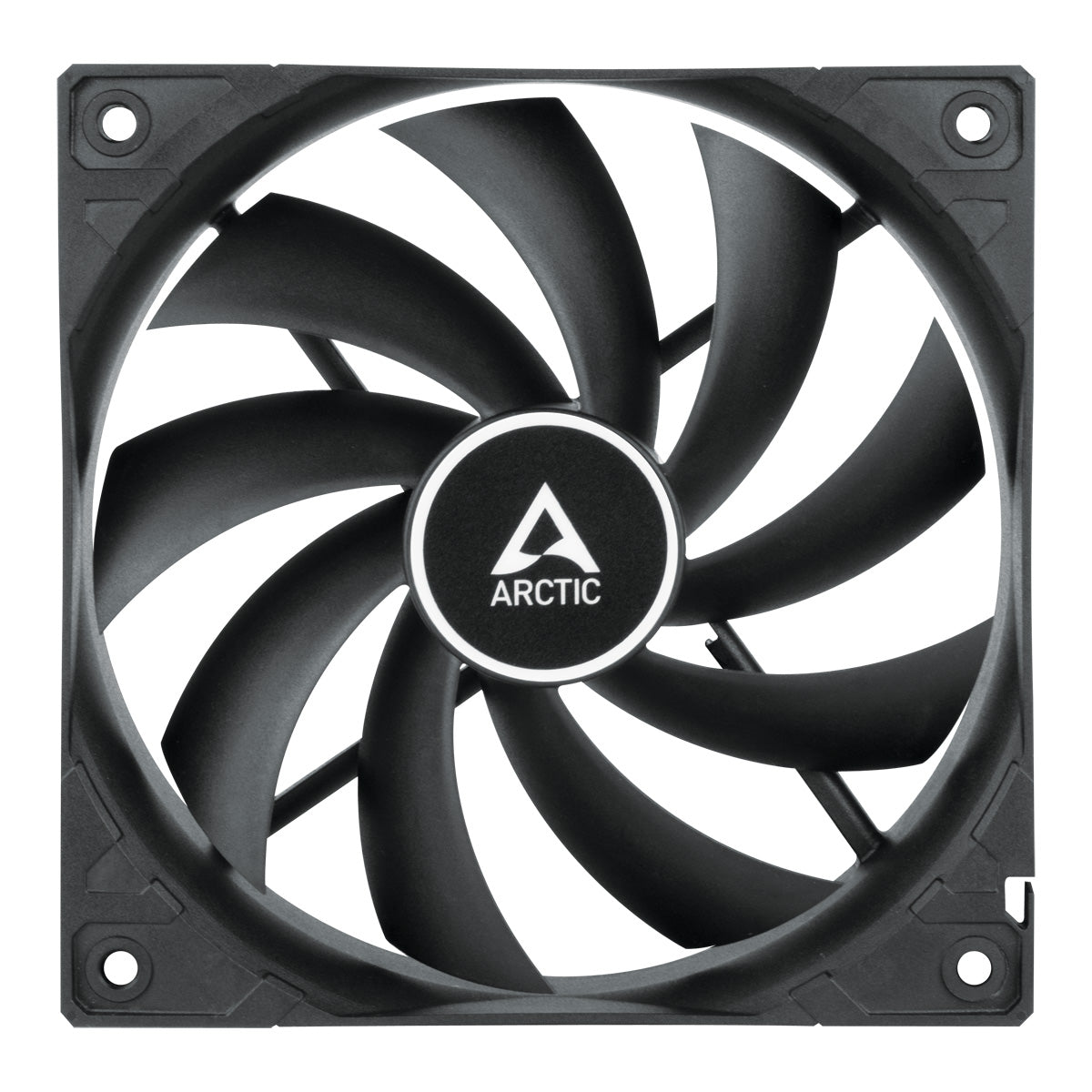

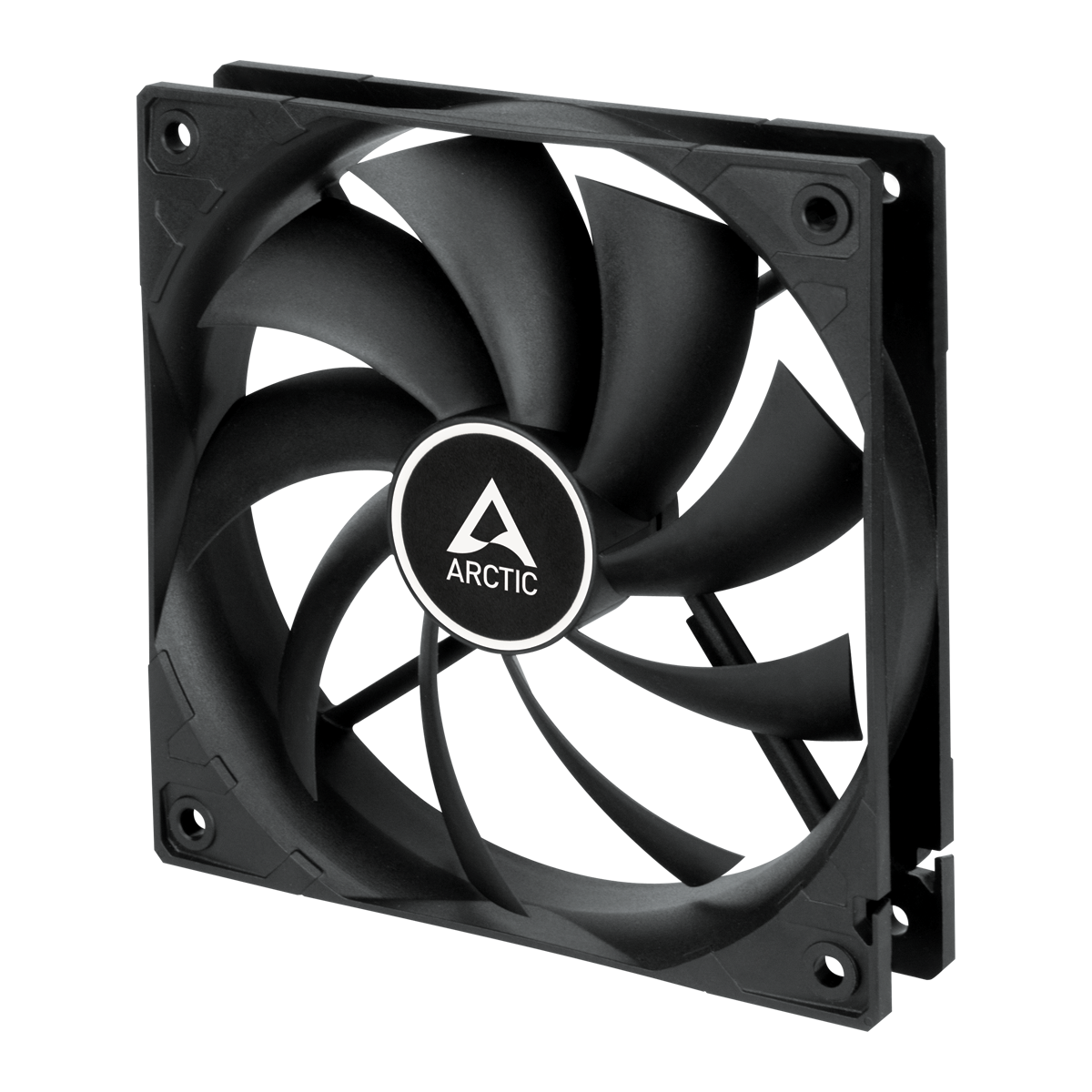

Arctic F12 Silent 120 mm Low Noise Fan (ACFAN00202A)

Virtually Silent Motor
At low fan speed, the motor noise is the main source of unwanted noise. A newly developed motor with an enhanced bearing reduces friction and noise and enables almost silent operation.

Maximum Quietness, Minimum Vibration
Even at low speeds, the operating sound of the new ARCTIC motor is barely noticeable. Due to sinus-magnetizing the new motor only creates about 5 % of the vibration from the commutation of a regular DC motor without a filter.

Innovative Design Enables Quiet and Efficient Ventilation
The innovative design of the fan blades improves the airflow and facilitates highly efficient ventilation. The impeller was designed with a focus on minimizing the noise level yet delivering the desired airflow and pressure.

Long Service Life
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus, this bearing is as quiet as a sleeve bearing but comes with a significantly longer service life.

Different Installation
Exhaust hot air out of the case
Intake cool air into the case
3-pin connector for mainboard and power supply that also works with 4-pin headers.

TECHNICAL SPECIFICATIONS & MANUAL

General Data
Performance
Fan Speed: 800 rpm
Airflow: 37 cfm | 62.9 m³/h
Static Pressure: 0.3 mmH2O
Noise Level: 0.08 Sone

Fan
Fan Frame: Standard
Control Type: Fixed Speed
Connector: 3-Pin Connector
Fan Bearing: Fluid Dynamic Bearing
Operating Ambient Temperature: 0—40 °C
Warranty: 6 Years
Electric Characteristics
Typical Voltage: 12 V DC
Starting Voltage: 4 V
Current | Voltage: 0.071 A | 12 V DC
Cable Length: 400 mm

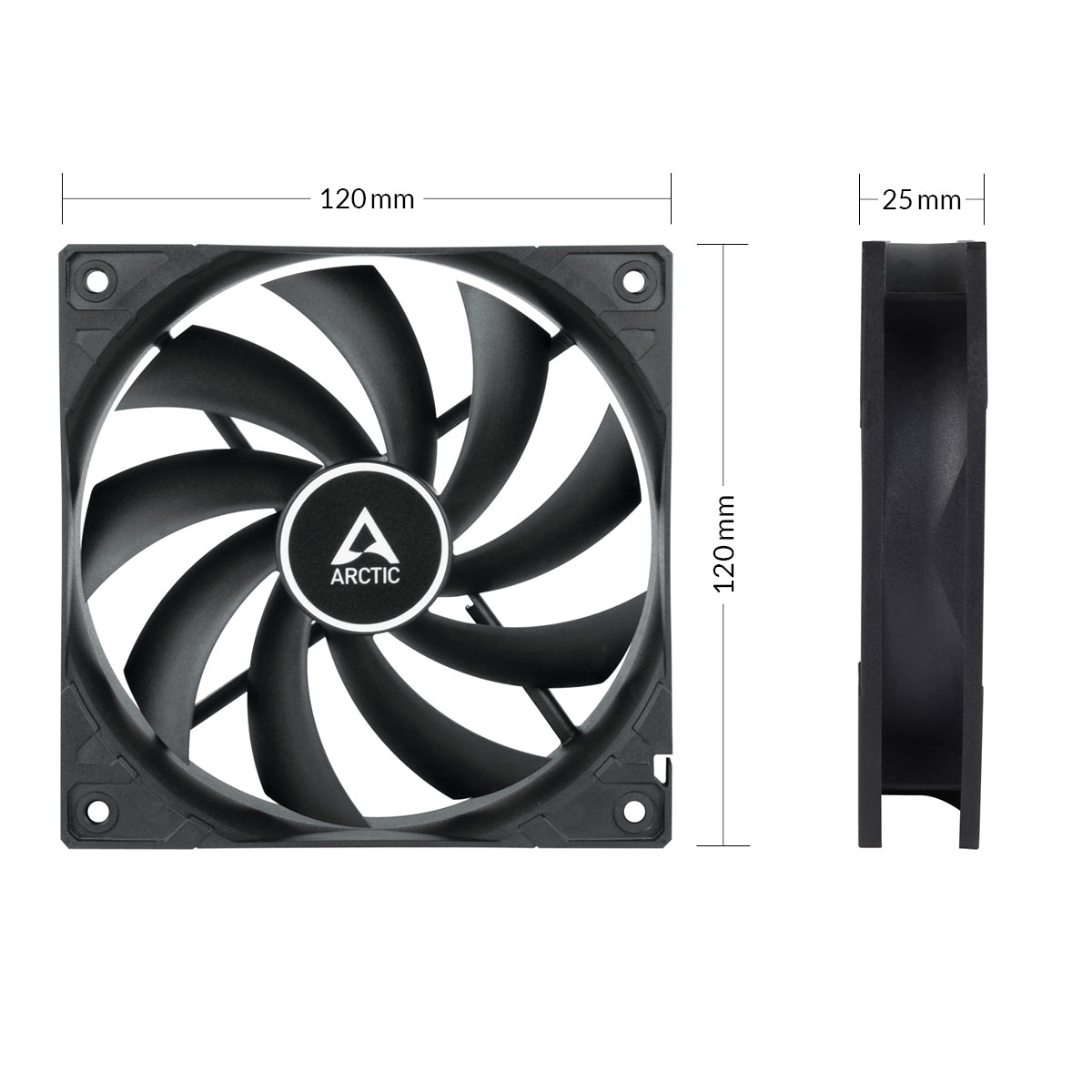

Size & Weight
Length: 120 mm
Width: 120 mm
Height: 25 mm
Weight: 107 g

Packaging
Width: 123 mm
Height: 123 mm
Length: 27 mm
Weight: 0.13 kg

Quality You Can Rely On
To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how to improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality but also durability. It's a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee on the F12 Silent.
