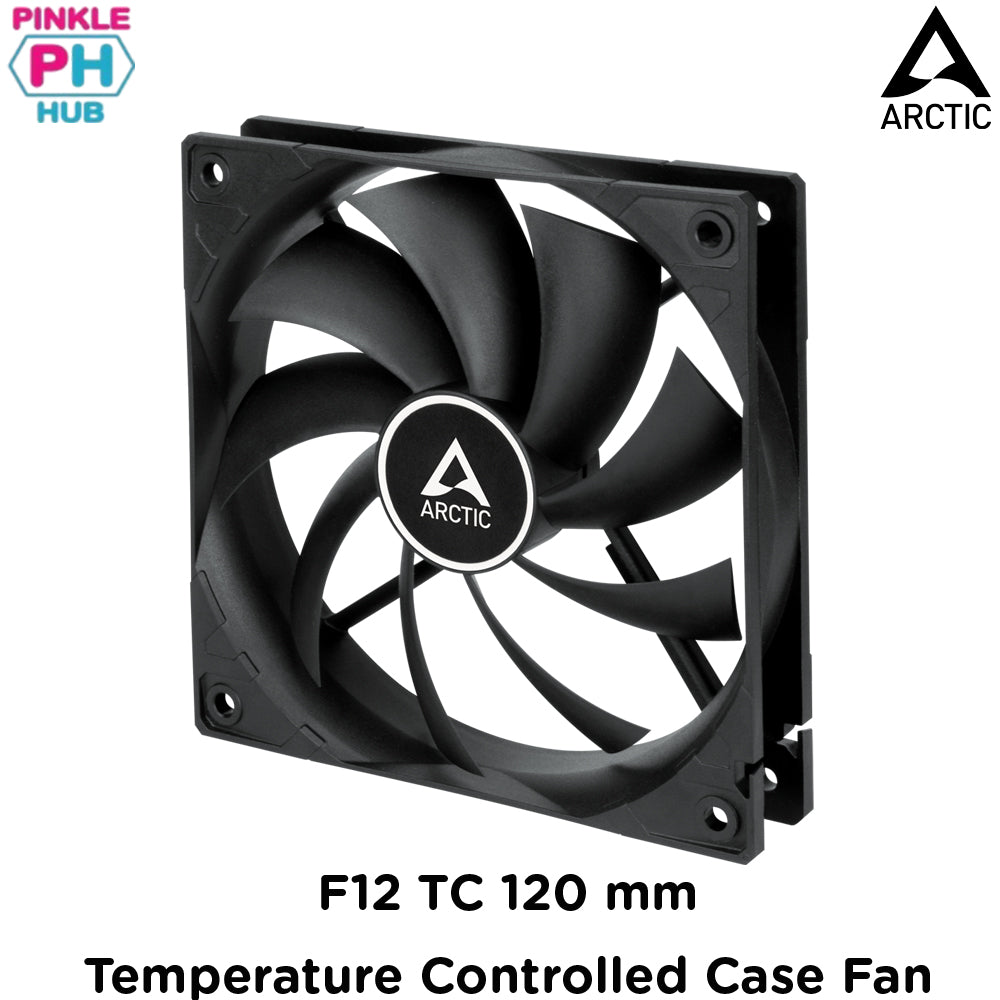

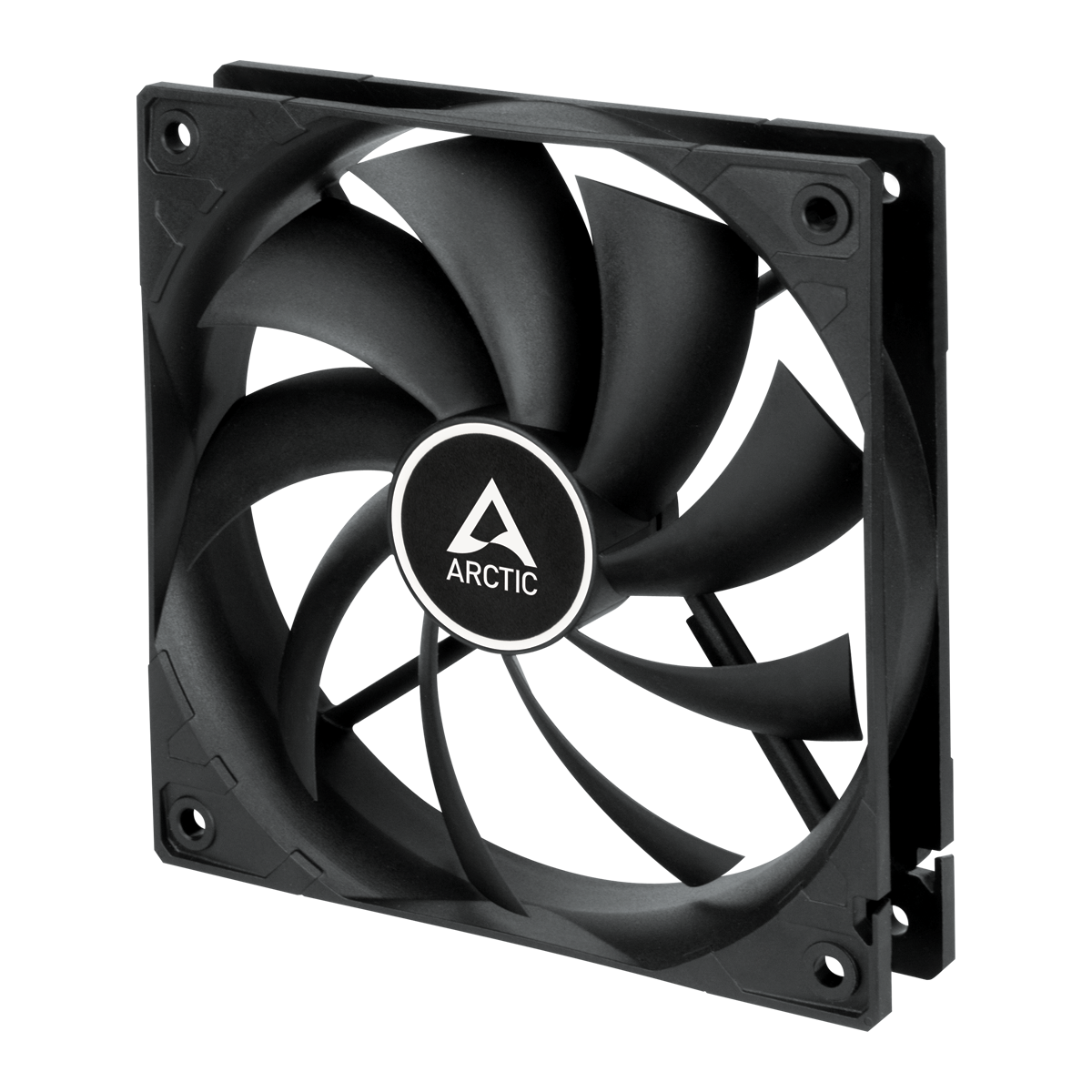

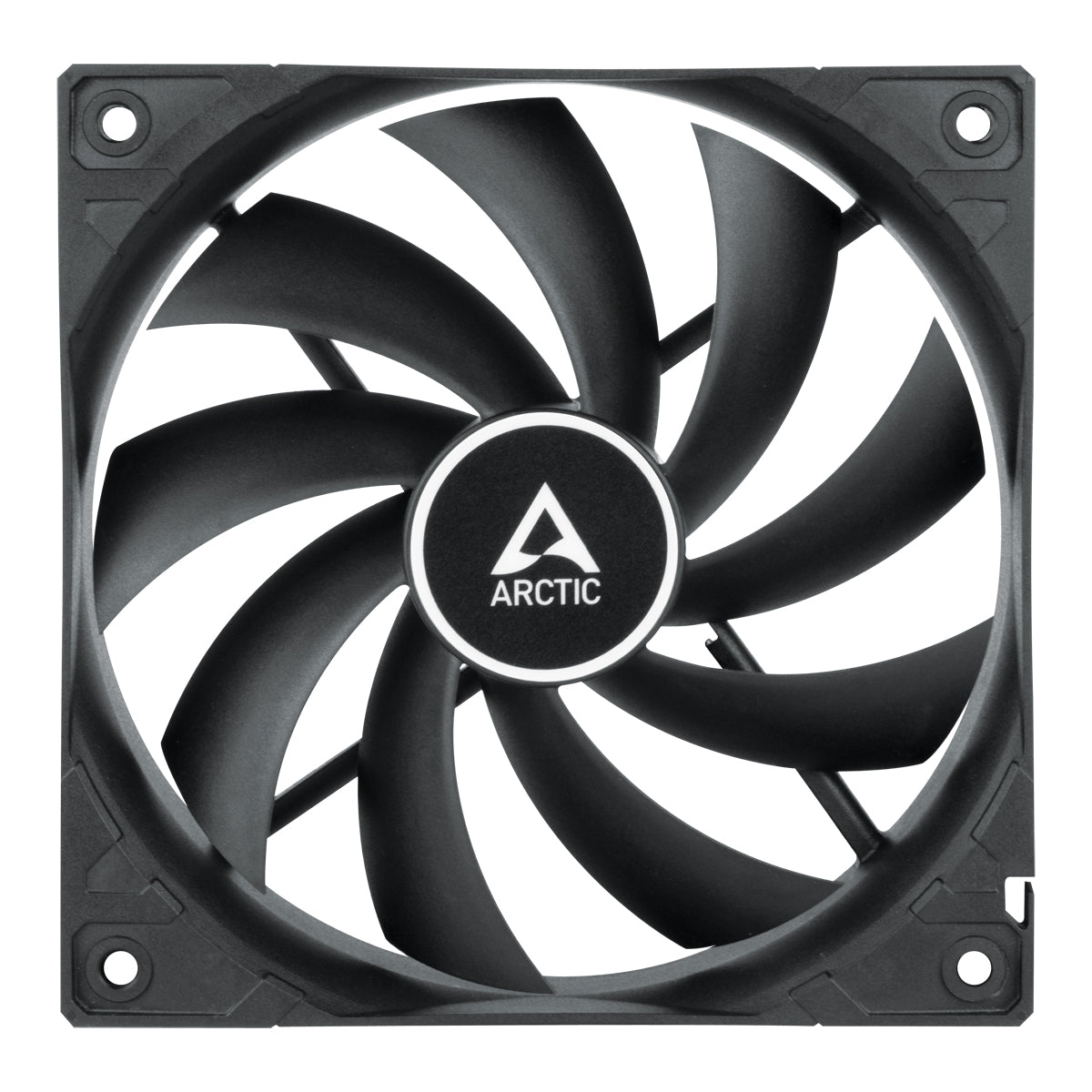

Arctic F12 TC 120 mm Temperature Controlled Case Fan (ACFAN00199A)

Arctic F12 TC 120 mm Temperature Controlled Case Fan (ACFAN00199A)

Brand : Arctic Cooling

Regular price ₱420.00
Sale price ₱420.00
Regular price ₱455.00 -8%
Sale! Sold out

Long Service Life

The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life.

Fluid-Dynamic-Bearing_New_EN

Innovative Design Enables Quiet and Efficient Ventilation

The innovative design of the fan blades improves the airflow and facilitates highly efficient ventilation. The impeller was designed with a focus on minimising the noise level yet delivering the desired airflow and pressure.

F12_TC_black_optimised_fan_design

Ideal Temperature Control

The temperature sensor is on a 40 cm cable and can be placed in the warm areas of your computer. This assures temperatures no higher than 38 °C anywhere in the case and supports the cooling of your CPU or graphics card. On the other side, this fan keeps the noise level minimal and only increases the speed if necessary.

F12_TC_black_temperature-control_EN

Two Way Installation

  • Blow warm air out of the case
  • Draw cool air into your case

F12_TC_black_intake-exhaust-in-case

TECHNICAL SPECIFICATIONS & MANUAL

General Data

Performance
Fan Speed: 300—1350 rpm
Airflow: 53 cfm | 90.1 m³/h
Static Pressure: 1 mmH2O
Noise Level: 0.3 Sone

Fan Frame: Standard
Control Type: Temperature Control
Connector: 3-Pin Connector
Fan Bearing: Fluid Dynamic Bearing
Operating Ambient Temperature: 0—40 °C

Electric Characteristics
Typical Voltage: 12 V DC
Starting Voltage: 6 V
Current | Voltage: 0.20 A | 12 V DC
Cable Length: 400 mm

Size & Weight
Length: 120 mm
Width: 120 mm
Height: 25 mm
Weight: 107 g
