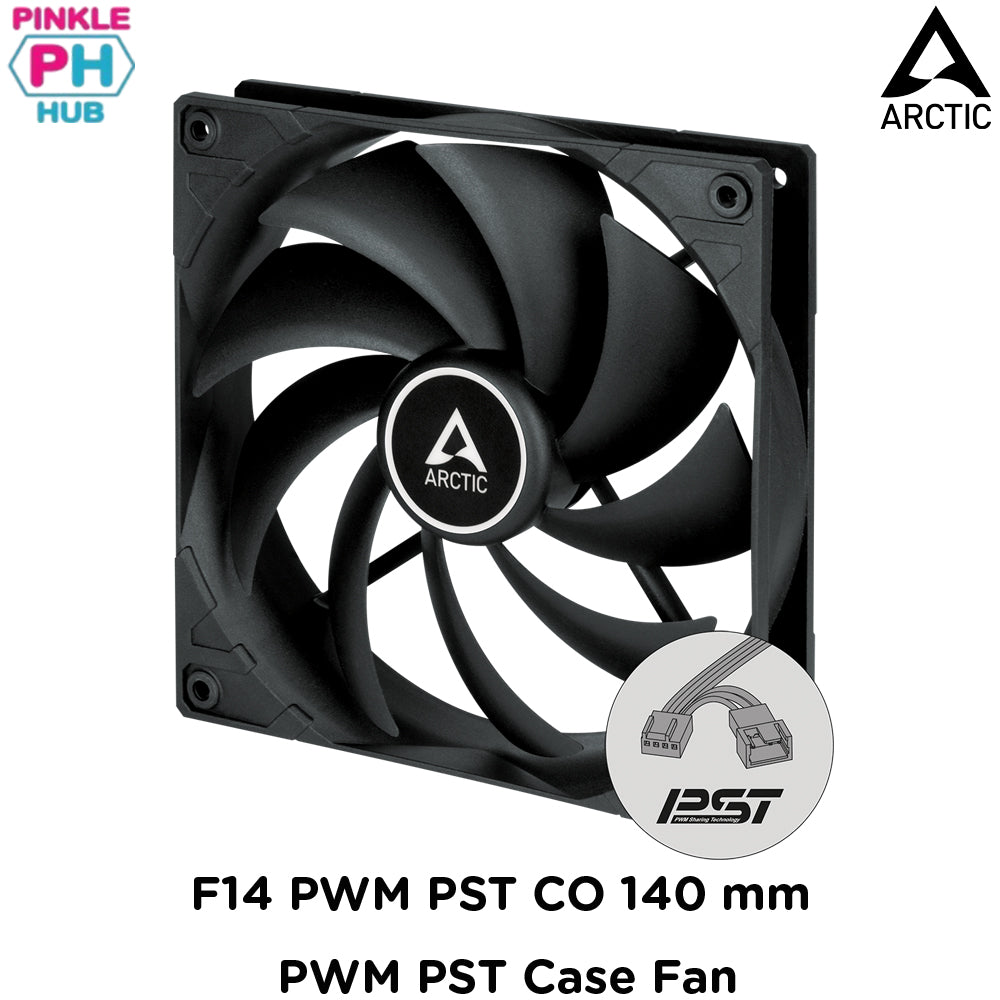

Arctic F14 PWM PST CO 140 mm PWM PST Case Fan for Continuous Operation 200-1350 RPM
Arctic F14 PWM PST CO 140 mm PWM PST Case Fan for Continuous Operation 200-1350 RPM
Brand : Arctic Cooling
SKU: SKU: ACFAN00080A
30 in stock
Couldn't load pickup availability
Perfect Case Fan Regulation with PWM
The PWM function allows the motherboard to run the fan precisely at its necessary speed. This guarantees the required cooling and minimizes the noise level.
Maximum Quietness, Minimum Vibration
Even at low speeds, the operating sound of the new ARCTIC motor is barely noticeable. Due to sinus-magnetizing the new motor only creates about 5 % of the vibration from the commutation of a regular DC motor without a filter.
PWM Sharing Technology (PST) Lowers Noise
If you want to improve the cooling efficiency of your computer you get several case fans working in parallel (since it takes ten fans to double the noise level). But what does it help if they don't work together? The PST assures that all of your fans listen to one control signal. E.g. you share the CPU Cooler's PWM signal and assure that your case fans stand down at low load and spin up whenever necessary.
Innovative Design Enables Quiet and Efficient Ventilation
The innovative design of the fan blades improves the airflow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimising the noise level yet delivering the desired airflow and pressure.
Extented Life Span with Dual Ball Bearing
The premium quality of the dual ball bearing allows 24/7 continuous operation without compromising performance. Contamination and high temperatures affect this bearing much less than ordinary sleeve or ball bearings. Therefore, the dual ball bearing is the perfect choice if you want to ensure continuous operation at maximum speed. Please note that ball bearings have a physically higher bearing noise compared to conventional sleeve bearings.
Two Way Installation
- Blow warm air out of the case
- Draw cool air into your case
TECHNICAL SPECIFICATIONS & MANUAL
General Data
Performance
Fan Speed: 200—1350 rpm
Airflow: 74 cfm | 126 m³/h
Static Pressure: 1.3 mmH2O
Noise Level: 0.3 Sone
Fan Frame: Standard
Control Type: PWM PST
Connector: 4-Pin Connector + 4-Pin Socket
Fan Bearing: Dual Ball Bearing
Operating Ambient Temperature: 0—40 °C
Electric Characteristics
Typical Voltage: 12 V DC
Starting Voltage: 6 V
Current | Voltage: 0.3 A | 12 V DC
Cable Length: 400 mm
Size & Weight
Length: 140 mm
Width: 140 mm
Height: 27 mm
Weight: 183 g
