Reversed Airflow
The P12 Pro Reverse is specifically designed for air intake from the back side. It's particularly suitable when conventional fans would compromise the aesthetics.

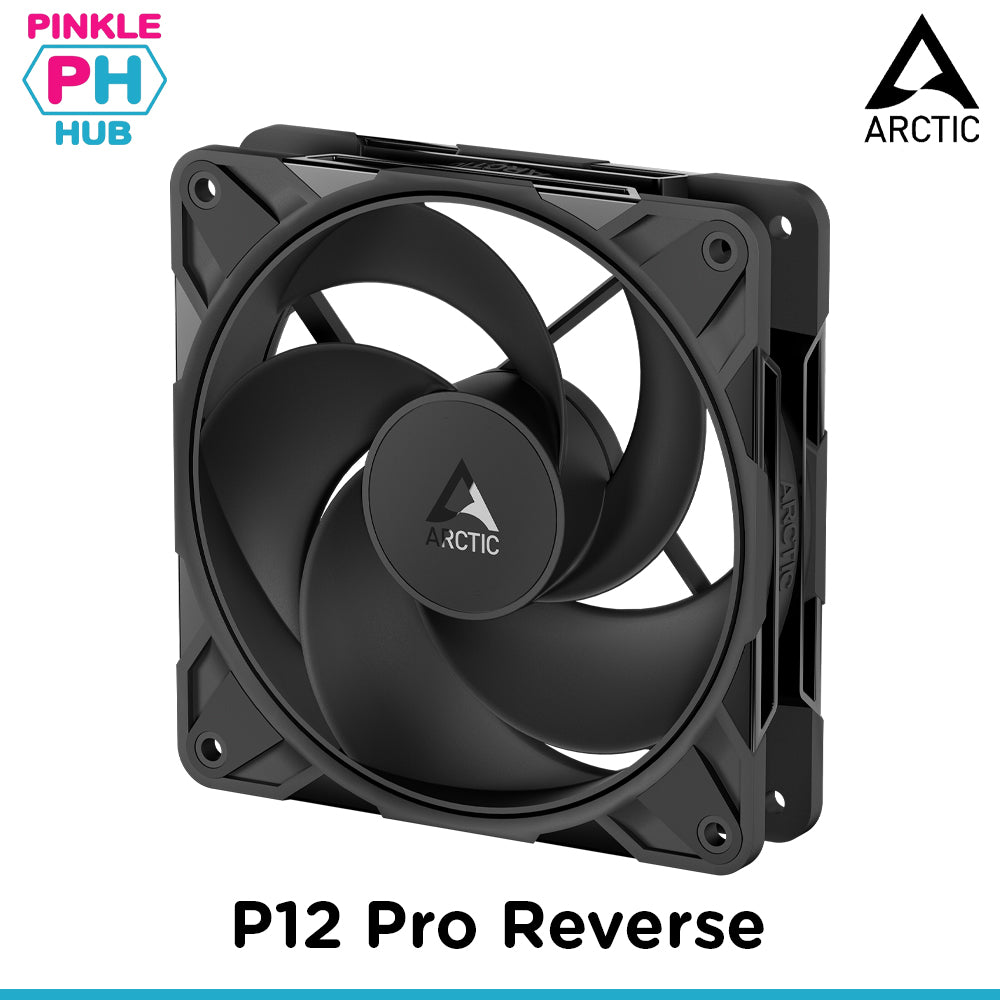

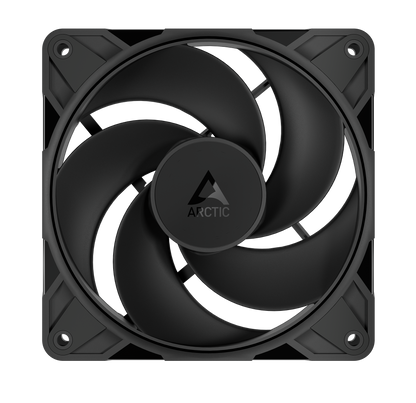

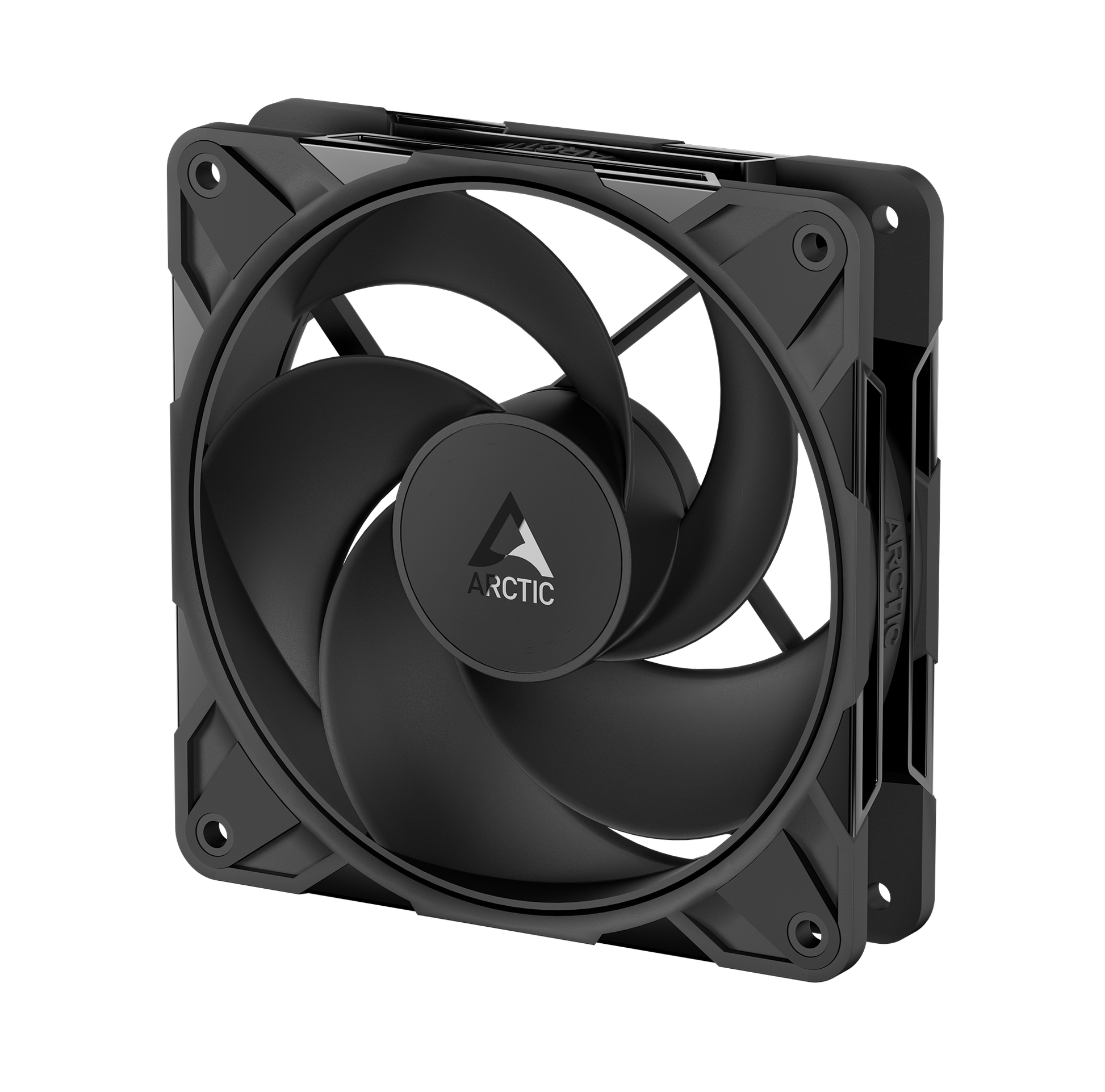

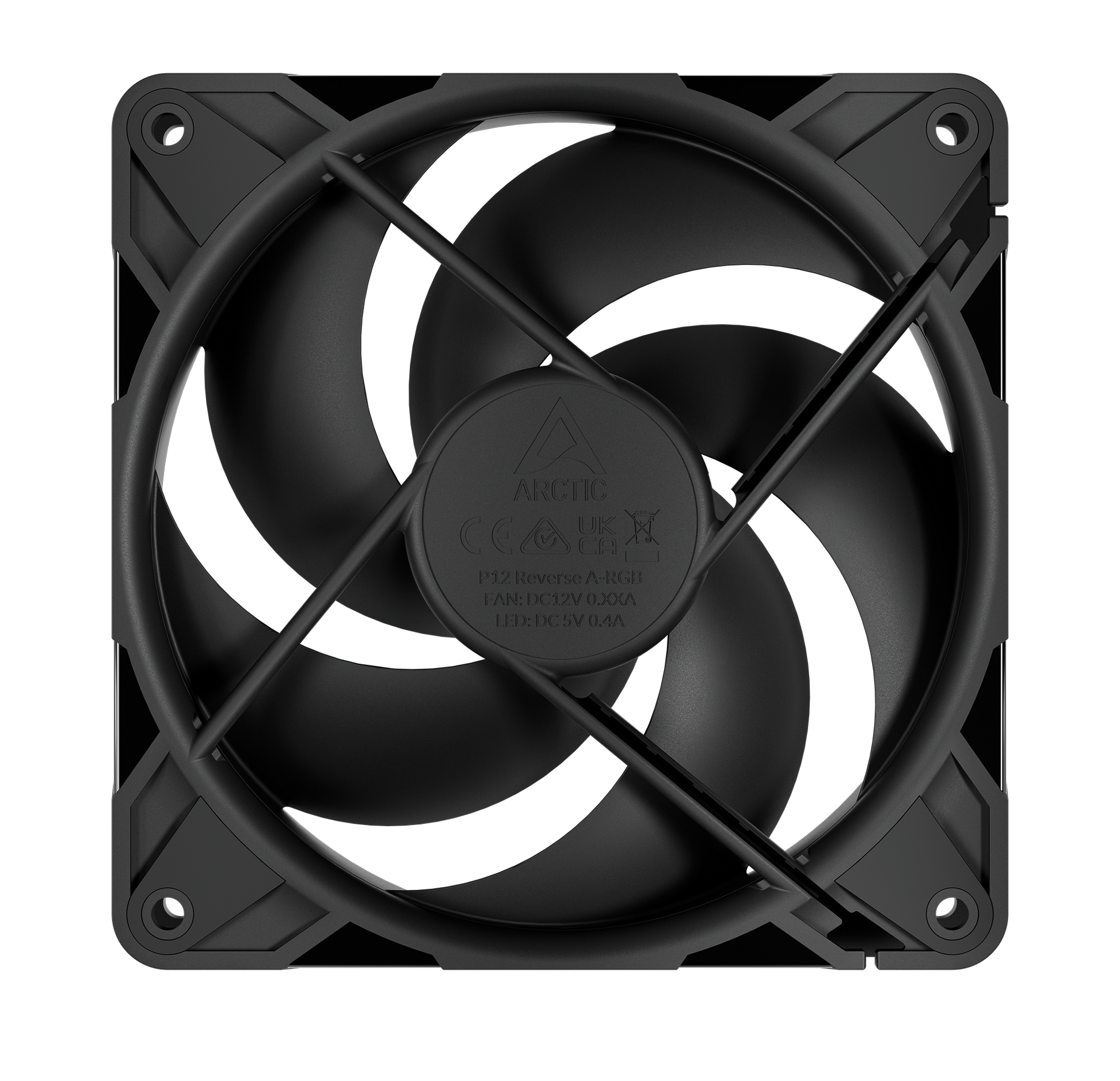

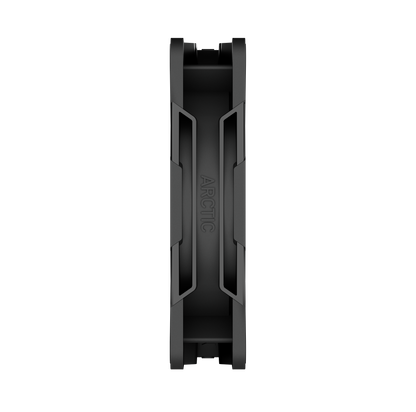

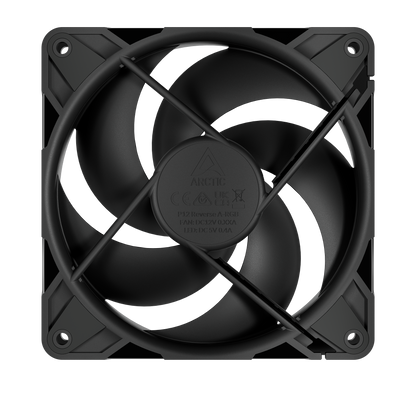

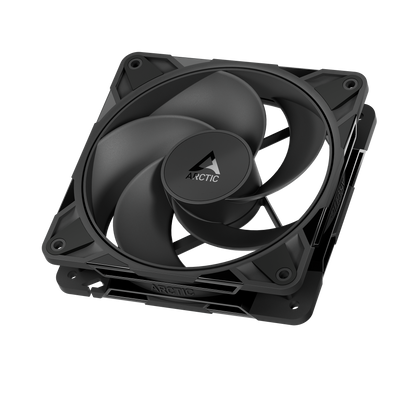

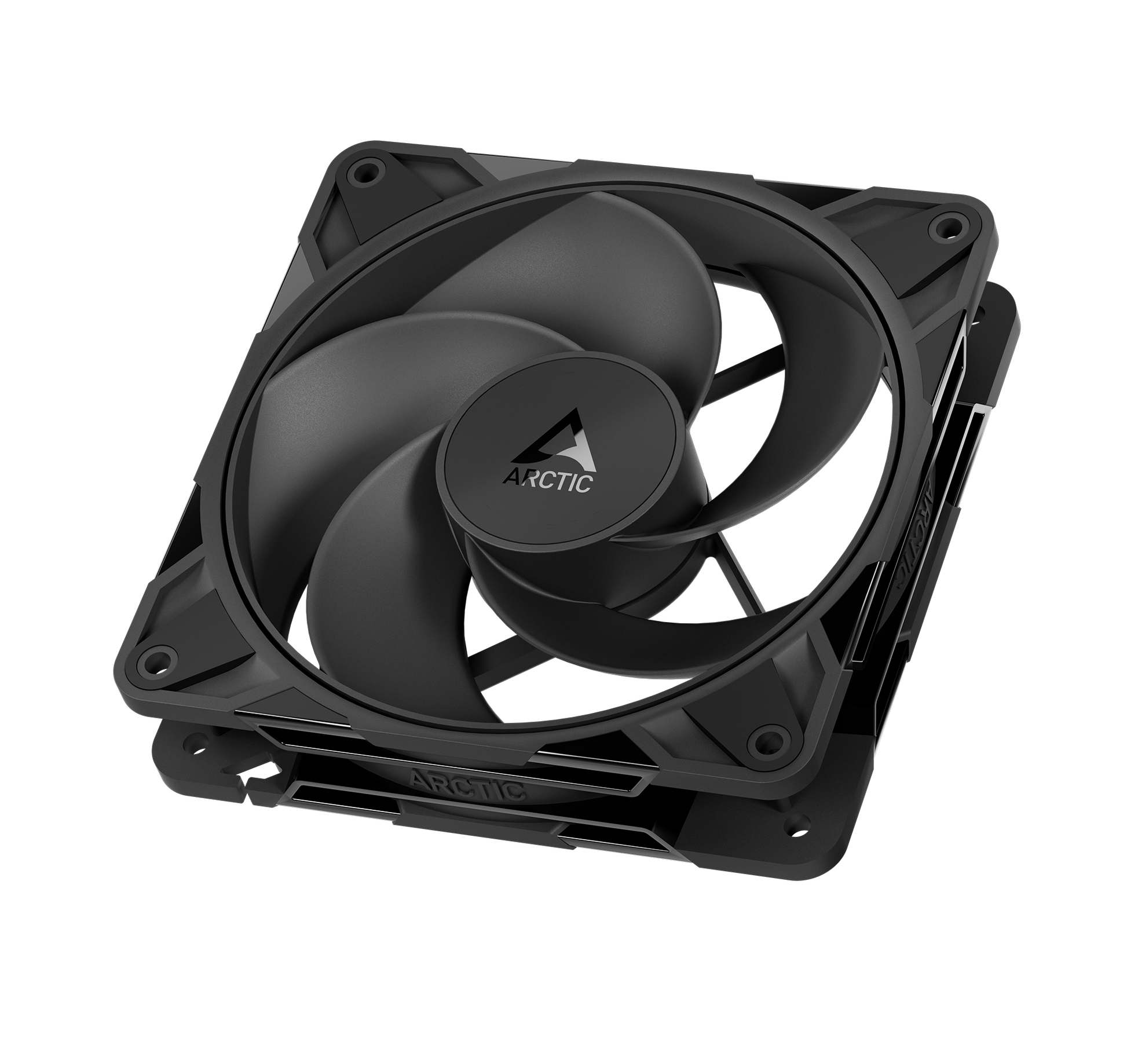

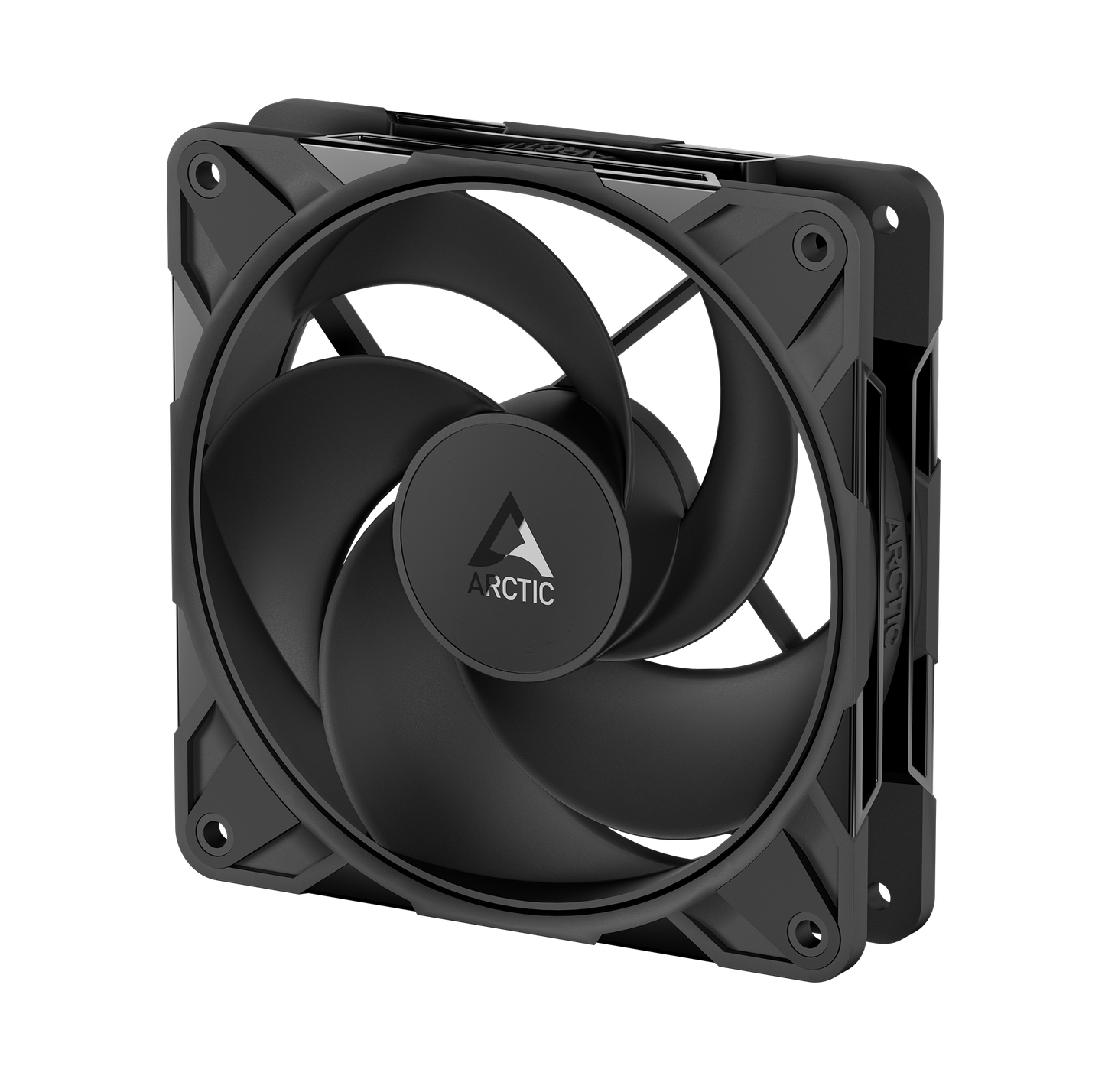

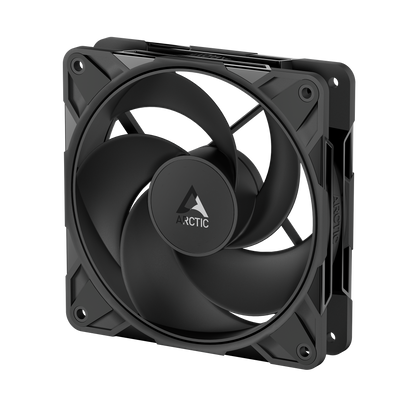

Arctic P12 Pro Reverse 120 mm PWM Fan with Cable Splitter
Brand : Arctic Cooling
SKU: SKU: ACFAN00331A
3 in stock
Regular price
₱450.00
Regular price
Sale price
₱450.00
Unit price
per
Couldn't load pickup availability
500–3000 rpm
Fan Speed
Fluid Dynamic Bearing
Bearing
4.50 mm H2O
Static Pressure
73 cfm | 124.03 m³/h
Airflow
.png)
.jpg "Airflow | P12 Pro Reverse Series | Black A-RGB")
Optimized Airflow Design
The trumpet-shaped intake and teardrop-shaped spokes direct the airflow with reduced flow losses.
This reduces air resistance, minimising turbulence and aerodynamic noise.
SOTA Microcontroller
Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.
.jpg)
More Power – Less Noise
An automated measuring and balancing process ensures smooth performance by applying the balancing compound with pinpoint accuracy.
.jpg)
Minimum Gap Dimensions for Maximum Efficiency
Enables higher static pressure and maximum airflow efficiency.

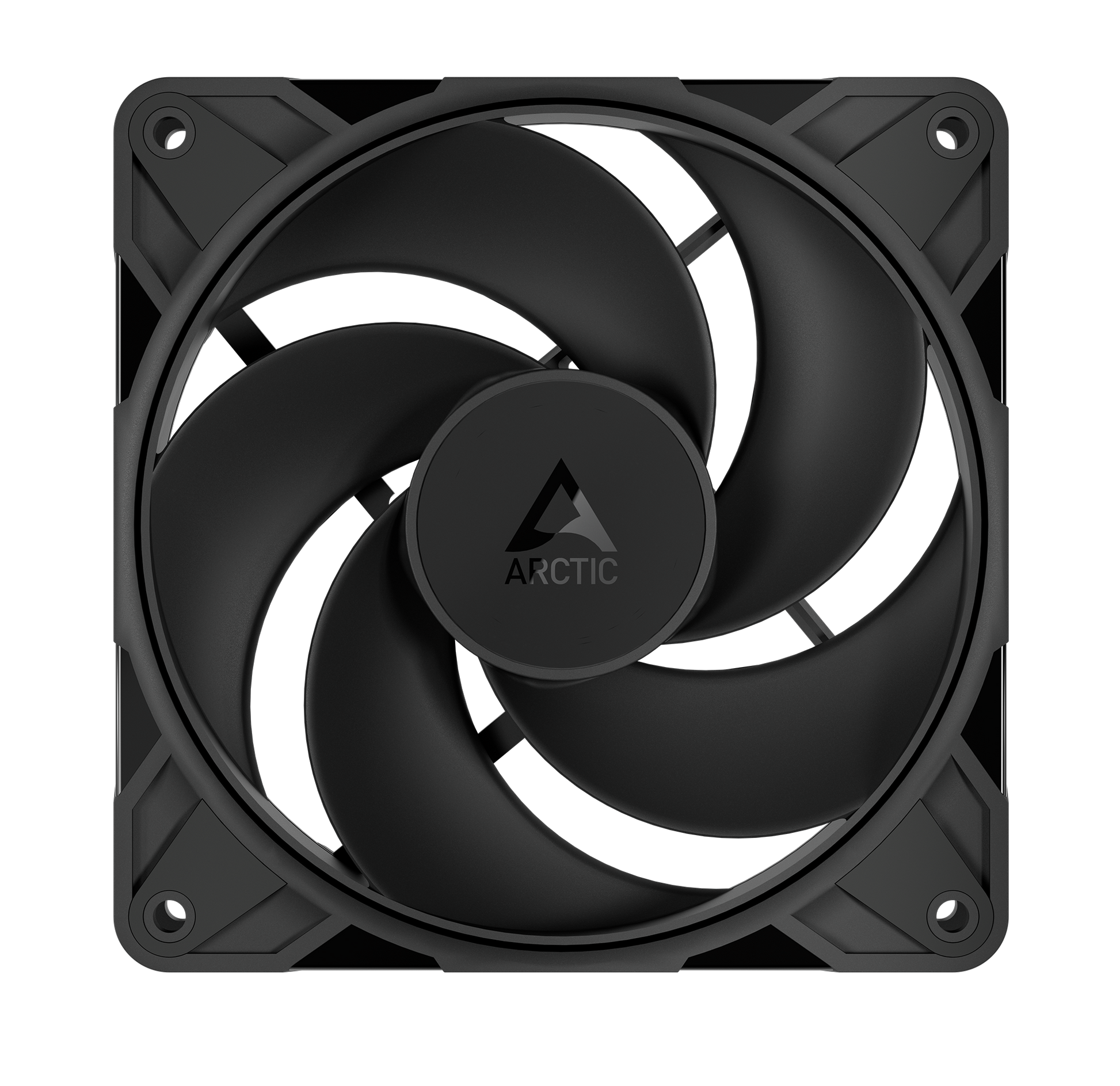

.jpg "P12 Pro Reverse | Black | Front View")
PST – Easy Cable Management and Synchronized PWM Control
Thanks to the additional PWM connector, multiple fans can be daisy-chained and controlled simultaneously through a single header.
.jpg "P12 Pro Reverse | Black | Explosion View")
Optimized FDB Bearing-Shaft Design
A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.
6-Year Warranty – Because Satisfaction Matters
Our products are tested under extreme conditions. The 6-year warranty isn’t just a promise – it’s a testament to our confidence in their durability.
Technical specifications & manual
General Specifications
Warranty
6 Years
Operating Ambient Temperature
0–40 °C
Dimensions
120 (L) x 120 (W) x 27 (H) mm
Net Weight
172 g
Fan Specifications
Fan Speed
500–3000 rpm, PWM controlled
0 rpm below 5 % PWM
0 rpm below 5 % PWM
Airflow
73 cfm | 124 m³/h
Static Pressure
4.5 mmH2O
Fan Bearing
Fluid Dynamic Bearing
Typical Voltage
12 V DC
Start Up Voltage
3.5 V DC
Current
0.4 A
Cable Length
400 mm + 80 mm Daisy-Chain Cable
Connector
4-Pin Fan Plug + 4-Pin Socket
Packaging
- Width: 125 mm
- Height: 32 mm
- Length: 127 mm
- Weight: 0.215 kg
