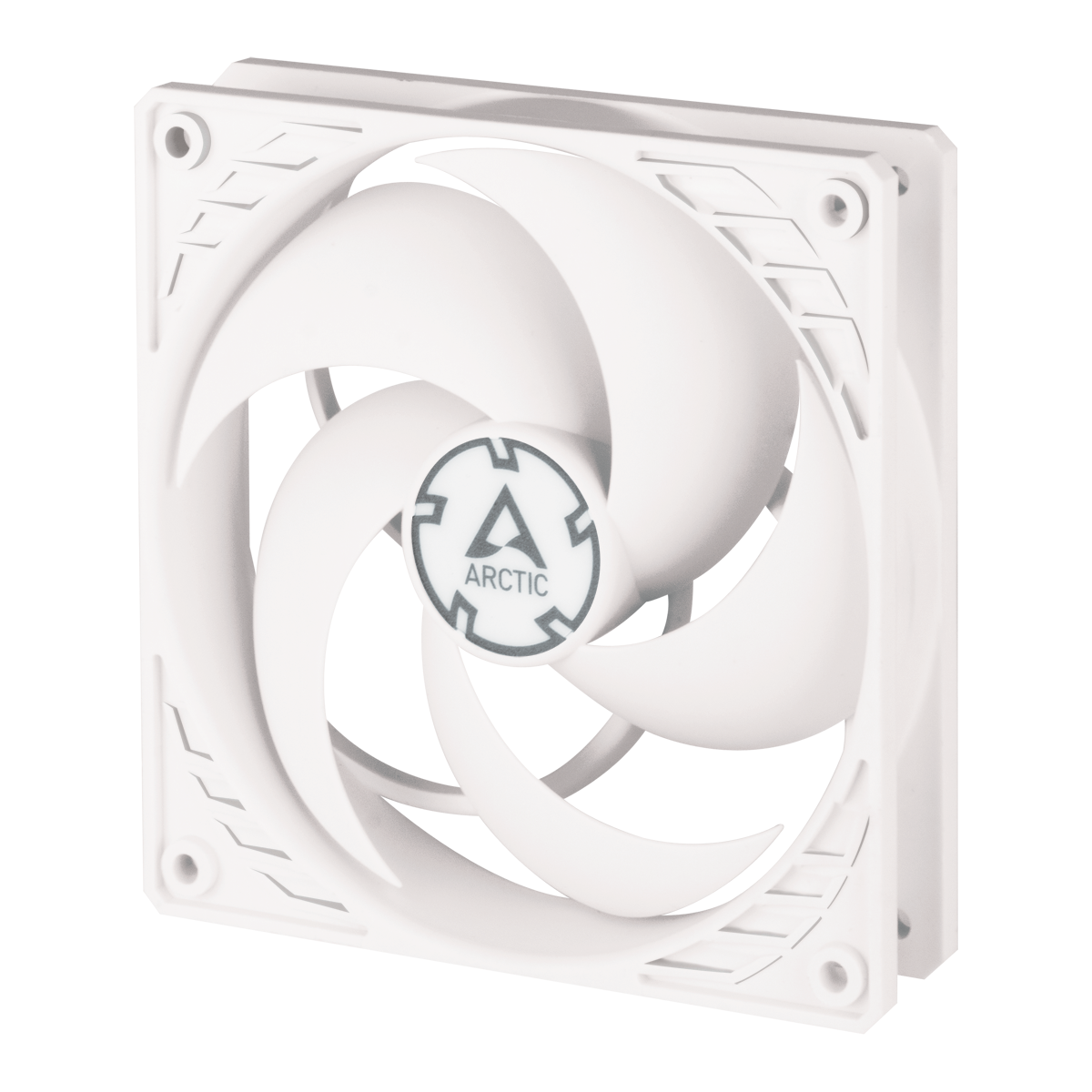

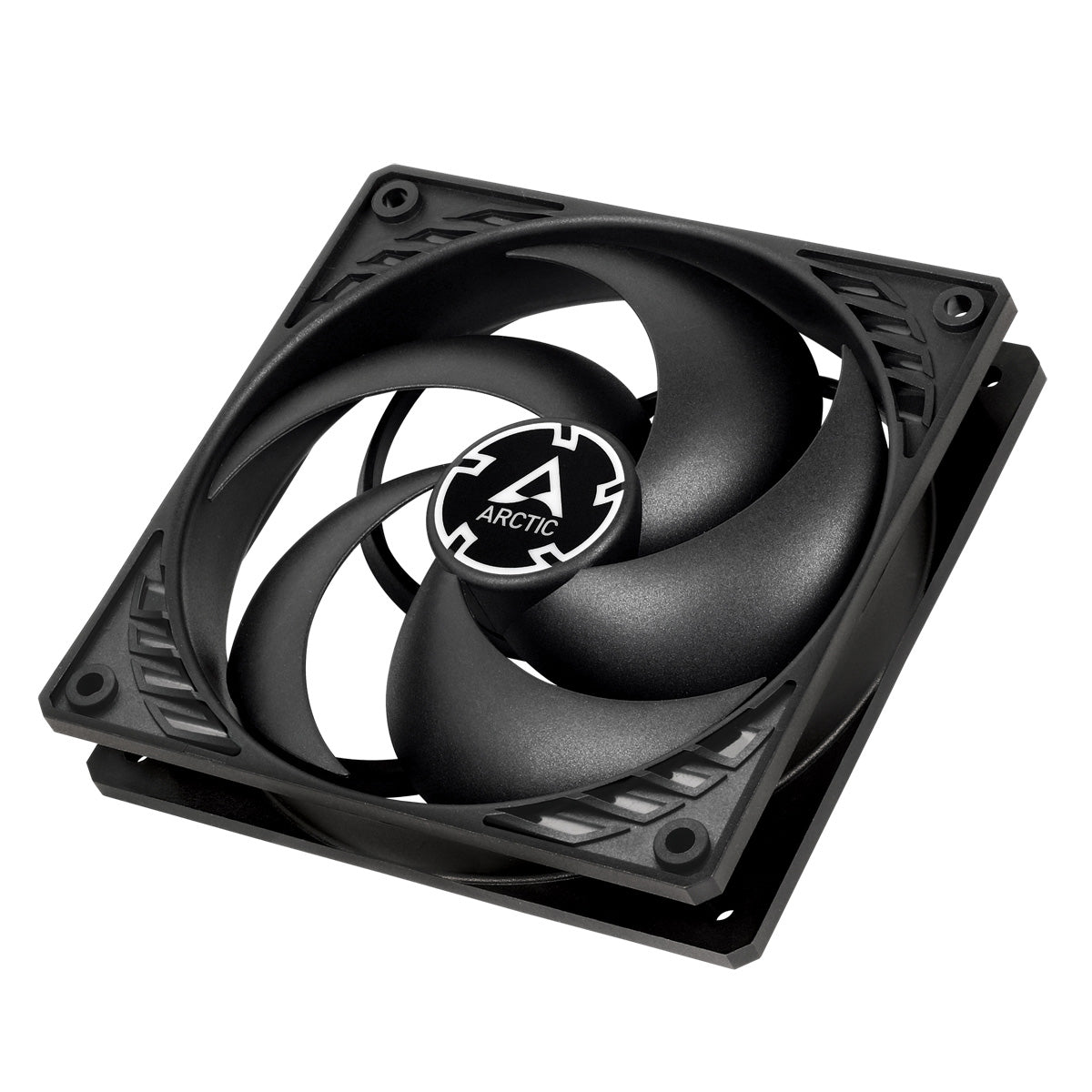

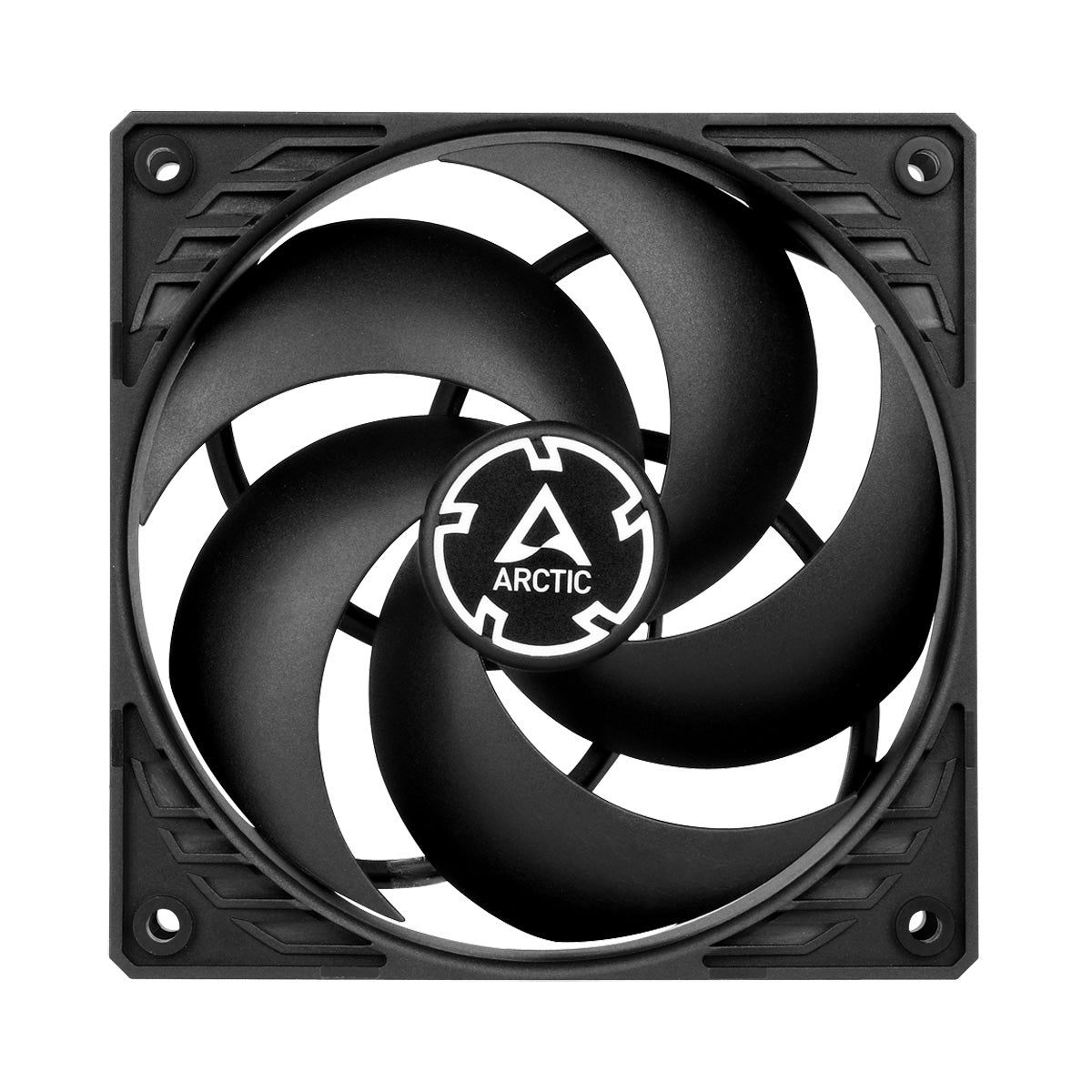

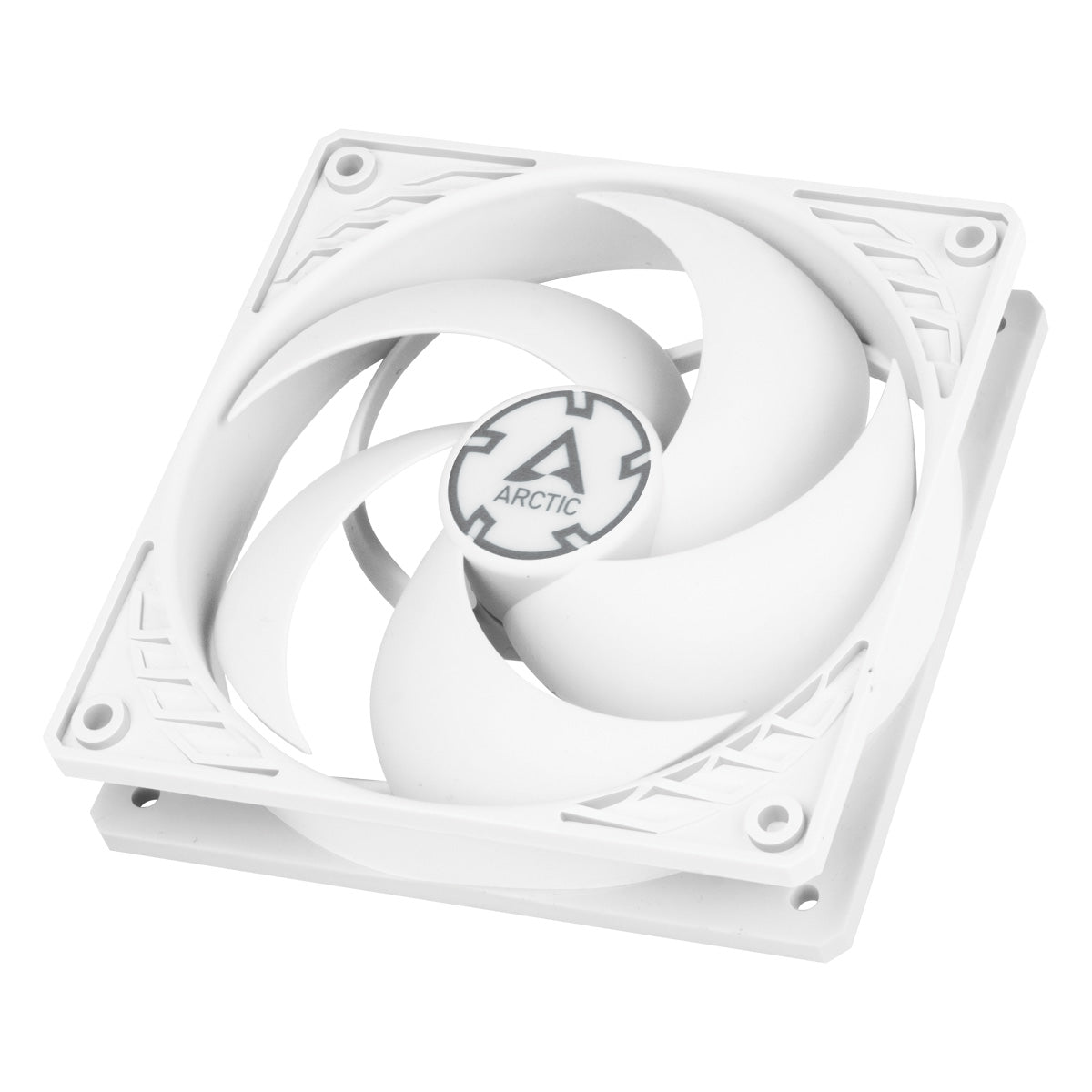

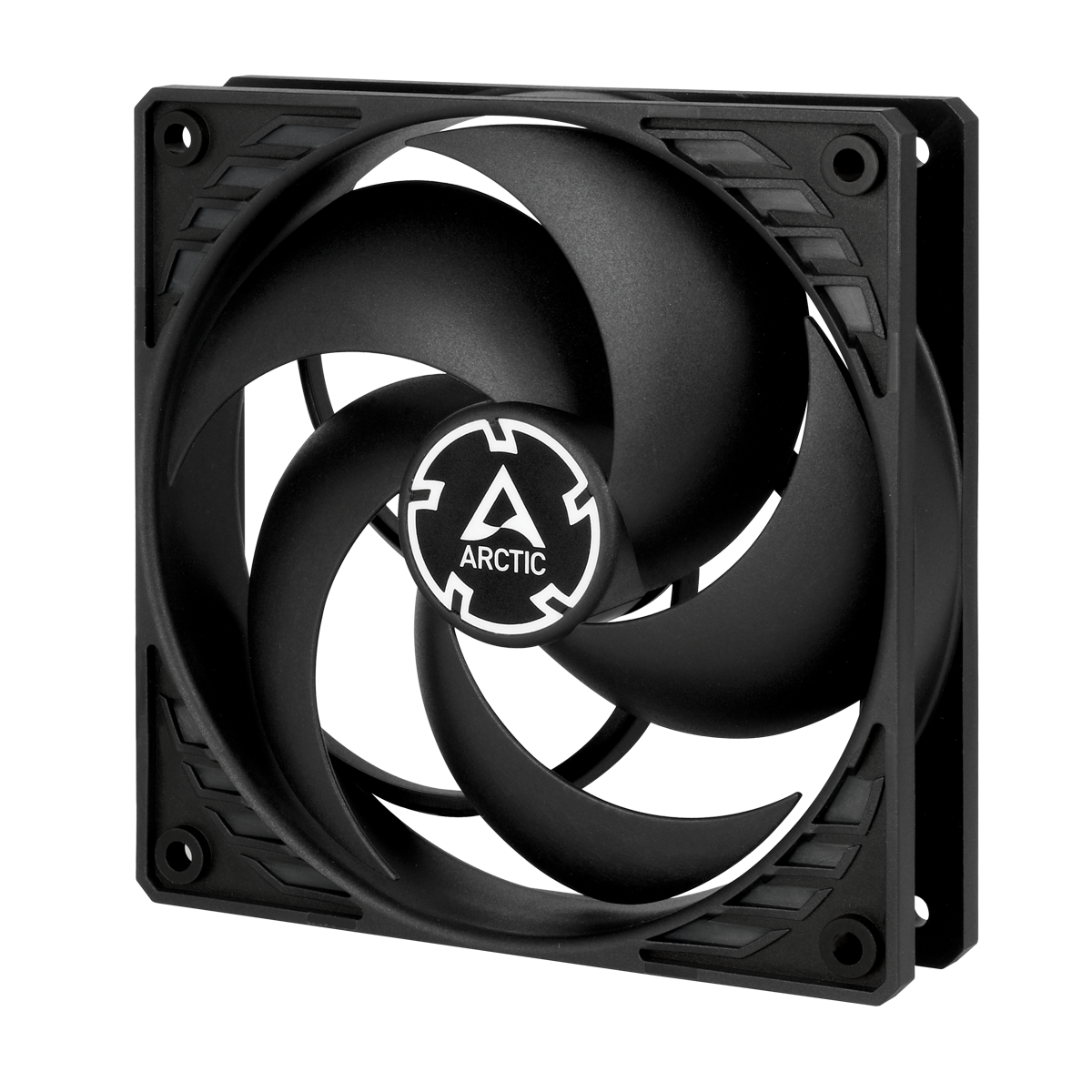

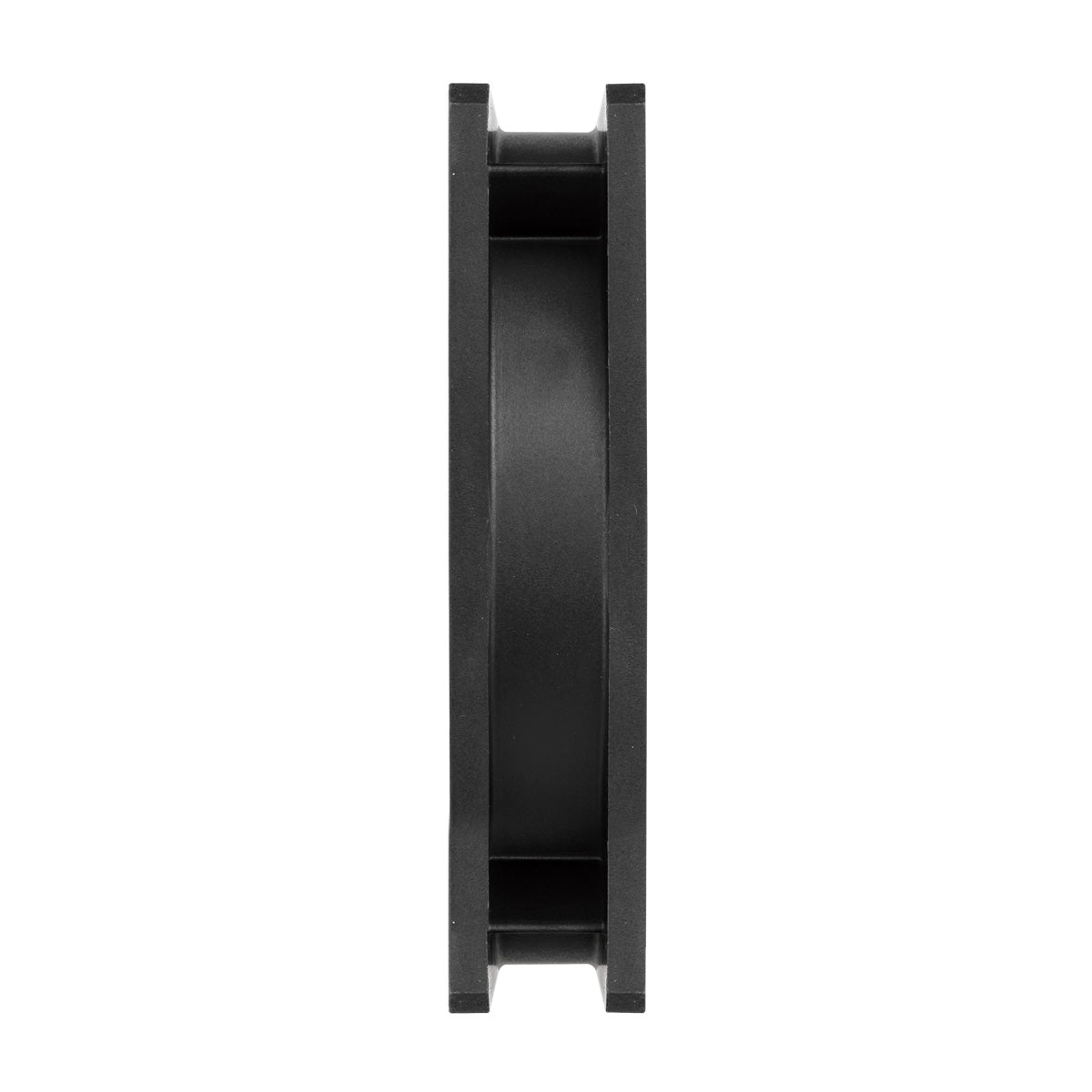

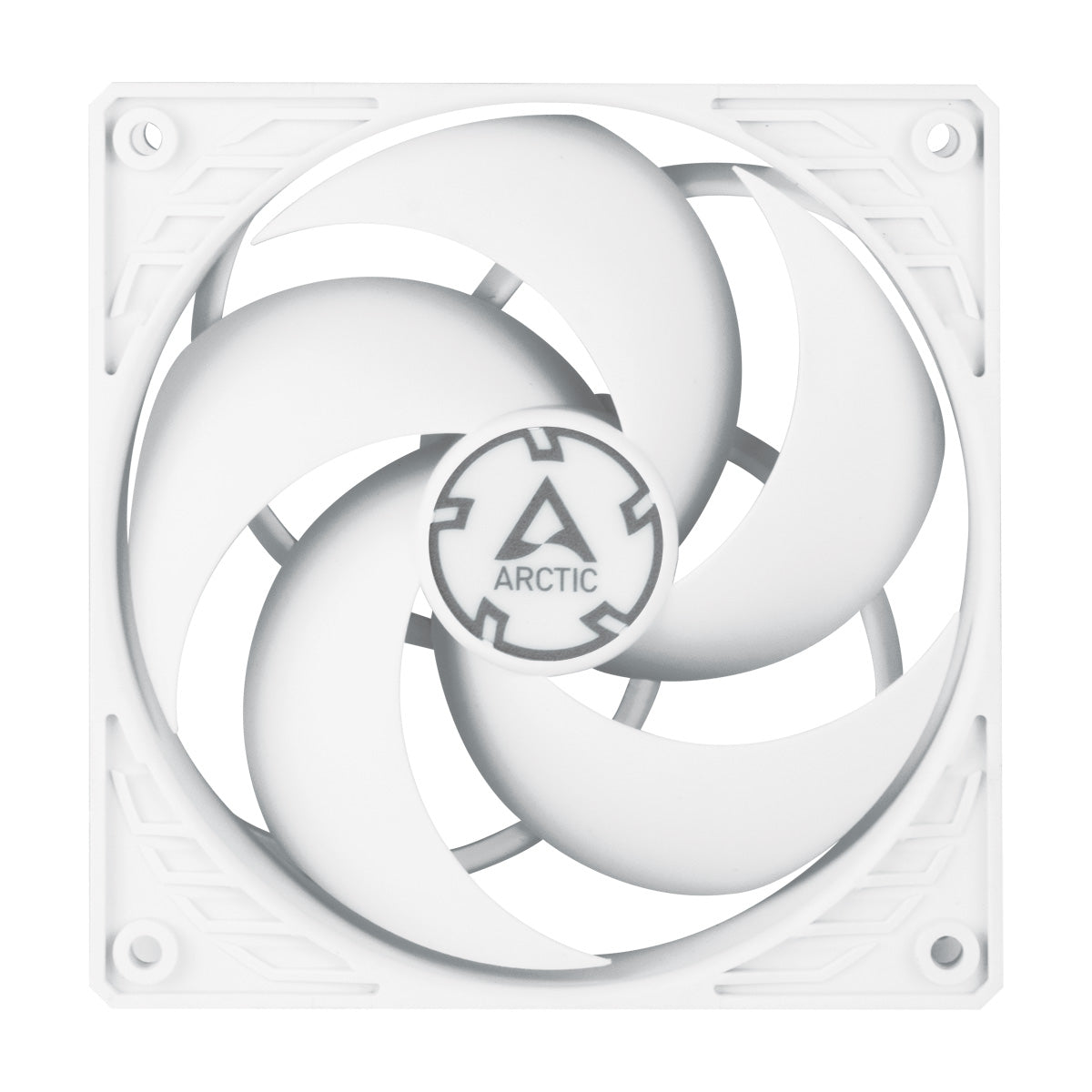

Arctic P12 PWM Pressure-Optimised 120 mm Fan with PWM Pressure-optimised, Quiet Motor

Arctic P12 PWM Pressure-Optimised 120 mm Fan with PWM Pressure-optimised, Quiet Motor

Brand : Arctic Cooling

Regular price ₱360.00
Sale price ₱360.00
Regular price ₱420.00 -14%
Sale! Sold out
Color

Optimised for Static Pressure

During the development of the new P12 PWM, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM is particularly suitable for use on heatsinks and radiators.

P-Series-Pressure-Optimised-White

0 dB Mode - Zero rpm

The speed of the fan can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required.

p12-pwm-white-0dB-en

Strong Cooling Performance

Numerous improvements, such as updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans. In internal performance tests leveled to 28 dB(A), the new P-fans left many competitors behind. More information can be found in our FAQ.

P12-PWM-white-Cooling-Capacity-EN

More Efficient Technology

The motor is powered by a PWM IC of the newest generation, which allows the new P12 PWM to run much more efficiently than its predecessors. This saves energy without compromising performance.

P12-Silent-Strong-Cooling-Performance

Maximum Quietness, Minimum Vibration

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to sinus-magnetizing the new motor only creates about 5 % of the vibration from the commutation of a regular DC motor without a filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

Maximum-Quietness_EN

Extended Life Span

A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we give a manufacturer warranty of 6 years.

P12-PWM-white-Extended-Lifespan-EN

200 to 1800 rpm Regulated via PWM

Thanks to the 4-Pin Connector, the rpm can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed.

P12-PWM-white-Cable

High-Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

Fluid-Dynamic-Bearing-White_EN

Two Way Installation

  • Push warm air out of the case
  • Pull cool air into your case

White-Intake-Exhaust-Case

TECHNICAL SPECIFICATIONS & MANUAL


General Data


Performance
Fan Speed: 200—1800 rpm PWM controlled (0 rpm below 5% PWM)
Airflow: 56.3 cfm | 95.65 m³/h
Static Pressure: 2.20 mmH2O
Noise Level: 0.3 Sone
Operating Ambient Temperature: 0—40 °C

Fan Frame: Standard
Control Type: PWM
Connector: 4-Pin Connector
Fan Bearing: Fluid Dynamic Bearing

Electric Characteristics:
Typical Voltage: 12 V DC
Starting Voltage: 3.9 V
Current | Voltage: 0.1 A | 12 V DC
Cable Length: 400 mm

Size & Weight
Length: 120 mm
Width: 120 mm
Height: 25 mm
Weight: 139 g
