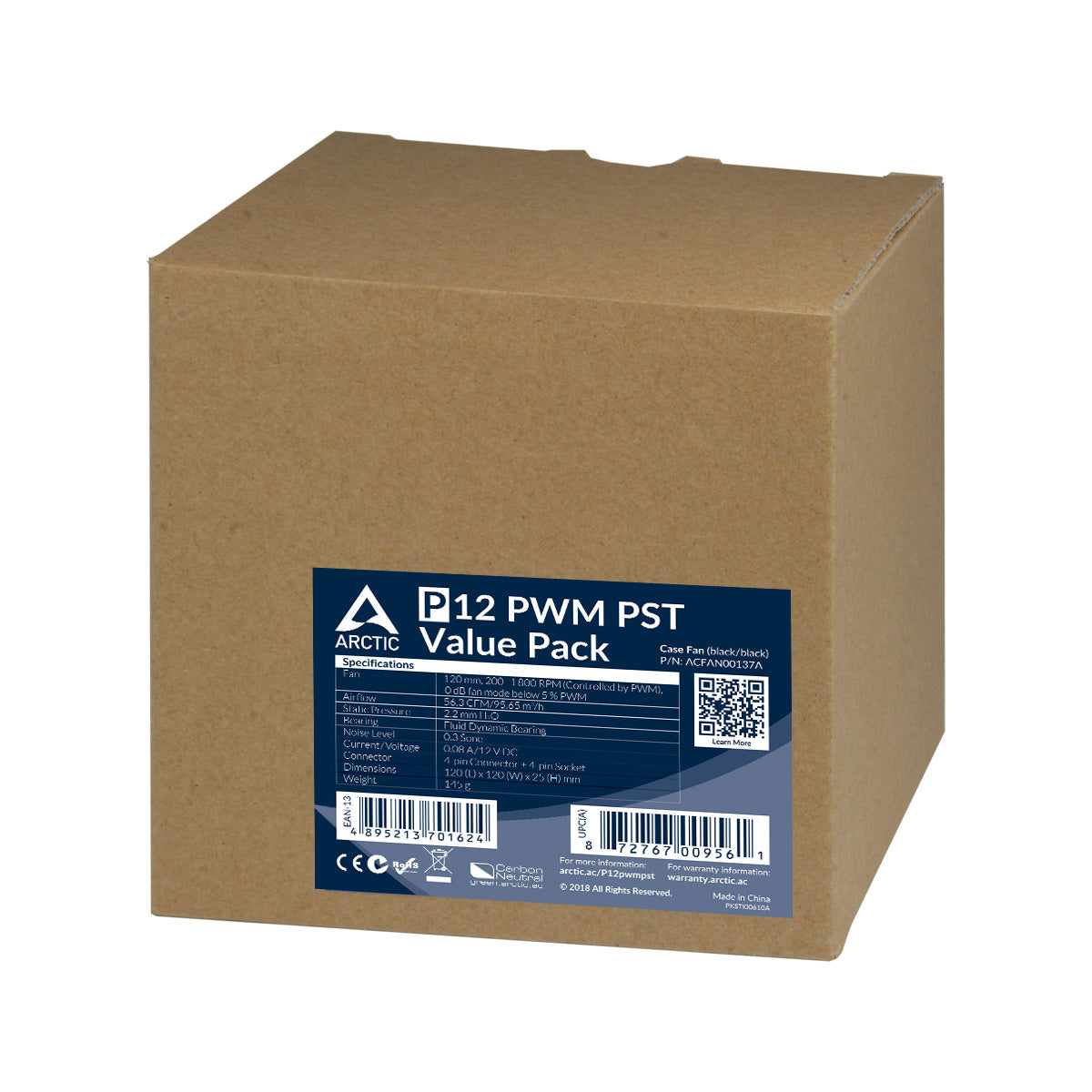

Arctic P12 PWM PST Pressure-Optimised 120 mm Fan with PWM PST Pack of 5 (ACFAN00137A)
Arctic P12 PWM PST Pressure-Optimised 120 mm Fan with PWM PST Pack of 5 (ACFAN00137A)
Brand : Arctic Cooling
SKU: SKU: ACFAN00137A
Out of stock
Couldn't load pickup availability
Optimised for Static Pressure
During the development of the new P12 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM PST is particularly suitable for use on heatsinks and radiators.
0 dB Mode — Zero rpm
The speed of the fan can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required.
Strong Cooling Performance
Numerous improvements, such as updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans. In internal performance tests leveled to 28 dB(A), the new P-fans left many competitors behind.
More Efficient Technology
The motor is powered by a PWM IC of the newest generation, which allows the new P12 PWM PST to run much more efficiently than its predecessors. This saves energy without compromising the performance.
Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from the commutation of a regular DC motor without a filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
200 to 1800 rpm Regulated via PWM PST
Thanks to the 4-Pin Connector, the rpm can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed.
High-Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Two Way Installation
- Push warm air out of the case
- Pull cool air into your case
TECHNICAL SPECIFICATIONS & MANUAL
General Data
Performance
Fan Speed: 200—1800 rpm (0 rpm below 5 % PWM)
Airflow: 56.3 cfm | 95.7 m³/h
Static Pressure: 2.20 mmH2O
Noise Level: 0.3 Sone
Operating Ambient Temperature: 0—40 °C
Fan Frame: Standard
Control Type: PWM PST
Connector: 4-Pin Connector + 4-Pin Socket
Fan Bearing: Fluid Dynamic Bearing
Electric Characteristics:
Typical Voltage: 12 V DC
Starting Voltage: 3.9 V
Current | Voltage: 0.1 A | 12 V DC
Cable Length: 400 mm
Size & Weight
Length: 120 mm
Width: 120 mm
Height: 25 mm
Weight: 145 g
