Arctic P12 PWM PST RGB Semi-Passive 120 mm Case Fan with Analogue RGB (ACFAN00186A)

Arctic P12 PWM PST RGB Semi-Passive 120 mm Case Fan with Analogue RGB (ACFAN00186A)

Brand : Arctic Cooling

SKU:  ACFAN00186A

₱708.00
₱767.00 ₱708.00
Sale! Sold out
Taxes included.

Low stock: 7 left


RGB for Full Colours

The P12 PWM PST RGB 0dB has 12 analogue RGB LEDs in the center fan wheel. These can be controlled uniformly and are compatible with the common RGB standards of leading motherboard manufacturers. The fan can thus be fully illuminated directly via the RGB mainboard connection or an external controller and synchronised with the illumination of other hardware.

p12-pwm-pst-rgb-colour-control

0 dB Mode — Zero rpm

The speed of the P12 PWM PST RGB 0dB can be throttled a standstill via PWM. This allows for silent operation in IDLE and at the same time guarantees maximum performance when needed.

p12-pwm-pst-rgb-0dB-en

Maximum Smoothness, Minimum Vibration

The operating noise of the newly developed ARCTIC motor is barely perceptible even at the lowest speed. In addition, the P12 PWM PST RGB has rubberised contact surfaces and thus reduces audible vibrations to a minimum.

Maximum-Quietness_EN

Optimised for High Static Pressure

The P12 PWM PST RGB operates with a focused airflow and high static pressure. The fan thus guarantees extremely efficient cooling, even with increased air resistance, and is, therefore, suitable for use on heat sinks, radiators, and filters.

P-Series-Pressure-Optimised

200 to 2000 rpm Controlled via PWM PST

With a wide speed range and the innovative PWM Sharing Technology (PST), the fan speed of the P12 PWM PST RGB can be controlled synchronously with all other fans. This reduces noise to a minimum while guaranteeing maximum cooling performance.

PWM-PST-Cable-black

High-Quality Plain Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. In this way, less heat develops, less bearing noise is generated and the service life of the fan is extended.

Fluid-Dynamic-Bearing_New_EN

 TECHNICAL SPECIFICATIONS & MANUAL

General Data

Performance
Fan Speed: 200—2000 rpm (0 rpm below 5% PWM)
Airflow: 48.8 cfm | 82.91 m³/h
Static Pressure: 1.85 mmH2O
Noise Level: 0.3 Sone

Fan Frame: Standard
Control Type: PWM PST
Connector: 4-Pin Connector + 4-Pin Socket
Fan Bearing: Fluid Dynamic Bearing
Operating Ambient Temperature: 0—40 °C

Electric Characteristics
Typical Voltage: 12 V DC
Starting Voltage: 5 V
Current | Voltage: 0.11 A | 12 V DC
Cable Length: 400 mm

RGB Specifications
LEDs: 12 A-RGB LEDs
Connector: 4-Pin 12 V-G-R-B Connector
Current / Voltage: 0.2 A | 12 V DC
Cable: 450 mm Cable with 80 mm Sharing Cable, Black

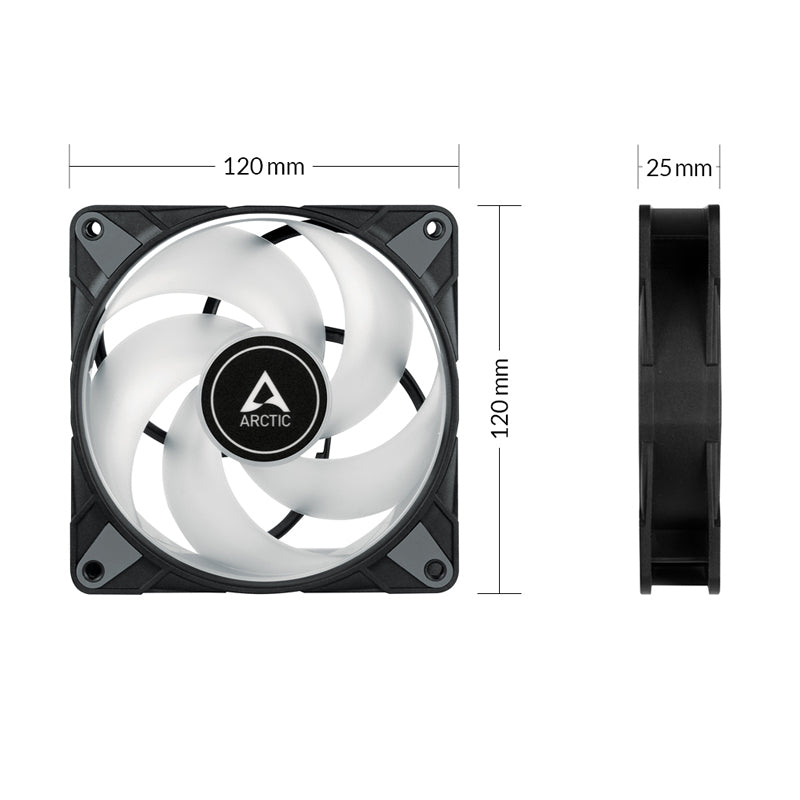

Size & Weight
Length: 120 mm
Width: 120 mm
Height: 25 mm
Weight: 131 g
