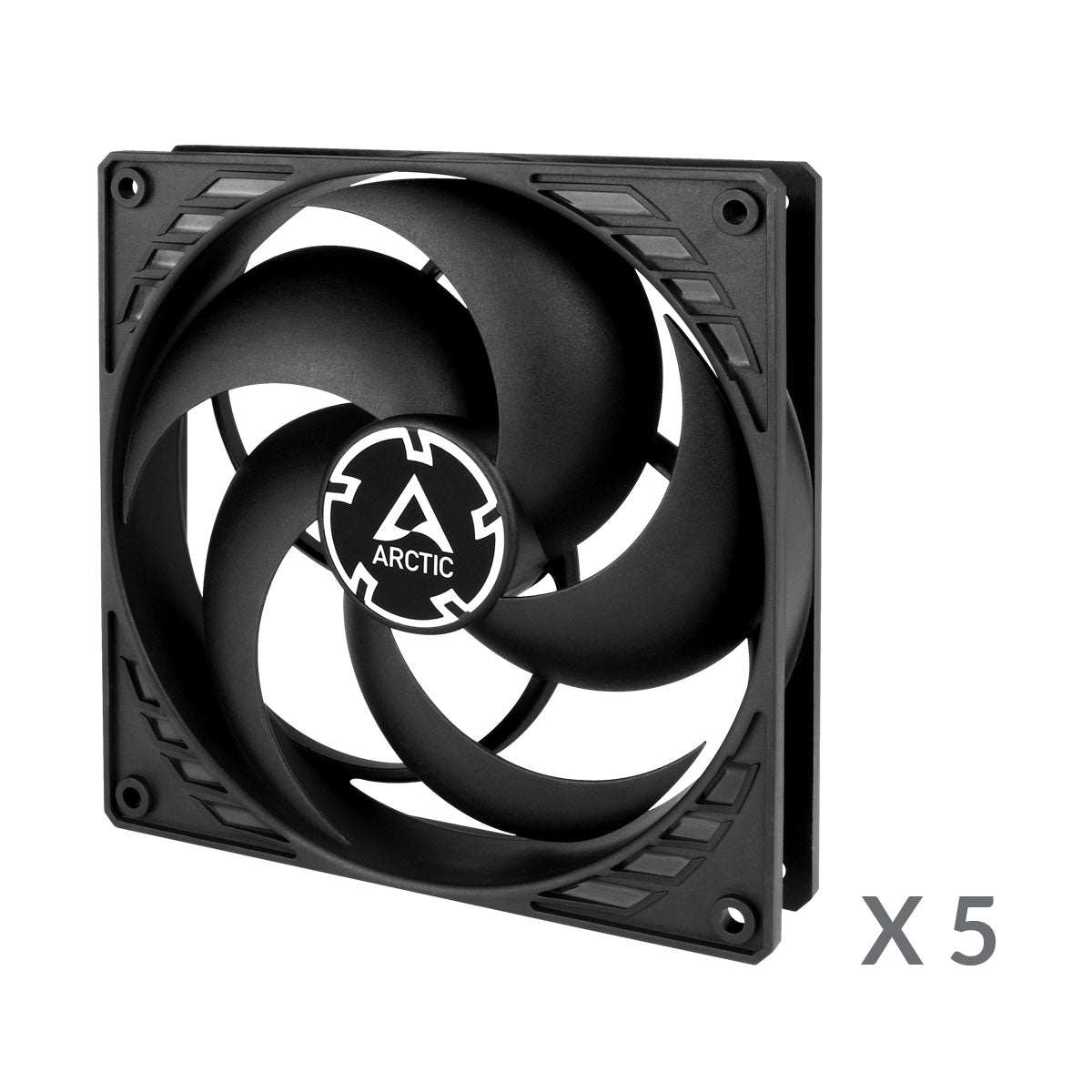

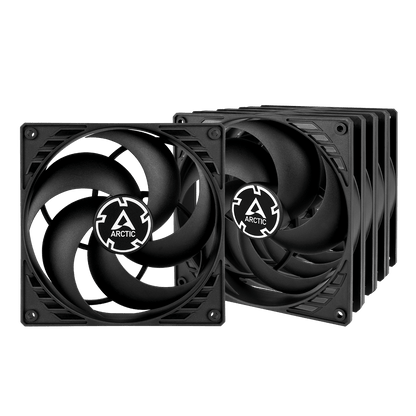

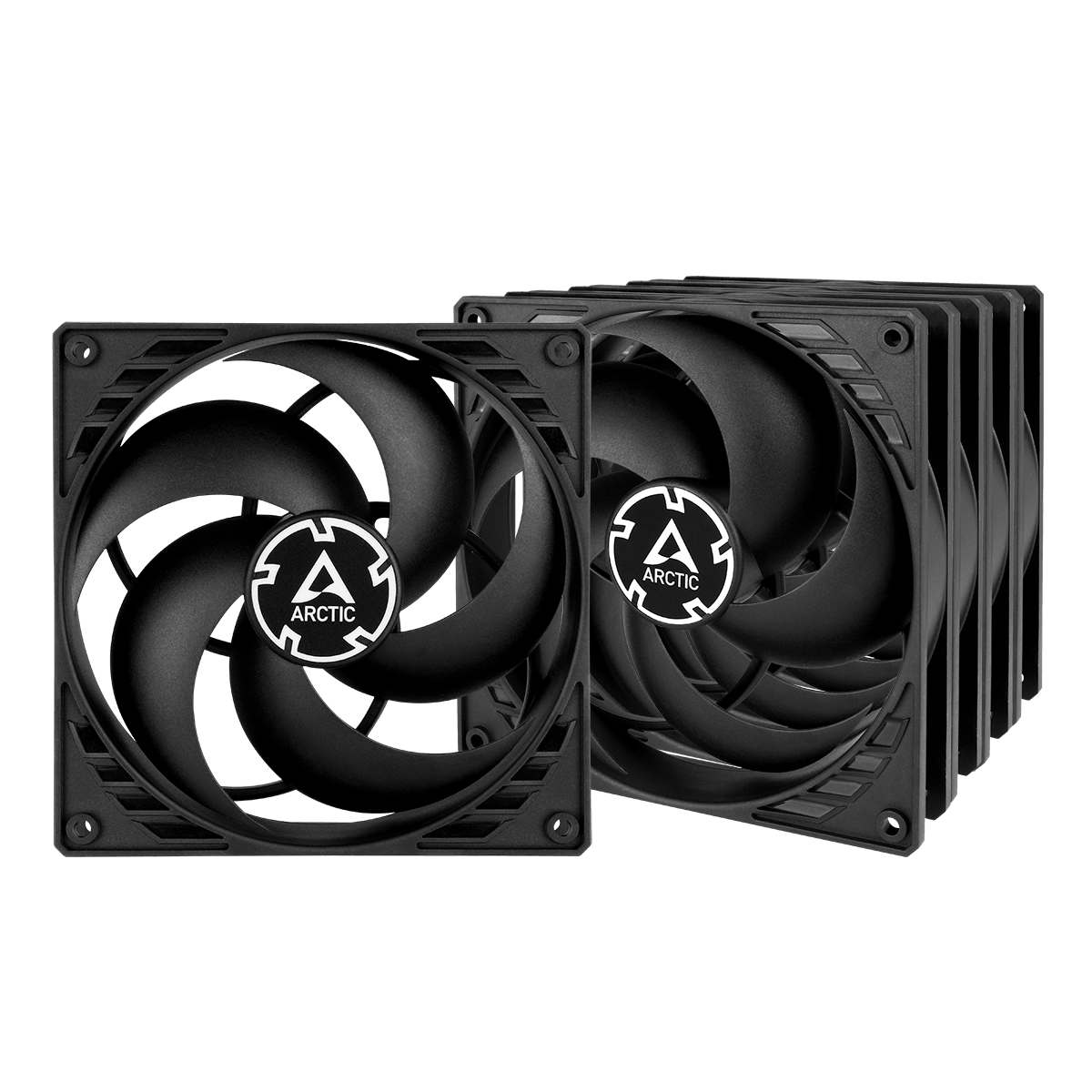

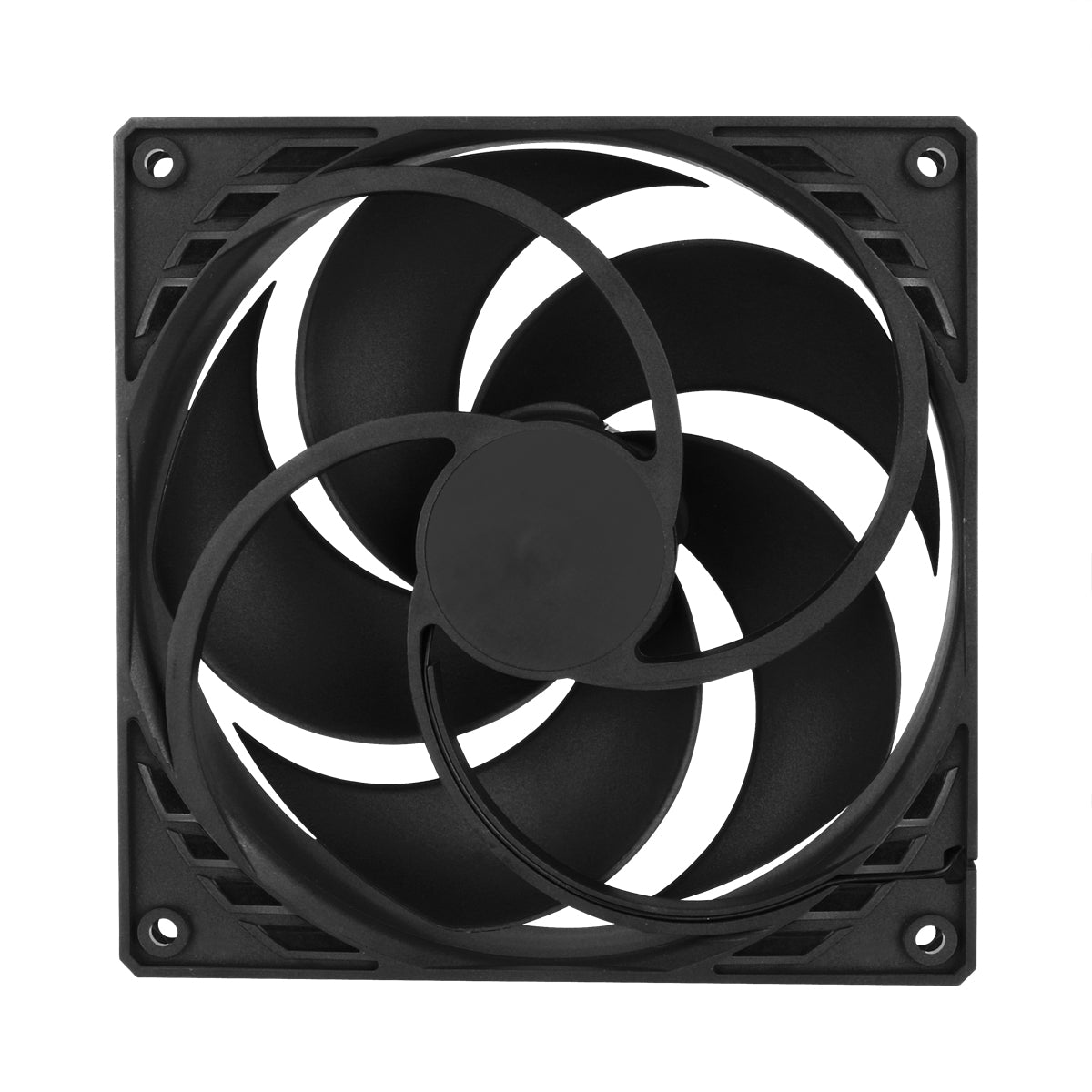

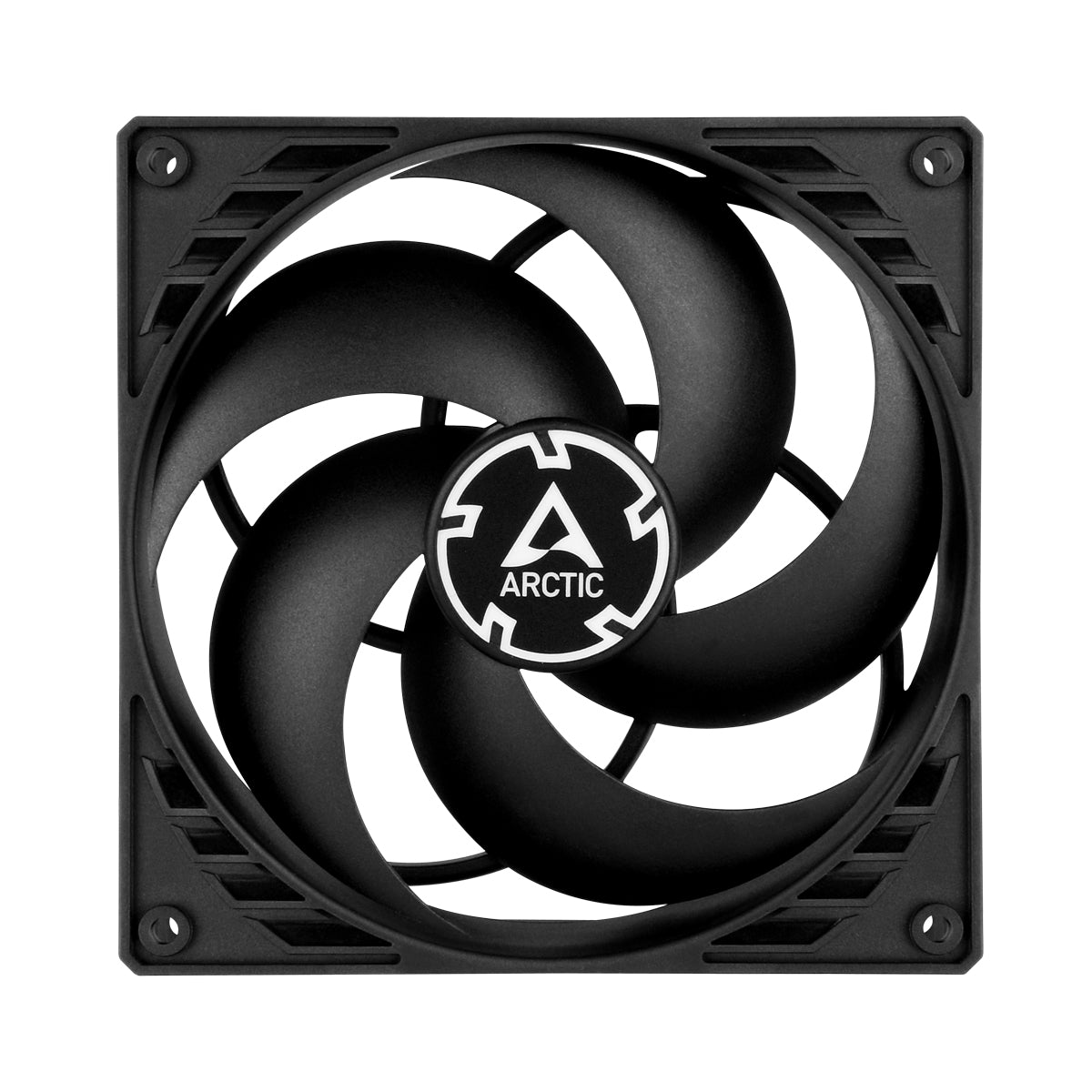

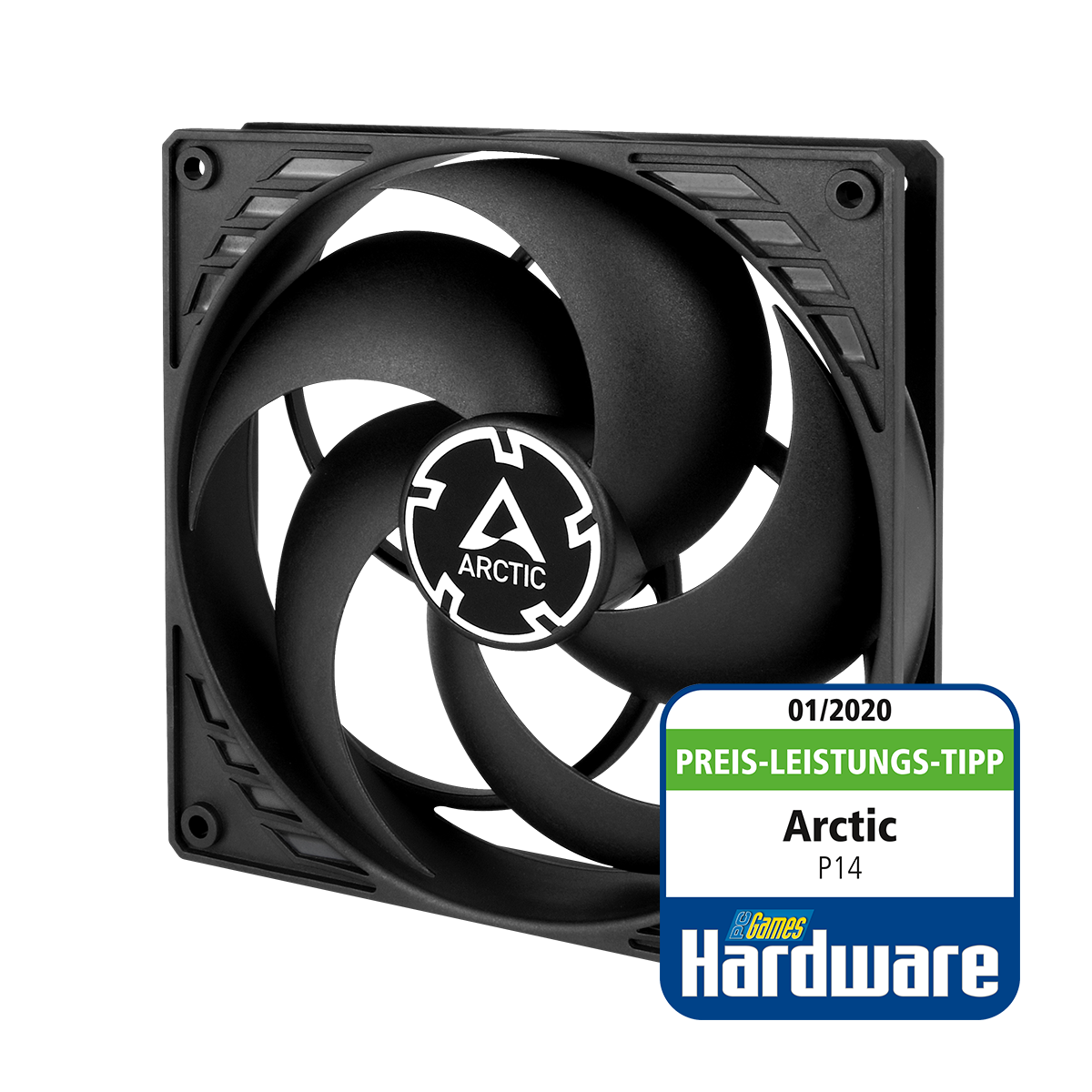

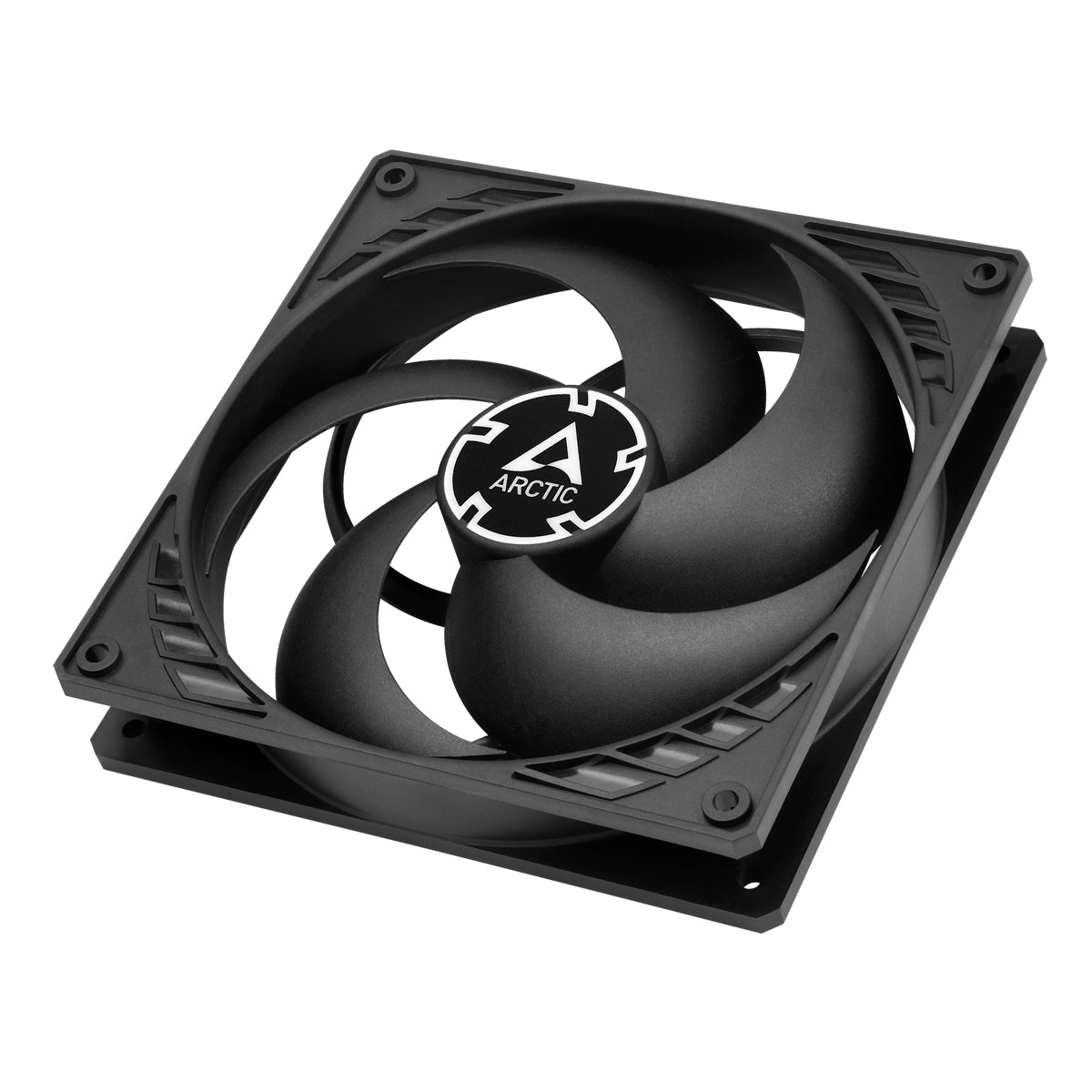

Arctic P14 Pressure-Optimised 140 mm Fan (ACFAN00136A)

Arctic P14 Pressure-Optimised 140 mm Fan (ACFAN00136A)

Brand : Arctic Cooling

Regular price ₱1,980.00
Sale price ₱1,980.00
Regular price ₱2,145.00 -8%
Sale! Sold out

Optimised for Static Pressure

During the development of the new P14, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 is particularly suitable for use on heatsinks and radiators.

P-Series-Pressure-Optimised

High-Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

Fluid-Dynamic-Bearing_New_EN

Two Way Installation

  • Push warm air out of the case
  • Pull cool air into your case

P-Series-Intake-Exhaust-in-Case



TECHNICAL SPECIFICATIONS & MANUAL


General Data


Performance
Fan Speed: 1700 rpm
Airflow: 72.8 cfm | 123.76 m³/h
Static Pressure: 2.40 mmH2O
Noise Level: 0.3 Sone

Fan Frame: Standard
Control Type: Fixed Speed
Connector: 3-Pin Connector
Fan Bearing: Fluid Dynamic Bearing
Operating Ambient Temperature: 0—40 °C

Electric Characteristics
Typical Voltage: 12 V DC
Starting Voltage: 2.1 V
Current | Voltage: 0.15 A | 12 V DC
Cable Length: 400 mm


Size & Weight
Length: 140 mm
Width: 140 mm

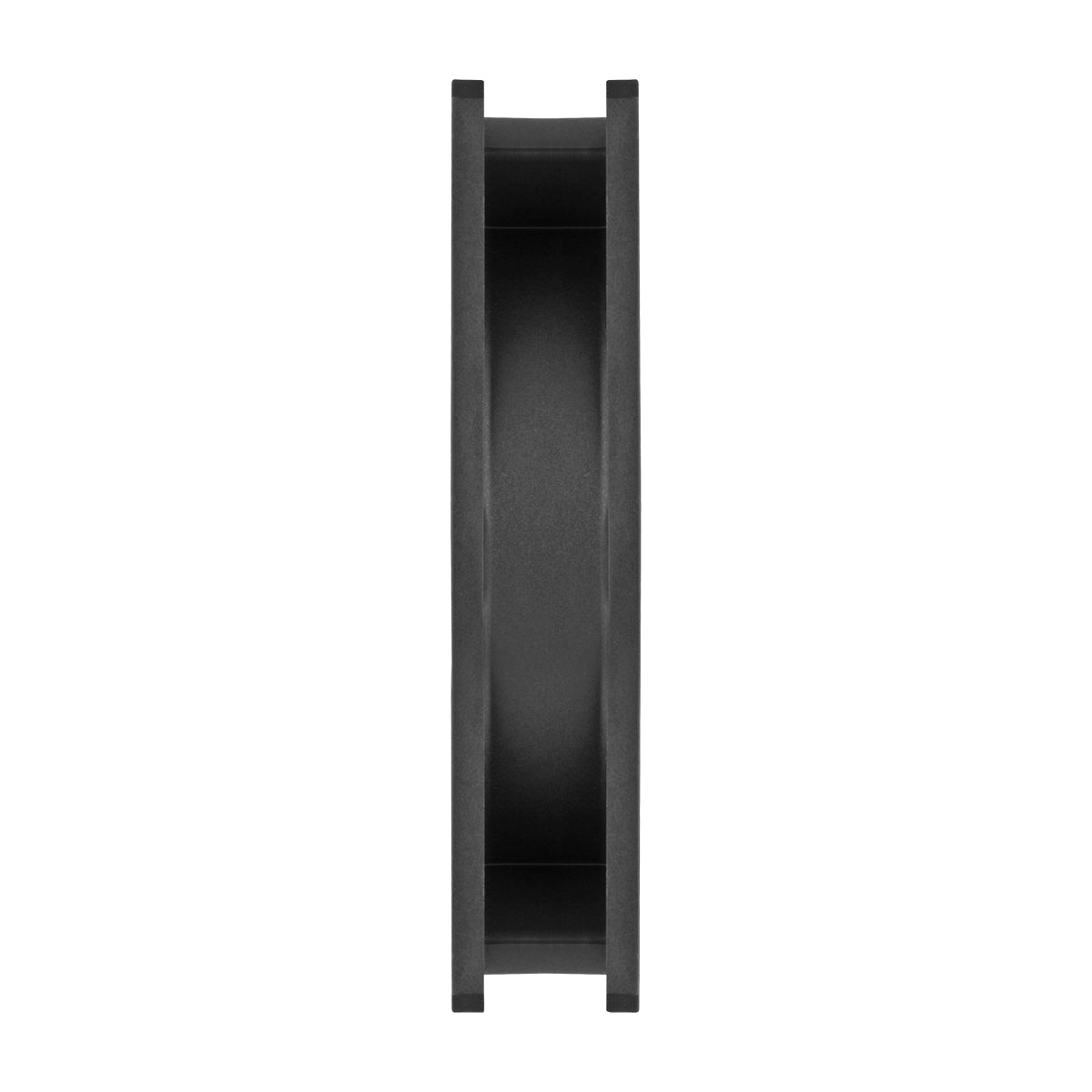

Height: 27 mm
Weight: 191 g
