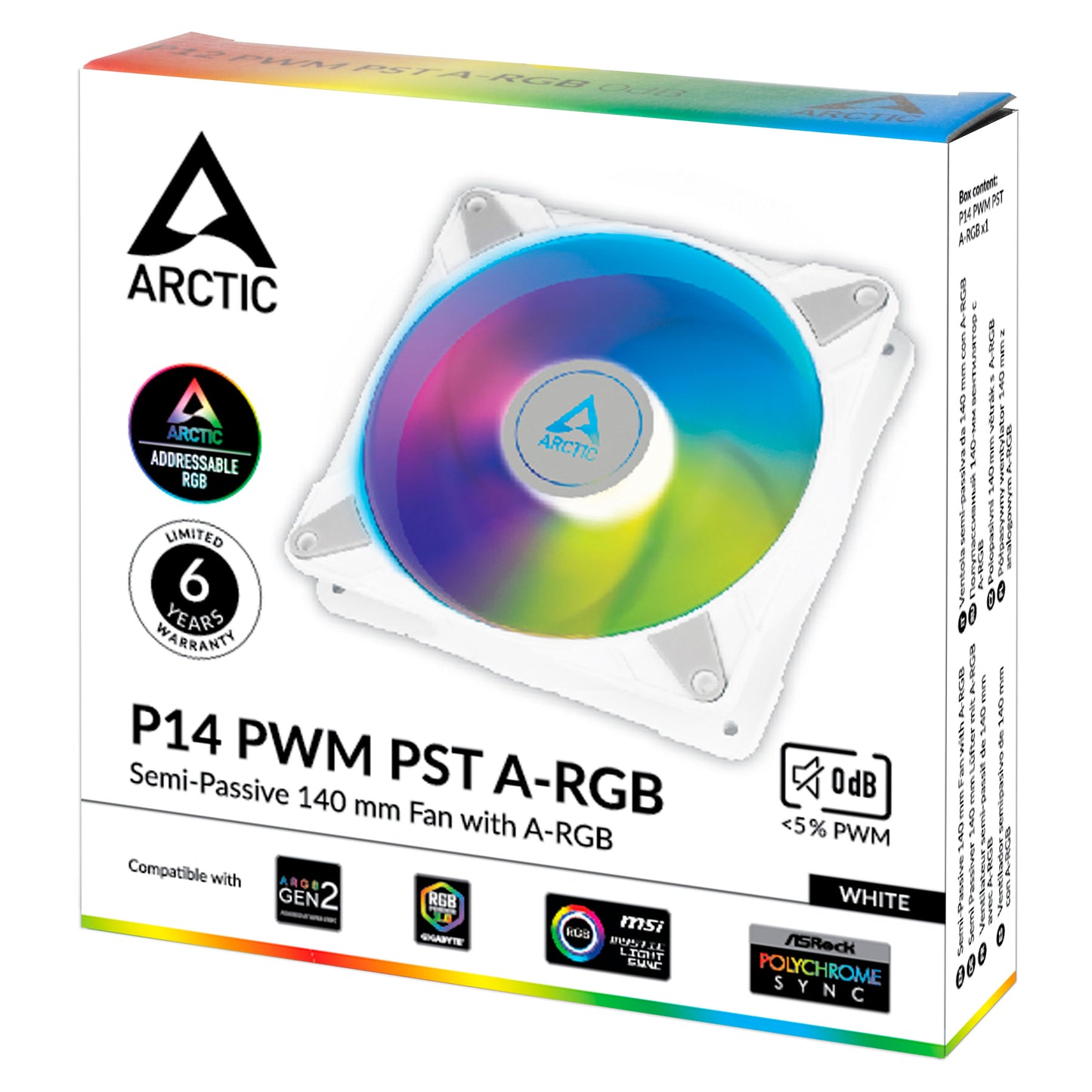

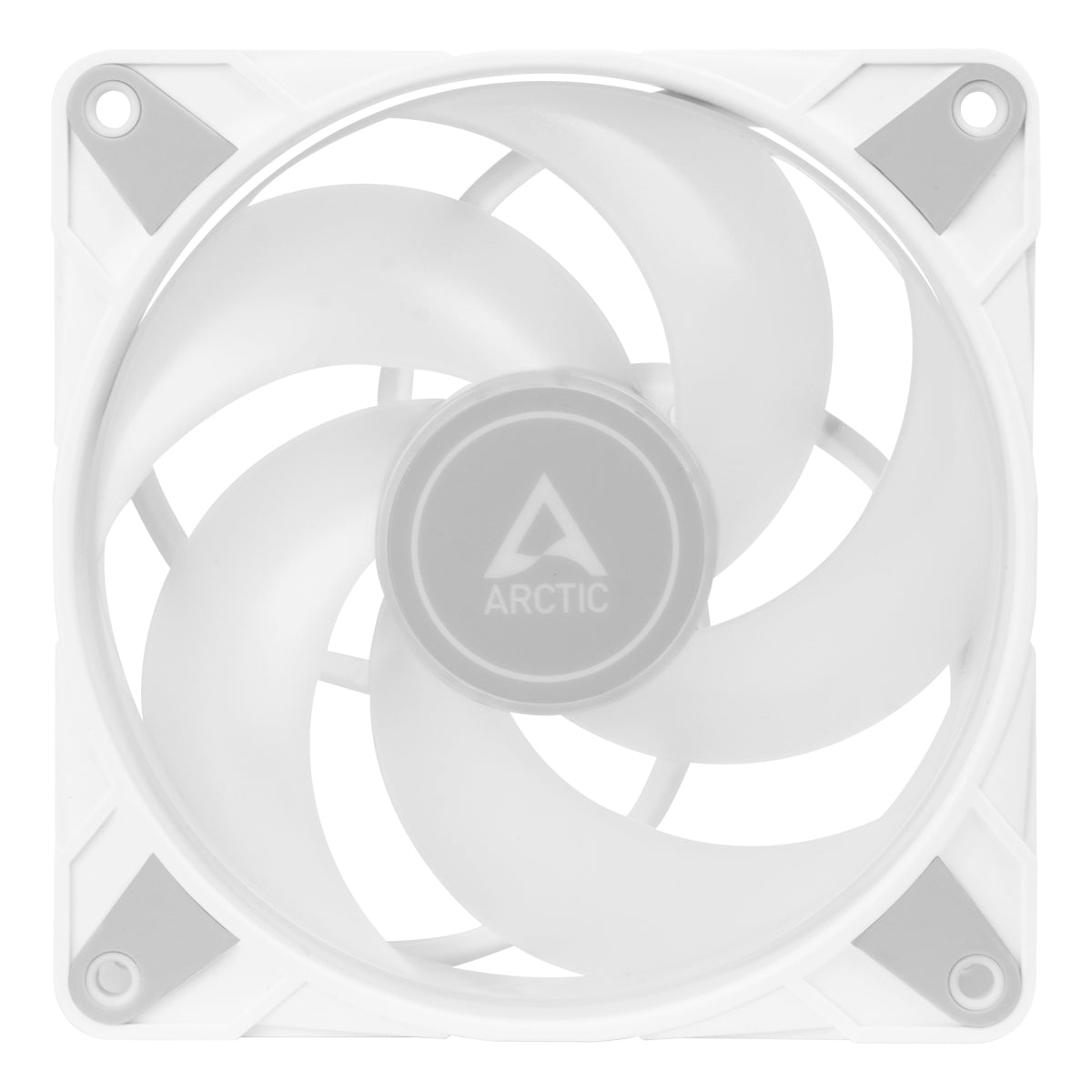

ARCTIC P14 PWM PST A-RGB (White) (ACFAN00276A)

ARCTIC P14 PWM PST A-RGB (White) (ACFAN00276A)

Brand : Arctic Cooling

Regular price ₱1,020.00
Sale price ₱1,020.00
Regular price ₱1,105.00 -8%
Sale! Sold out

ARCTIC P14 PWM PST A-RGB (White) (ACFAN00276A)

Addressable RGB for Full-Colour Control
The P14 PWM PST A-RGB has 12 digital A-RGB LEDs in the center fan wheel. These can be controlled independently of each other and are compatible with the common A-RGB standards of leading motherboard manufacturers. The fan can thus be fully illuminated directly via the A-RGB mainboard connector or via an external controller and synchronised with the illumination of other hardware.

0 dB Mode — Zero rpm
The speed of the fan can be throttled down to a standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required.

Maximum Smoothness, Minimum Vibration
The operating noise of the newly developed ARCTIC motor is barely perceptible even at the lowest speed. In addition, the P14 PWM PST A-RGB has rubberized contact surfaces and thus reduces audible vibrations to a minimum.

Optimised for High Static Pressure
The P14 PWM PST A-RGB operates with a focused airflow and a high static pressure. The fan thus guarantees extremely efficient cooling, even with increased air resistance, and is therefore suitable for use on heat sinks, radiators and filters.

200 to 1900 rpm Controlled via PWM PST
With a wide speed range and the innovative PWM Sharing Technology (PST), the fan speed of the P14 PWM PST A-RGB can be controlled synchronously with all other fans. This reduces noise to a minimum while guaranteeing maximum cooling performance.

High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. In this way, less heat develops, less bearing noise is generated and the service life of the fan is extended.

Quality You Can Rely On
To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee on the P14 PWN PST A-RGB.

TECHNICAL SPECIFICATIONS & MANUAL

General Specifications
Performance
Fan Speed:
200—1900 rpm PWM Controlled (0 rpm below 5% PWM)
Airflow:
68.90 cfm | 117.06 m³/h
Static Pressure:
2 mmH2O
Noise Level:
0.3 Sone
Fan
Fan Frame:
Standard
Control Type:
PWM PST
Connector:
4-Pin Connector + 4-Pin Socket
Fan Bearing:
Fluid Dynamic Bearing
Operating Ambient Temperature:
0—40 °C
Warranty:
6 Years
Electric Characteristics:
Typical Voltage:
12 V DC
Starting Voltage:
5 V
Current | Voltage:
0.17 A | 12 V DC
Cable Length:
400 mm
RGB Specifications
LEDs:
12 A-RGB LEDs
Connector:
3-Pin 5 V-DI-GND Connector
Current / Voltage:
0.4 A/5 V
Cable:
400 mm Cable with 80 mm Sharing Cable, Black
Size & Weight
Length:
140 mm
Width:
140 mm
Height:
27 mm
Weight:
225 g
Packaging
  •  Width: 167 mm
  •  Height: 34 mm
  •  Length: 167 mm
  • Weight: 0.297 kg

View full details

Description

ARCTIC P14 PWM PST A-RGB (White) (ACFAN00276A)

Addressable RGB for Full-Colour Control
The P14 PWM PST A-RGB has 12 digital A-RGB LEDs in the center fan wheel. These can be controlled independently of each other and are compatible with the common A-RGB standards of leading motherboard manufacturers. The fan can thus be fully illuminated directly via the A-RGB mainboard connector or via an external controller and synchronised with the illumination of other hardware.

0 dB Mode — Zero rpm
The speed of the fan can be throttled down to a standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required.

Maximum Smoothness, Minimum Vibration
The operating noise of the newly developed ARCTIC motor is barely perceptible even at the lowest speed. In addition, the P14 PWM PST A-RGB has rubberized contact surfaces and thus reduces audible vibrations to a minimum.

Optimised for High Static Pressure
The P14 PWM PST A-RGB operates with a focused airflow and a high static pressure. The fan thus guarantees extremely efficient cooling, even with increased air resistance, and is therefore suitable for use on heat sinks, radiators and filters.

200 to 1900 rpm Controlled via PWM PST
With a wide speed range and the innovative PWM Sharing Technology (PST), the fan speed of the P14 PWM PST A-RGB can be controlled synchronously with all other fans. This reduces noise to a minimum while guaranteeing maximum cooling performance.

High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. In this way, less heat develops, less bearing noise is generated and the service life of the fan is extended.

Quality You Can Rely On
To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee on the P14 PWN PST A-RGB.

TECHNICAL SPECIFICATIONS & MANUAL

General Specifications
Performance
Fan Speed:
200—1900 rpm PWM Controlled (0 rpm below 5% PWM)
Airflow:
68.90 cfm | 117.06 m³/h
Static Pressure:
2 mmH2O
Noise Level:
0.3 Sone
Fan
Fan Frame:
Standard
Control Type:
PWM PST
Connector:
4-Pin Connector + 4-Pin Socket
Fan Bearing:
Fluid Dynamic Bearing
Operating Ambient Temperature:
0—40 °C
Warranty:
6 Years
Electric Characteristics:
Typical Voltage:
12 V DC
Starting Voltage:
5 V
Current | Voltage:
0.17 A | 12 V DC
Cable Length:
400 mm
RGB Specifications
LEDs:
12 A-RGB LEDs
Connector:
3-Pin 5 V-DI-GND Connector
Current / Voltage:
0.4 A/5 V
Cable:
400 mm Cable with 80 mm Sharing Cable, Black
Size & Weight
Length:
140 mm
Width:
140 mm
Height:
27 mm
Weight:
225 g
Packaging
  •  Width: 167 mm
  •  Height: 34 mm
  •  Length: 167 mm
  • Weight: 0.297 kg
