Description

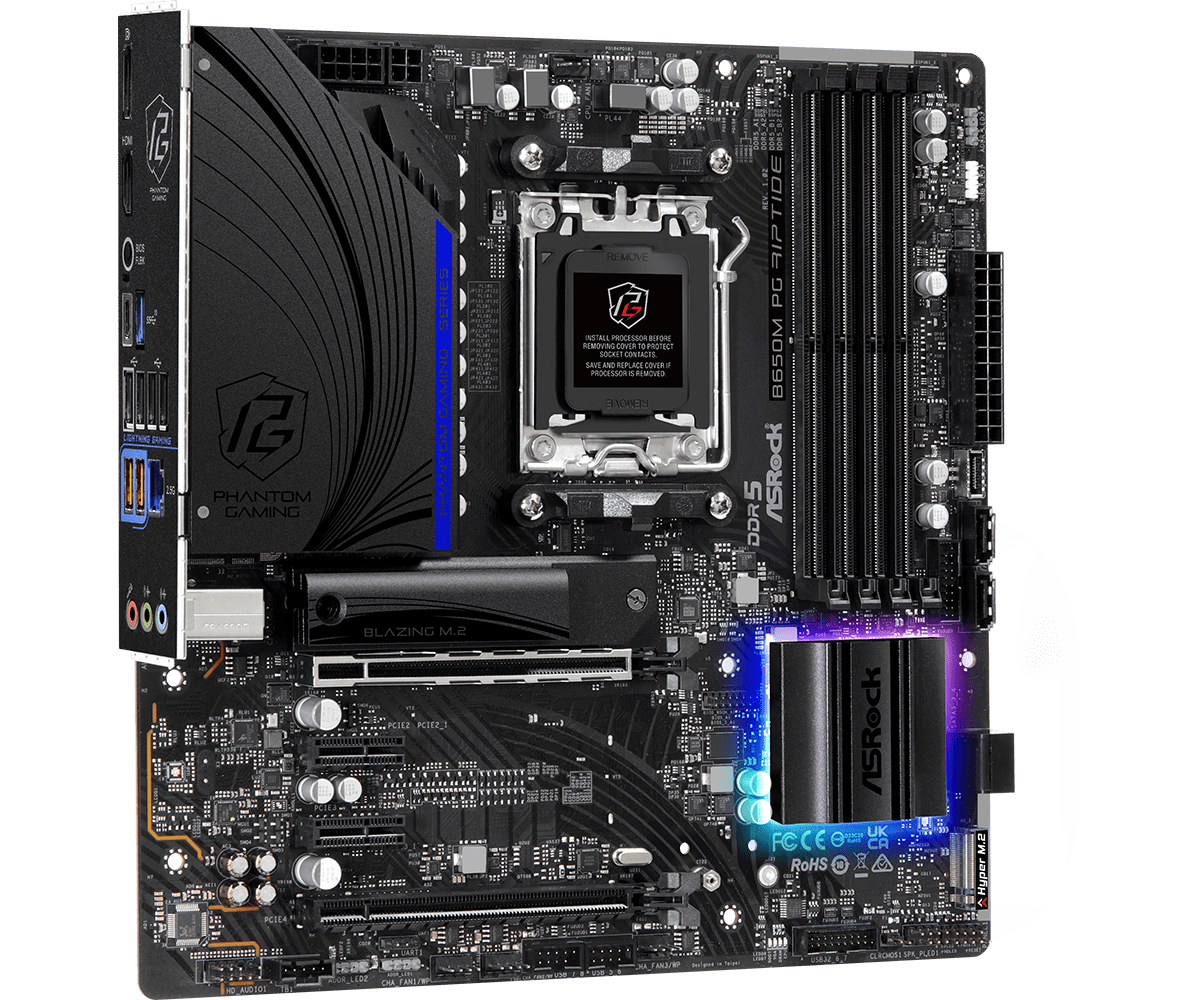

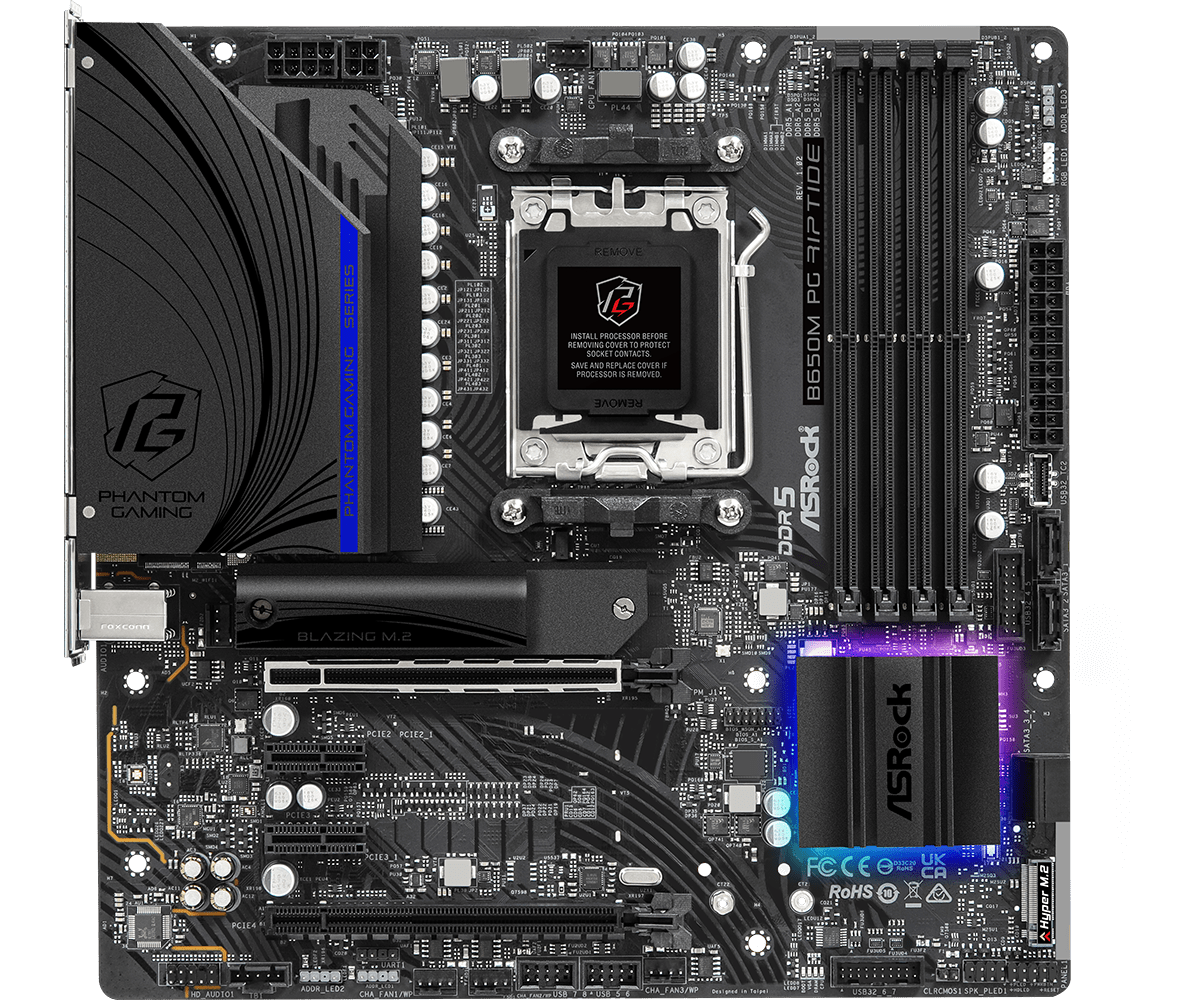

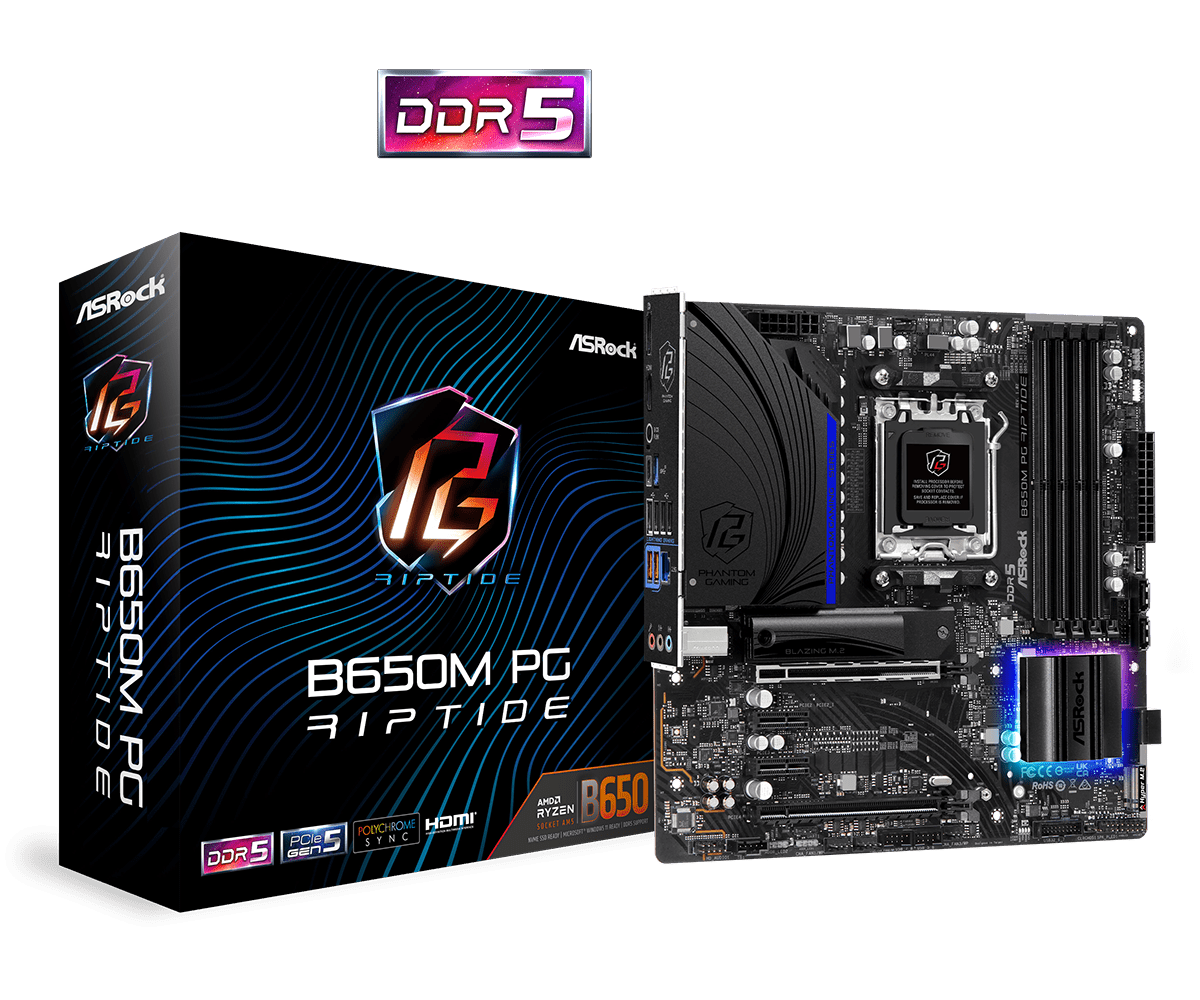

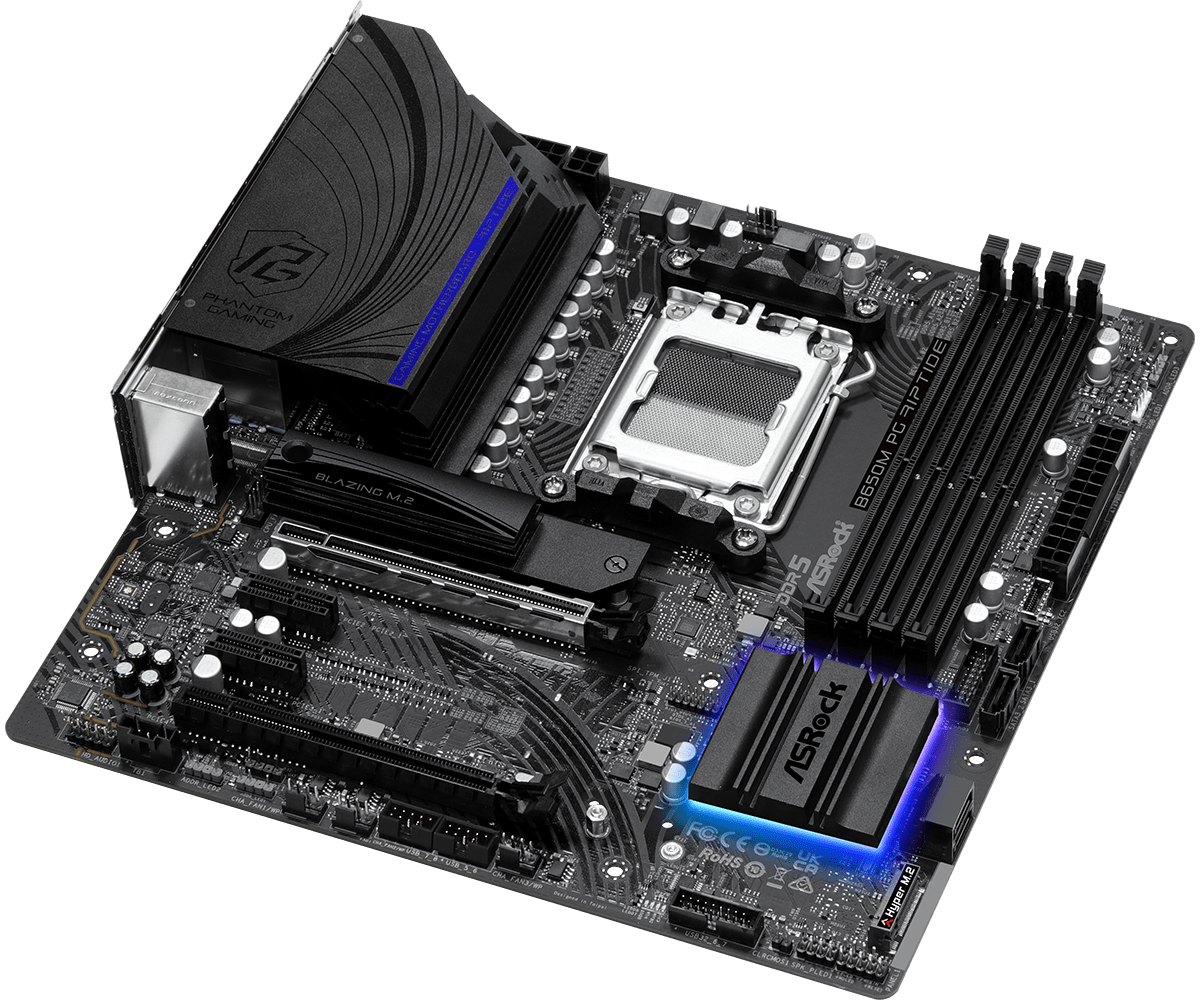

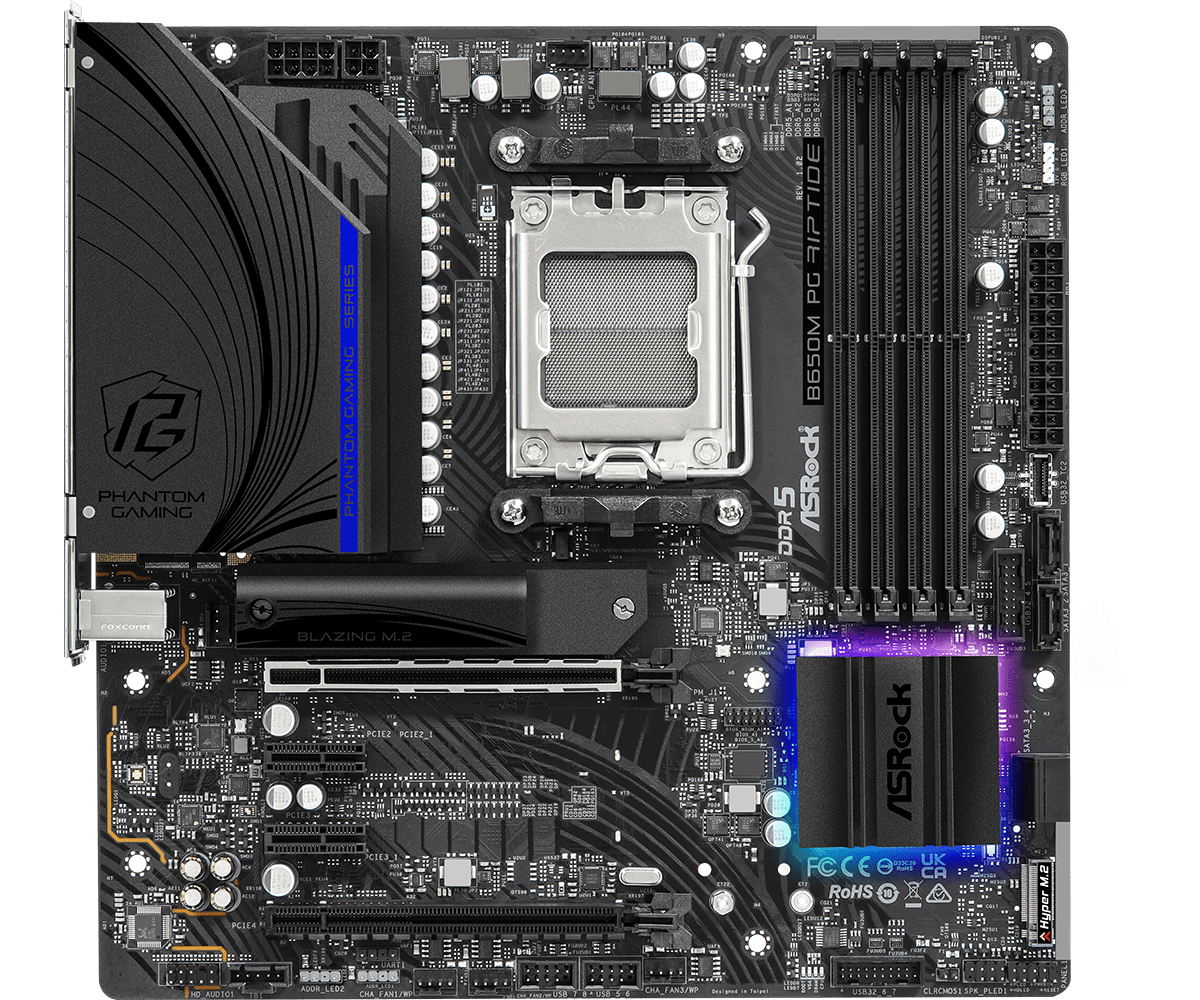

B650M PG Riptide
- PRODUCT BRIEF:
- Supports AMD Ryzen™ 7000 Series Processors
- 12+2+1 Power Phase, Dr.MOS
- Supports DDR5 6200MHz (OC)
- 2 PCIe 4.0 x16, 2 PCIe 3.0 x1
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4)
- 1 Hyper M.2 (PCIe Gen4x4)
- 2 Rear USB 3.2 Gen2 (Type A + Type-C)
- 1 USB 3.2 Front Gen1 Type-C
- 6 USB 3.2 Gen1 (2 Rear, 4 Front)
- 8 USB 2.0 (4 Rear, 4 Front)
Optimized VRM Design
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
DDR5 Memory With Protection Circuit
Nahimic Audio
●Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
●Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.
Lightning Gaming Ports
POLYCHROME RGB
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
*A Group=Addressable RGB Header, B Group=RGB Header
High Speed M.2 Solution
Tired of dropping screws or screws missing inside chassis?
The enhanced M.2 heatsink with anti-drop screw design that make sure installation process more easily.
Phantom Gaming 2.5 Gb/S LAN
Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.
Wi-Fi 6E 802.11ax
Dual USB 3.2 Gen2 (Type-A + Type-C)
EZ Setting
Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
Step1: Install Auto Driver Installer
Step2: ADI will automatically download and install all necessary drivers.
Step3: Done!
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.
Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.
- - PCIe Gen5 (M.2)
- - Dual Channel DDR5
- Rock-Solid Durability
- - 12+2+1 Power Phase, 50A Dr.MOS with Enlarged Heatsink Armor
- - Flexible Integrated I/O Shield
- Ultrafast Gaming
- - 2.5G LAN
- - ASRock Lightning Gaming Ports
- EZ Update
- - BIOS Flashback Button
- - ASRock Auto Driver Installer
- EZ Troubleshooter
- - ASRock Post Status Checker
- - 4 x DDR5 DIMM Slots
- - Supports DDR5 non-ECC, un-buffered memory up to 6200+(OC)
- - Max. capacity of system memory: 192GB
- - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
- - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
- - Nahimic Audio
- - Dragon RTL8125BG
- - Supports Phantom Gaming LAN Software
- - Smart Auto Adjust Bandwidth Control
- - Visual User Friendly UI
- - Visual Network Usage Statistics
- - Optimized Default Setting for Game, Browser, and Streaming Modes
- - User Customized Priority Control
- CPU:
- - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
- - 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode*
- Chipset:
- - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)
- - Supports AMD CrossFire™
- - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
- *Supports NVMe SSD as boot disks
- CPU:
- - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
- Chipset:
- - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- - 4 x SATA3 6.0 Gb/s Connectors
- *Supports NVMe SSD as boot disks
- Supports ASRock U.2 Kit
- - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
- *Requires additional M.2 NVMe expansion cards to support RAID 10
- - 1 x USB 3.2 Gen2 Type-C (Rear)
- - 1 x USB 3.2 Gen2 Type-A (Rear)
- - 1 x USB 3.2 Gen1 Type-C (Front)
- - 6 x USB 3.2 Gen1 (2 Rear, 4 Front)
- - 8 x USB 2.0 (4 Rear, 4 Front)
- *All USB ports support ESD Protection
- - 1 x SPI TPM Header
- - 1 x Power LED and Speaker Header
- - 1 x RGB LED Header*
- - 3 x Addressable LED Headers**
- - 1 x CPU Fan Connector (4-pin)***
- - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- - 1 x 24 pin ATX Power Connector
- - 1 x 8 pin 12V Power Connector
- - 1 x 4 pin 12V Power Connector
- - 1 x Front Panel Audio Connector
- - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
- - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- - 1 x Front Panel Type C USB 3.2 Gen1 Header
- *Supports in total up to 12V/3A, 36W LED Strip
- **Support in total up to 5V/3A, 15W LED Strip
- ***CPU_FAN1 supports the fan power up to 1A (12W).
- ****CPU_FAN2/WP supports the fan power up to 2A (24W).
- *****CHA_FAN1~3/WP support the fan power up to 2A (24W).
- CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

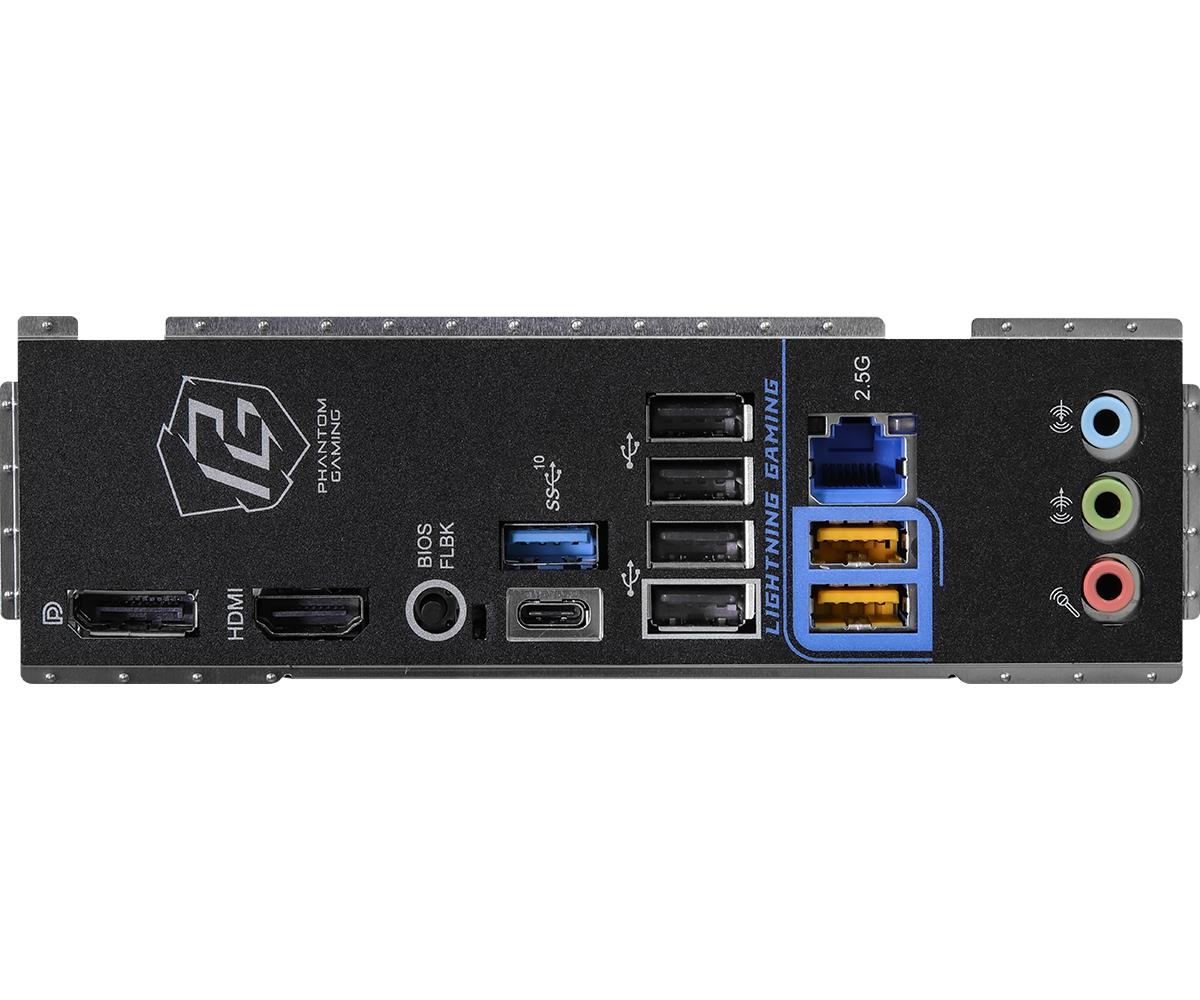

- - 1 x HDMI Port
- - 1 x DisplayPort 1.4
- - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)
- - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)
- - 2 x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming Ports.)
- - 4 x USB 2.0 Ports
- - 1 x RJ-45 LAN Port
- - 1 x BIOS Flashback Button
- - HD Audio Jacks: Line in / Front Speaker / Microphone
- Software
- - ASRock Motherboard Utility (Phantom Gaming Tuning)
- - ASRock Phantom Gaming LAN Software
- - ASRock Polychrome SYNC*
- UEFI
- - ASRock Full HD UEFI
- - ASRock Auto Driver Installer
- - ASRock Instant Flash
- *These utilities can be downloaded from ASRock Live Update & APP Shop.
- - 1 x User Manual
- - 2 x SATA Data Cables
- - 2 x Screws for M.2 Sockets
- - 1 x Standoff for M.2 Socket
- - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
- - 2oz Copper PCB
- - Microsoft® Windows® 10 64-bit / 11 64-bit
- - FCC, CE
- - ErP/EuP ready (ErP/EuP ready power supply is required)
