• Supports 13^th Gen & 12^th Gen and next gen Intel^® Core™ Processors (LGA1700)
• 5+1+1 Power Phase, Dr.MOS for VCore+GT
• Supports DDR4 5333MHz (OC)
• 1 PCIe 4.0 x16
• Graphics Output Options: HDMI, DisplayPort
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4)
• 1 USB 3.2 Gen2x2 Type-C (Rear)
  4 USB 3.2 Gen1 (2 Rear, 2 Front)
  6 USB 2.0 (2 Rear, 4 Front)
• Realtek 1G LAN, 802.11ax (WiFi 6E) + Bluetooth
• Supports ASRock Auto Driver Installer

Unique Feature

Rock-Solid Durability
- 5+1+1 Power Phase, 50A Dr.MOS for VCore+GT

Ultrafast Gaming
- 802.11ax Wi-Fi 6E Module

EZ Update
- ASRock Auto Driver Installer

CPU
- Supports 13th Gen & 12th Gen and next gen Intel® Core™ Processors (LGA1700)
- Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0 Technology
- Supports Intel® Thermal Velocity Boost (TVB)
- Supports Intel® Adaptive Boost Technology (ABT)

Chipset
- Intel® B760

Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB
- Supports Intel® Extreme Memory Profile (XMP) 2.0

*1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.
1DPC 2R Up to 4266+ MHz (OC), 3200 MHz Natively.

BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support

Graphics
- Intel® Xe Graphics Architecture (Gen 12)
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to

4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio

LAN
- Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H

Wireless LAN
- 802.11ax Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax
- Supports Dual-Band 2x2 with extended 6GHz band support*
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth + High speed class II
- Supports MU-MIMO

*Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.

Slots

CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

*Supports NVMe SSD as boot disks
Storage

CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:
- 4 x SATA3 6.0 Gb/s Connectors

*Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks

RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB
- 1 x USB 3.2 Gen2x2 Type-C (Rear)
- 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)
* All USB ports support ESD Protection

Connector
- 1 x CPU Fan Connector (4-pin)*
- 1 x Chassis Fan Connector (4-pin)*
- 1 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

*CPU_FAN1 and CHA_FAN2 support the fan power up to 1A (12W).

**CHA_FAN1/WP support the fan power up to 2A (24W).
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

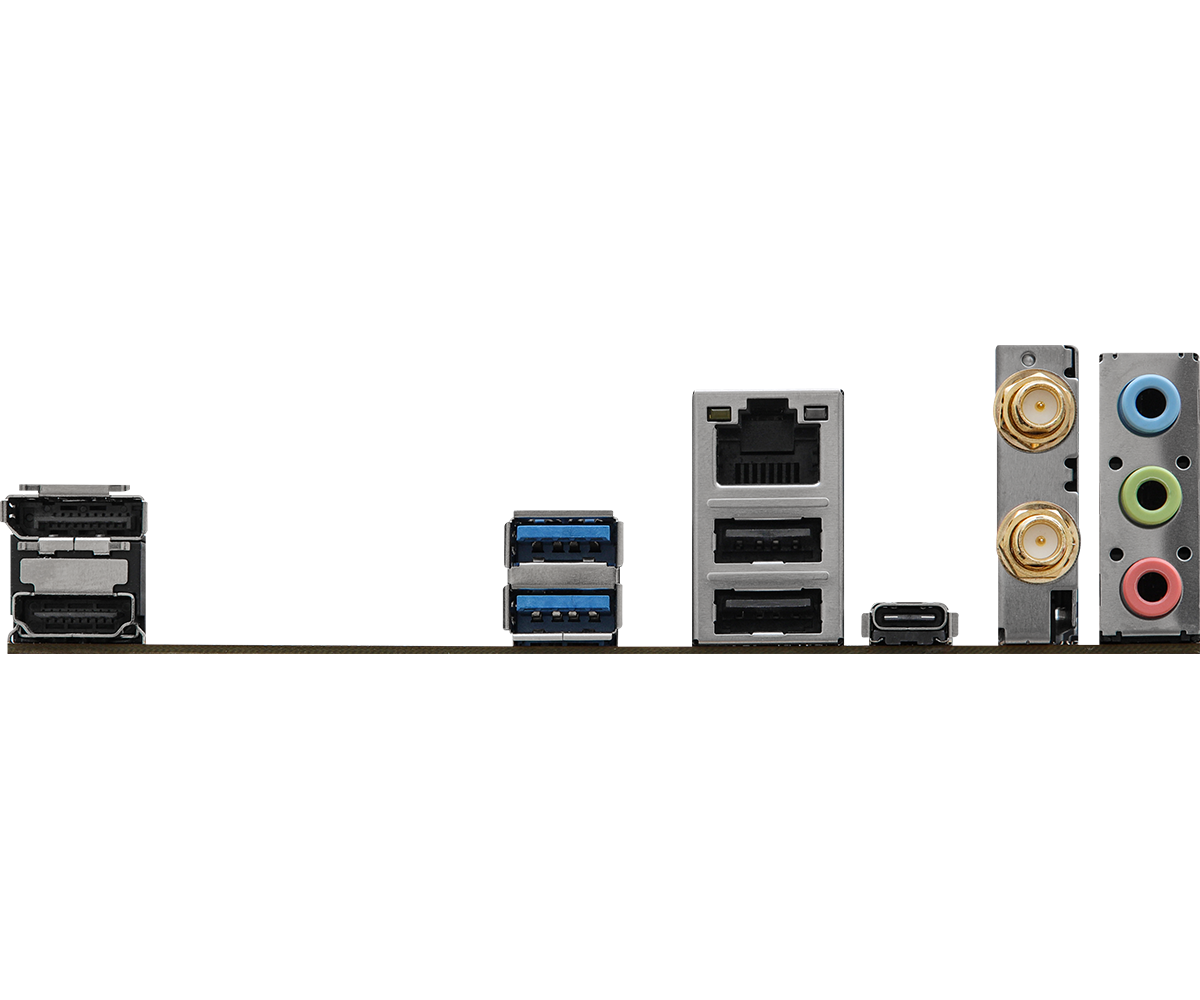

Rear Panel I/O
- 2 x Antenna Ports
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
- 2 x USB 3.2 Gen1 Ports
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN

UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.

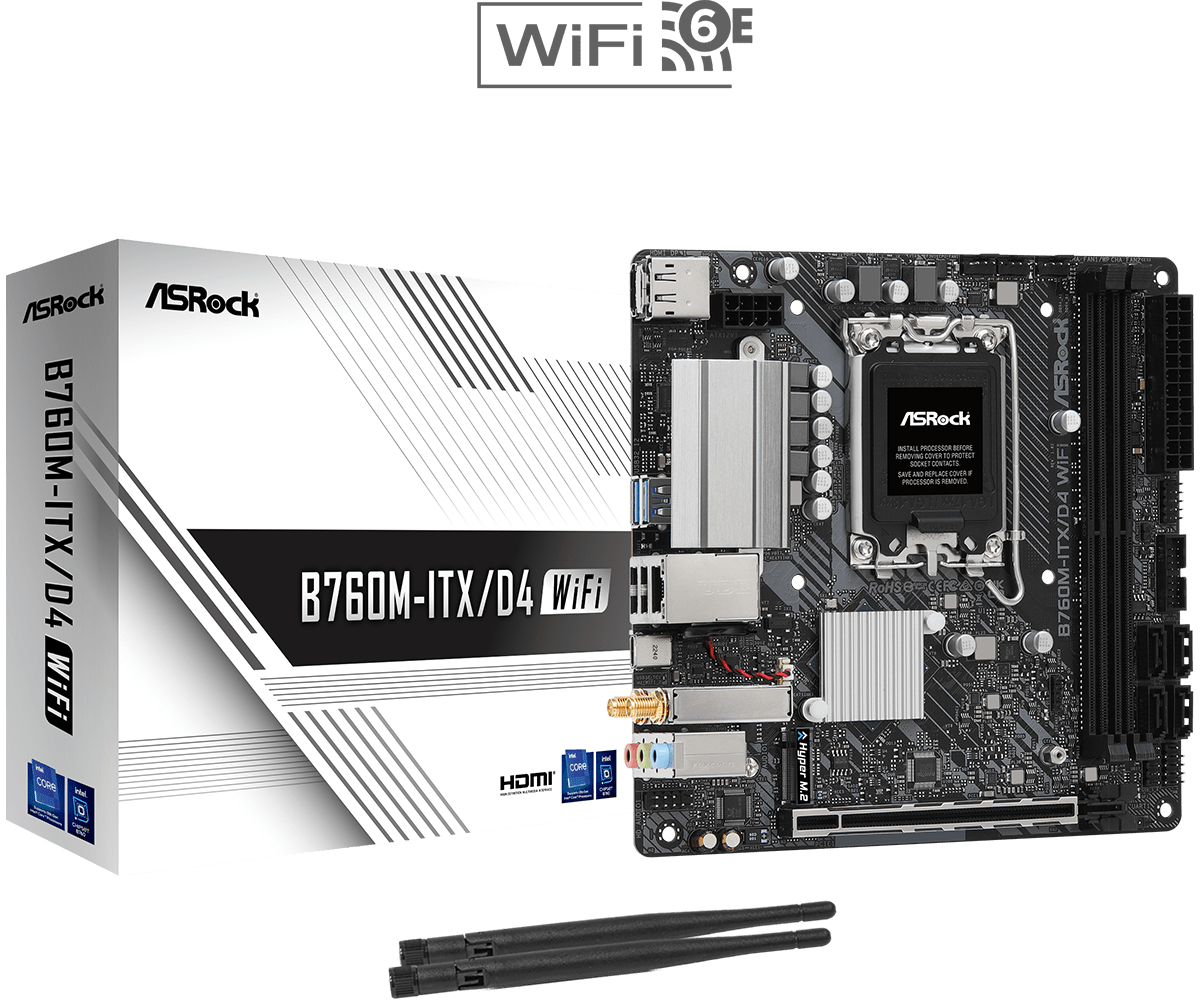

Accessories
- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- 1 x Screw for M.2 Socket

Form Factor
- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm

OS
- Microsoft® Windows® 10 64-bit / 11 64-bit

Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
