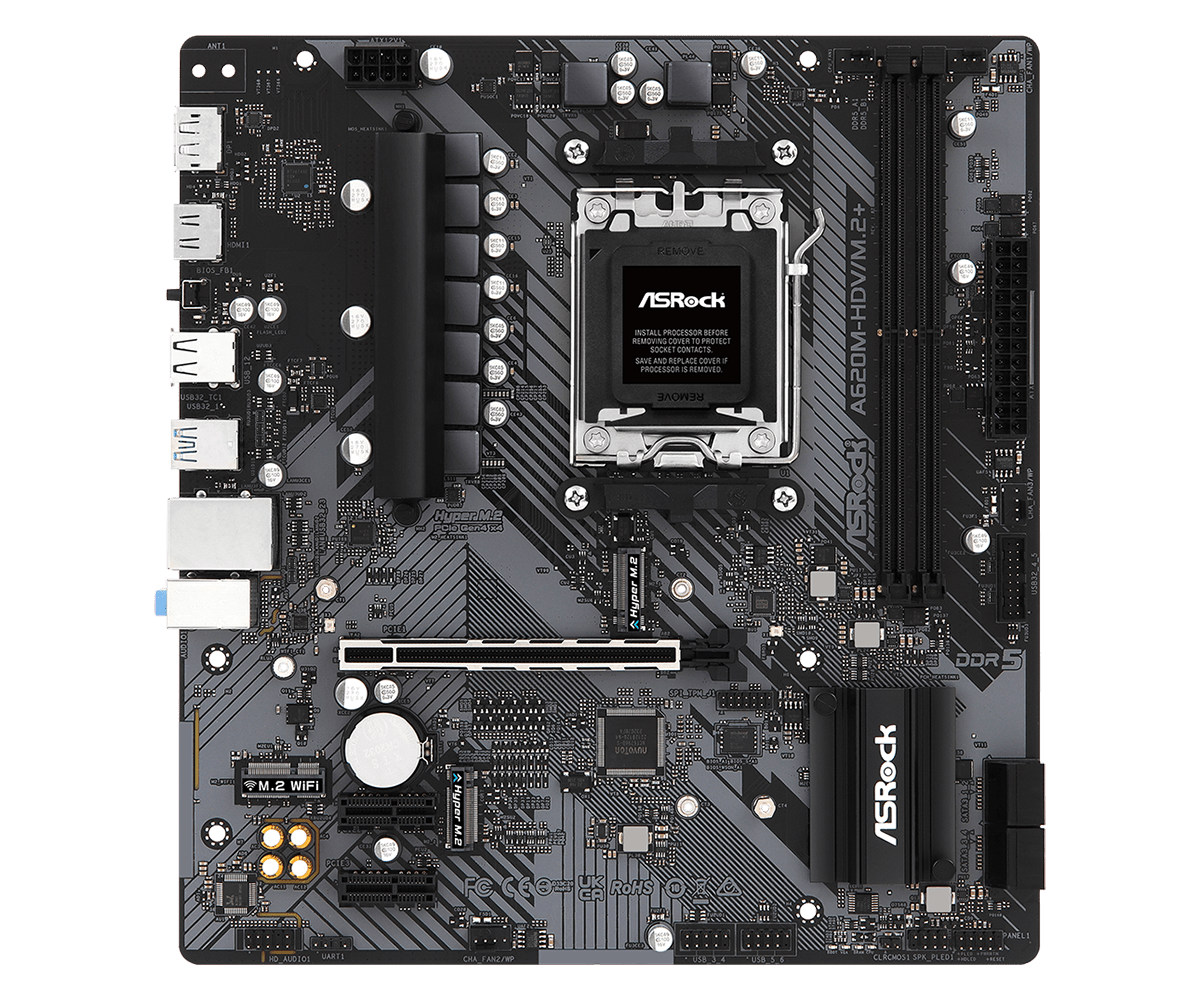

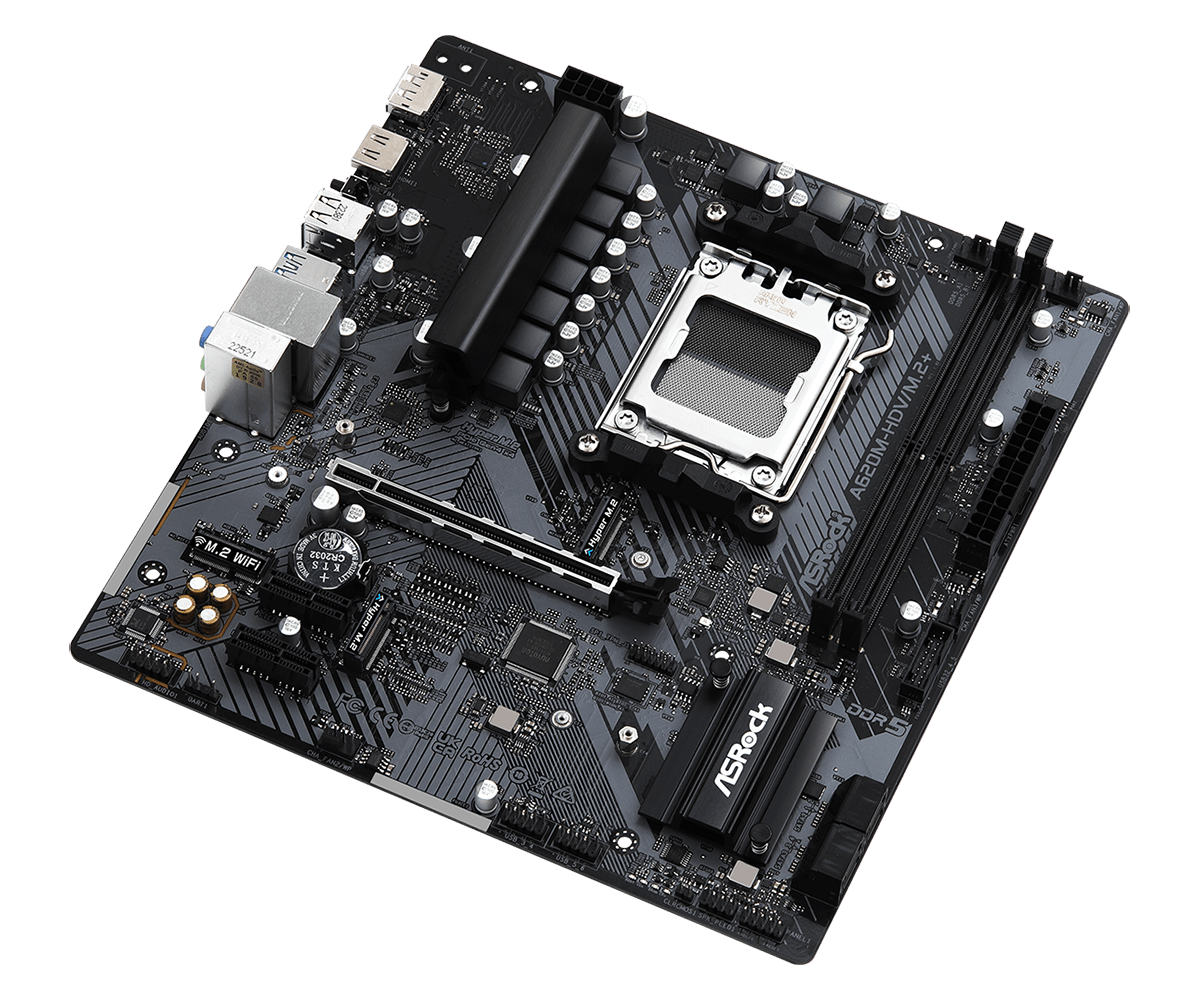

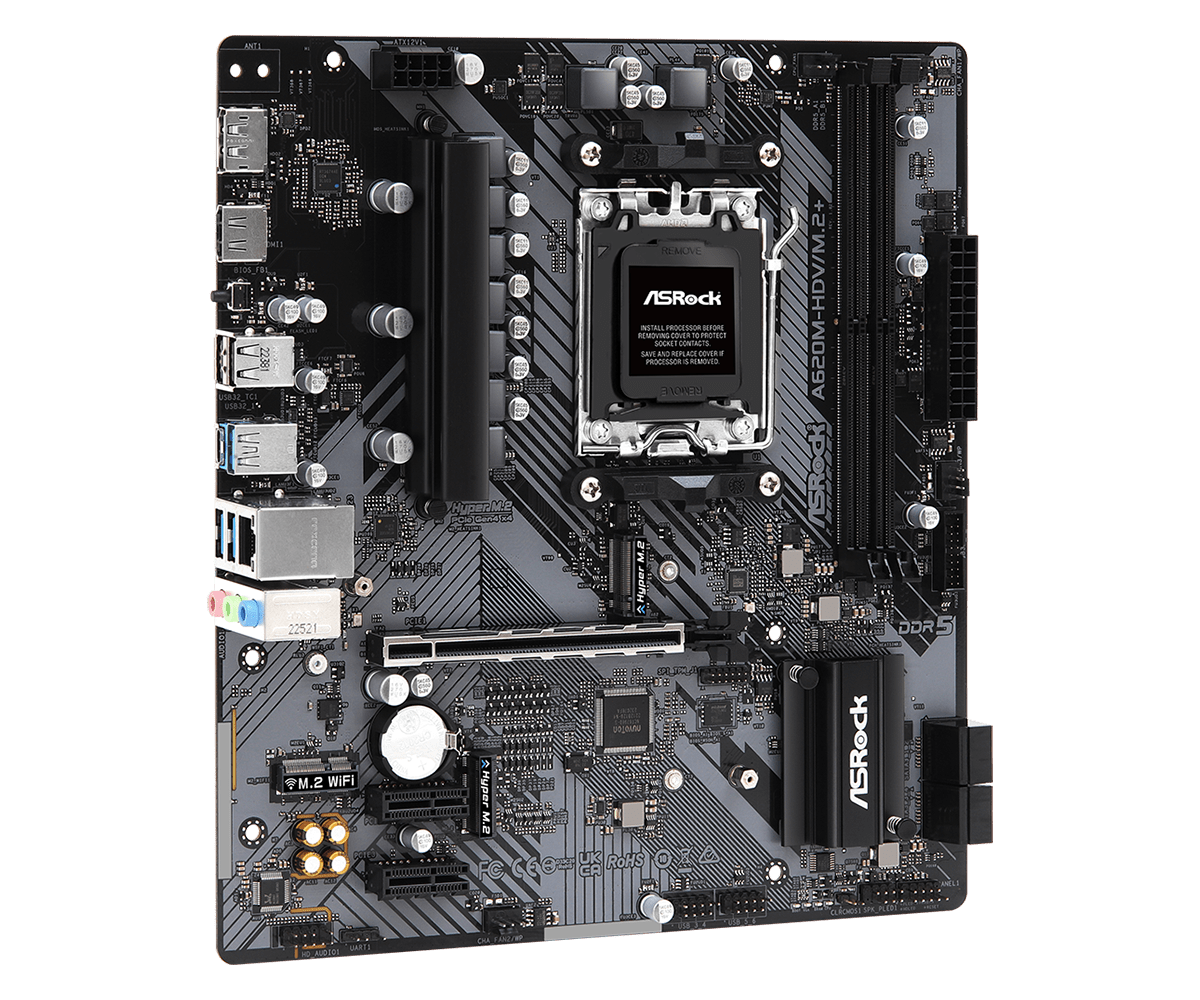

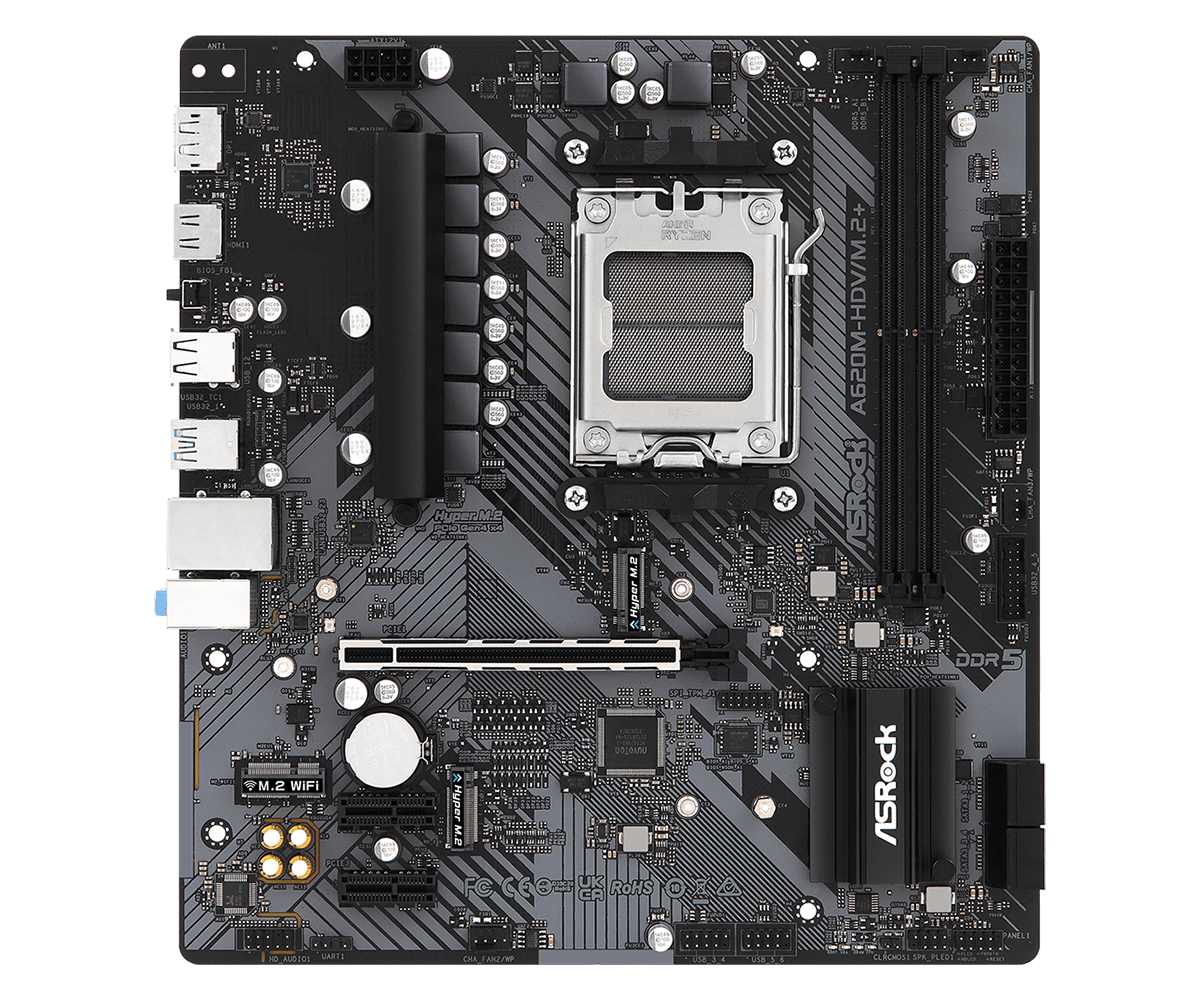

ASROCK A620M-HDV/M.2+, 2DDR5 Supports AMD Socket AM5 Ryzen™ 8000 and 7000 Series Processors (90-MXBLK0-AOUAYZ)

• Supports AMD Socket AM5 Ryzen™ 8000 and 7000 Series Processors
• 6+1+1 Power Phase, Dr.MOS
• Supports DDR5 7200+ MHz (OC)
• 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
• Integrated AMD RDNA™ 2 Graphics*
• Graphics Output Options: HDMI, DisplayPort
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4)
• 6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
• Realtek Gigabit LAN
• Supports ASRock Auto Driver Installer, BIOS Flashback

Unique Feature
Superb Productivity
- Dual Channel DDR5
Rock-Solid Durability
- 6+1+1 Power Phase, 50A Dr.MOS for VCore
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker
CPU
- Supports AMD Socket AM5 Ryzen™ 8000 and 7000 Series Processors**

*Please refer to CPU Support List on ASRock's website for more information. (http://www.asrock.com/)
The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
Chipset
- AMD A620
Memory
- Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM Slots
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
- Max. capacity of system memory: 96GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

*Please refer to Memory Support List for more information.
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
Graphics
Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio
LAN
- Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H
Slots
CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

- 15μ Gold Contact in VGA PCIe Slot (PCIE1)

*Supports NVMe SSD as boot disks
Storage
CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 4 x SATA3 6.0 Gb/s Connectors

*Supports NVMe SSD as boot disks
RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

*Requires additional M.2 NVMe expansion cards to support RAID 10
USB
- 1 x USB 3.2 Gen1 Type-C (Rear)
- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)

*All USB ports support ESD Protection
Connector
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

*CPU_FAN1 supports the fan power up to 1A (12W).

**CHA_FAN1~3/WP support the fan power up to 2A (24W).
CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

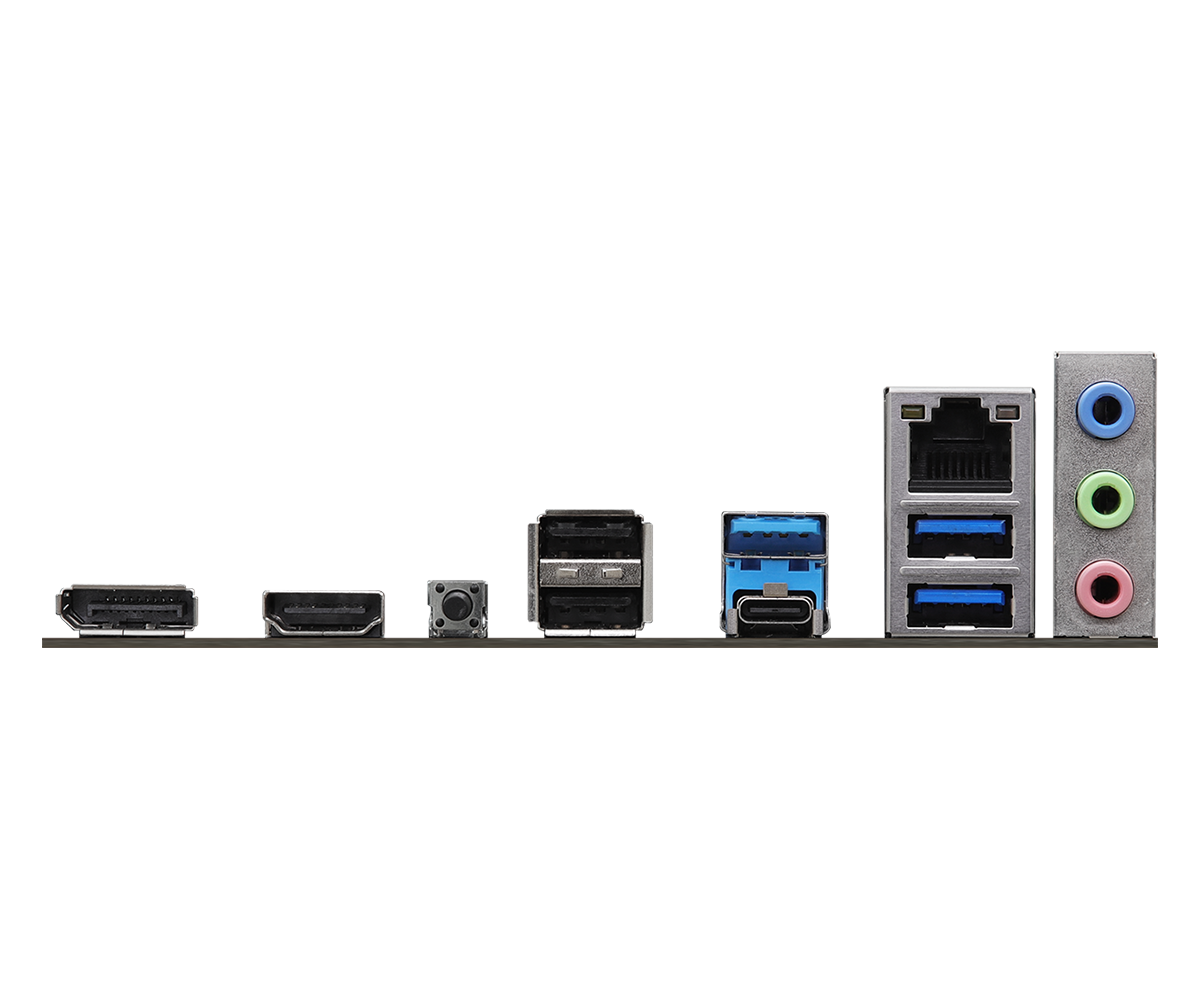

Rear Panel I/O
- 2 x Antenna Mounting Points
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen1 Type-C Port
- 3 x USB 3.2 Gen1 Type-A Ports
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories
- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets
Form Factor
- Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
OS
- Microsoft Windows® 10 64-bit / 11 64-bit
Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
