Description

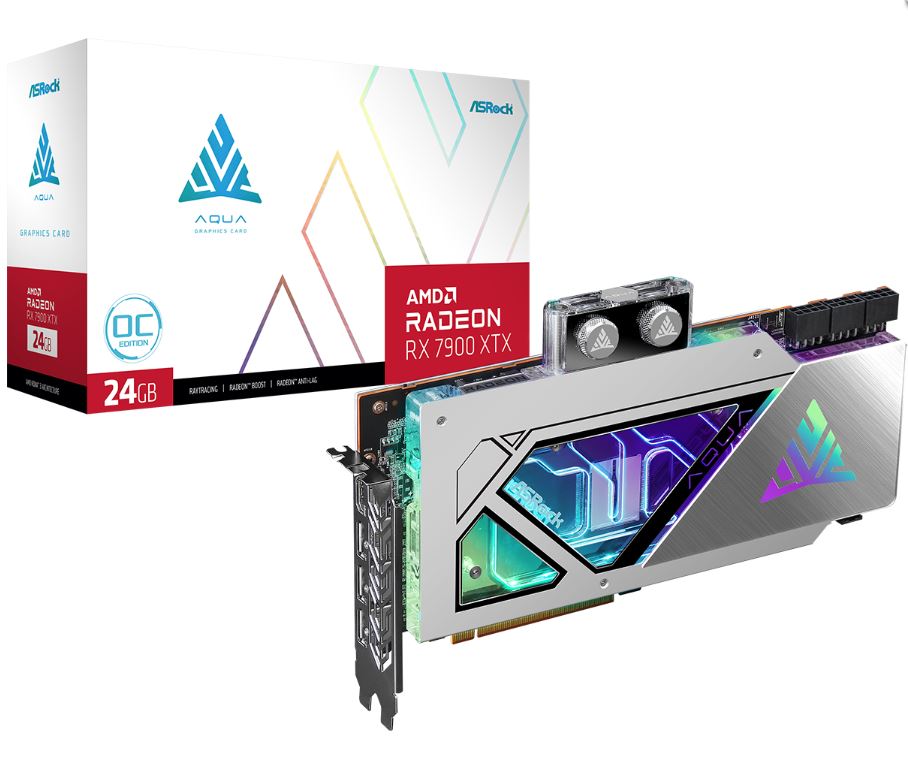

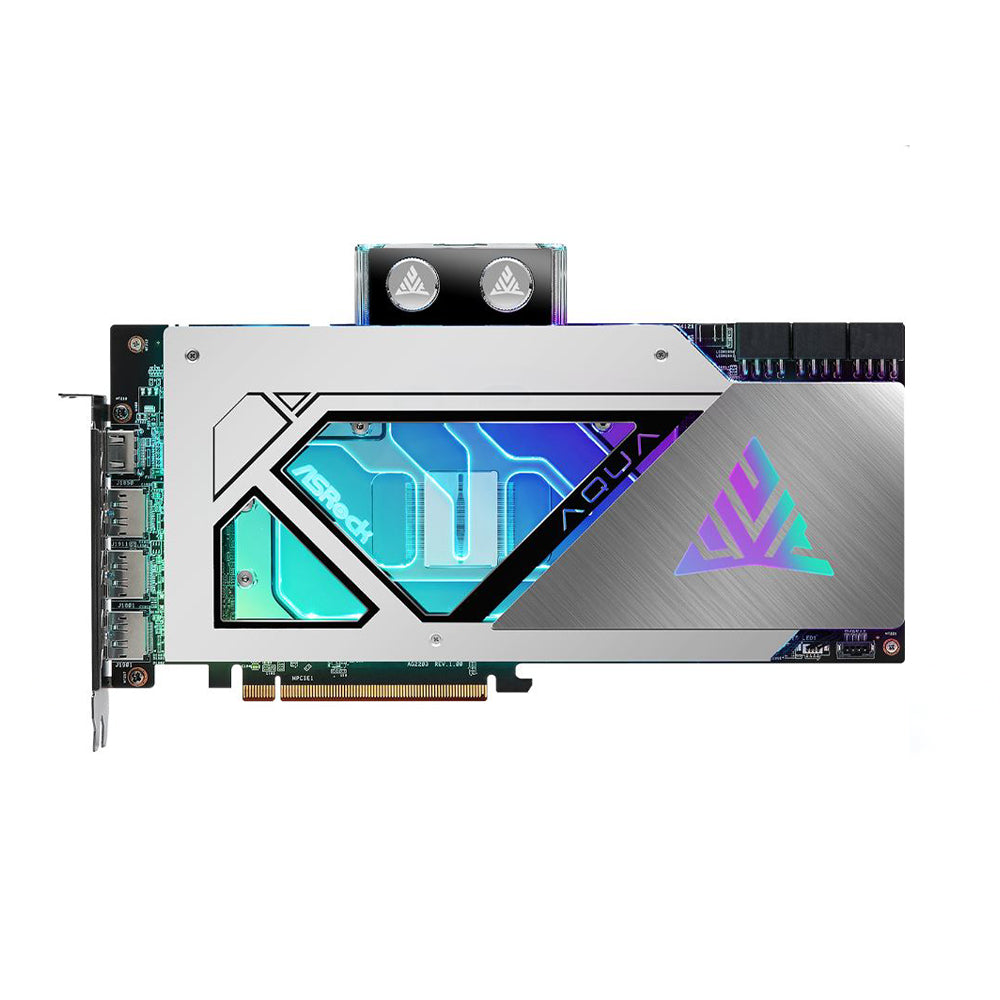

AMD Radeon™ RX 7900 XTX AQUA 24GB OC
RX7900XTX AQ 24GO
Clock: GPU / Memory
Boost Clock*: Up to 2680 MHz / 20 Gbps
(update new vBIOS for faster Boost Clock)
Game Clock**: 2510 MHz / 20 Gbps
Boost Clock*: Up to 2680 MHz / 20 Gbps
(update new vBIOS for faster Boost Clock)
Game Clock**: 2510 MHz / 20 Gbps
Key Specifications
- AMD Radeon™ RX 7900 XTX GPU
- 24GB GDDR6 on 384-Bit Memory Bus
- 96 AMD RDNA™ 3 Compute Units (With Rt+Ai Accelerators)
- 96MB AMD Infinity Cache™ Technology
- PCI® Express 4.0 Support
- 3 x 8-pin Power Connectors
- 3 x DisplayPort™ 2.1 / 1 x HDMI™ 2.1
- AQUA Liquid Cooling System
- High Purity Copper Plate
- Jet Microchannel Engine
- Stylish Acrylic Backplate
- Polychrome SYNC
- LED On/Off Switch
- ARGB Pin-header
- 22 Power Phase Design
- Super Alloy Graphics Card
*Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
**Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
**Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
Break the Performance Limit of Graphic Card
New BIOS Updated
The new vBIOS (RX7900XTX_24GB_Extreme_OC) of Radeon RX 7900 XTX AQUA 24GB OC is equipped with better settings to make graphic card break performance limit. Compared with AMD Radeon RX 7900 XTX reference card, the new vBIOS settings have approximate 13.5% performance enhancement and significantly improve user gaming experience.
AQUA Liquid Cooling System
Transparent and stylish water block brings effective and quick heat dissipation.
High Purity Cooler Plate
Electroplating Copper Base
AQUA water block is made of high-purity copper with nickel plating for thermal transfer effectively and quickly.
Jet Microchannel Engine
Make Water Flow More Powerful
The 0.3mm jet microchannel enhances the water flow and make heat dissipation more quickly.
Stylish Acrylic Backplate
Acrylic & Aluminum Collaboration
The collaboration of acrylic and aluminum makes the graphics card more elegant.
Polychrome SYNC
Create your own unique colorful light effects.
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.
LED On/Off Switch
On or Off? Switch as You Want.
You can switch not only the built-in ARGB LEDs but also the ARGB LEDs equipping with the connected strips/devices at once.
ARGB Pin-header
More ARGB, More Fancy.
With the ARGB pin-header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid.
22 Power Phase Design
More Power Phase Equipped to Deliver More Sufficient Power.
Featuring 22 power phases with sturdy components to raise maximum current to GPU and memory to offer enhanced performance.
Japanese SP-Cap
With a high conductive polymer as the electrolyte, it has a lower equivalent series resistance (ESR) to provide outstanding electrical characteristics. In addition to that, it also has excellence in product operational life, reliability and heat resistance.
SPS (Smart Power Stage)
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the GPU with enhanced performance and OC capability.
Premium 100A Power Choke
Compared to traditional chokes, ASRock’s premium 100A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.
ASRock Tweak 2.0
Pro and Easy-to-Use Tuning Utility.
Provides the smart fan speed control and instant performance tweaking.
8K Resolution Support
Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.
PCI® Express 4.0 Support
This graphics card features PCI® Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI® Express 3.0. Get ready for the next generation of PC gaming.
Experience unprecedented performance, visuals, and efficiency at 4K and beyond with AMD Radeon™ RX 7000 Series, the world’s first gaming GPUs powered by AMD RDNA™ 3 chiplet technology. Immerse yourself in breathtaking visuals with the pinpoint color accuracy of AMD Radiance Display™ Engine and boost frame rates with AMD FidelityFX™ Super Resolution and Radeon™ Super Resolution upscaling technologies.1,2 To unlock even more performance, combine AMD Radeon™ RX 7000 Series graphics and compatible AMD Ryzen™ processors to activate AMD smart technologies.3
BREAKTHROUGH PERFORMANCE
AMD Radeon™ RX 7000 Series graphics cards set a new standard for ultra-enthusiast class gaming performance. Featuring advanced AMD RDNA™ 3 compute units, blazing fast clock speeds, and chiplet technology to enable fluid, high-refresh rate gaming experiences. Breakthrough new levels of performance with up to 24GB of GDDR6 memory and 2nd generation AMD Infinity Cache™ to deliver an incredible experience at 4K and beyond.
BREATHTAKING VISUALS
Discover new levels of fidelity and ultra-fast gameplay with High-Performance Rendering, a combination of compute-based AMD FideltyFX™ features and upscaling technologies, to deliver world-class visuals with remarkable performance. Further immerse yourself with the AMD Radiance Display™ Engine and DisplayPort™ 2.1 to experience up to 68 billion colors at up to 8K 165Hz.
BETTER TOGETHER
Combine AMD Radeon™ RX 7000 Series graphics cards and AMD Ryzen™ processors to activate AMD smart technologies3. You can unleash outstanding performance to give you an edge in the game. Advance your AMD Radeon™ RX 7000 Series GPU with the AMD Software: Adrenalin Edition™ application, featuring bulletproof drivers, for the best PC gaming experiences.
UPSIZE PERFORMANCE.
MAXIMIZE FIDELITY
AMD FidelityFX™ Super Resolution technology1 takes upscaling technology to the next level. Providing incredible image quality while boosting framerates in supported games.
AMD Radeon™ Super Resolution (RSR)2 leverages FSR technology on the driver level, giving you upscaled performance benefits across thousands of games.
AMD Radeon™ Super Resolution (RSR)2 leverages FSR technology on the driver level, giving you upscaled performance benefits across thousands of games.
Graphics Engine
- AMD Radeon™ RX 7900 XTX
Bus Standard
- PCI® Express4.0 x16
DirectX
- 12 Ultimate
OpenGL
- 4.6
Memory
- GDDR6 24GB
Engine Clock
- Boost Clock*: Up to 2680 MHz
(update new vBIOS for faster Boost Clock)
- Game Clock**: 2510 MHz
*Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads." style="width:99%;height:80px;" onMouseOver="this.focus()" autocomplete=off>(update new vBIOS for faster Boost Clock)
- Game Clock**: 2510 MHz
*Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads." style="width:99%;height:80px;" onMouseOver="this.focus()" autocomplete=off>- Boost Clock*: Up to 2680 MHz
(update new vBIOS for faster Boost Clock)
- Game Clock**: 2510 MHz
*Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
Stream Processors
- 6144
Compute Units
- 96
Memory Clock
- 20Gbps
Memory Interface
- 384-bit
Resolution
- Digital Max Resolution: 7680x4320
Interface
- 3 x DisplayPort™ 2.1*
- 1 x HDMI™ 2.1
*DisplayPort (DP) 2.1 on any one or two ports. DisplayPort (DP) 1.4a on any and up to 4 ports simultaneously.
HDCP
- Yes
Multi-view
- 4
Recommended PSU
- 1000W
Power Connector
- 3 x 8-pin
Accessories
- 1 x Quick Installation Guide
Dimensions
- 275 X 157 X 22mm
Net Weight
- 1450 g
