ASRock B550 Phantom Gaming Riptide Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors

ASRock B550 Phantom Gaming Riptide Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors

Brand : ASRock

SKU:  B550 PG Riptide

₱8,880.00
₱9,475.00 ₱8,880.00
Sale! Sold out
Taxes included.

Low stock: 5 left

B550 PG Riptide

PRODUCT BRIEF:
  • Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
  • 10 Phase, Digi Power, Dr. MOS
  • Supports DDR4 4933+ (OC)*
  • 1 PCIe 4.0 x16 Slot, 2 PCIe 3.0 x16 Slots, 1 PCIe 3.0 x1 Slot
    1 M.2 Key-E for WiFi
  • Graphics Outputs: HDMI
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
  • 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4)
    1 Ultra M.2 (PCIe Gen3 x4 & SATA3)**
  • 3 USB 3.2 Gen2 (Front Type-C, Rear Type-A+C)
    10 USB 3.2 Gen1 (4 Front, 6 Rear), 8 USB 2.0 (6 Front, 2 Rear)
  • Killer E3100G 2.5G LAN

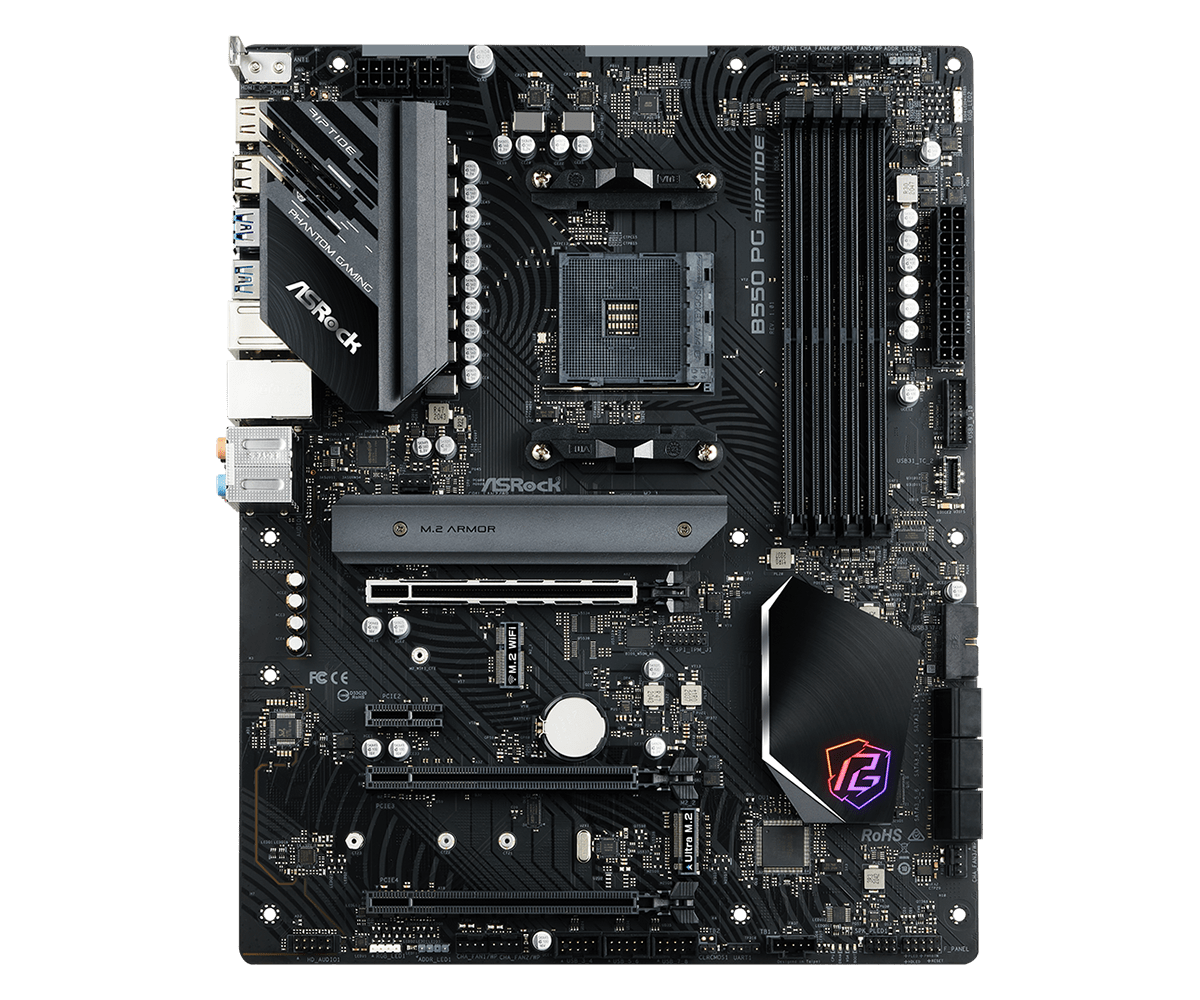

layout picture 1

layout picture 2

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

10 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

Killer™ Ethernet E3100

The Killer E3100 2.5 Gbps Ethernet controller is designed specially for competitive gamers and performance-hungry users. The enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications.

Intel® Killer™ Prioritization Engine

The Intel® Killer™ Prioritization Engine detects and optimally prioritizes over 1,000 different games, apps, and websites to deliver amazing online experiences, ensuring you get your lowest in-game latencies by prioritizing your gaming traffic above everything else.'

AMD SMART ACCESS MEMORY

Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With AMD Smart Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.

PCIe 4.0 High Speed M.2 Solution

This motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Lightning Gaming Ports
(Patent Pending)

Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!

Reinforced Steel Slot
[PCIe 4.0 Version]

The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.

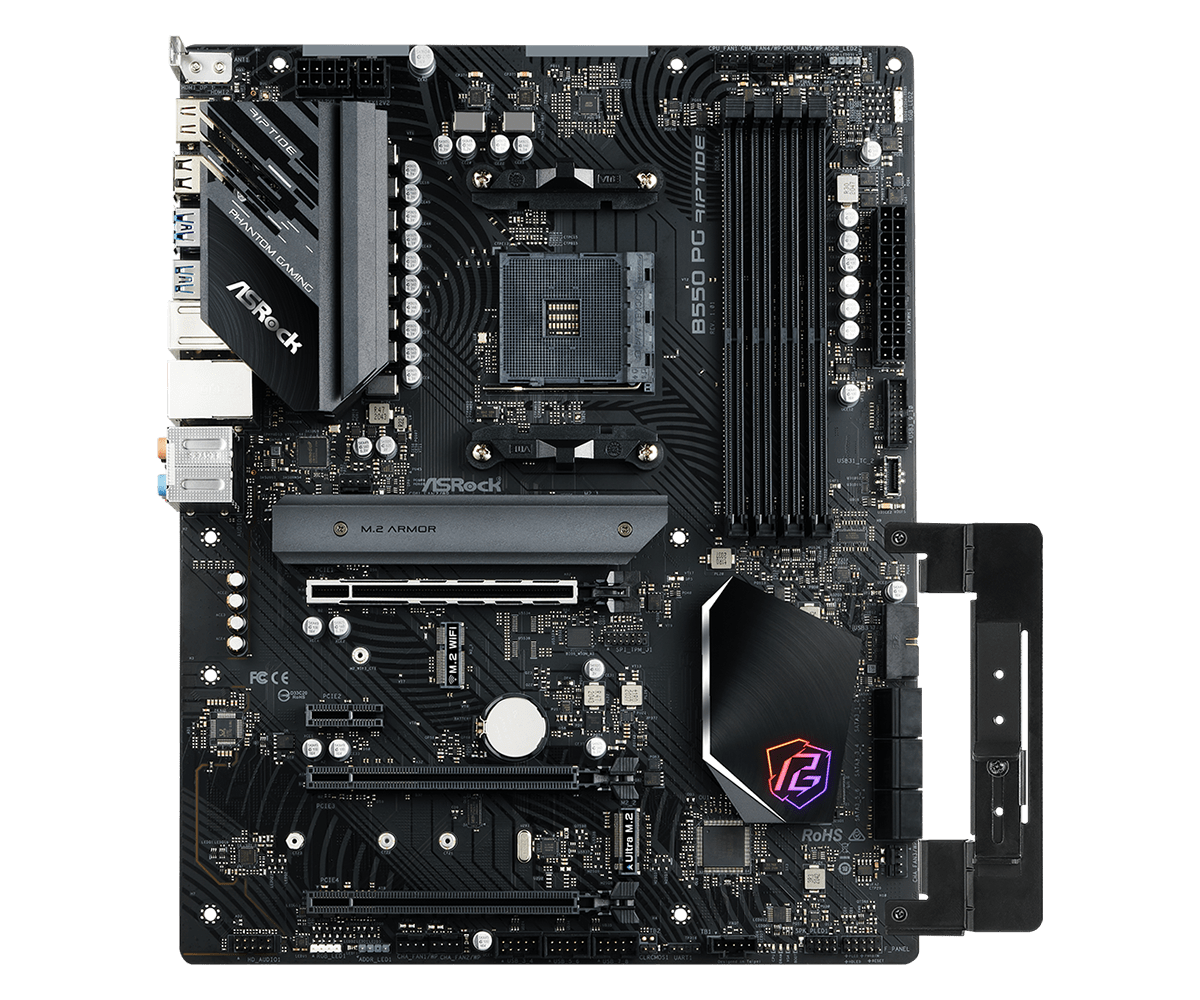

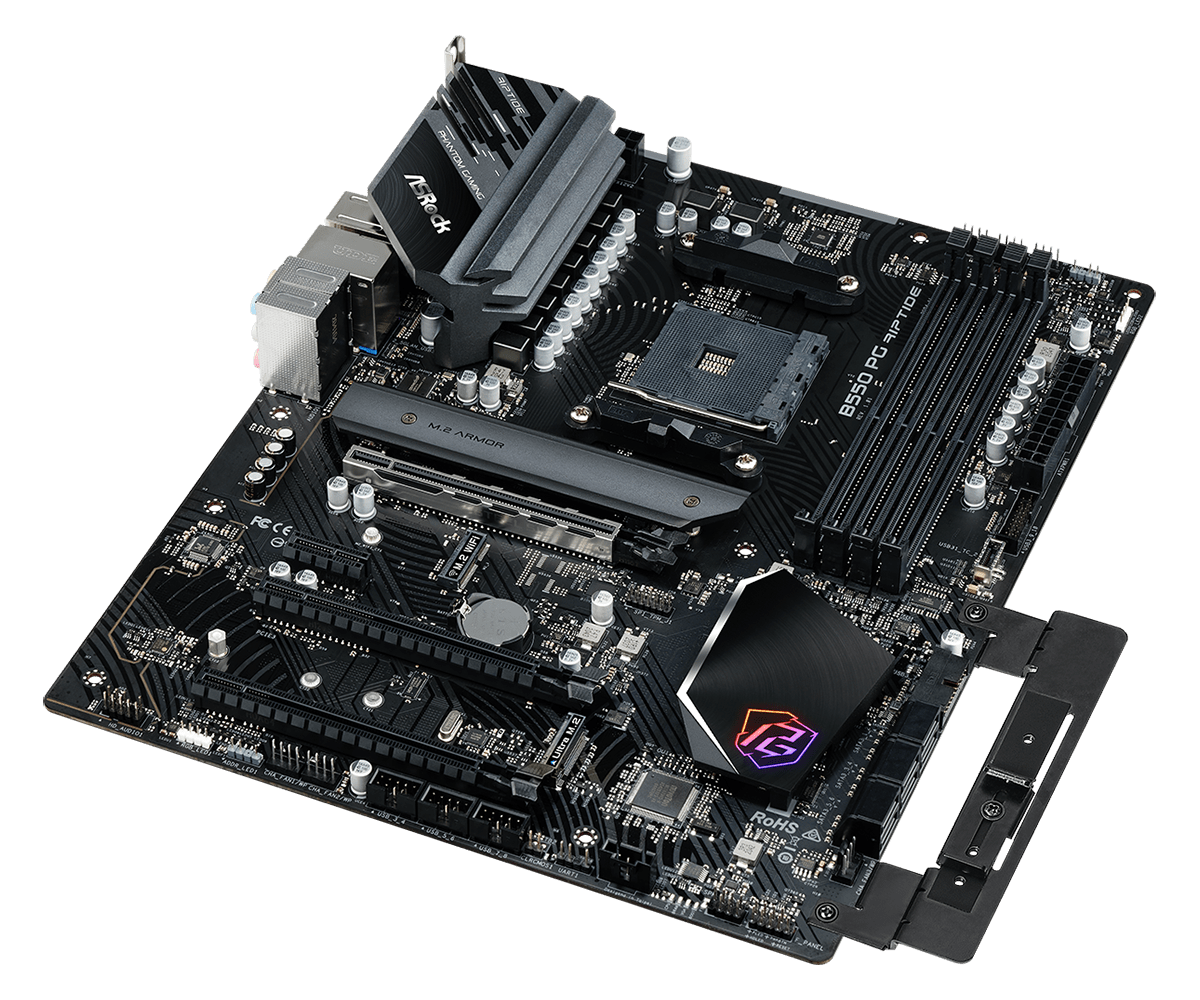

ASRock Graphics Card Holder
(Patent Pending)

Install your heavy graphics card on the holder; connect it to your motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required for your graphics card in place.

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB

ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

Front USB 3.2 Gen2 Type-C

Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Dual USB 3.2 Gen2 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

USB 3.2 Gen2 Doubles The Data Transfer Rate
USB 3.2 Gen2 Type-C Doubles The Charge Speed!
*Charge speed may vary due to controller protocol, please make sure your device can support 3.0A charging.

M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.

Thunderbolt 4 AIC Header

Thunderbolt 4 is no longer limited to certain chipset; ASRock skillfully implement the Thunderbolt 4 technology supporting Hot-Plug onto AMD motherboards. All you need is a Thunderbolt 4 AIC card!
*1: Maximum three TB devices and one TB Monitor can be detected in one TB4 port. (Double in two ports)
*2 : USB Keyboard / Mouse on TB4 port cannot wake up the system from S3/S4.
*3 : TB monitor might not light up if “Above 4GB Decoding” option is disabled.
*4 : Does not support Thunderbolt graphics card box with AMD graphics card.
*5 : Only supports Vermeer, Matisse processors.

Nahimic Audio

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
