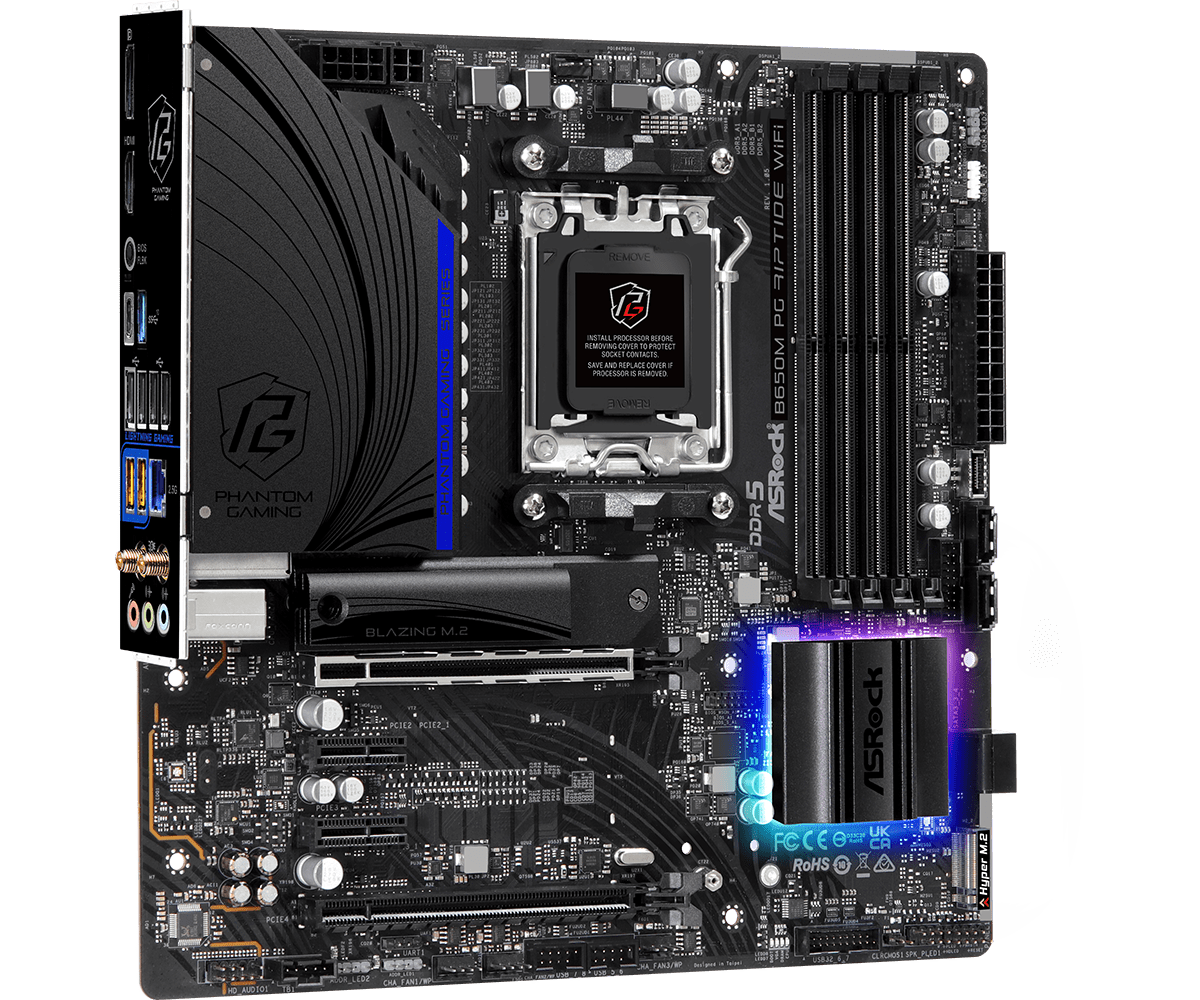

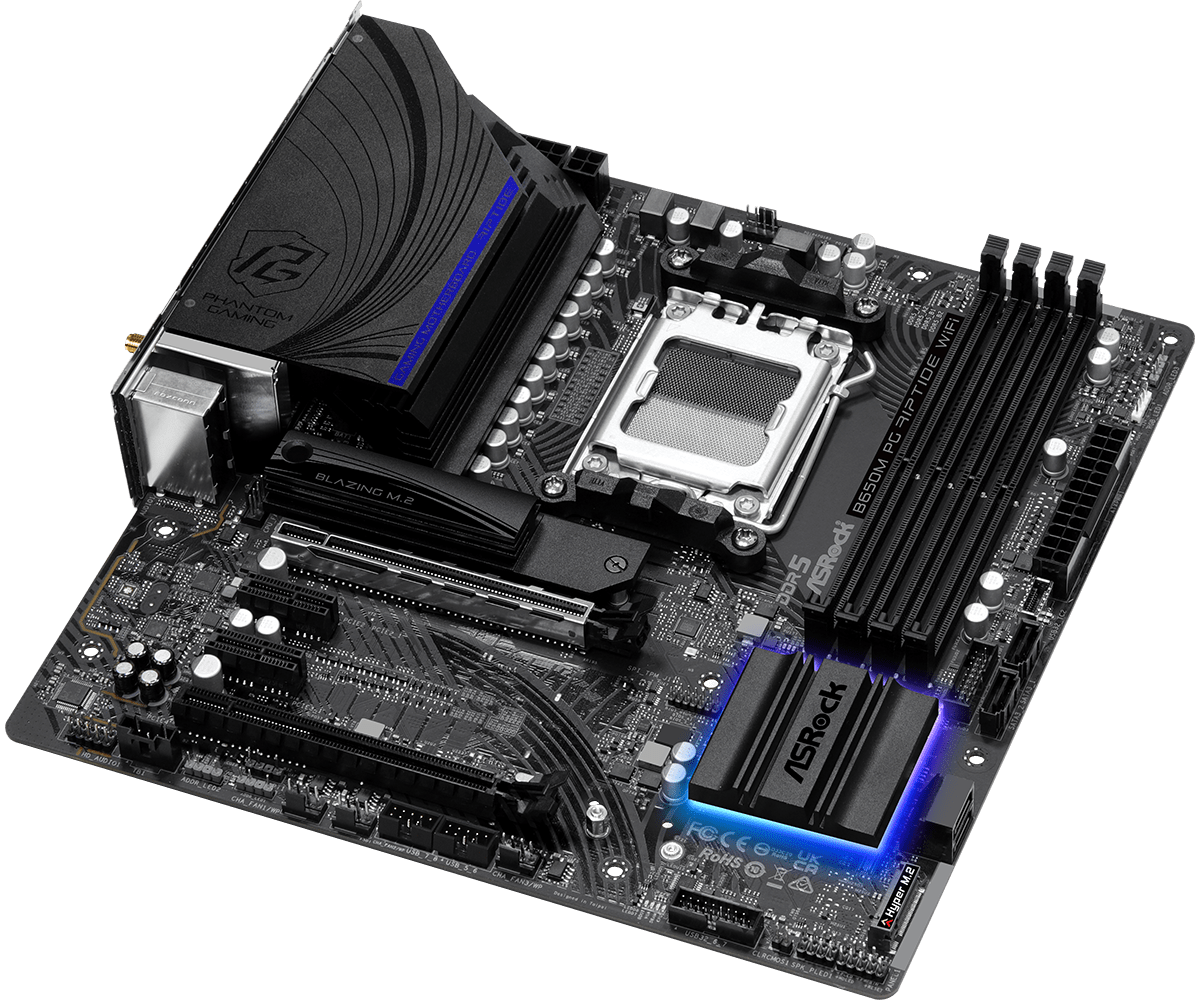

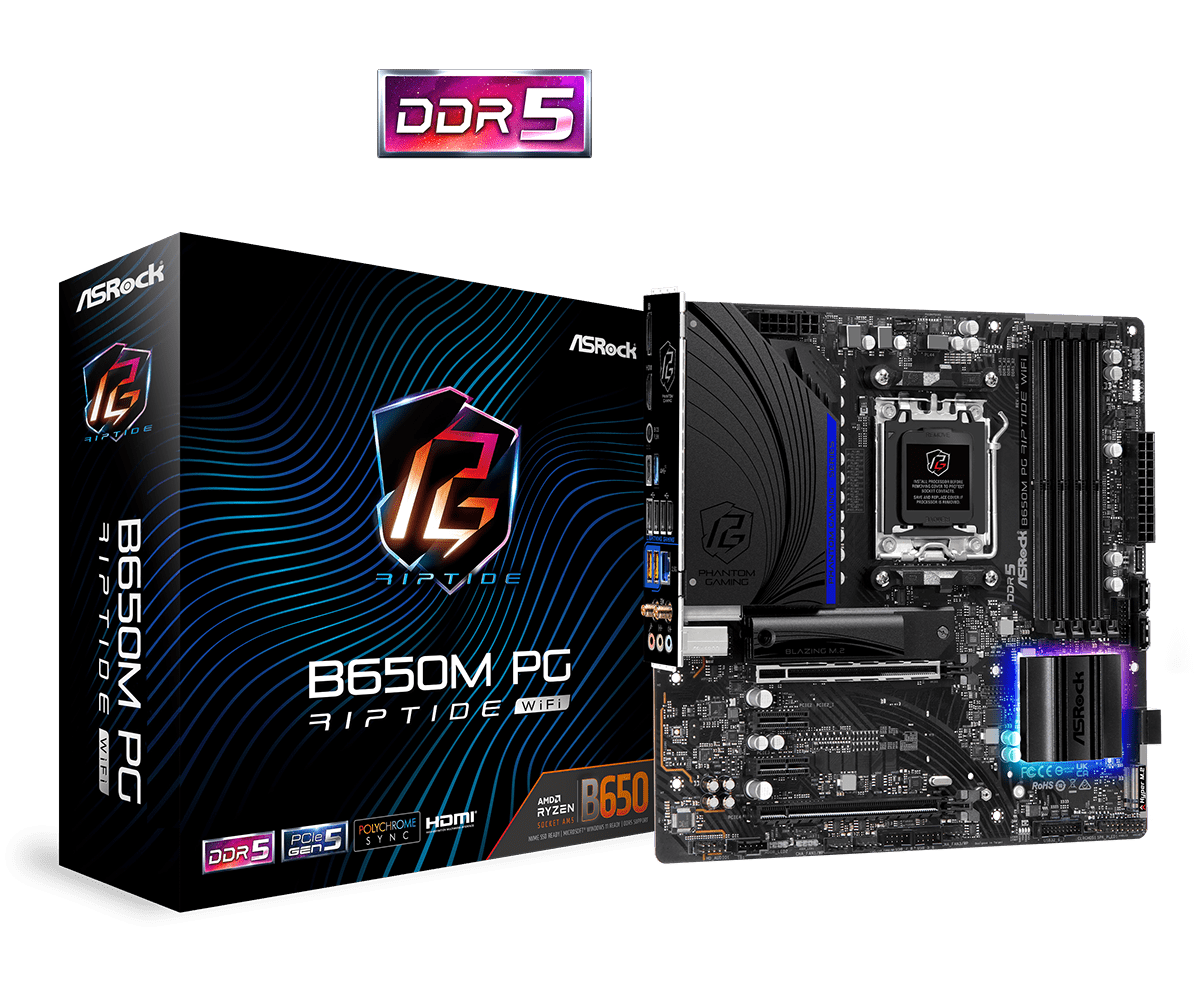

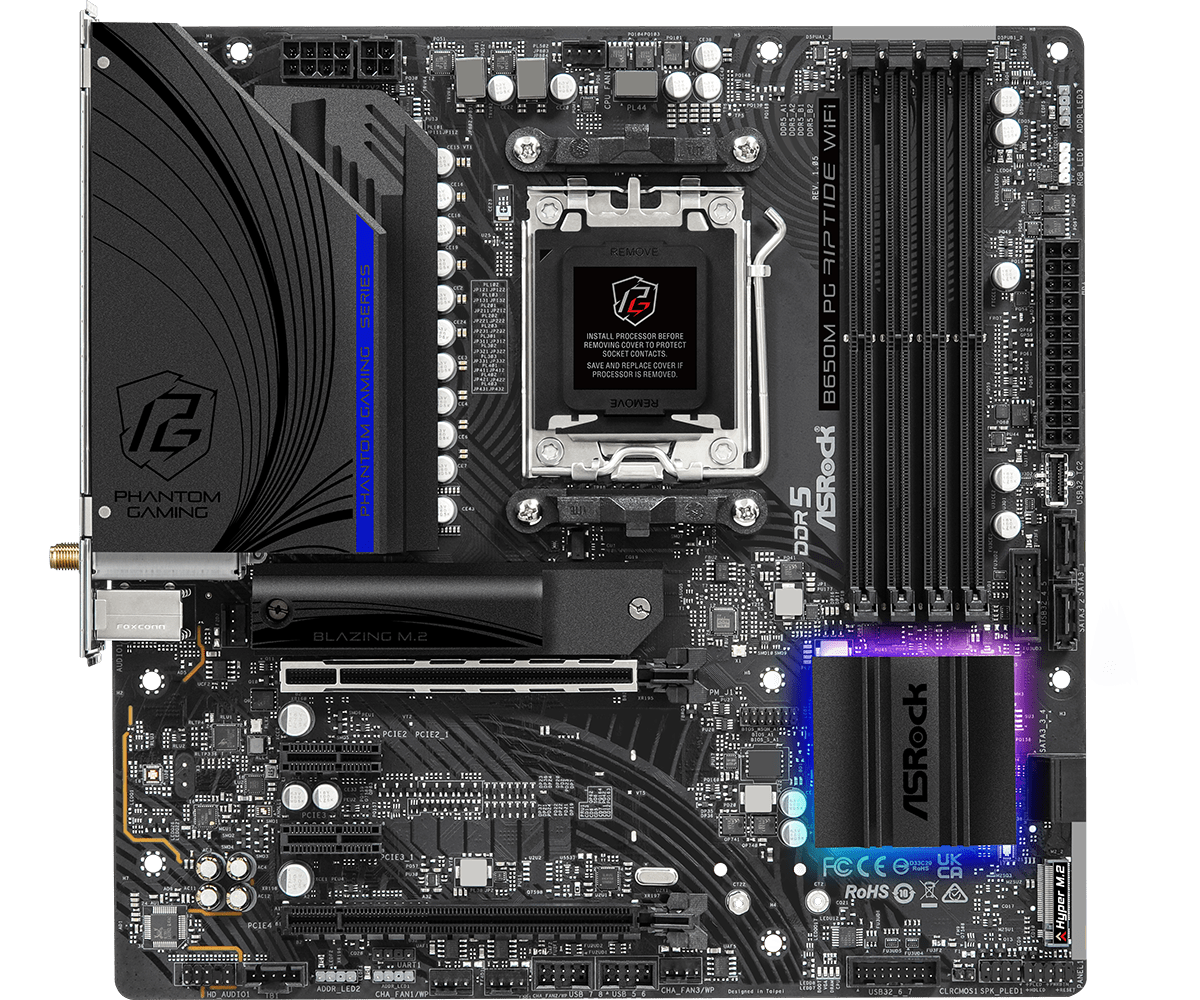

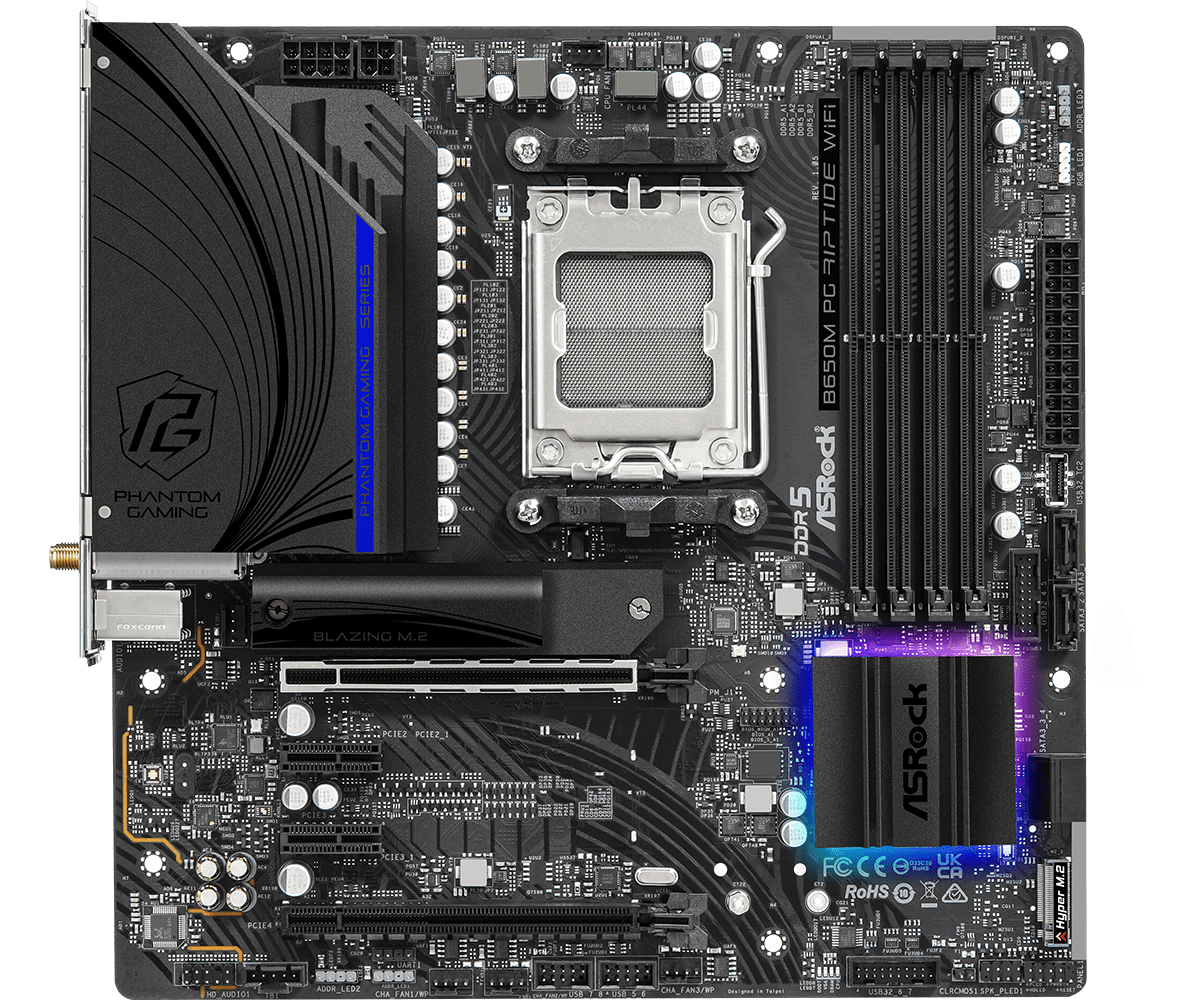

ASRock B650M PG Riptide WiFi Supports DDR5 6200MHz, (OC) 2 PCIe 4.0 x16, 2 PCIe 3.0 x1

ASRock B650M PG Riptide WiFi Supports DDR5 6200MHz, (OC) 2 PCIe 4.0 x16, 2 PCIe 3.0 x1

Brand : ASRock

SKU:  B650M PG Riptide WiFi

₱13,020.00
₱13,890.00 ₱13,020.00
Sale! Sold out
Taxes included.

Low stock: 5 left

B650M PG Riptide WiFi


PRODUCT BRIEF:

  • Supports AMD Ryzen™ 7000 Series Processors
  • 12+2+1 Power Phase, Dr.MOS
  • Supports DDR5 6200MHz (OC)
  • 2 PCIe 4.0 x16, 2 PCIe 3.0 x1
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4)
  • 1 Hyper M.2 (PCIe Gen4x4)
  • 2 Rear USB 3.2 Gen2 (Type A + Type-C)
  • 1 USB 3.2 Front Gen1 Type-C
  • 6 USB 3.2 Gen1 (2 Rear, 4 Front)
  • 8 USB 2.0 (4 Rear, 4 Front)
  • Dragon 2.5G LAN
  • 802.11ax (WiFi 6E) + Bluetooth 5.2

B650M PG Riptide WiFi

Build for The Most Advanced PC

Optimized VRM Design

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
Dr. MOS12+2+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
12+2+1 Power Phase Design6 Layer PCB

The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

6 Layer PCB2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.
2oz Copper PCB

●Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

●Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.



Tired of dropping screws or screws missing inside chassis?
The enhanced M.2 heatsink with anti-drop screw design that make sure installation process more easily.

Auto Driver Installer

Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
Step1: Install Auto Driver Installer
Step2: ADI will automatically download and install all necessary drivers.
Step3: Done!


BIOS Flashback

Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.


Flexible Integrated IO Shiel

Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

Unique Feature
Superb Productivity
  • - PCIe Gen5 (M.2)
  • - Dual Channel DDR5
  • Rock-Solid Durability
  • - 12+2+1 Power Phase, 50A Dr.MOS with Enlarged Heatsink Armor
  • - Flexible Integrated I/O Shield
  • Ultrafast Gaming
  • - 2.5G LAN, 802.11ax Wi-Fi 6E Module
  • - ASRock Lightning Gaming Ports
  • EZ Update
  • - BIOS Flashback Button
  • - ASRock Auto Driver Installer
  • EZ Troubleshooter
  • - ASRock Post Status Checker
CPU
- Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
Chipset
- AMD B650
Memory
- Dual Channel DDR5 Memory Technology
  • - 4 x DDR5 DIMM Slots
  • - Supports DDR5 non-ECC, un-buffered memory up to 6200+(OC)*
  • - Max. capacity of system memory: 192GB*
  • - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

  • *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
Graphics
Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
  • - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  • - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • - Nahimic Audio
LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  • - Dragon RTL8125BG
  • - Supports Phantom Gaming LAN Software
  • - Smart Auto Adjust Bandwidth Control
  • - Visual User Friendly UI
  • - Visual Network Usage Statistics
  • - Optimized Default Setting for Game, Browser, and Streaming Modes
  • - User Customized Priority Control
Wireless LAN
  • - 802.11ax Wi-Fi 6E Module
  • - Supports IEEE 802.11a/b/g/n/ac/ax
  • - Supports Dual-Band 2x2 with extended 6GHz band* support
  • - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
  • - Supports Bluetooth + High speed class II
  • - Supports MU-MIMO

  • *Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
  • A 6GHz compatible router is required for 6E functionality.
Slots
  • CPU:
  • - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
  • - 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode*
  • Chipset:
  • - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
  • - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

  • *Supports NVMe SSD as boot disks
  • Supports AMD CrossFire™
  • 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Storage
  • CPU:
  • - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
  • Chipset:
  • - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  • - 4 x SATA3 6.0 Gb/s Connectors

  • *Supports NVMe SSD as boot disks
RAID
  • - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

  • *Requires additional M.2 NVMe expansion cards to support RAID 10
USB
  • - 1 x USB 3.2 Gen2 Type-C (Rear)
  • - 1 x USB 3.2 Gen2 Type-A (Rear)
  • - 1 x USB 3.2 Gen1 Type-C (Front)
  • - 6 x USB 3.2 Gen1 (2 Rear, 4 Front)
  • - 8 x USB 2.0 (4 Rear, 4 Front)

  • *All USB ports support ESD Protection
Connector
  • - 1 x SPI TPM Header
  • - 1 x Power LED and Speaker Header
  • - 1 x RGB LED Header*
  • - 3 x Addressable LED Headers**
  • - 1 x CPU Fan Connector (4-pin)***
  • - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
  • - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
  • - 1 x 24 pin ATX Power Connector
  • - 1 x 8 pin 12V Power Connector
  • - 1 x 4 pin 12V Power Connector
  • - 1 x Front Panel Audio Connector
  • - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
  • - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
  • - 1 x Front Panel Type C USB 3.2 Gen1 Header

  • *Supports in total up to 12V/3A, 36W LED Strip
  • **Support in total up to 5V/3A, 15W LED Strip
  • ***CPU_FAN1 supports the fan power up to 1A (12W).
  • ****CPU_FAN2/WP supports the fan power up to 2A (24W).
  • *****CHA_FAN1~3/WP support the fan power up to 2A (24W).
  • CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

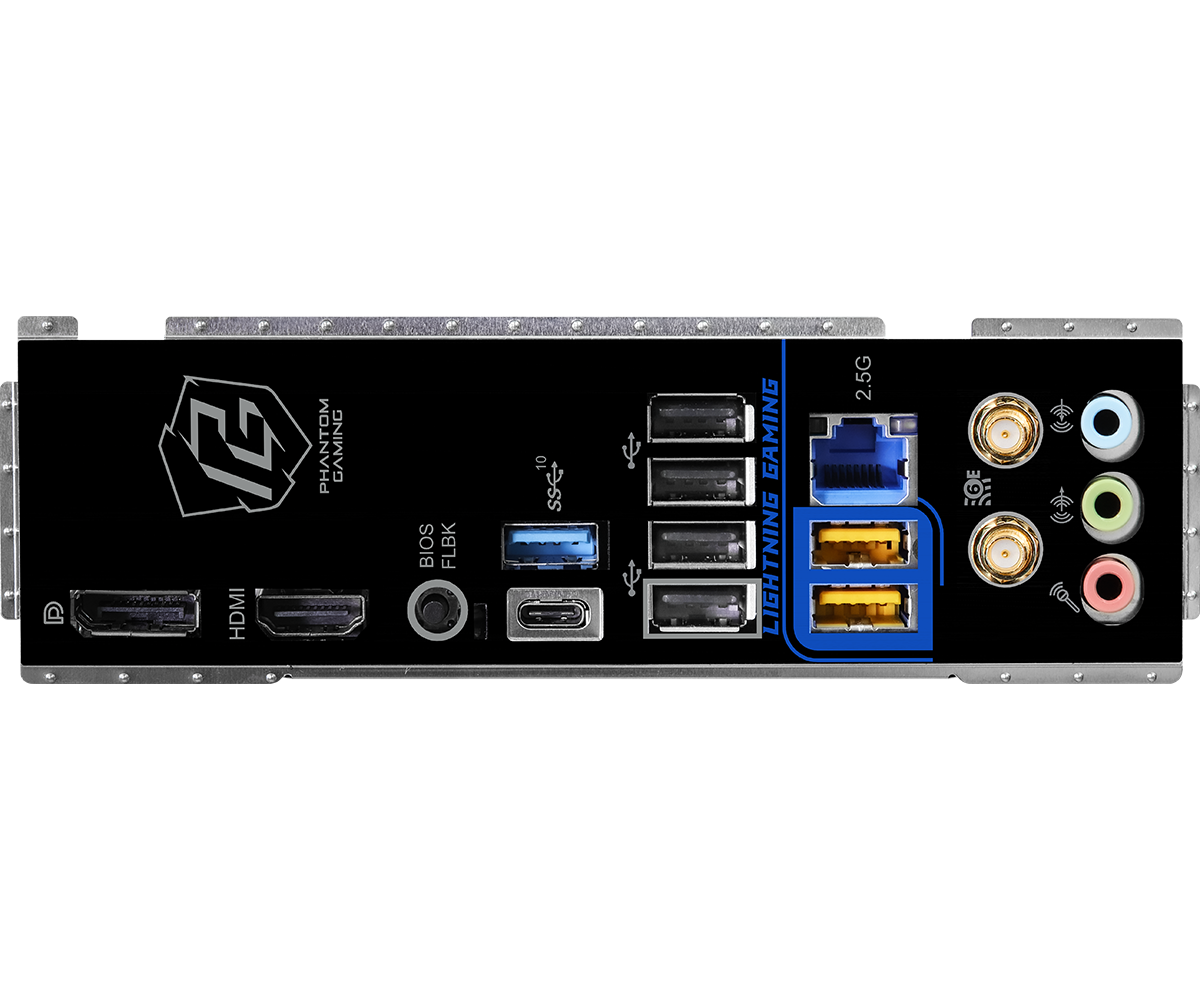

Rear Panel I/O
  • - 2 x Antenna Ports
  • - 1 x HDMI Port
  • - 1 x DisplayPort 1.4
  • - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)
  • - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)
  • - 2 x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming Ports.)
  • - 4 x USB 2.0 Ports
  • - 1 x RJ-45 LAN Port
  • - 1 x BIOS Flashback Button
  • - HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
  • Software
  • - ASRock Motherboard Utility (Phantom Gaming Tuning)
  • - ASRock Phantom Gaming LAN Software
  • - ASRock Polychrome SYNC*
  • UEFI
  • - ASRock Full HD UEFI
  • - ASRock Auto Driver Installer
  • - ASRock Instant Flash

  • *These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories
  • - 1 x User Manual
  • - 2 x SATA Data Cables
  • - 2 x ASRock WiFi 2.4/5/6 GHz Antennas
  • - 2 x Screws for M.2 Sockets
  • - 1 x Standoff for M.2 Socket
Form Factor
  • - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
  • - 2oz Copper PCB
OS
  • - Microsoft® Windows® 10 64-bit / 11 64-bit
Certifications
  • - FCC, CE
  • - ErP/EuP ready (ErP/EuP ready power supply is required)
