Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

4 x DIMM, Max. 192GB, DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel^® Extreme Memory Profile (XMP)

OptiMem II

* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

1 x DisplayPort**

** Support 8K@60Hz as specified in DisplayPort 1.4

*** Support 4K@60Hz as specified in HDMI 2.1.

Intel^® 13^th & 12^th Gen Processors*

1 x PCIe 5.0 x16 slot

- Intel^® 13^th & 12^th support PCIe 5.0 x16 mode

Intel^® Z690 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode or x4/x4 mode)

1 x PCIe 3.0 x1 slot

* Please check PCIe bifurcation table in support site.

Intel^® 13^th & 12^th Gen Processors*

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

Intel^® Z690 Chipset**

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

6 x SATA 6Gb/s ports***

* Intel^® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.

** Intel^® Rapid Storage Technology supports Intel^® Optane Memory H Series on PCH attached M.2 slots.

*** RAID configuration is not supported on the SATA6G_E1-2 ports.

Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band*

Bluetooth v5.2 hardware ready**

* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.

** Bluetooth v5.2 function will be ready in Windows 11 or later.

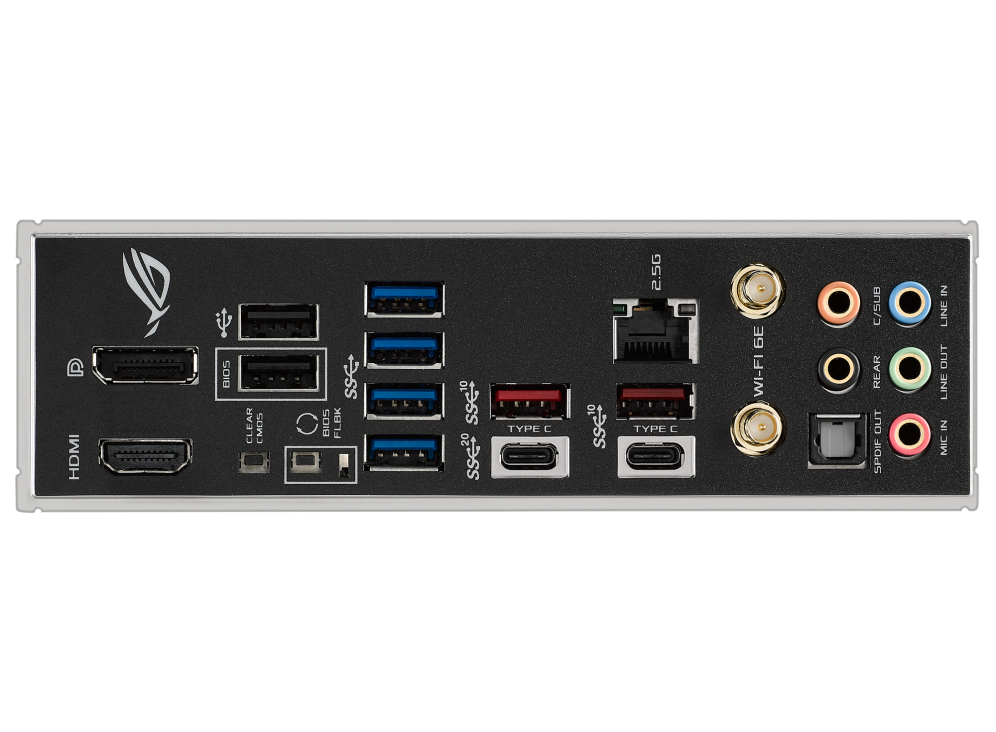

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®)

3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C^®)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C^®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback"

Audio Features

- SupremeFX Shielding Technology

- ALC4080 + Savitech SV3H712 AMP

- Gold-plated audio jacks

- Rear optical S/PDIF out port

- Premium audio capacitors

- Audio cover

*The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

5 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

Storage related

4 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C^®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x BMC header

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

Extreme Engine Digi+

- 5K Black Metallic Capacitors

ASUS Q-Design

- M.2 Q-Latch

- PCIe Slot Q-Release

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink backplate

- M.2 heatsink

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- Clear CMOS button

-CPU Socket lever protector

- ProCool II

- Pre-mounted I/O shield

- SafeSlot

- SafeDIMM

AURA Sync

- AURA RGB header

- Addressable Gen 2 RGB headers

ASUS HYDRANODE

- 1 x Chassis fan support* (CHA_FAN1P)

* Visit ASUS Website for the latest compatibility list.

TPM header

ROG Exclusive Software

- ROG CPU-Z

- GameFirst VI

- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion

- Sonic Radar III

- DTS^® Sound Unbound

- Anti-virus software

ASUS Exclusive Software

Armoury Crate

- AIDA64 Extreme (60 days free trial)

- AURA Creator

- AURA Sync

- Fan Xpert 4

- Two-Way AI Noise Cancelation

AI Suite 3

- Easy Optimization with AI Overclocking

TPU

EPU

DIGI+ VRM

Turbo app

MyAsus

WinRAR

UEFI BIOS

AI Overclocking Guide

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

FlexKey

MemTest86

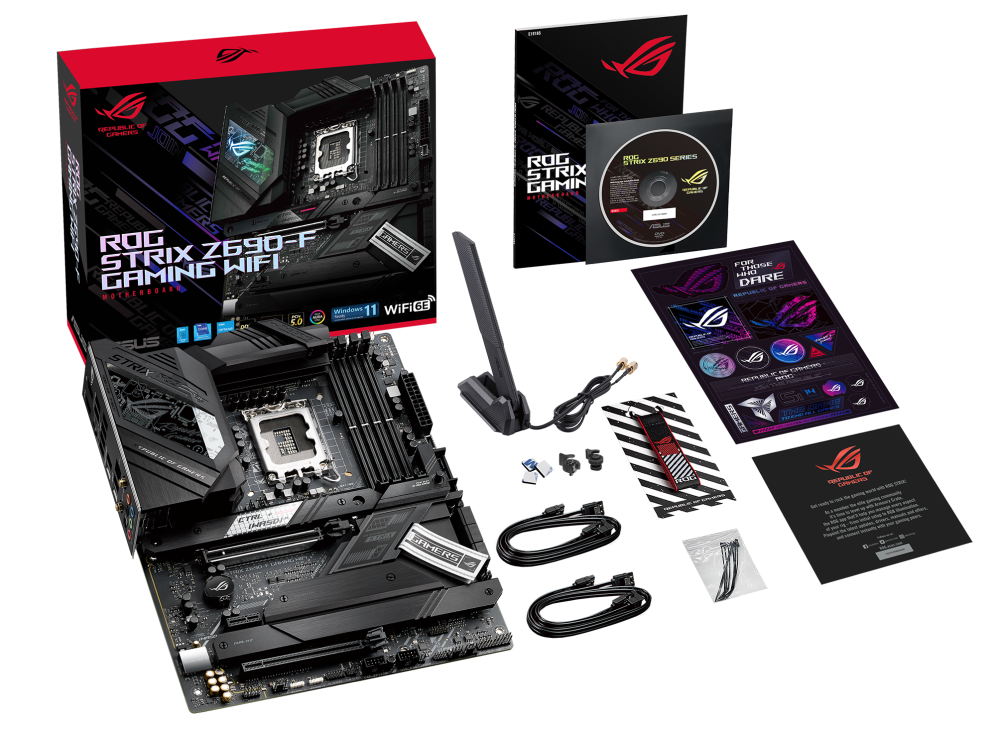

Cables

4 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas

1 x M.2 Q-Latch package

1 x M.2 Q-Latch package for M.2 backplate

2 x M.2 Rubber Packages

1 x ROG key chain

1 x cable tie

1 x ROG STRIX stickers

1 x ROG STRIX thank you card

Installation Media

1 x Support DVD

Documentation

1 x User manual
