ASUS ROG STRIX B550-F GAMING WIFI II,Ready for AMD Ryzen™ 3000 and 5000 series, plus 5000 and 4000 G-series desktop processors,PCIe® 4.0-ready, dual M.2 slots, USB 3.2 Gen 2 Type-C®, plus HDMI® 2.1 and DisplayPort™ 1.2 output

ASUS ROG STRIX B550-F GAMING WIFI II,Ready for AMD Ryzen™ 3000 and 5000 series, plus 5000 and 4000 G-series desktop processors,PCIe® 4.0-ready, dual M.2 slots, USB 3.2 Gen 2 Type-C®, plus HDMI® 2.1 and DisplayPort™ 1.2 output

Brand : ASUS

SKU: SKU:  ROG STRIX B550-F GAMING WIFI II

Regular price ₱13,800.00
Regular price ₱15,070.00 Sale price ₱13,800.00
Sale! Sold out
Taxes included.

Low stock: 2 left

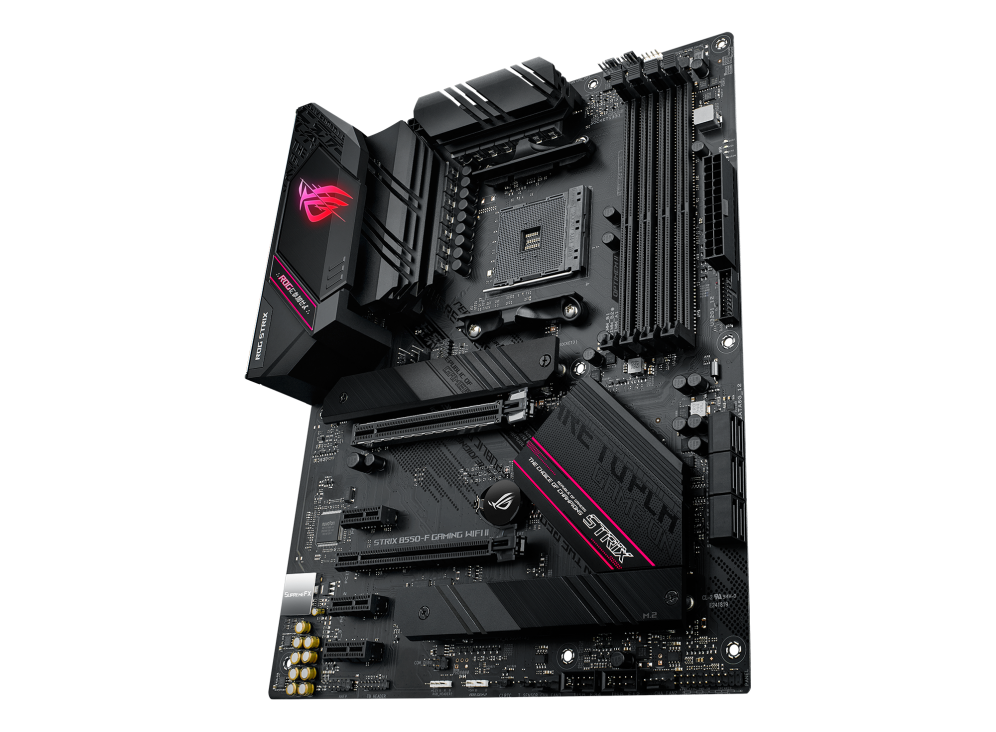

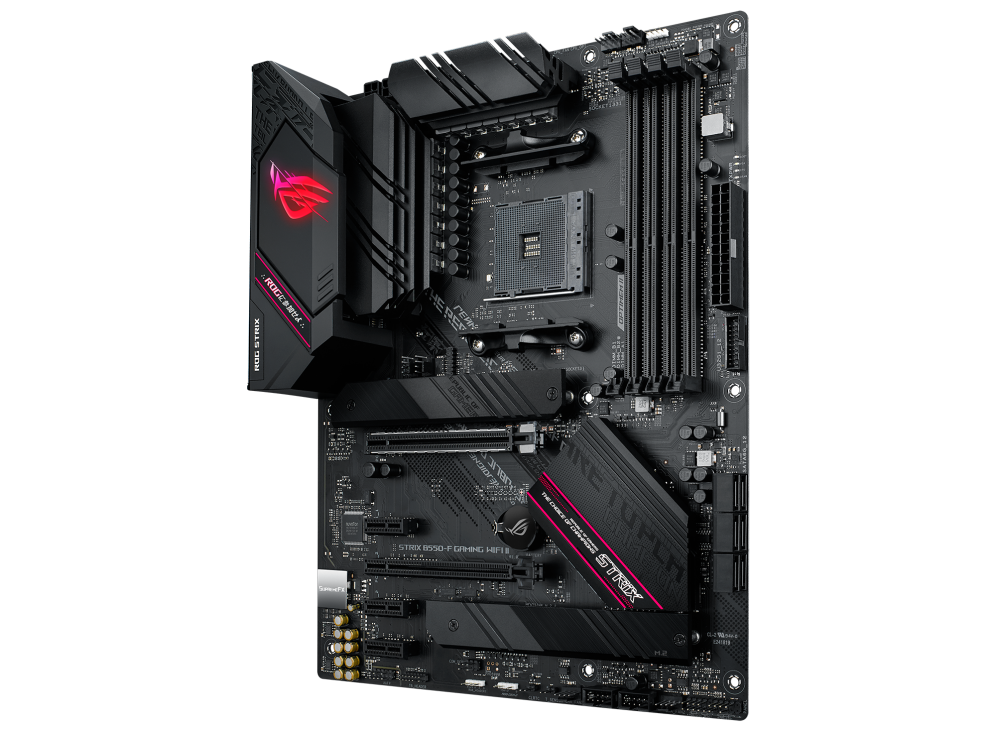

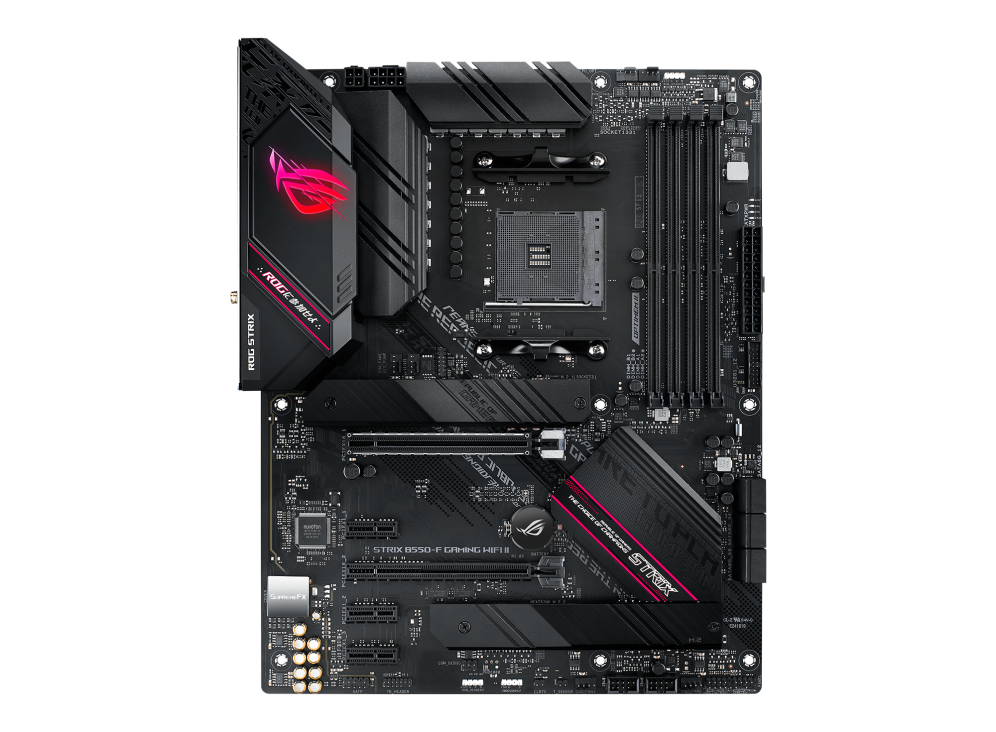

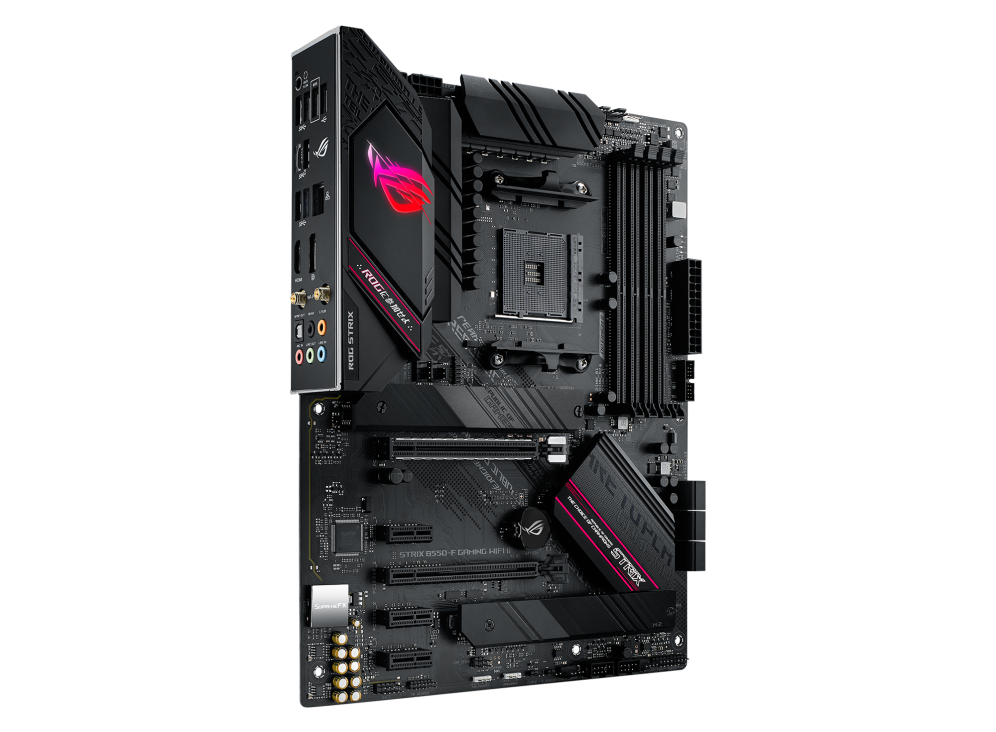

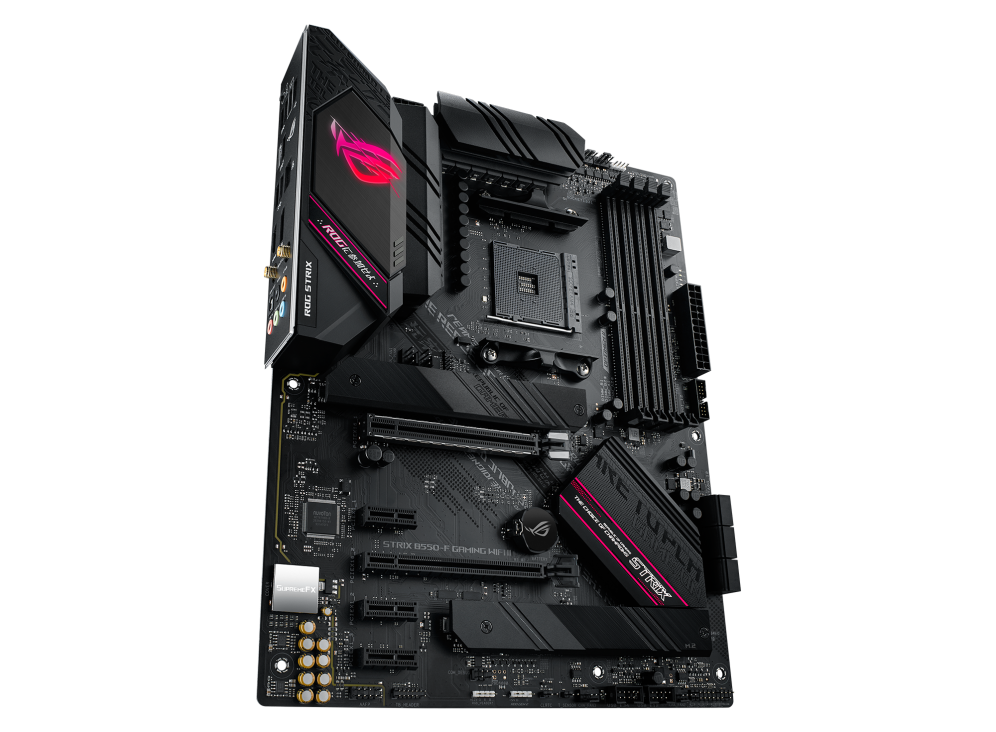

ROG STRIX B550-F GAMING WIFI II

AMD B550 Ryzen AM4 Gaming ATX motherboard with PCIe® 4.0, 12+2 teamed power stages, Intel® 2.5 Gb Ethernet, WiFi 6E, Two-Way AI Noise Cancelation, dual M.2 slots with heatsinks, SATA 6 Gbps, USB 3.2 Gen 2 and Aura Sync RGB lighting

  • AM4 socket: Ready for AMD Ryzen™ 3000 and 5000 series, plus 5000 and 4000 G-series desktop processors
  • Best gaming connectivity: PCIe® 4.0-ready, dual M.2 slots, USB 3.2 Gen 2 Type-C®, plus HDMI® 2.1 and DisplayPort™ 1.2 output
  • Smooth networking: On-board WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
  • Robust power solution: 12+2 teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
  • Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking for easy configuration
  • DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
  • Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB and addressable Gen 2 RGB headers
  • Industry-leading gaming audio: Two-Way AI Noise Cancelation, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive sound

CPU

AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
*Refer to www.asus.com for the AMD® CPU support list.

Chipset

B550

Memory

AMD Ryzen™ 5000 and 3000 Series Desktop Processors

4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4666(O.C.)/4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory *

AMD Ryzen™ 5000 and 4000 G-Series Processors

4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4866(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory *

ECC Memory (ECC mode) support varies by CPU.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphics

1 x DisplayPort 1.2

1 x HDMI® 2.1

*Graphics specifications may vary between CPU types.

Expansion Slots

AMD Ryzen™ 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors

1 x PCIe 4.0 x16 SafeSlot (supports x16 mode)

AMD B550 chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)*

3 x PCIe 3.0 x1 slots

*Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3

Storage

Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

AMD Ryzen™ 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

AMD B550 Chipset:

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*

6 x SATA 6Gb/s ports

Support RAID 0, 1, 10

* When the M.2_2 Slot is populated , SATA6G_5/6 ports will be disabled.

Ethernet

1 x Intel® 2.5Gb Ethernet

1 x Intel® I225-V 2.5Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band*

Bluetooth v5.2

* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.

USB

Rear USB:Total 8 ports

2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports

Front USB:Total 6 ports

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A

- Impedance sense for front and rear headphone outputs

- Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

- Supports up to 32-Bit/192kHz playback*

Audio Features

- SupremeFX Shielding Technology

- Dual OP Amplifiers

- Premium audio capacitors

- Audio cover

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 8-Channel audio.

Back Panel I/O Ports

2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports

1 x Wi-Fi Module

1 x DisplayPort

1 x HDMI® port

1 x Intel® I225-V 2.5G Ethernet

1 x Optical S/PDIF out

5 x Audio jacks

1 x BIOS FlashBackTM button

Internal I/O Connectors

Fan and cooling related

1 x 4-Pin AIO_Pump header

1 x 4-Pin CPU fan header

1 x 4-Pin CPU_OPT fan header

3 x 4-Pin Chassis fan headers

Power related

1 x 24-pin main power connector

1 x 8-pin +12V power connector

1 x 4-pin +12V power connector

Storage related

2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB ports

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x Addressable Gen 2 header

2 x AURA RGB headers

1 x Clear CMOS header

1 x Front panel audio header (AAFP)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal sensor header

1 x Thunderbolt™ header

Special Features

ASUS Q-Design

- ASUS Q-DIMM

- ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)

- ASUS Q-Slot

ASUS Thermal Solution

- M.2 heatsink

AURA Sync

- AURA RGB headers

- Addressable Gen 2 RGB headers

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- Clear CMOS header

- ProCool

- Pre-mounted I/O shield

- SafeSlot

Software Features

ROG Exclusive Software

- RAMCache III

- ROG CPU-Z

- GameFirst VI

- Sonic Studio III + Sonic Studio Virtual Mixer

- Sonic Radar III

- DTS® Sound Unbound

- Overwolf

- Anti-virus software

ASUS Exclusive Software Features

Armoury Crate

- AIDA64 Extreme (60 days free trial)

- Aura Creator

- Aura Sync

- Two-Way AI Noise Cancelation

AI Suite 3:

- Performance And Power Saving Utility

EPU

DIGI+ VRM

Fan Xpert 4

TurboV EVO

- EZ update

WinRAR

DAEMON Tools

Norton Anti-virus software (Free Trial version)

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

1 x Addressable RGB extension cable

4 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x Cable ties pack

1 x M.2 Rubber Package

1 x M.2 SSD screw package

1 x ROG key chain

1 x ROG Strix stickers

1 x ROG Strix thank you card

Installation Media

1 x Support DVD

Documentation

1 x User manual

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor

ATX
30.5cm x 24.4cm
