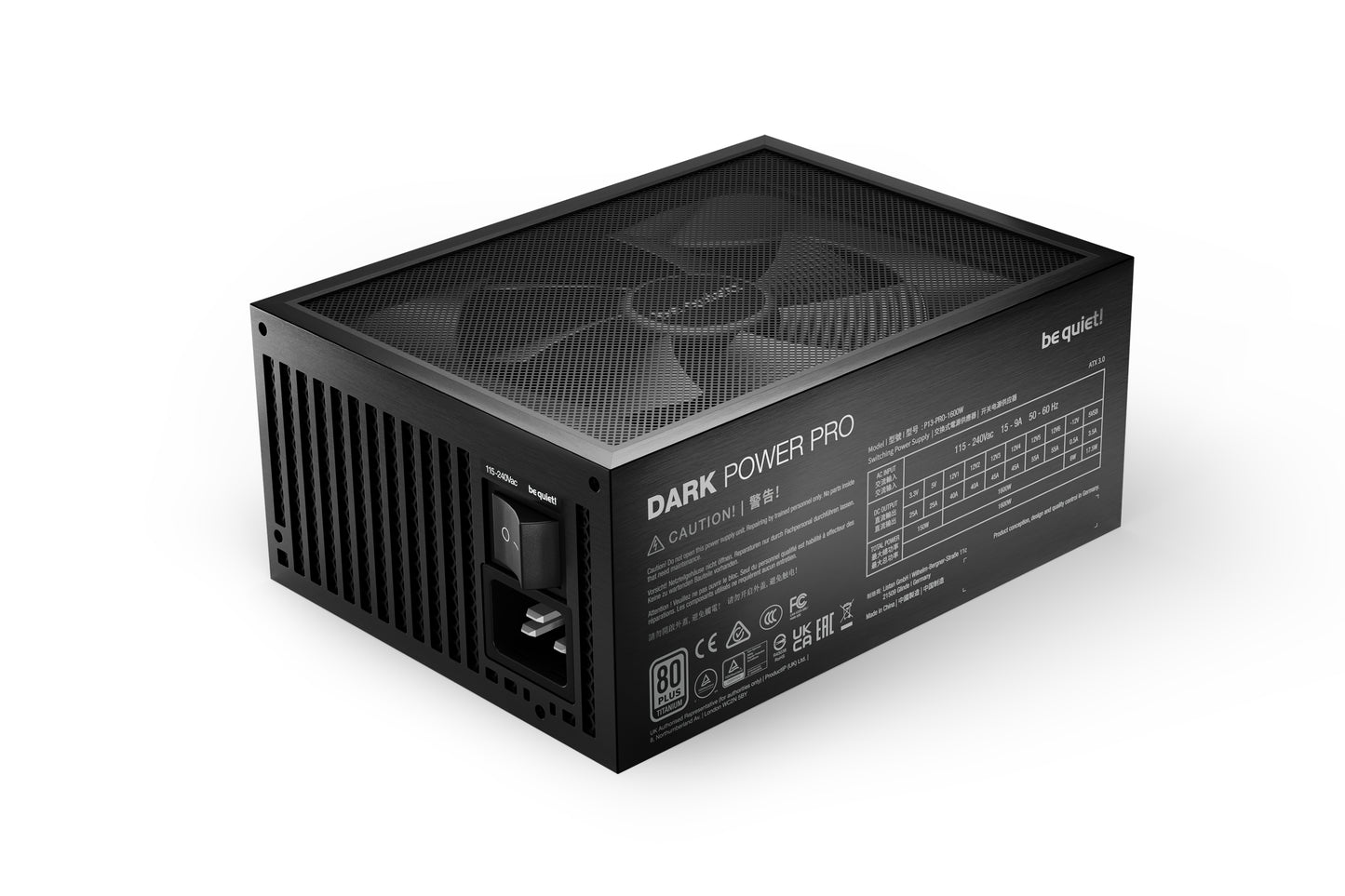

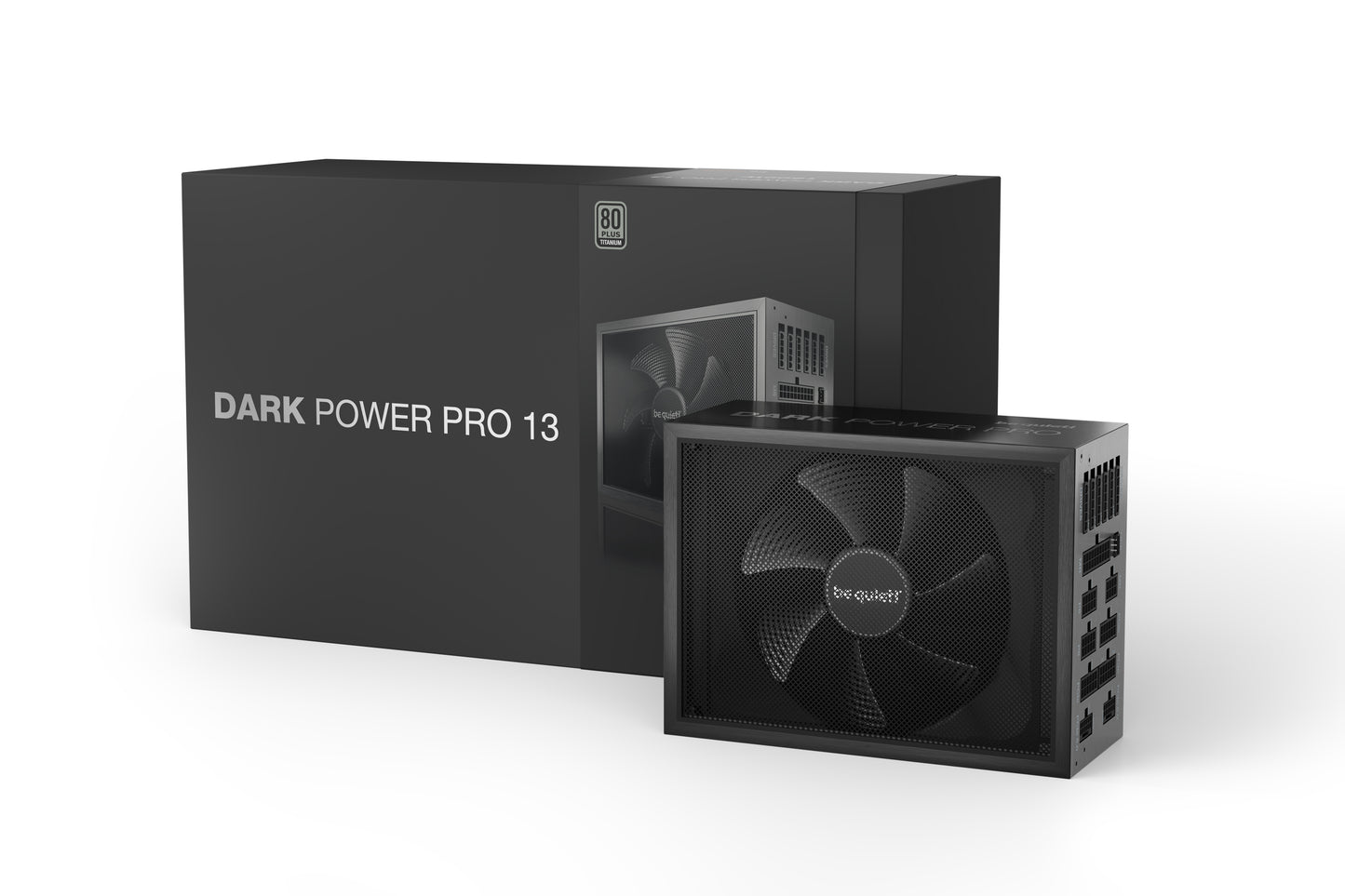

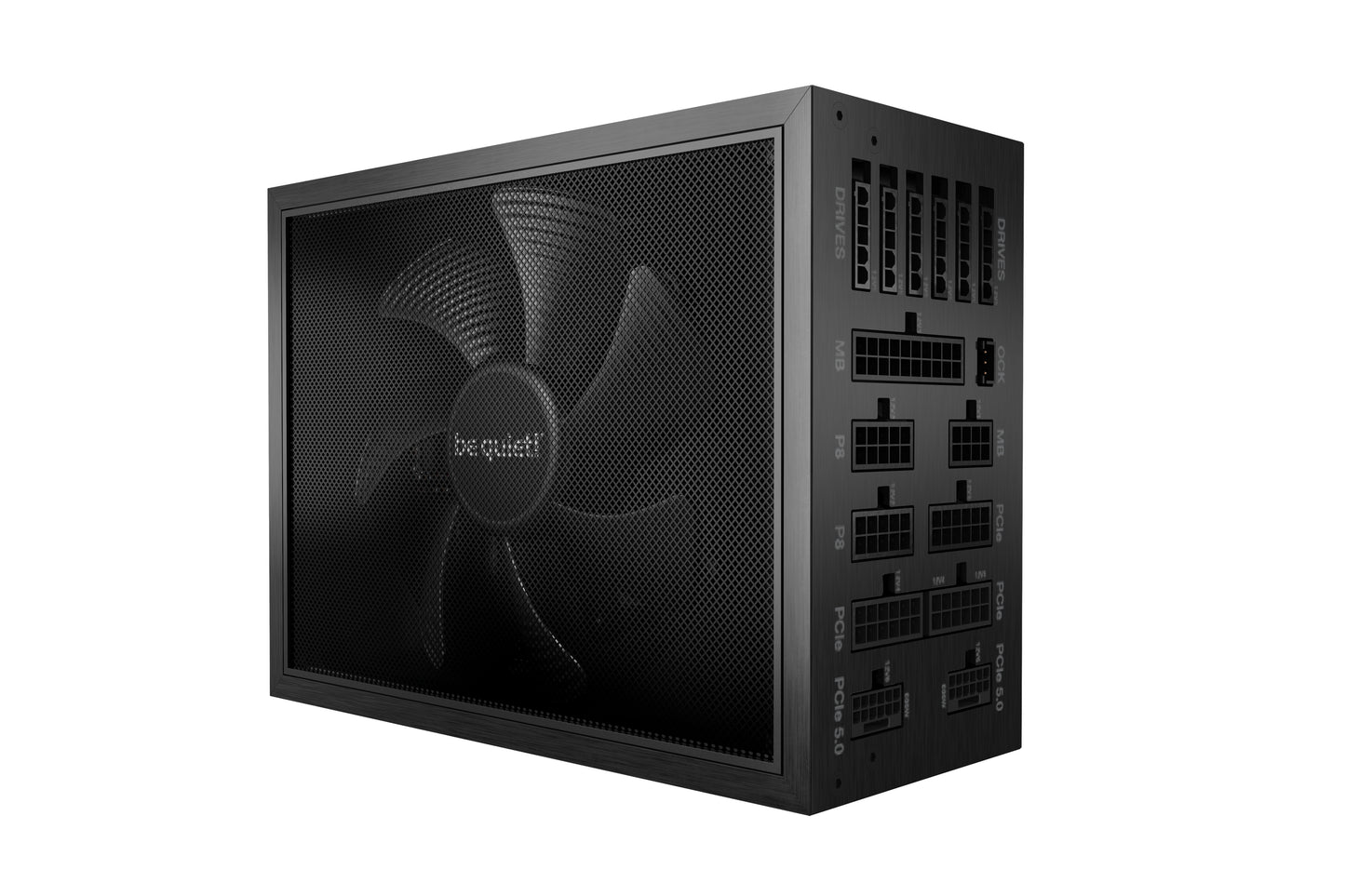

Be Quiet DARK POWER PRO 13 1600W (BN501)

Cutting Edge Technologie and Performance
The be quiet! Dark Power Pro 13 1600W offers 80 PLUS® Titanium efficiency, world-class performance and ATX 3.0 compliance for next-gen GPU compatibility.

• 80 PLUS Titanium efficiency (up to 94.5%)
• ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
• Handles massive power excursions
• Fully digital control and Active Rectifier + full bridge LLC technology for unmatched signal stability
• Improved and patented frameless Silent Wings fan for virtually inaudible operation at ordinary loads
• Overclocking key switches between six 12V rails and one massive 12V rail
• Aluminum case and modular individually sleeved cables for magnificent appearance
• 10-year manufacturer’s warranty

80 PLUS® TITANIUM CERTIFIED
The highest efficiency certificate available
Dark Power Pro 13 1600W is certified with 80 PLUS Titanium and a money-saving energy efficiency rating of up to 94.5%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts.

FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.0 specifications
Dark Power Pro 13 1600W is an ATX 3.0 PSU and comes with both native integration of the two 12VHPWR connectors for next-generation PCIe 5.0 graphics cards, and 6 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for present high-end systems and the ones to come.

THE NEW STANDARD OF POWER
For massive transient loads
Dark Power Pro 13 offers 1600W of continuous power with 6 independent 12V rails. Even if the graphics card demands excessive power for a short time: Dark Power Pro 13 1600W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

STATE-OF-THE-ART DIGITAL TECHNOLOGY
Rock-steady signal stability and efficiency
Experience the most technologically advanced power supply be quiet! has ever built! Using an advanced digital full bridge LLC technology results in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.

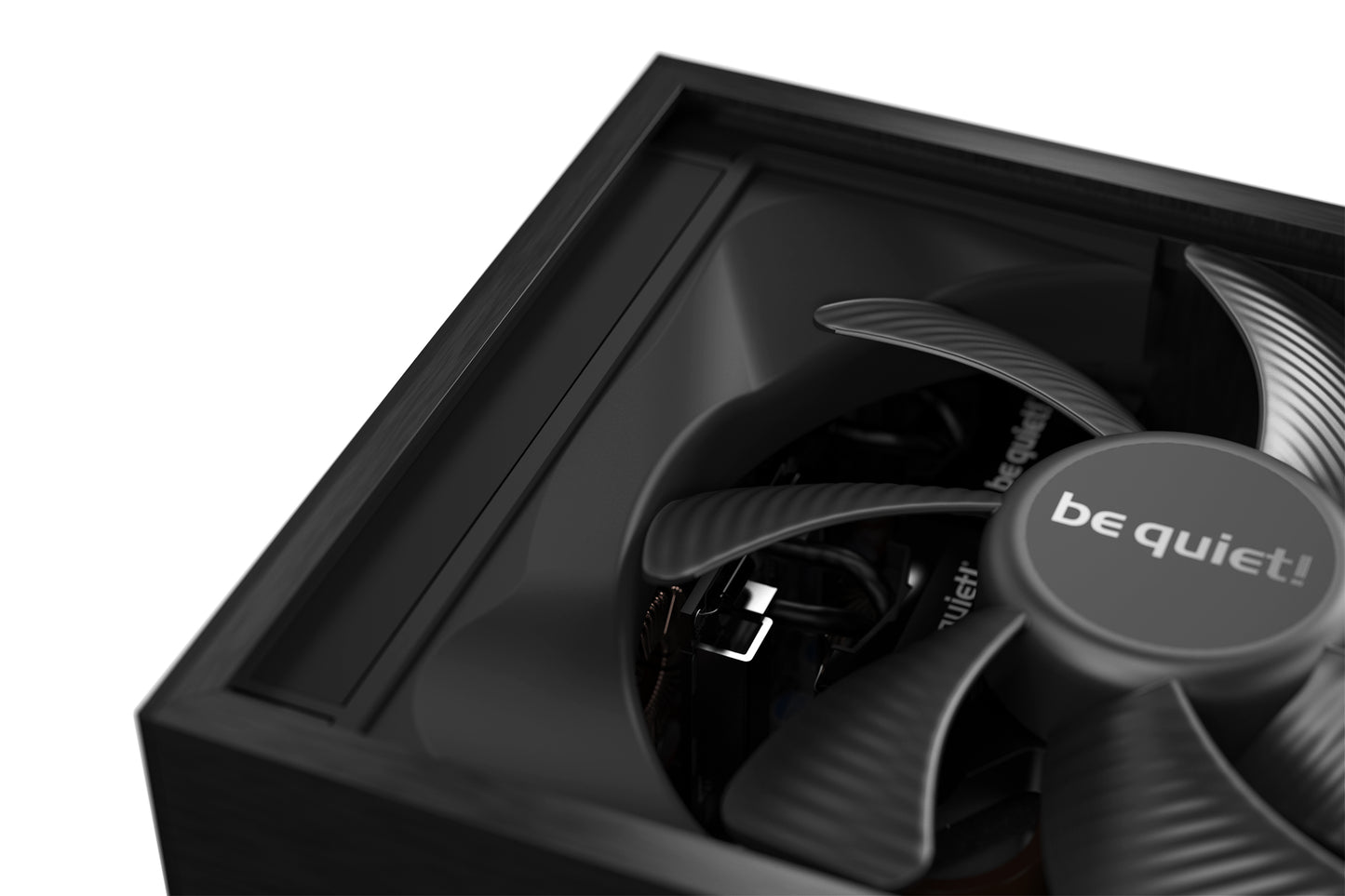

FRAMELESS SILENT WINGS FAN
Patented fan technology for virtually inaudible operation
The improved tripod-mounted be quiet! Silent Wings fan enables maximum airflow and a virtually inaudible operation. This is thanks to its unique, airflow-optimized fan blade design along with an advanced fluid-dynamic bearing. A 6-pole fan motor ultimately makes for less vibration, super-long life and minimal power consumption.

INNOVATIVE COOLING CONCEPT
For a longer lifespan
The split fan inlet of the Dark Power Pro 13 1600W is a specially shaped funnel that increases airflow while reducing unwanted turbulence. The wire-free design inside allows the cool air to reach all components flawlessly which ultimately leads to a longer lifespan.

READY FOR EXTREME OVERCLOCKING
Pushing the performance of your PSU to the max
Dark Power Pro 13 1600W is particularly suitable for liquid nitrogen or helium overclocking, thanks to its state-of-the-art digital regulation. The overclocking key empowers you to manually switch between the default six 12V-rail mode and the alternative massive single-rail operation.

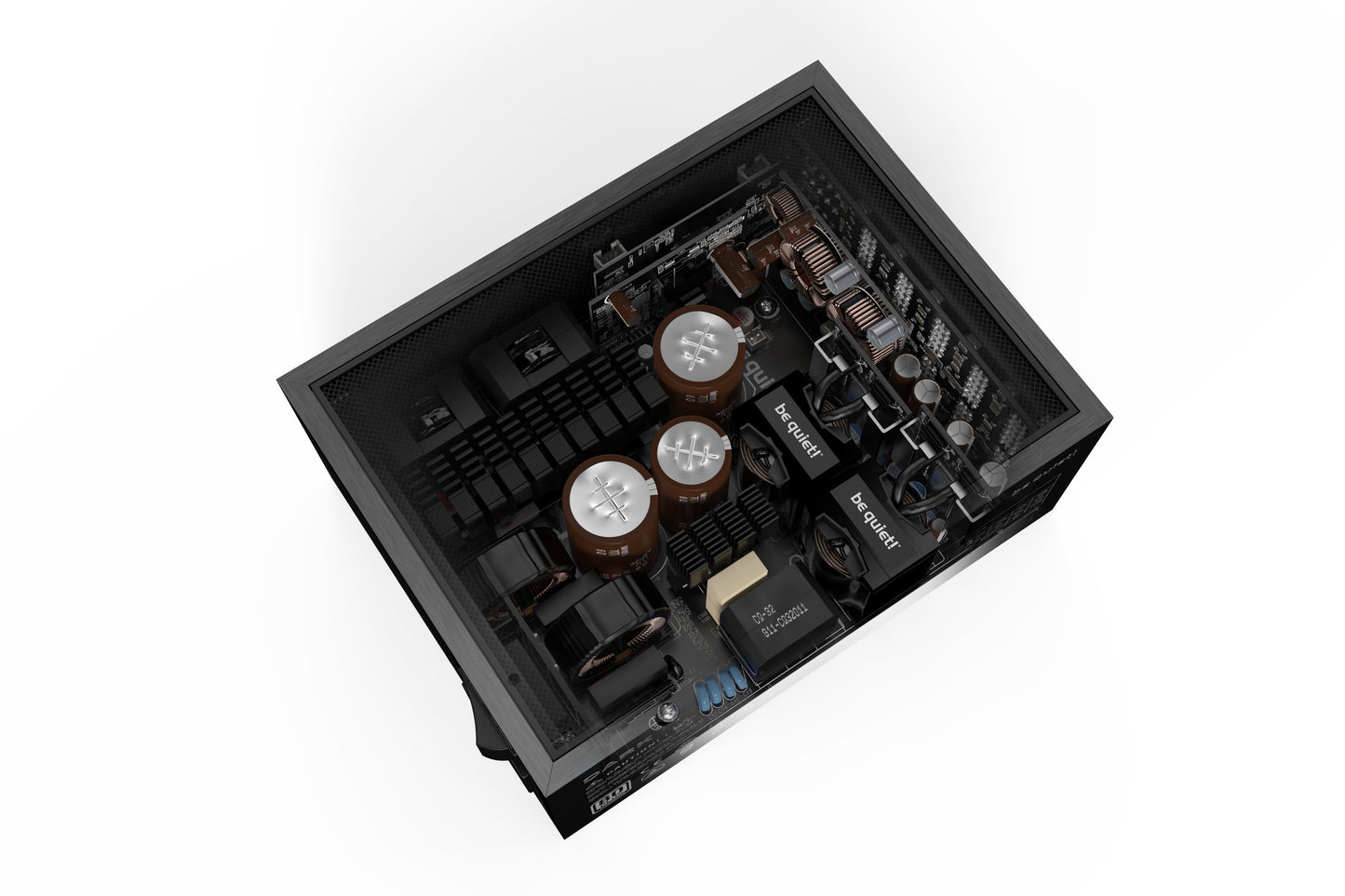

JAPANESE 105°C CAPACITORS
A testament to high quality
Only the best components are used in Dark Power Pro 13 1600W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105°C for stability, reliability, and a long operating life.

HIGHEST CONVENIENCE

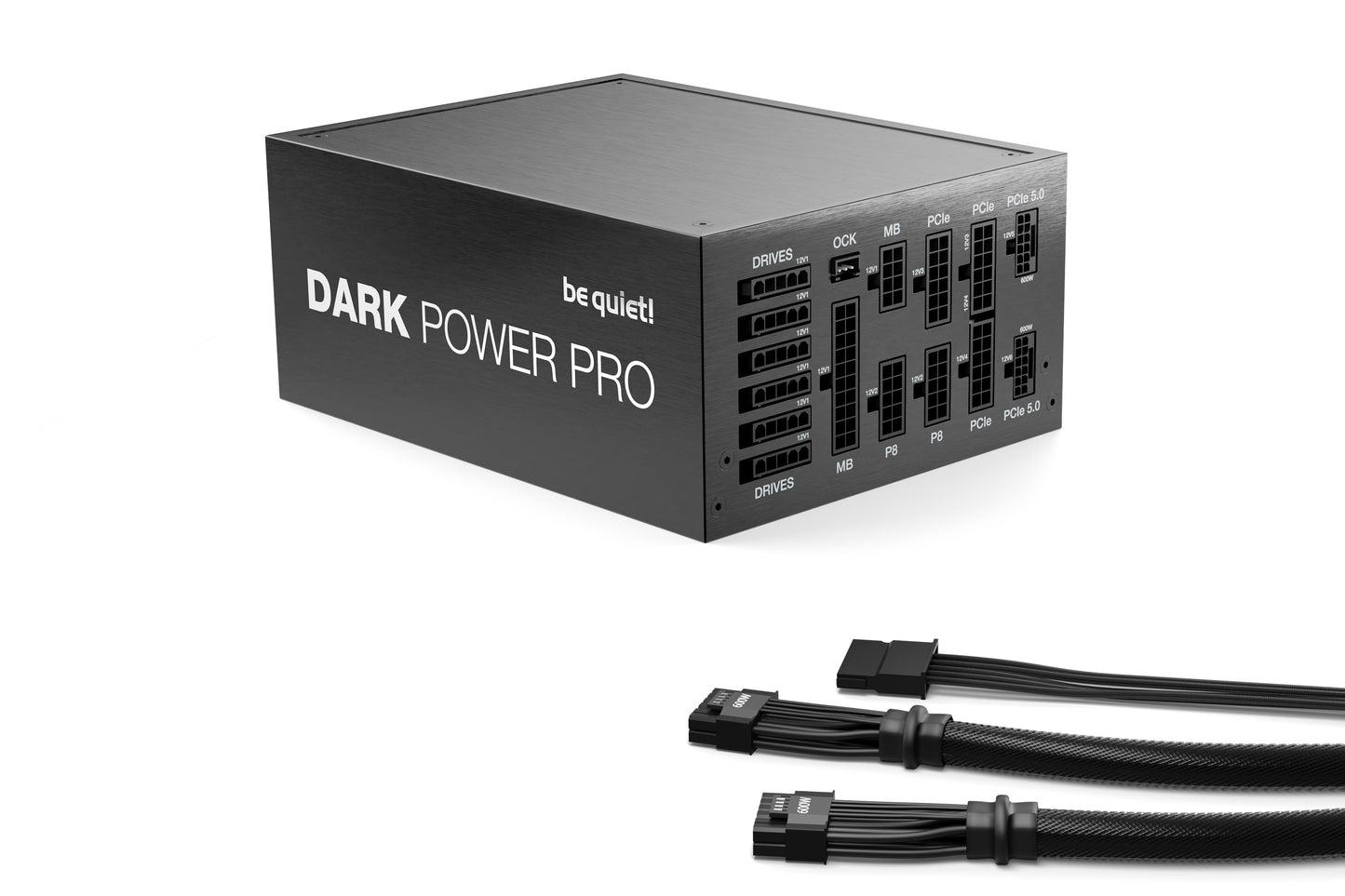

Modular cables for maximum utility

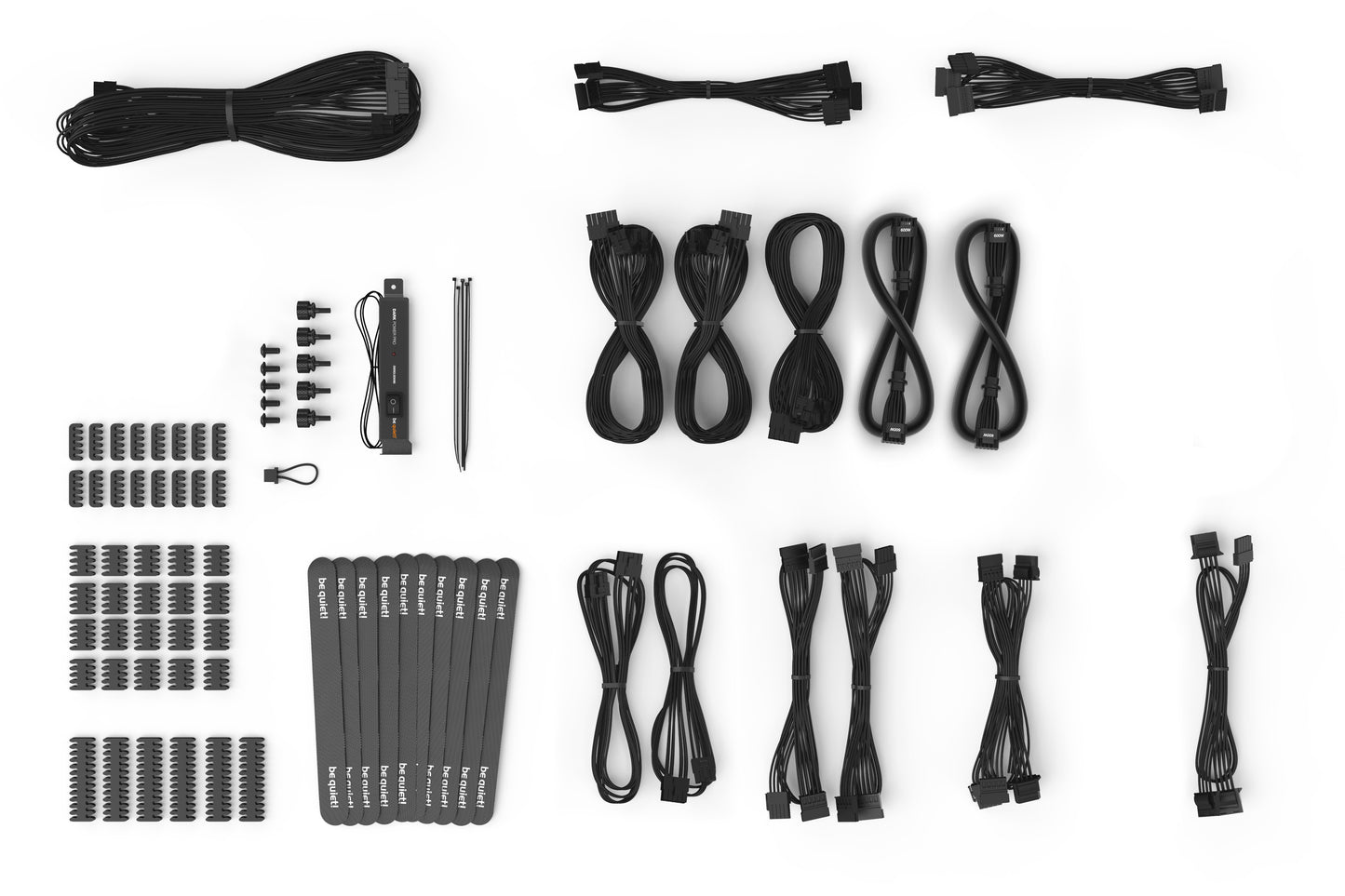

Individually sleeved cables of up to 120cm and cable combs simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling – even in the largest PC cases.

MAGNIFICENT APPEARANCE
No compromises
Dark Power Pro 13 1600W not only captivates with its inner values. An extraordinary aluminum case and individually sleeved cables emphasize the highest standards of Dark Power Pro 13 1600W also on the outside.

Model Dark Power Pro 13 1600W
Continuous power (W) 1600
Peak power (W) 1700
Form factor Version 3.0
Form factor EPS 12V Version 2.92
Topology Full bridge + LLC + SR + DC/DC
Digitally controlled ✓
Voltage (Vac) 115 - 240
Frequency (Hz) 50 - 60
Input current (A) 15 / 9
Power factor at 100% load >0.99
Modern standby ✓
Power consumption in standby (W) <0.06
Average life time (h / 25°C) >100,000
Operating temperature up to (°C) 50

Efficiency
80 PLUS certification Titanium
Efficiency (%) at 230V, 2% load 73.7
Efficiency (%) at 230V, 10% load 92.6
Efficiency (%) at 230V, 20% load 94.2
Efficiency (%) at 230V, 50% load 94.5
Efficiency (%) at 230V, 100% load 92.2
Fan and cooling technology
Fan Silent Wings
Fan size (mm) 135
Bearing technology FDB
Motor technology 6-pole fan motor
Max. fan speed (rpm) 2600
dB(A) at 10% load 9.5
dB(A) at 20% load 9.6
dB(A) at 50% load 9.8
dB(A) at 100% load 31.1
Output
Multi-rail operation (12V rails) 6
12V single rail operation ✓
Overclocking key ✓
+3.3V (A) 25
+5V (A) 25
+12V1 (A) 40
+12V2 (A) 40
+12V3 (A) 45
+12V4 (A) 45
+12V5 (A) 55
+12V6 (A) 55
-12V (A) 0.5
+5Vsb (A) 3.5
Max. combined power 12V (W) 1600
Max. combined power 12VHPWR (W) 1000
Max. combined power 3.3V + 5V (W) 150
Hold-up time at 100% load (ms) 18
Hold-up time at 80% load (ms) -
Power good signal (ms) 100 - 150
Cables and connectors
Modular cables ✓
Sleeved cables ✓
Flat cables -D
Maximum cable length (cm) 105
Cable length to motherboard (cm) 60
No. of cables 16
ATX-Motherboard (20+4-pin) 1
P4+4 (CPU) 1
P8 (CPU) 1
P4 (CPU) -
12VHPWR cables 2
PCI-e 6+2-pin (GPU) 6
PCI-e 6-pin (GPU) -
SATA 16
PATA 5
FDD (Floppy) -
