Be Quiet PURE POWER 12 M 1200W (BN513)

Exceptional quiet, superior features
Pure Power 12 M 1200W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 1200W offers the best combination of features with outstanding compatibility.

• 80 PLUS® Gold efficiency (up to 93.7%)
• ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
• Exceptionally silent 120mm be quiet! fan
• Advanced stability and voltage regulation thanks to LLC technology
• 2 strong 12V-rails
• Modular cables for maximum build flexibility
• One PCIe 5.0 12VHPWR 600W and 4 PCIe 6+2 connectors for
• overclocked high-end GPUs
• 10-year manufacturer’s warranty

80 PLUS® GOLD CERTIFIED
Very high operating efficiency
Pure Power 12 M 1200W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 93.7%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 1200W is always the correct choice for quiet systems and gaming PCs!

FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.0 specifications
Pure Power 12 M 1200W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.

THE NEW STANDARD OF POWER
For massive transient loads
Pure Power 12 M offers 1200W of continuous power with 2 independent 12V rails. Even if the graphics card demands excessive power for a short time: Pure Power 12 M 1200W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

EXCEPTIONALLY SILENT OPERATION
Achieved with a silence-optimized be quiet! fan
The exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality.

HIGH-CLASS TECHNOLOGIES
Rock-solid stability
With its LLC topology Pure Power 12 M 1200W provides a best-in-class voltage regulation and efficiency. That makes it perfect for building very quiet systems or upgrading gaming and media creation PCs.

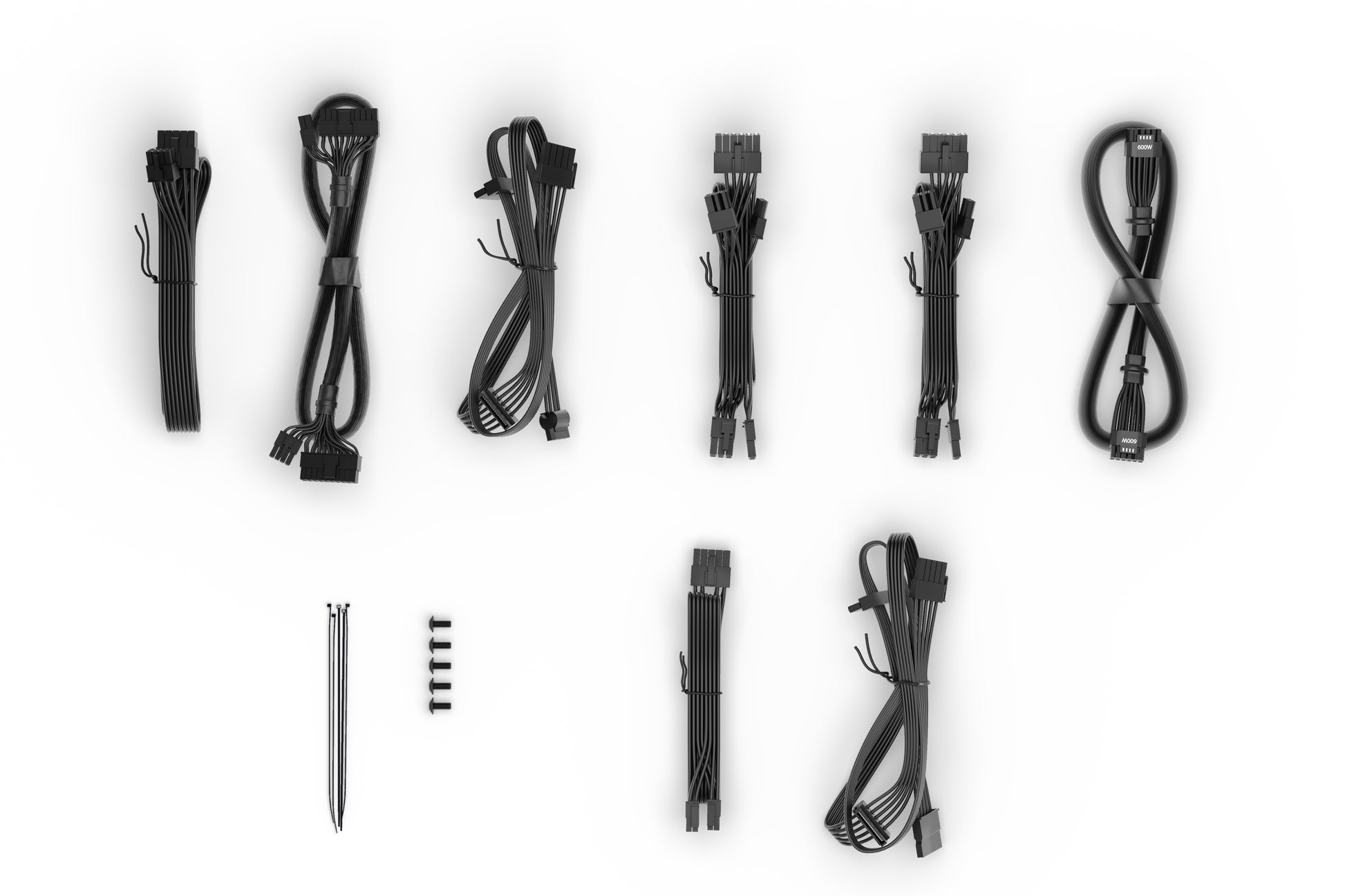

MODULAR CABLES
Utmost convenience and compatibility
Thanks to their modularity, all unnecessary cables in the system are left out. Pure Power 12 M 1200W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.

General data
Model Pure Power 12 M 1200W
Continuous power (W) 1200
Peak power (W) 1250
Form factor Version 3.0
Form factor EPS 12V Version 2.92
Topology LLC + SR + DC/DC
Digitally controlled -
Voltage (Vac) 110 - 240
Frequency (Hz) 50 - 60
Input current (A) 15 / 7.5
Power factor at 100% load >0.98
Modern standby ✓
Power consumption in standby (W) <0.12
Average life time (h / 25°C) >100,000
Operating temperature up to (°C) 40
