Description

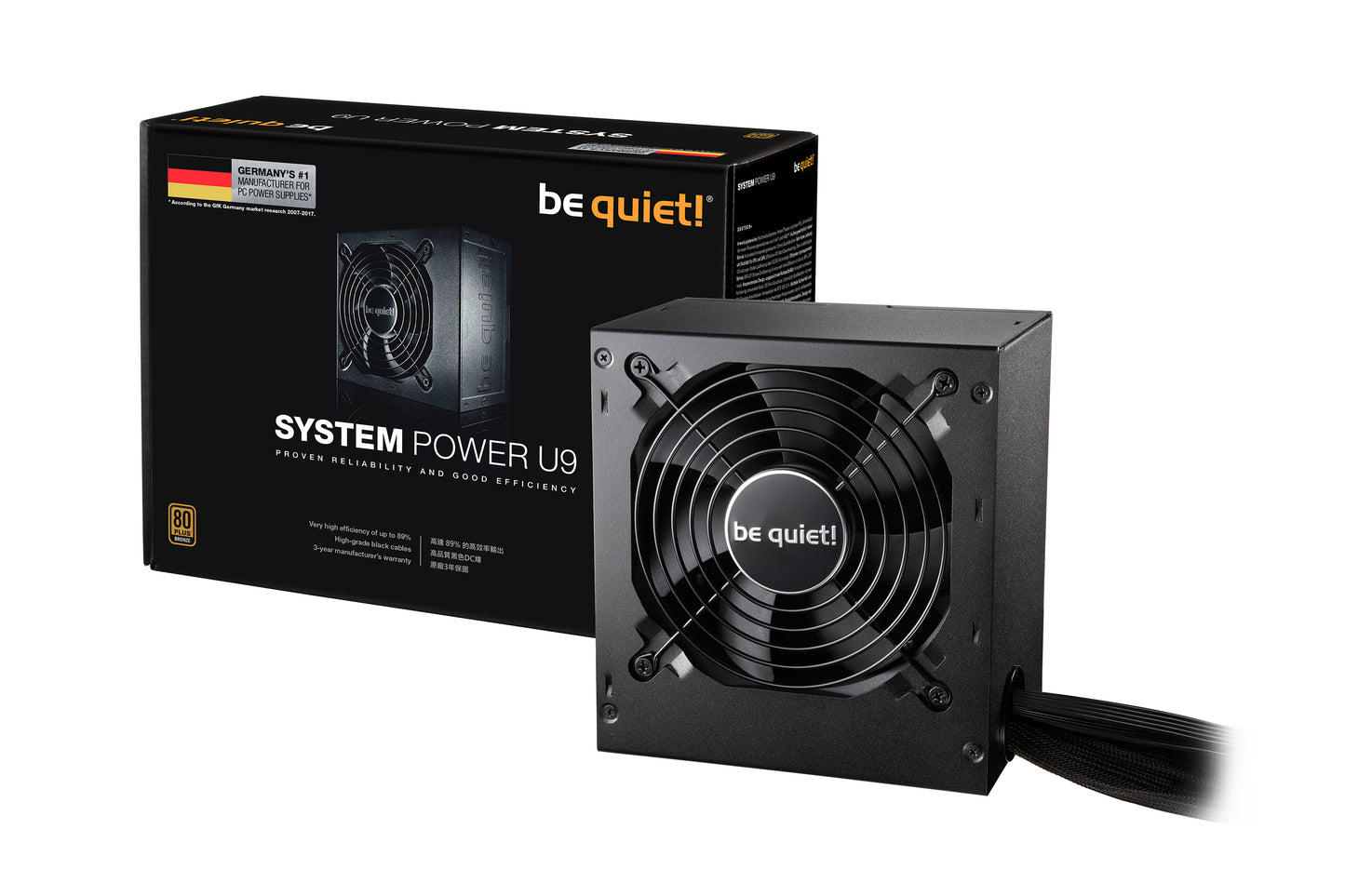

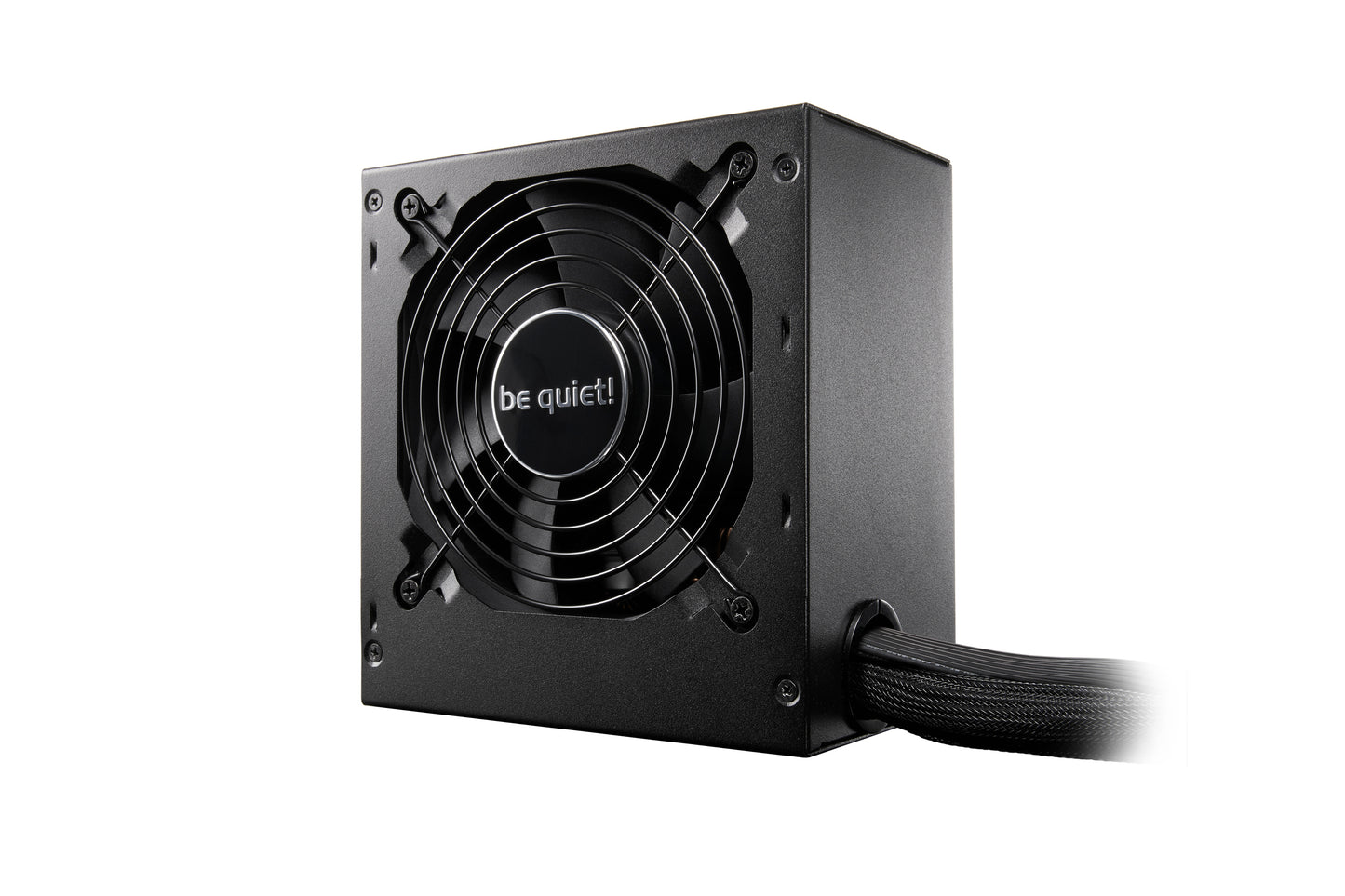

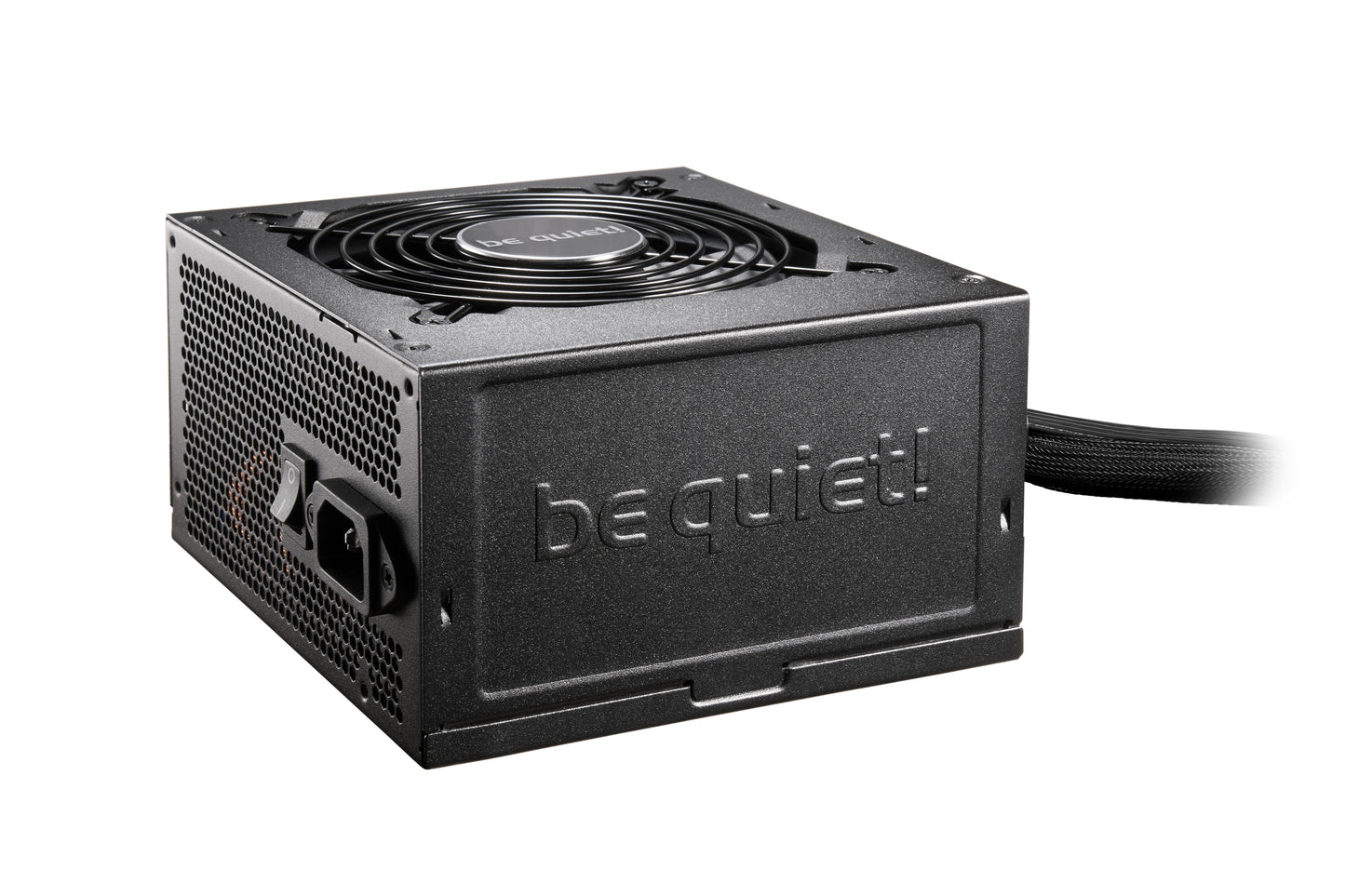

SYSTEM POWER U9 600W
Proven Reliability and Good Efficiency
be quiet! System Power U9 600W offers renowned be quiet! reliability and quietness for price-conscious PC builders.
- Rock-solid stability with two strong 12V-rails
- DC-to-DC technology for tight voltage regulation
- Four PCIe connectors for support of powerful GPUs
- Temperature-controlled 120mm fan reduces system noise
- Stand-by drain of less than 0.1 watts
- 80 PLUS® Bronze efficiency (up to 89%)
- High-grade black cables
- Complete suite of top safety features
- Meets latest Intel® C6/C7, ErP and Energy Star 6.1 guidelines
- 3-year manufacturer’s warranty
- Product conception, design and quality control in Germany
VERY QUIET OPERATION
Attained by using a high-quality fan
System Power U9 600W is equipped with a temperature-controlled 120mm fan. It provides you with the low noise operation that be quiet! is famous for, built into an entry-level system.
80 PLUS BRONZE CERTIFICATION
High operating efficiency
The 80 PLUS Bronze certification is convincing evidence of this PSU’s efficient and power saving operation. It is a remarkable achievement for this class of PSU, realizing an efficiency rating of up to 89%.
HIGH PERFORMANCE FOR YOUR SYSTEM
Proven reliability for CPU and GPU
System Power U9 600W provides stable and dependable power for CPU and GPU. It is equipped with two independent 12V-rails and supports several graphics cards with four PCI express connectors for powerful GPUs.
INNOVATIVE DC-TO-DC CONVERSION
Equipped with a wealth of advanced technology
The PSU is equipped with DC-to-DC conversion for tight voltage regulation, even under heavy cross-loading conditions. This ensures reliable operation and makes it ready for the next generation of processors and graphics cards.
HIGH-GRADE BLACK CABLES
Attractive design for cost-effective systems
System Power U9 600W comes with a high-quality black sleeved 24-pin cable that adds a touch of class to any PC system. The P4+4, PCIe and drives cables are flat.
COMPREHENSIVE PROTECTION
A complete range of safety features
Top component protection with a full suite of safety functions, including OCP, OVP, OPP, OTP UVP and SCP, which provide the ultimate in secure operation.
General data
Model | System Power U9 600W |
Continuous power (W) | 600 |
Peak power (W) | - |
Form factor | Version 2.4 |
Form factor EPS 12V | Version 2.92 |
Topology | DC/DC |
Digitally controlled | - |
Voltage (Vac) | 100 - 240 |
Frequency (Hz) | 50 - 60 |
Input current (A) | 12 / 6 |
Power factor at 100% load | >0.95 |
Modern standby | - |
Power consumption in standby (W) | <0.1 |
Average life time (h / 25°C) | 100,000 |
Operating temperature up to (°C) | 40 |
