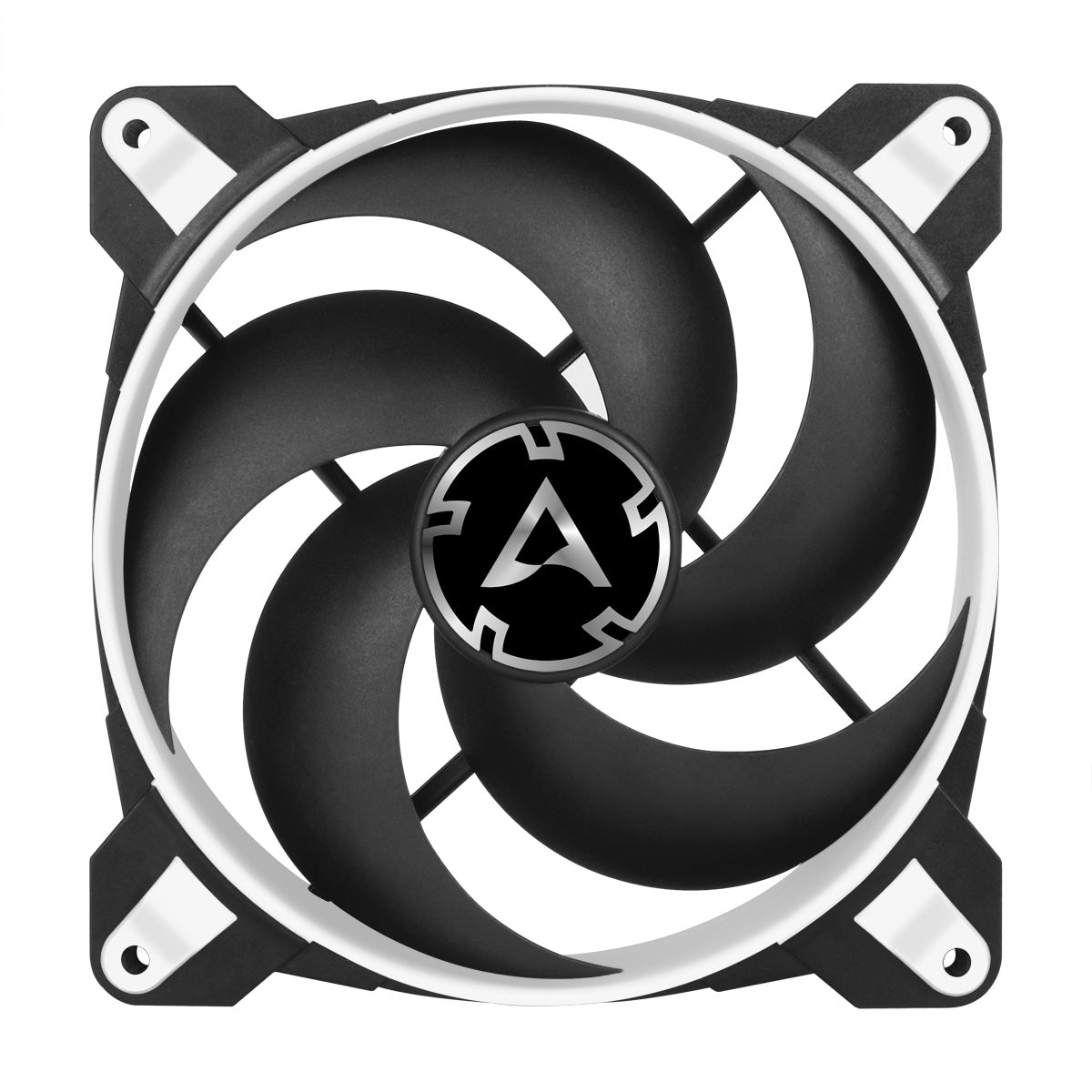

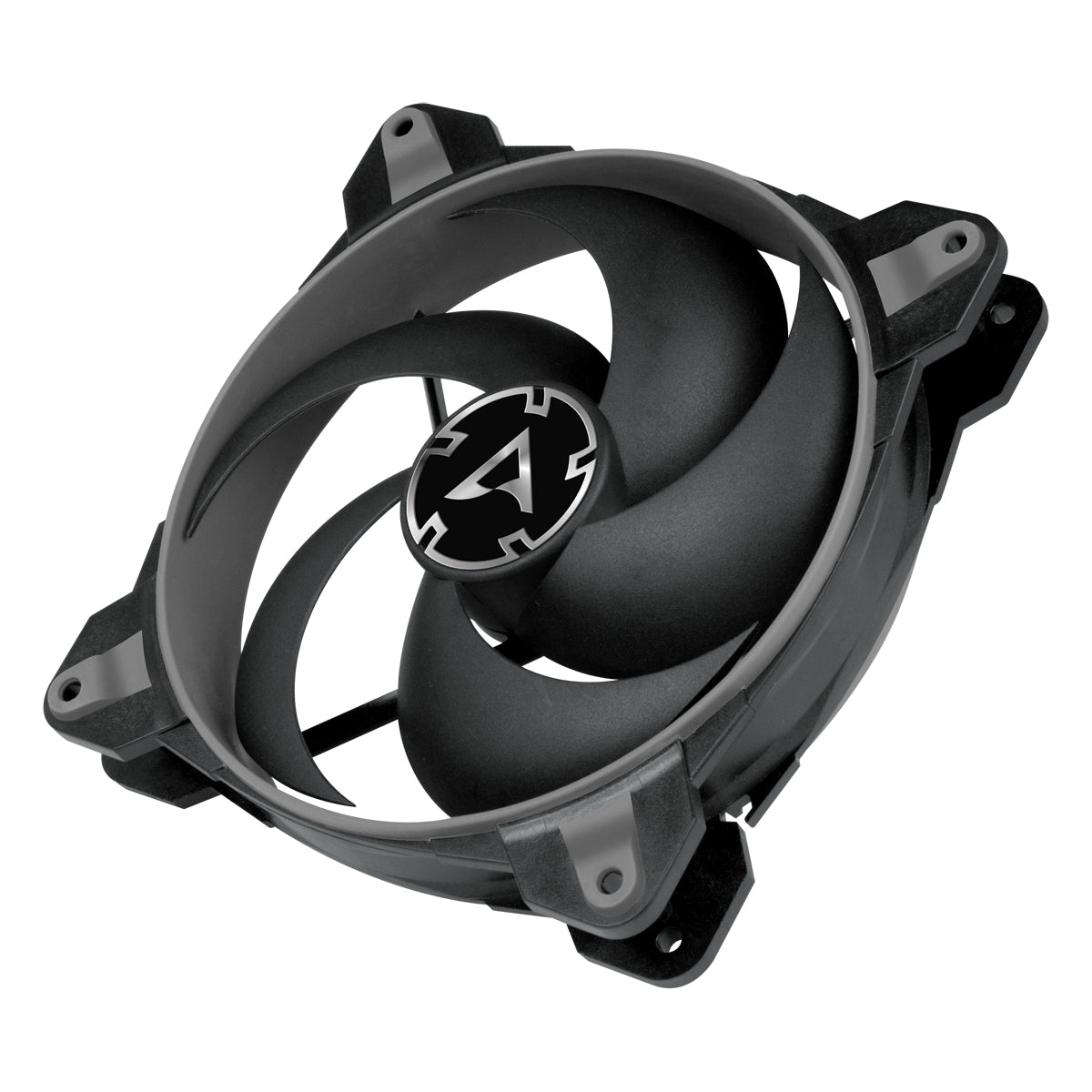

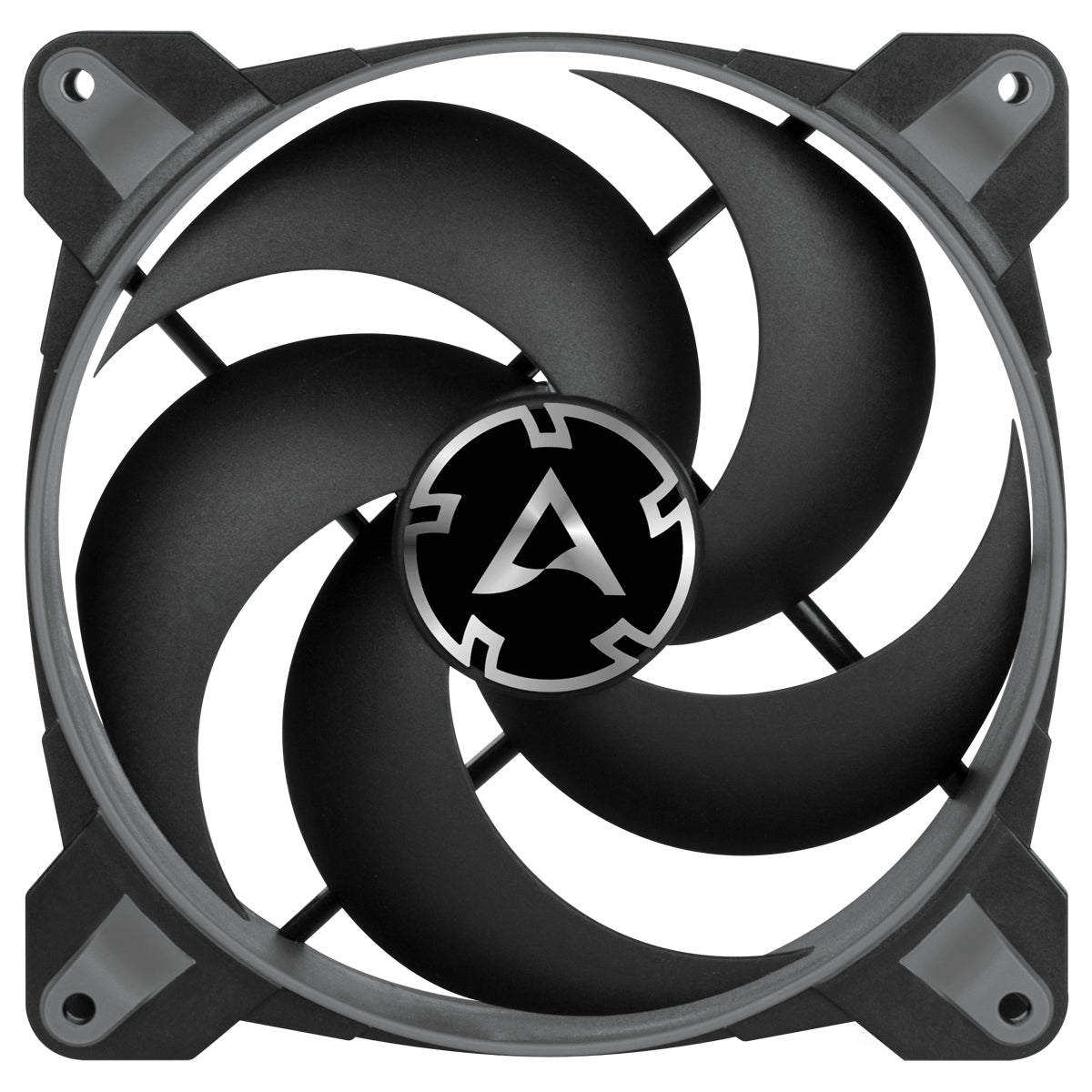

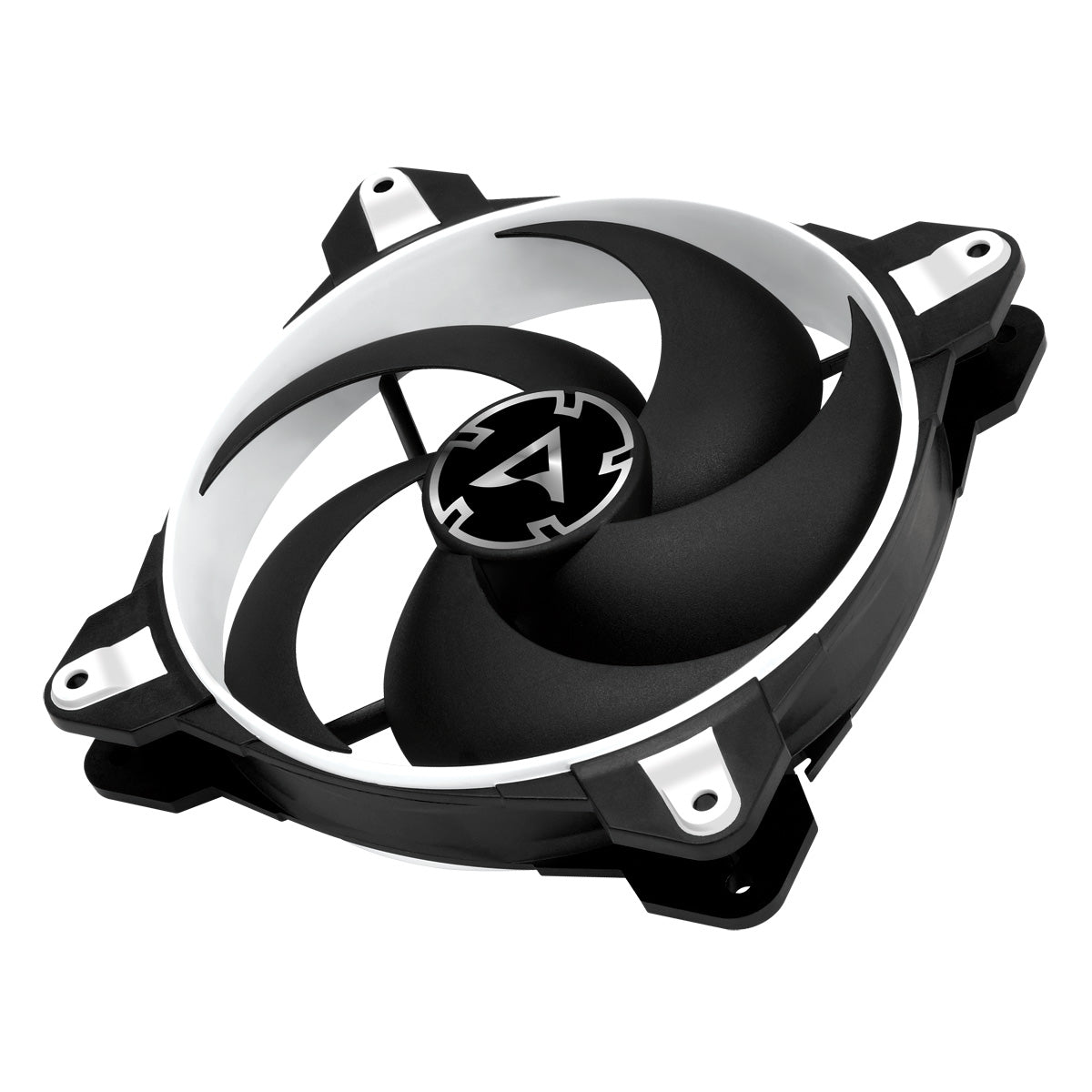

ARCTIC BioniX P140 Pressure-Optimised 140 mm Gaming Fan with PWM Sharing Technology

ARCTIC BioniX P140 Pressure-Optimised 140 mm Gaming Fan with PWM Sharing Technology

Brand : Arctic Cooling

SKU: SKU:  ACFAN00128A

12 in stock

Regular price ₱900.00
Regular price ₱1,050.00 Sale price ₱900.00
Sale! Sold out

Optimised for Static Pressure

During the development of the new BioniX P140, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the BioniX P140 is particularly suitable for use on heatsinks and radiators.

BioniX_P140_white_pressure-optimised

More Efficient Technology

The motor is powered by a PWM IC of the newest generation, which allows the new BioniX P140 to run much more efficiently than its predecessors. This saves energy without compromising performance.

BioniX_P140_white_optimised_fan_design

Maximum Quietness, Minimum Vibration

Even at low speeds, the operating sound of the new ARCTIC motor is barely noticeable. Due to sinus-magnetizing the new motor only creates about 5 % of the vibration from the commutation of a regular DC motor without a filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

.BioniX_P140_white_maximum-quietness_EN

200 to 1950 rpm Regulated via PWM PST

With a wide range of regulations and the PWM Sharing Technology (PST), the BioniX P140 fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.
PWM-PST-Cable-black

High-Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Fluid-Dynamic-Bearing_New_EN

Two Way Installation

  • Blow warm air out of the case
  • Draw cool air into your case

BioniX_P140_white-intake-exhaust-in-case

TECHNICAL SPECIFICATIONS & MANUAL

General Data

Performance
Fan Speed: 200—1950 rpm
Airflow: 77.6 cfm | 131.92 m³/h
Static Pressure: 2.85 mmH2O
Noise Level: 0.45 Sone

Fan Frame: BioniX
Control Type: PWM PST
Connector: 4-Pin Connector + 4-Pin Socket
Fan Bearing: Fluid Dynamic Bearing
Operating Ambient Temperature: 0—40 °C

Electric Characteristics
Typical Voltage: 12 V DC
Starting Voltage: 4.3 V
Current | Voltage: 0.15 A | 12 V DC
Cable Length: 400 mm

Size & Weight
Length: 140 mm
Width: 140 mm

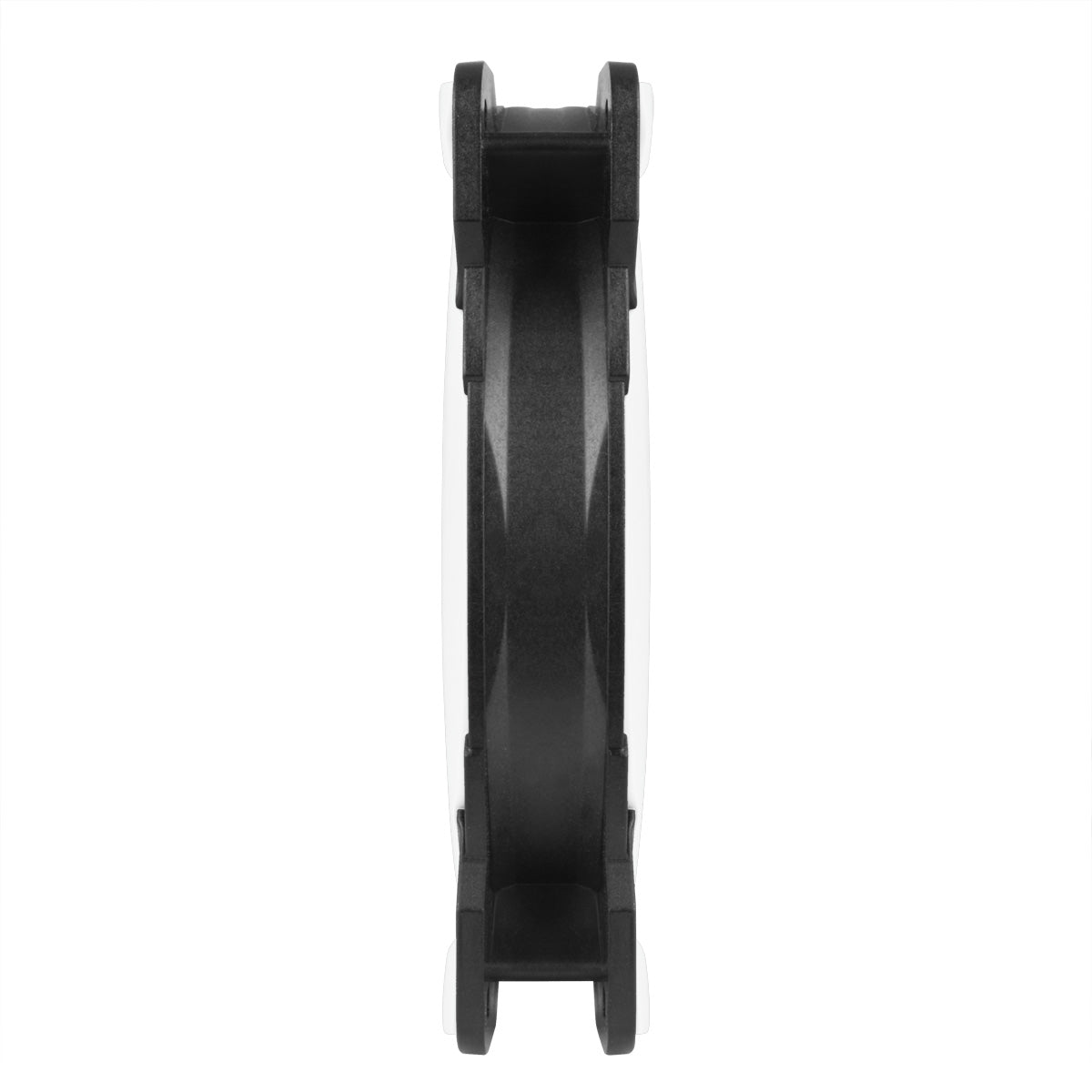

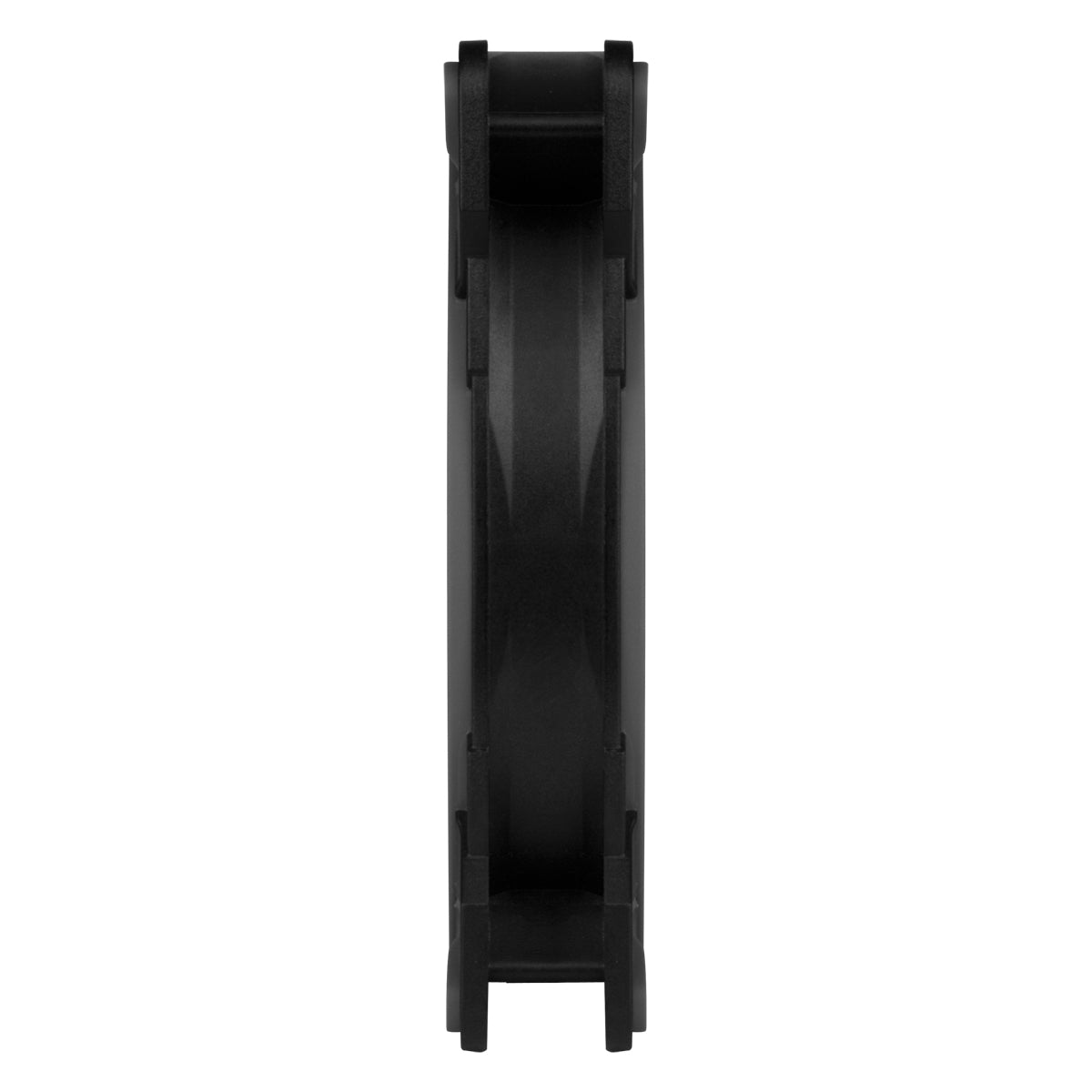

Height: 28 mm
Weight: 181 g
