Description

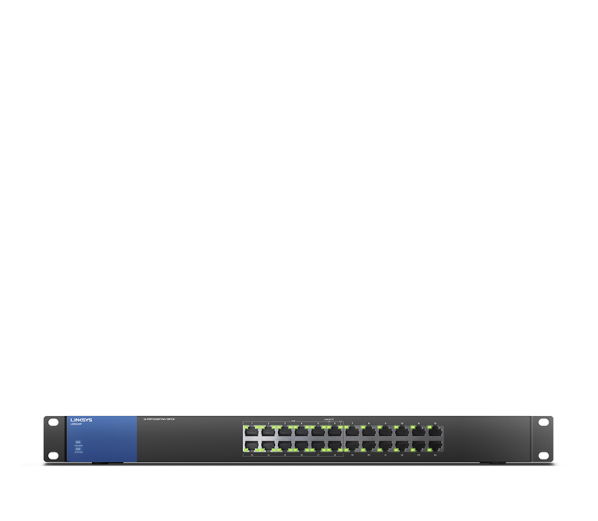

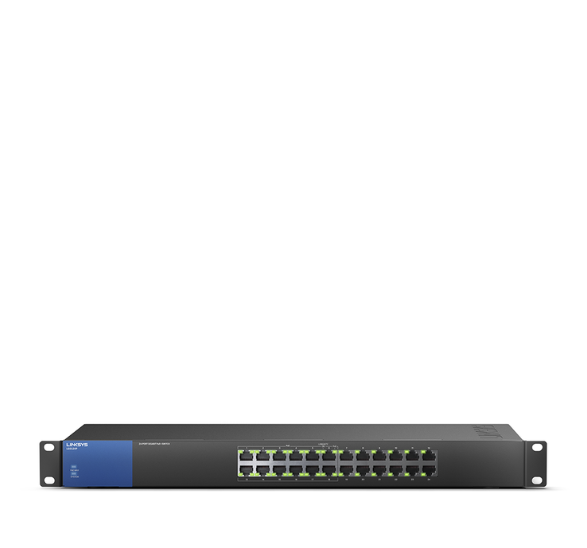

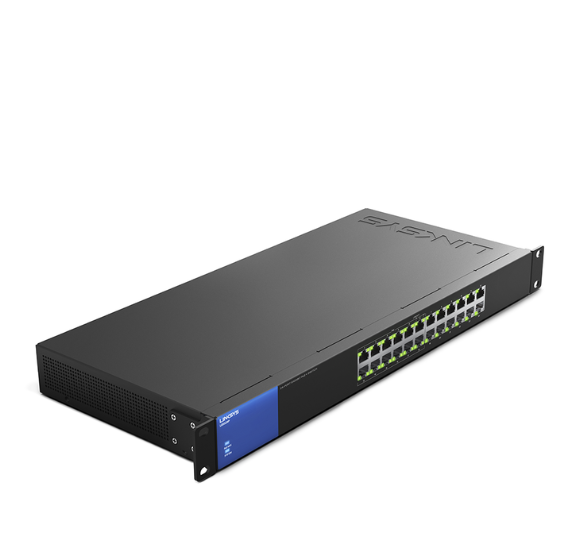

Business Switch - 24 Port (LGS124P) 24-Port Business Gigabit PoE+ Unmanaged Network Switch, Ethernet Plus, Wired Connection Speed up to 1,000 Mbps
The 24-Port Gigabit PoE+ Switch accelerates productivity to Gigabit speeds, with PoE+, QoS and plug-and-play setup for ease of use.
- Wired connection speed up to 1,000 Mbps
- 24 Gigabit Ethernet autosensing ports
- Power over Ethernet Plus (PoE+) support
- Easy plug & play connection
- QoS
- Meets EEE (Energy Efficient Ethernet) 802.3az standard
Switch Type
- Unmanaged
Switch Ports
- 24-28
PoE+ Budget
- 120W
PoE Support
- Yes
Power Consumption
- 7.79 W / 17.65 W
LEDs
- Link, speed, activity, and PoE indicators
Dimensions (LxWxH)
- 440 x 200 x 44 mm (17.3 x 7.9 x 1.7 in.)
Weight
- 2.758 kg (6.08 lbs)
Minimum System Requirements
- Connected devices need Ethernet connectivity and Ethernet cables.
Operating Humidity
- 10–90% (non-condensing)
Operating Temperature
- 0–50°C (32–122°F)
Ports
- 24-port switch with 12 PoE+ ports (ports 1–6 and 13–18) and dedicated PoE power budget of 120 W
Mounting
- Rack
Power Input
- 100–240 VAC, 50/60 Hz
Quality Of Service
- 802.1p and DSCP
Storage Temperature
- -40–70°C (-40–158°F)
Warranty and Support
- 5 Year Warranty
MAC Address Table Size
- 8,000 entries
Performance
- 0.01488 Mpps for 10M port
- 0.1488 Mpps for 100M port
- 1.488 Mpps for 1000M port
- Full line rate and forwarding rate of 64B frame at:
Regulatory Compliance
- FCC Class A, CE, UL, CB
Maximum Power Consumption
- 8.69 W / 19.27 W
Fans
- One
Storage Humidity
- 10–90% (non-condensing)
Power Saving
- Cable connected detection, sleep mode
Network Standards
- 802.3at (PoE+)
- IEEE 802.3
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3az
- IEEE 802.3u
- IEEE 802.3x
Bandwidth
- 48 Gbps (non-blocking)
