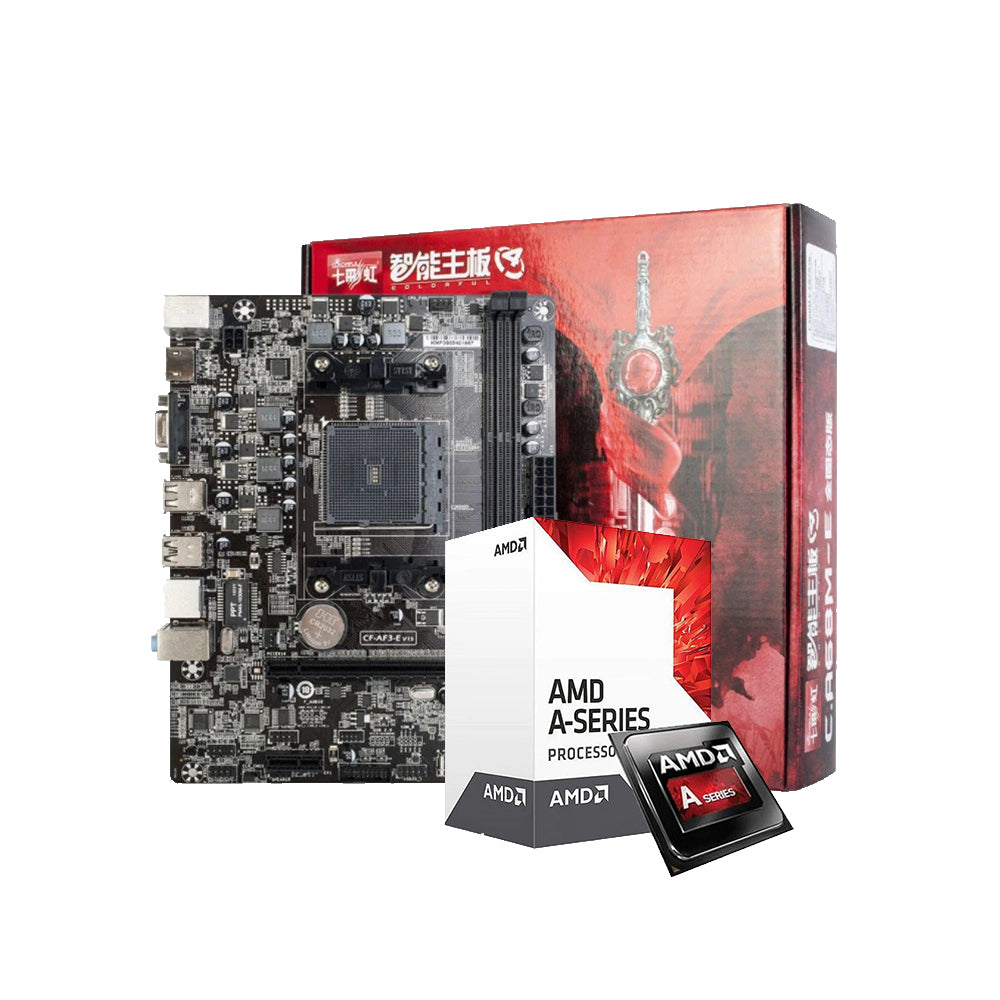

Colorful A68M-E Plus V15 for AMD A68H FM2/FM2+ Socket Motherboard

Features:
Anti-static
Adopts high-quality anti-static IC chips to show a better antistatic effect than traditional chip. Whether the rear panel interface (such as VGA, DVI, HDMI and LAN), or USB connection header, they all equipped with at least 2 anti-static chips, up to 20 anti-static chips all over the board, which to provide a better protection and reduce common static threats for CPU

USB 3.0 Port
Provides up to 5.0 Gbps theoretical data transmission rate and supports hot swap, besides backwards compatible with USB 2.0 standard for convenient connection of USB interface device.

Solid-state Capacitors
All-solid-state refers to the whole board with all solid-state capacitors. All solid-state capacitors
Features environmental protection, low resistance, stable high and low temperature, superior properties and high reliability.

SATA 3 Interface
The 3th generation of the Serial ATA storage interface, Serial ATA 3.0 definition of data transfer rate can reach 6Gbps, can obtain higher breaking rate, more convenient and easy to use and has more potential for development.

Ferrite Inductors
Whether it is CPU power supply sections or memory power all use military level ferrite inductors. Merit
Features Higher electrical resistance, lower working temperature, lower EMI electromagnetic interference, long service life, low frequency up to 5MHz, and so on.
Intelligent Restore Functions
Achieves one-key restore for the operating system, hard disk data and CMOS, and can repair viruses in seconds.

Lightning Protection Technology
Add an independent network card in the onboard NIC to form the unique network isolation transformer chip, not only can enhance the signal, ensure smooth network, also has the function of over voltage protection and lightning protection.

Specifications:
Brand: Colorful
Model: C.A68M-E Plus V15
Chipset: AMD A68H
Processor: CPU supported: support FM2/FM2+ AMD APUs（TDP:100W)
Memory: 2 memory slots，support DDR3 dual channel 1066/1333/1600/1866(OC)/2133(OC) MHz memory
Graphics: 1 * PCIE2.0/3.0 X16 slot
Board I/O: 2 * PS2 ports, 1 * (VGA+HDMI)ports, 4 * USB 2.0 ports, 1 * RJ45 100M LAN, 3 * audio ports, 1 * 9pin USB 2.0 header, 1 * 19pin USB 3.0 header, 1 * 9pin COM header
Expansion Slots: 1 * PCIE 2.0/3.0 X16 slot(if need support PCIE3.0,then need FM2+ APU), 1 * PCIE 2.0/3.0 X1 slot
SATA Ports: 4 * SATA3.0 6Gb/s ports, support RAID0、1、10, AHCI
BIOS: 64M UEFI
Power Management: Power Management: Support S4/S5/network wakeup, support timing/incoming call startup
Hardware Monitor: CPU fan speed controlled, SYSTEM fan speed monitoring, CPU temperature monitoring, system temperature monitoring, and voltage monitor.

AMD A6-748

Physical
Socket: AMD Socket FM2+
Foundry: GlobalFoundries
Process Size: 28 nm
Transistors: 3,100 million
Die Size: 250 mm²
Package: µPGA
tJMax: 90°C
Processor
Market: Desktop
Production Status: Active
Release Date: Oct 26th, 2018
Part#: AD7480ACABBOX AD7480ACI23AB
Performance
Frequency: 3.5 GHz
Turbo Clock: up to 3.8 GHz
Base Clock: 100 MHz
Multiplier: 35.0x
Multiplier Unlocked: No
Voltage: 1.275 V
TDP: 45 W
Architecture
Generation: A6
(Carrizo)
Memory Support: DDR3
Rated Speed: 2133 MT/s
Memory Bus: Dual-channel
ECC Memory: No
PCI-Express: Gen 3
Core Config
# of Cores: 2
# of Threads: 2
SMP # CPUs: 1
Integrated Graphics: Radeon R5
Cache
Cache L1: 160 KB
Cache L2: 1 MB (shared)
Features
MMX3DNow!SSESSE2SSE3SSE4ASSE4.1SSE4.2AESAVXAVX2BMI1BMI2FMA3FMA4AMD64CLMULCnQNX bitAMD-VXOPABMTBMF16CRDRANDSMEPTurbo Core 3.0
