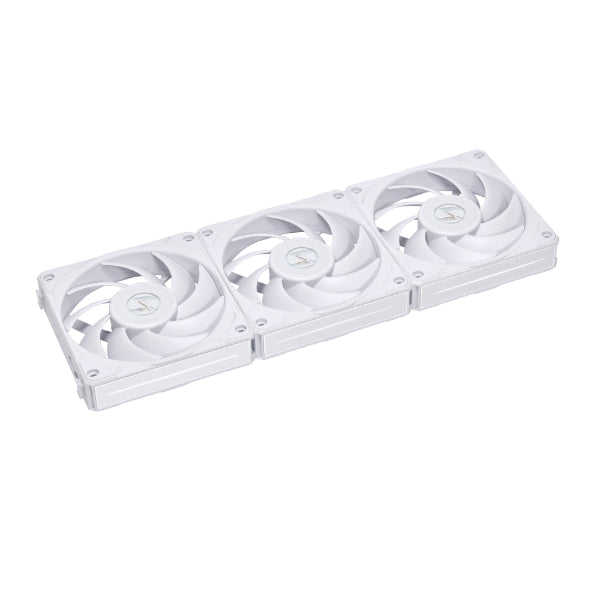

Lian Li Uni Fan P28 Triple Pack (P28120-3B/P28120-3W )

Lian Li Uni Fan P28 Triple Pack (P28120-3B/P28120-3W )

Brand : Lian Li

Regular price ₱4,320.00
Sale price ₱4,320.00
Regular price ₱4,680.00 -8%
Sale! Sold out
Color

Lian Li Uni Fan P28

  • Noise-optimized and performance-oriented fan
  • FDB Bearing with copper shielding to ensure stable rotation of the impeller
  • Liquid crystal polymer fan blades to ensure tight tolerance
  • Toggle between Silent, Normal, and Performance mode via included fan speed controller
  • UNI FAN style daisy-chainable design for ease of cable management
  • Extension cable included for daisy-chaining between each cluster'

 The 1st performance-oriented UNI FAN with uncompromising airflow and static pressure at an optimized noise level that is ideal for air cooling and water cooling configurations.

AVAILABLE IN TWO COLORS
The UNI FAN P28 keeps stylish and efficient cooling in mind, both black and white versions have brushed aluminum strips at the side that reflect the LEDs in your PC, creating a stunning visual effect.

EFFORTLESS INSTALLATION
UNI FAN P28 features an interlocking system to connect up to 6 fans in two clusters to a single fan speed controller, making fan installation and cable management jobs too easy.

INCREASED THICKNESS FOR MORE PERFORMANCE
The UNI FAN P28 is a high-performance fan designed for optimal cooling. It has a 28mm thick frame that can help deliver more airflow and static pressure.
The fan also features indented screw holes that are compatible with 25mm fan screws for easy installation.

STURDY FAN BLADE – LCP MATERIAL

The UNI FAN P28 fan blade is made of liquid-crystal polymer (LCP), a strong material that reduces vibration and allows the fan to run at high speed without compromising stability.

LCP also allows for a tight design structure between the fan blades and fan frame, which increases the surface of the impeller to boost performance and minimize the acoustic level while operating.

EVER RUNNING MOTOR
To achieve high performance with a low noise level, the UNI FAN P28 has implemented the metal bearing shell and the copper shielding to reduce the friction and vibration between the impeller and the frame.

METAL BEARING SHELL
To securely hold the impeller to the shaft

MAGNETIC RUBBER RING
To ensure extreme stability

FLUID DYNAMIC BEARING (FDB)
To effectively reduce the internal friction for improved durability

STATOR
To provide a rotating magnetic field that generates momentum

COPPER SHIELDING
To reinforce the shaft and ensure stability at high-speed operation

GRAPHITE PAD
To reduce shaft friction

EXTRA MAGNETIC FORCE
To support the fan blades and reduce vibration levels, thus ensuring low noise levels while in operation

RUBBER PADS
To reduce vibrations and maintain extremely low noise levels

CUSTOMIZABLE FAN SPEED
The UNI FAN P28 triple pack comes with an innovative magnetic fan speed controller that can be easily attached to any metal surface inside the PC case for convenience.

Three different fan speed modes can be switched with a simple push of the button:

MODE L (Silent) M (Normal) H (Performance)
FAN SPEED (RPM) 300~1300 300~2200 300~2600
STATIC PRESSURE (MMH2O) 1.3 3.62 4.79
AIRFLOW (CFM) 44.94 77.76 92
NOISE (DB(A)) 20.4 28.1 32.1



SPECIFICATIONS

PRODUCT NAME UNI FAN P28
MODEL UF-P28120-3B UF-P28120-3W UF-P28120-1B UF-P28120-1W
COLOR Black White Black White
NUMBER OF FANS 3 3 1 1
CONTROLLER Yes No
CABLE 3 × Adaptor Cable
1 × Extension Cable
1 ×Adaptor Cable
FAN DIMENSION 120 X 120 X 28 (mm)
MATERIAL LCP / PBT / PC / Aluminum
RATED VOLTAGE DC 12V
FAN SPEED 300 – 2600 RPM(±50)
MAX. AIR PRESSURE 4.79 mmH2O
MAX. AIRFLOW 92 CFM
MAX. ACOUSTIC NOISE 32.1 dB(A)
BEARING TYPE Fluid Dynamic Bearing (FDB)
WARRANTY 6 years
