CORSAIR CV power supplies are ideal for powering your new home or office PC, with 80 PLUS Bronze efficiency guaranteed to continuously deliver full wattage to your system.

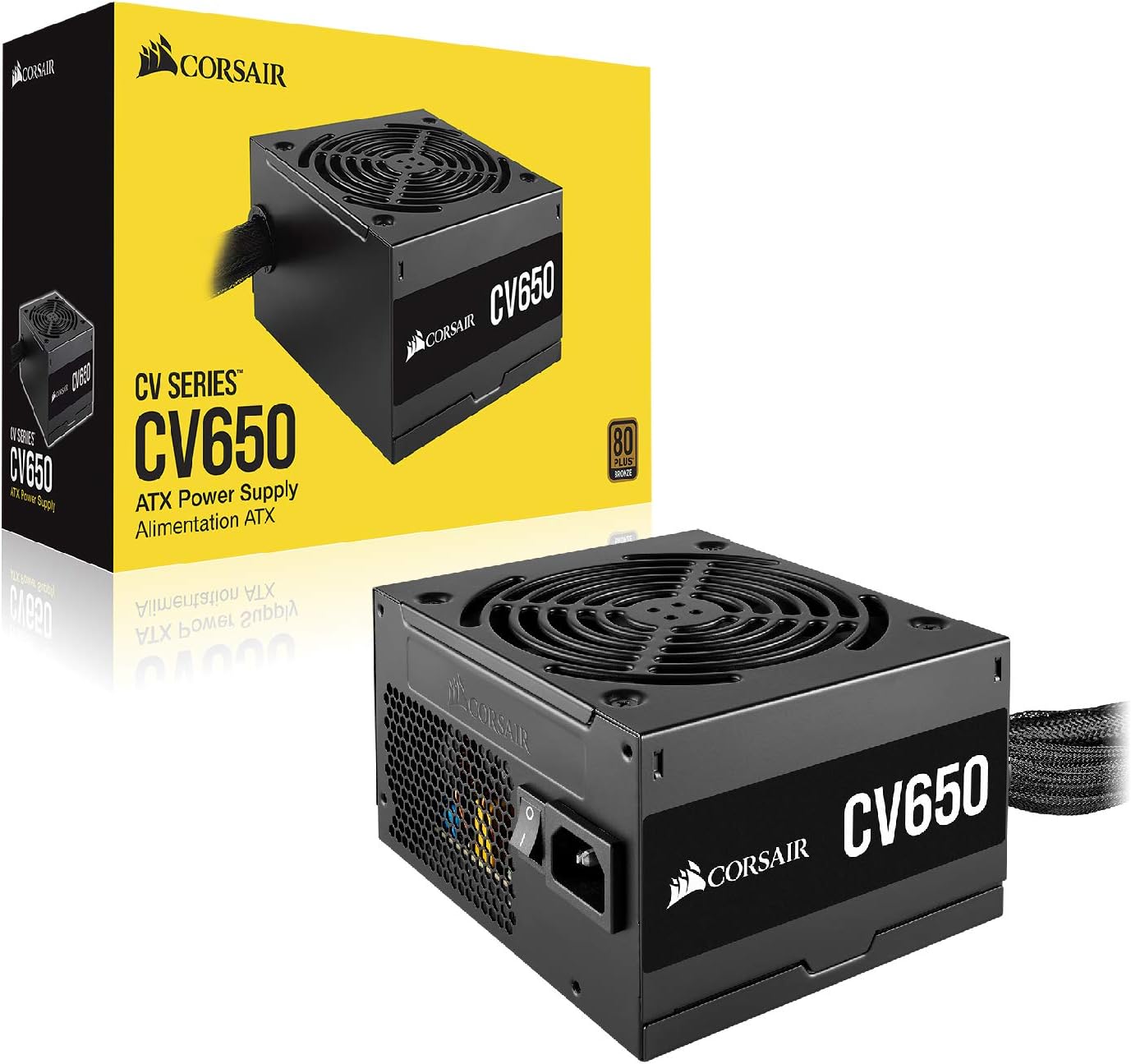

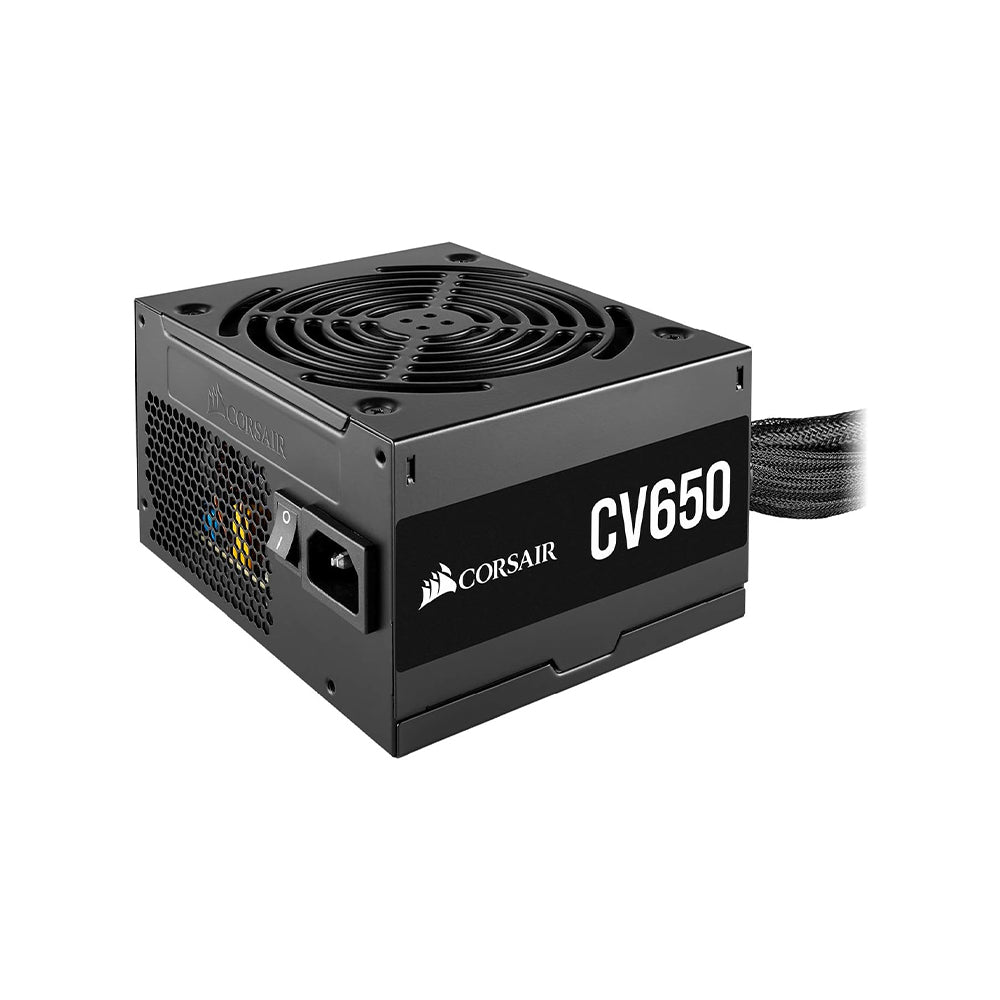

CV SERIES™ CV650 POWER SUPPLY
QUIET AND DEPENDABLE 80 PLUS BRONZE EFFICIENCY

ULTRA EFFICIENT
CV series is 80 PLUS Bronze certified, providing up to 88% efficiency for less heat and lower energy costs.

CONTINUOUS, RELIABLE OUTPUT
Like all CORSAIR power supplies, the CV Series does exactly what it says it does: deliver continuous power at full capacity, no matter which wattage variant you choose.

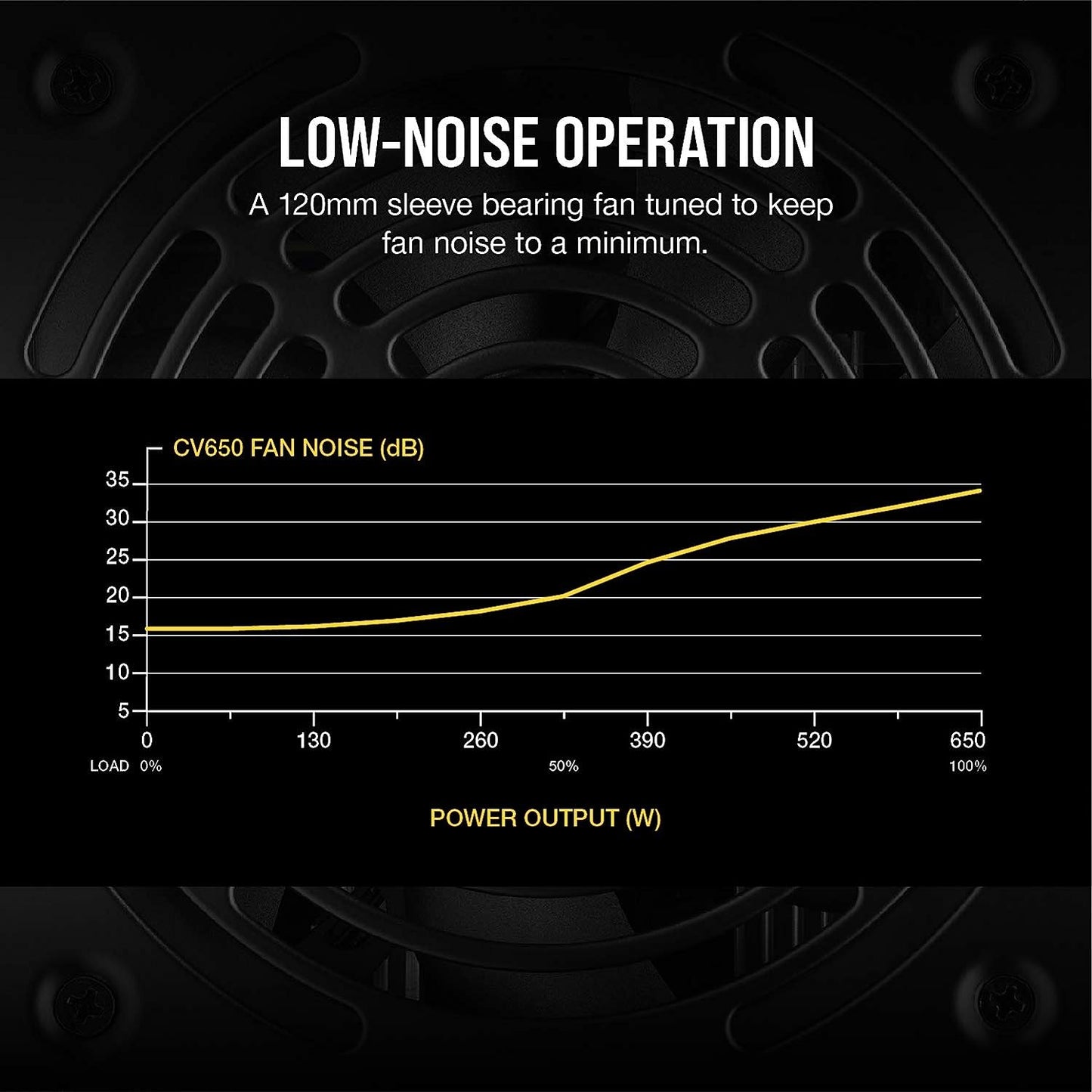

LOW-NOISE OPERATION
A 120mm thermally controlled low-noise cooling fan only spins at high speed when your power supply is under heavy stress, slowing down for quieter operation at lower loads.

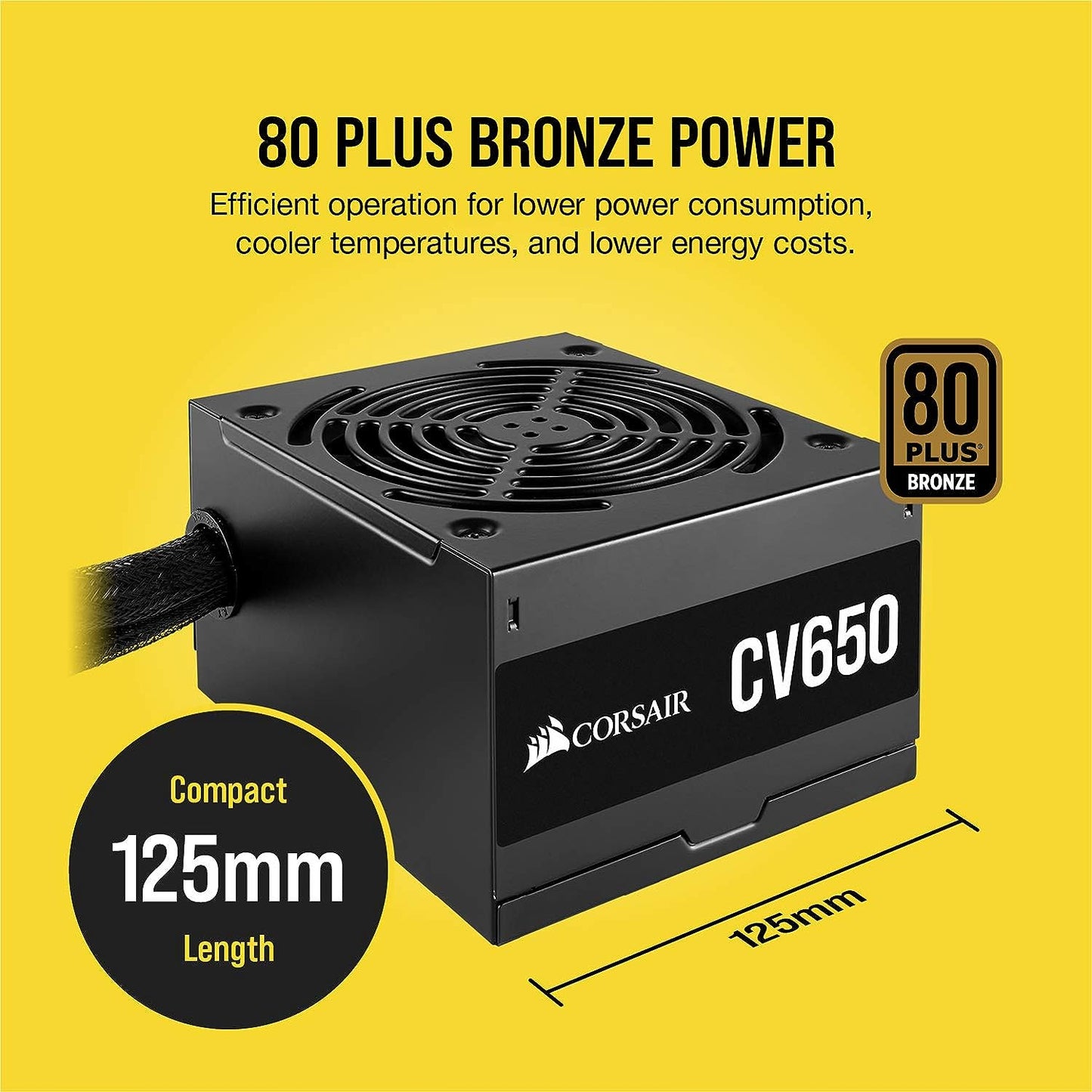

COMPACT DESIGN
CV series enclosures are only 125mm long, ensuring an easy fit in almost all modern PC cases.

CV650 POWER SUPPLY - COMPACT DESIGN
STEALTH MODE
Black sleeved cables and a black powder-coated casing seamlessly fits your PC's style.

ATX Connector	1
ATX12V Version	v2.31
Cable Type	Sleeved
Continuous Power W	650 Watts
EPS Connector	2
Fan Bearing Technology	Sleeve
SATA Connector	7
Modular	No
Fan Size MM	120mm



Floppy Connector	1
PCIe Connector	2
MTBF Hours	100,000 hours
Multi GPU Ready	No
PSU Form Factor	ATX
Zero RPM Mode	No
Single Multiple 12V Rail Toggl	No
Warranty	3 Year
Weight	2.32

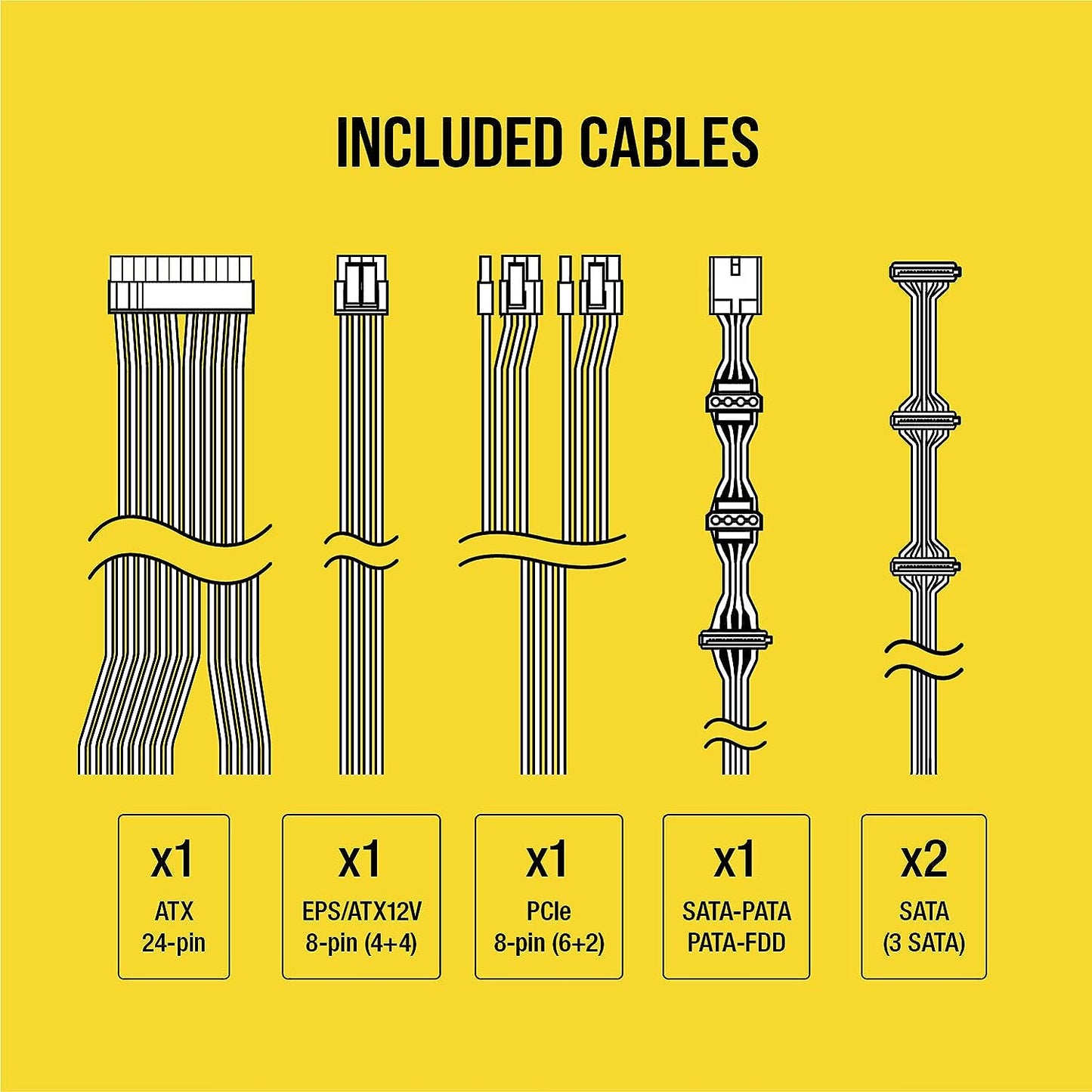

CV650 DC CABLE LISTING

Model	RPS0128
Part No.	CP-9020236
AC Input Rating
AC Input	100-240V
Input Current	10A-5A
Frequency	47~63Hz
	Max Load	Max Output
+5V	20A	130W
+3.3V	24A
+12V	52A	624W
-12V	0.3A	3.6W
+5Vsb	3A	15W
Total Power	650W
