Description
CV Series™ CV750 — 750 Watt 80 Plus® Bronze Certified PSU
CORSAIR CV power supplies are ideal for powering your new home or office PC, with 80 PLUS Bronze efficiency guaranteed to continuously deliver full wattage to your system.

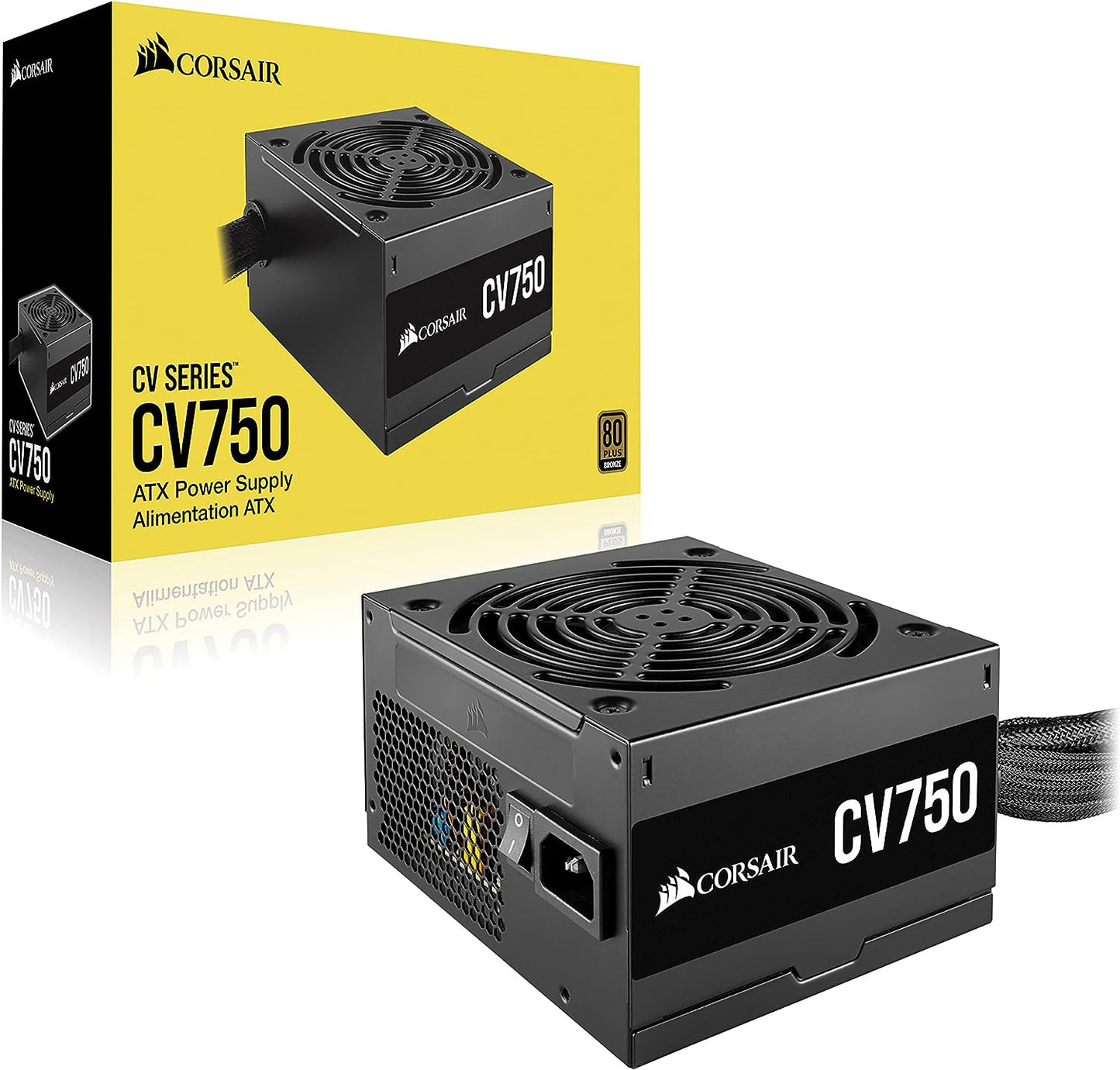

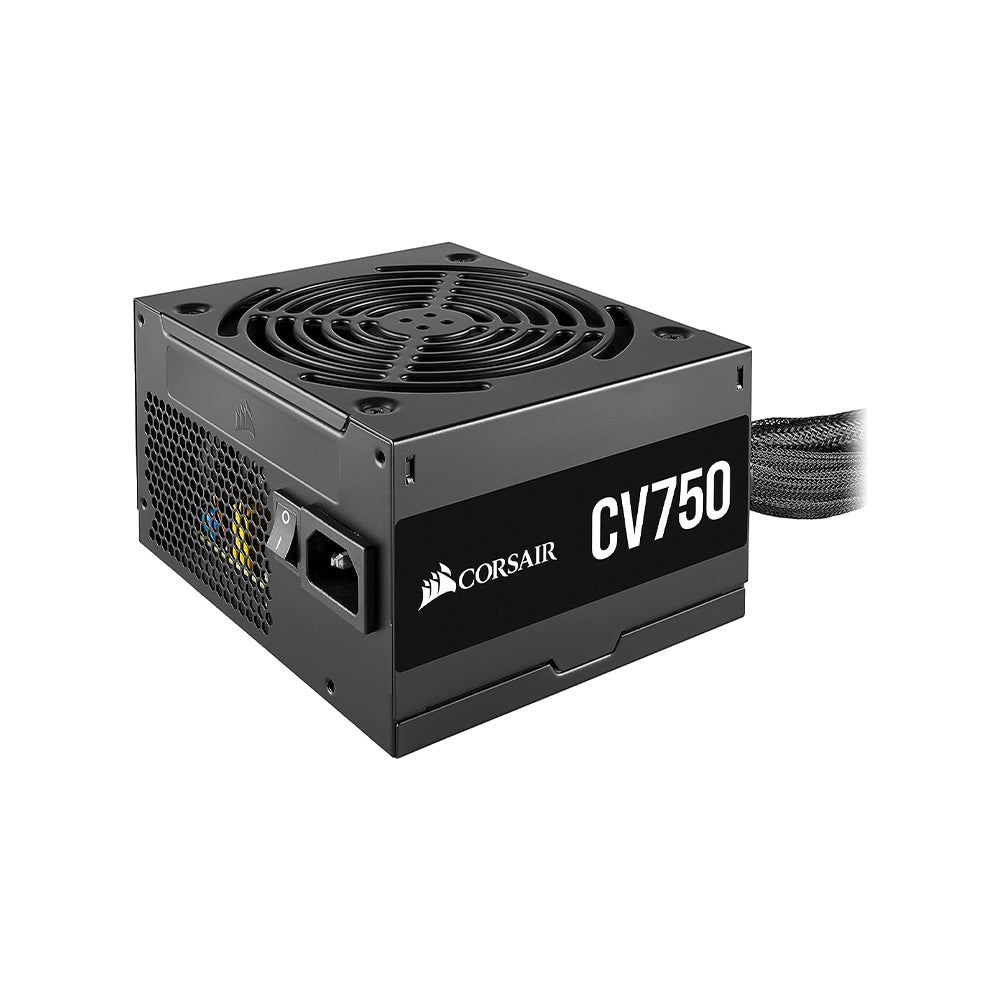

CV SERIES™ CV750 POWER SUPPLY
QUIET AND DEPENDABLE 80 PLUS BRONZE EFFICIENCY
ULTRA EFFICIENT
CV series is 80 PLUS Bronze certified, providing up to 88% efficiency for less heat and lower energy costs.
CONTINUOUS, RELIABLE OUTPUT
Like all CORSAIR power supplies, the CV Series does exactly what it says it does: deliver continuous power at full capacity, no matter which wattage variant you choose.

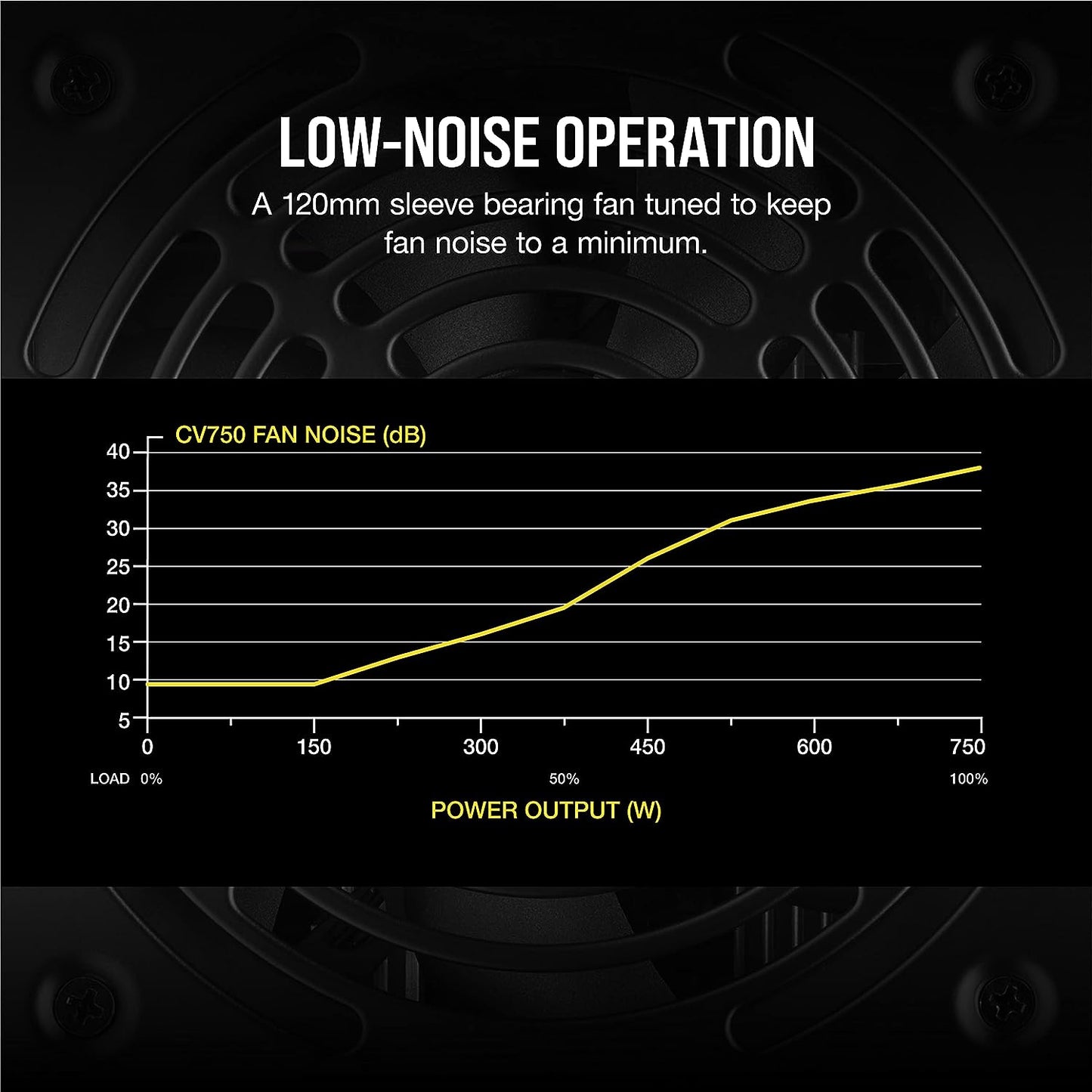

LOW-NOISE OPERATION
A 120mm thermally controlled low-noise cooling fan only spins at high speed when your power supply is under heavy stress, slowing down for quieter operation at lower loads.

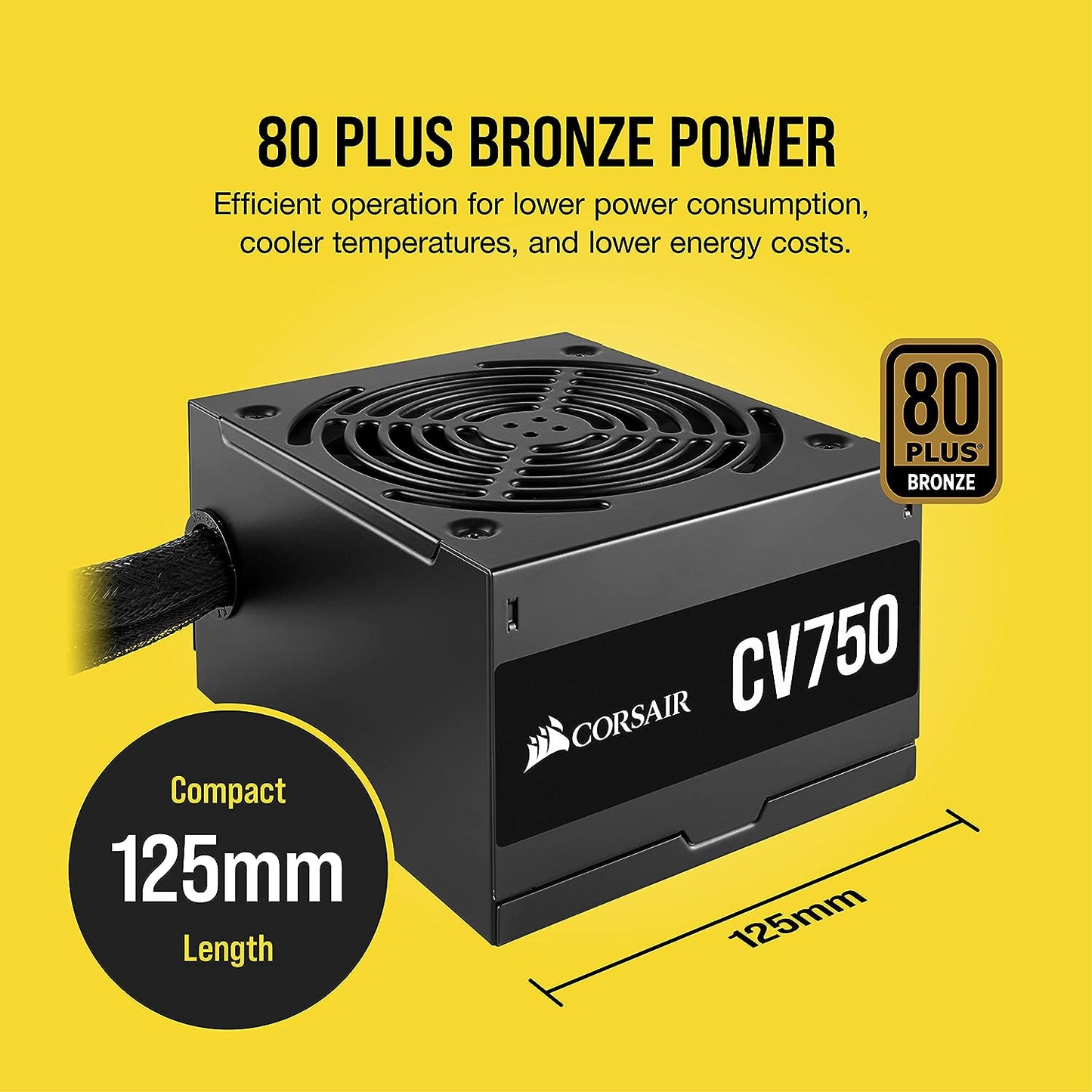

COMPACT DESIGN
CV series enclosures are only 125mm long, ensuring an easy fit in almost all modern PC cases.
CV750 POWER SUPPLY - COMPACT DESIGN
STEALTH MODE
Black sleeved cables and a black powder-coated casing seamlessly fits your PC's style.
QUIET AND DEPENDABLE 80 PLUS BRONZE EFFICIENCY
ULTRA EFFICIENT
CV series is 80 PLUS Bronze certified, providing up to 88% efficiency for less heat and lower energy costs.
CONTINUOUS, RELIABLE OUTPUT
Like all CORSAIR power supplies, the CV Series does exactly what it says it does: deliver continuous power at full capacity, no matter which wattage variant you choose.
LOW-NOISE OPERATION
A 120mm thermally controlled low-noise cooling fan only spins at high speed when your power supply is under heavy stress, slowing down for quieter operation at lower loads.
COMPACT DESIGN
CV series enclosures are only 125mm long, ensuring an easy fit in almost all modern PC cases.
CV750 POWER SUPPLY - COMPACT DESIGN
STEALTH MODE
Black sleeved cables and a black powder-coated casing seamlessly fits your PC's style.
ATX Connector | 1 |
---|---|
ATX12V Version | v2.31 |
Cable Type | Sleeved |
Continuous Power W | 750 Watts |
EPS Connector | 2 |
Fan Bearing Technology | Sleeve |
SATA Connector | 7 |
Modular | No |
Fan Size MM | 120mm0 |
Floppy Connector | 1 |
---|---|
PCIe Connector | 2 |
MTBF Hours | 100,000 hours |
Multi GPU Ready | No |
PSU Form Factor | ATX |
Zero RPM Mode | No |
Single Multiple 12V Rail Toggl | No |
Warranty | 3 Year |
Weight | 2.32 |
CV750 POWER TABLE
Model | RPS0146 | |
---|---|---|
Part No. | CP-9020237 | |
AC Input Rating | ||
AC Input | 100-240V | |
Input Current | 10A-5A | |
Frequency | 47~63Hz | |
Max Load | Max Output | |
+5V | 20A | 130W |
+3.3V | 24A | |
+12V | 62A | 744W |
-12V | 0.3A | 3.6W |
+5Vsb | 3A | 15W |
Total Power | 750W |

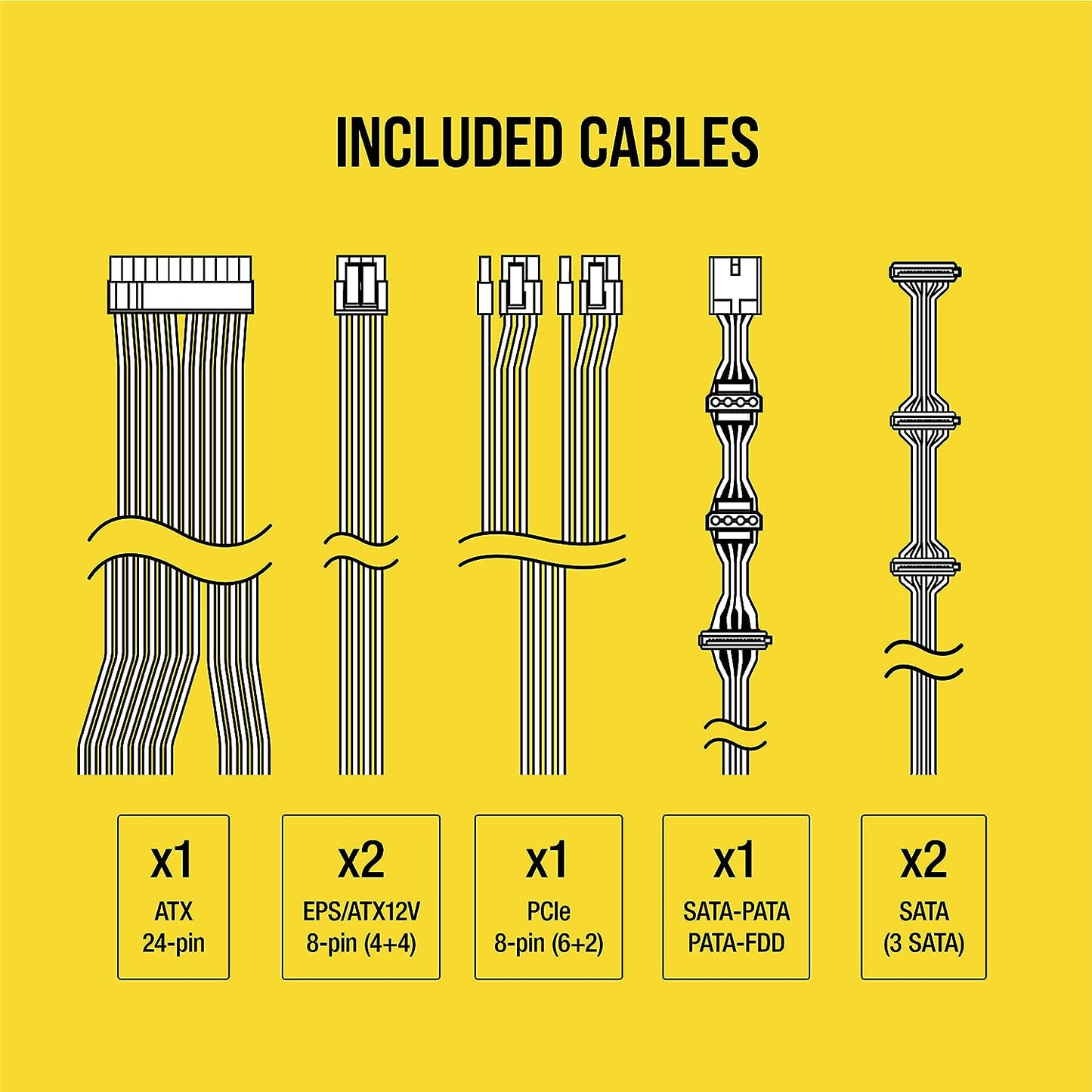

CV750 DC CABLE LISTING
