CORSAIR CV power supplies are ideal for powering your new home or office PC, with 80 PLUS Bronze efficiency guaranteed to continuously deliver full wattage to your system.

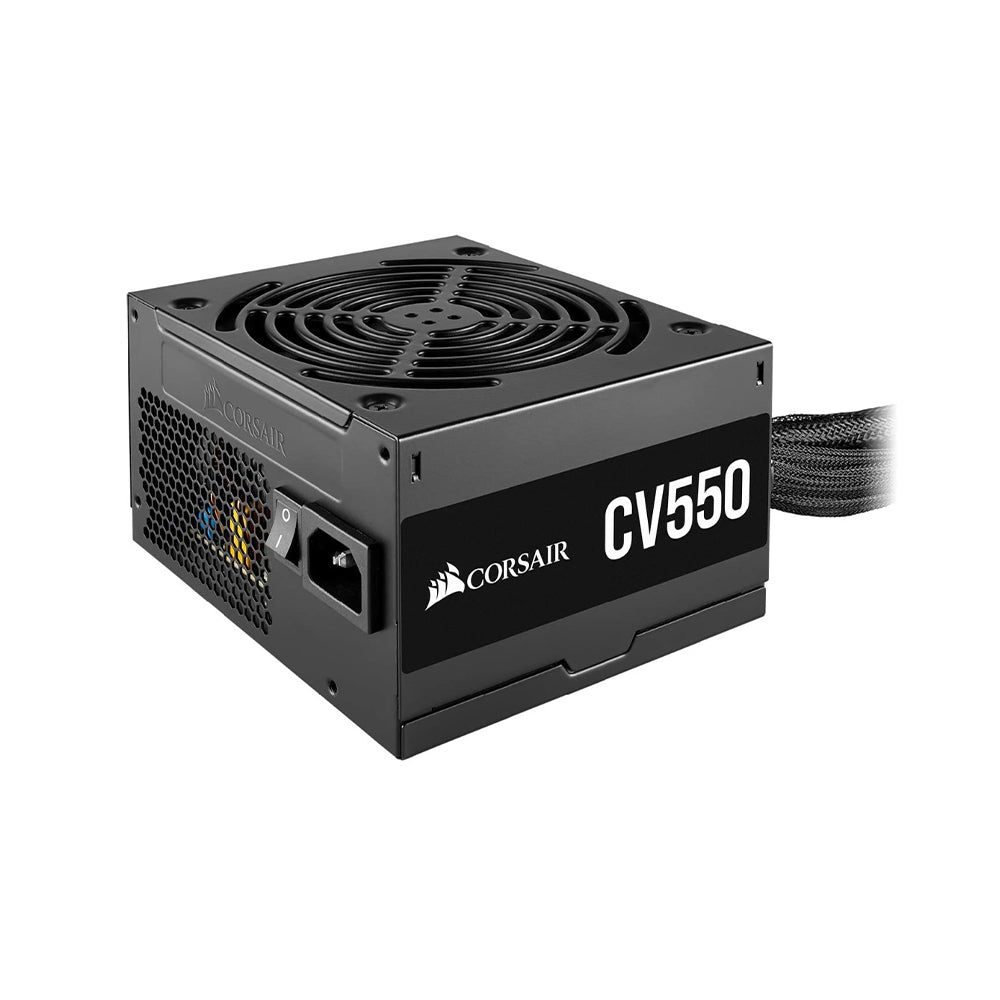

CV SERIES™ CV550 POWER SUPPLY
QUIET AND DEPENDABLE 80 PLUS BRONZE EFFICIENCY

ULTRA EFFICIENT
CV series is 80 PLUS Bronze certified, providing up to 88% efficiency for less heat and lower energy costs.

CONTINUOUS, RELIABLE OUTPUT
Like all CORSAIR power supplies, the CV Series does exactly what it says it does: deliver continuous power at full capacity, no matter which wattage variant you choose.

LOW-NOISE OPERATION
A 120mm thermally controlled low-noise cooling fan only spins at high speed when your power supply is under heavy stress, slowing down for quieter operation at lower loads.

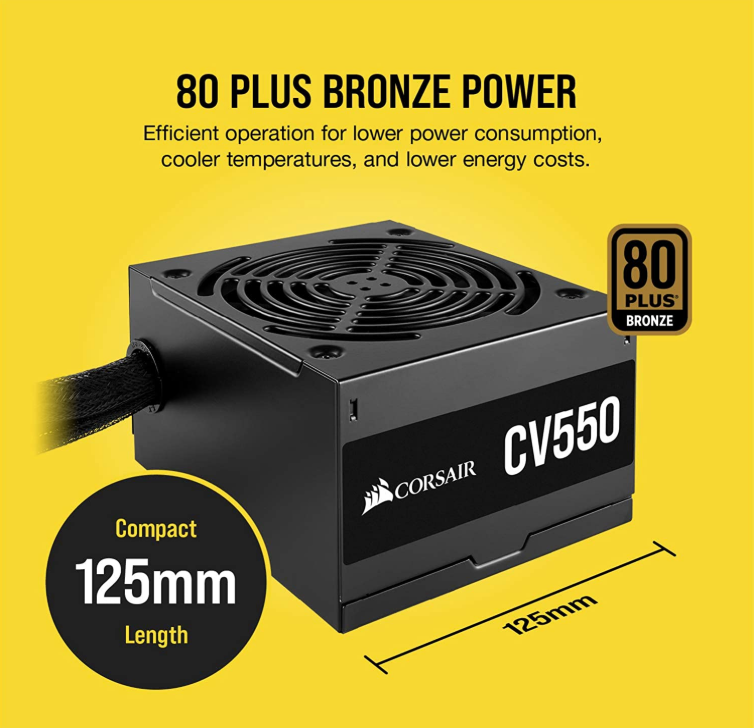

COMPACT DESIGN
CV series enclosures are only 125mm long, ensuring an easy fit in almost all modern PC cases.

CV550 POWER SUPPLY - COMPACT DESIGN
STEALTH MODE
Black sleeved cables and a black powder-coated casing seamlessly fits your PC's style.

Special Technology	None
Protections	OVP (Over Voltage) | UVP (Under Voltage) | SCP (Short Circuit) | OTP (Over Temp) | OPP (Over Power)
PSU Compatibility	ATX12V v2.31 and EPS12V 2.91 standards
ATX Connector	1
ATX12V Version	v2.31
Cable Type	Sleeved and Flat Black Cables
Continuous Power W	550 Watts
EPS Connector	1
Fan Bearing Technology	Sleeve Bearing
Fan Size MM	140mm
MTBF Hours	100,000 hours
Multi GPU Ready	No

SATA Connector	7
Modern Standby	No
Dimensions	150mm x 86mm x 125mm
Modular	No
Floppy Connector	1
PCIe Connector	2
PSU Form Factor	ATX
Zero RPM Mode	No
Single Multiple 12V Rail Toggl	No
80 PLUS Efficiency	Bronze
Warranty	3 Years
Weight	2.28

CV550 POWER TABLE

Model	RPS0127
Part No.	CP-9020210
AC Input Rating
AC Input	100-240V
Input Current	10A-5A
Frequency	47~63Hz
	Max Load	Max Output
+3.3V	24A	120W
+5V	20A
+12V	44A	528W
-12V	0.3A	3.6W
+5Vsb	3A	15W
Total Power	550W



CV550 DC CABLE LISTING
