Description

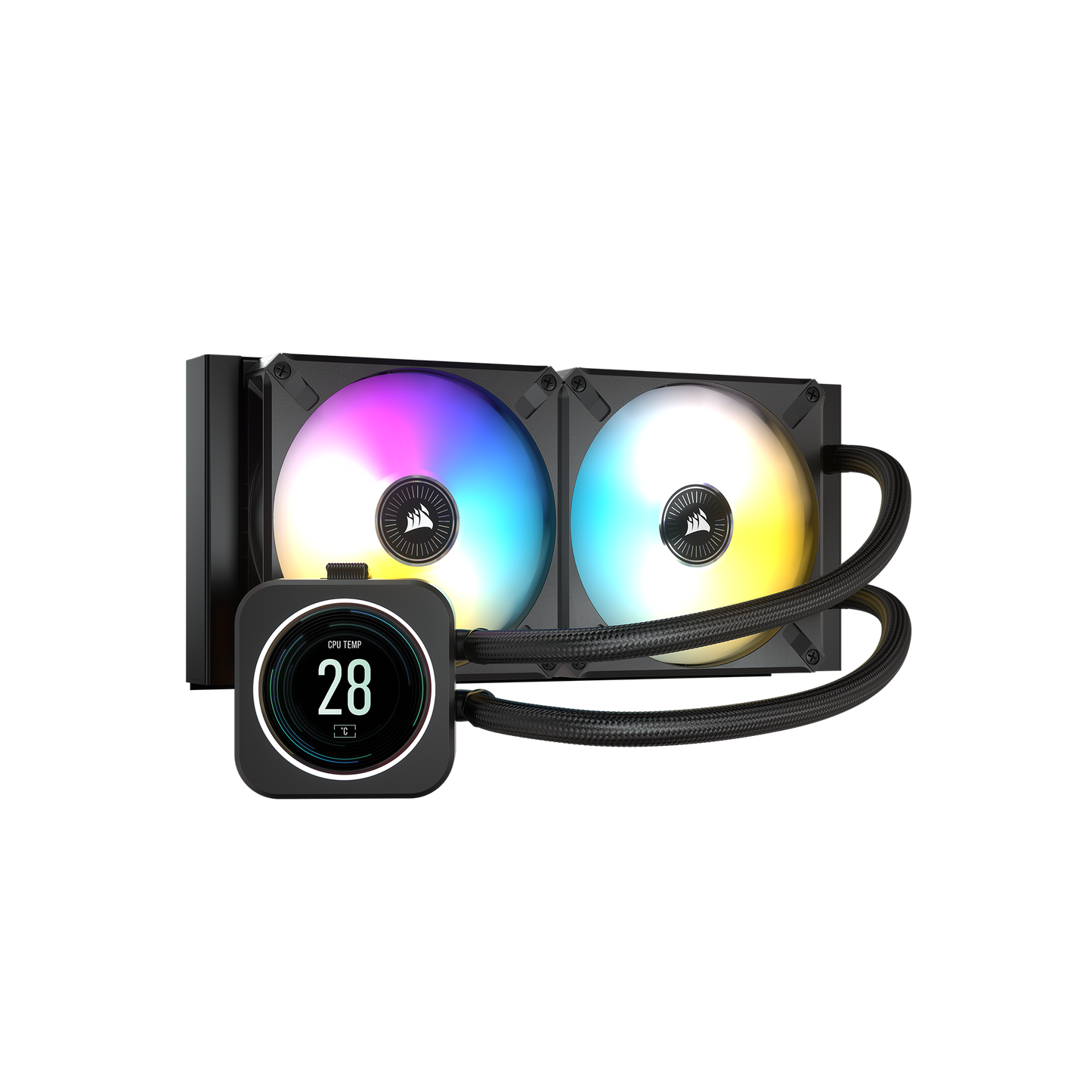

iCUE H100i ELITE LCD XT Display Liquid CPU Cooler
The CORSAIR iCUE H100i ELITE LCD Liquid CPU Cooler delivers powerful, customized cooling for your CPU, with a personalized LCD screen that displays GIFs, images, and system information.
ELITE LCD
The best performing coolers from one of the biggest names in cooling, ELITE LCD all-in-one liquid CPU coolers offer a unique window into both your PC’s performance and your own style and personality.
The best performing coolers from one of the biggest names in cooling, ELITE LCD all-in-one liquid CPU coolers offer a unique window into both your PC’s performance and your own style and personality.
YOUR OWN PERSONALIZED LCD DASHBOARD
Upload your own animated GIFs and images or choose from numerous pre-installed screens and lighting profiles for groundbreaking system lighting and customization options.
BRILLIANT IPS LCD DISPLAY
Showcase your favorite animated GIF, funniest meme, your team's logo, or anything you like on a custom 2.1" IPS LCD screen with 480x480 resolution and ultra-bright 600cd/m² backlight.
HIGH-PERFORMANCE PUMP HEAD WITH RGB LED RING
Don't sacrifice performance to thermal throttling. A powerful, low-noise pump head ensures you can squeeze every last MHz out of compatible CPUs.
UPGRADE EVERYTHING
Each ELITE LCD XT Cooler comes with an iCUE COMMANDER CORE that can control lighting and fan speeds of not only the included fans, but up to a total of six.
OUR BEST PERFORMING RGB FANS
CORSAIR AF RGB ELITE PWM fans with AirGuide technology deliver massive low-noise airflow along a high-surface area 240, 360, or 420mm radiator for extreme CPU cooling performance.
EXTREME PERFORMANCE THERMAL PASTE
All ELITE LCD XT AIOs include pre-applied CORSAIR XTM70 Extreme Performance thermal paste for maximum heat transfer from your high-end processor to the cooler cold plate.
For reliably high cooling performance, every step in the heat transfer and dissipation chain matters.
ZERO RPM MODE
Dictate your exact fan speeds with PWM control, plus support for 0 RPM PWM signals that allow fans to stop entirely at low temperatures, eliminating fan noise completely.
SPLIT-FLOW COPPER COLD PLATE
An optimal cold plate design and a high-density stack of 128 micro-skived fins-per-inch provides highly efficient cooling at all loads.
An optimal cold plate design and a high-density stack of 128 micro-skived fins-per-inch provides highly efficient cooling at all loads.
LGA 1700 READY
Each ELITE LCD cooler comes complete with all the mounting hardware you need for modern platforms, including AMD AM5, AM4 and Intel LGA 1200 and LGA 1700, and installs in just minutes.
Each ELITE LCD cooler comes complete with all the mounting hardware you need for modern platforms, including AMD AM5, AM4 and Intel LGA 1200 and LGA 1700, and installs in just minutes.
SOCKET COMPATIBILITY
AM5, AM4, sTRX4/sTR4
LGA 1700, 1200, 115x, 2066, 2011
AM5, AM4, sTRX4/sTR4
LGA 1700, 1200, 115x, 2066, 2011
TECH SPECS
Cooling Warranty | 5 Year |
---|---|
Radiator Dimensions | 277mm x 120mm x 27mm |
Number of Fans | 2 |
Radiator Material | Aluminum |
Fan Dimensions | 120mm x 25mm |
Cooling Socket Support | Intel 1700, 1200, 1150, 1151, 1155, 1156, 1366, 2011, 2066 | AMD AM5, AM4, sTRX4, sTR4 |
Fan Airflow | 14.86 – 58.10 CFM |
Noise Level | 10 – 30.4 dBA |
Radiator Size | 240mm |
iCUE Software | Yes |
---|---|
Fan Model | ML ELITE Series |
Tubing Length | 380mm |
Coldplate Dimensions | 56x56mm |
Tubing Material | Black Sleeved Low-Permeation Rubber |
Fan Control Method | Digital |
AMD Processors Supported | Ryzen Threadripper, Ryzen, Phenom II, Athlon II, FX, A-Series, Opteron, Sempron, Athlon 64 |
Intel Processors Supported | Core i9, i7, i5, i3, Pentium, Celeron |
Weight | 2.14 |
