Description

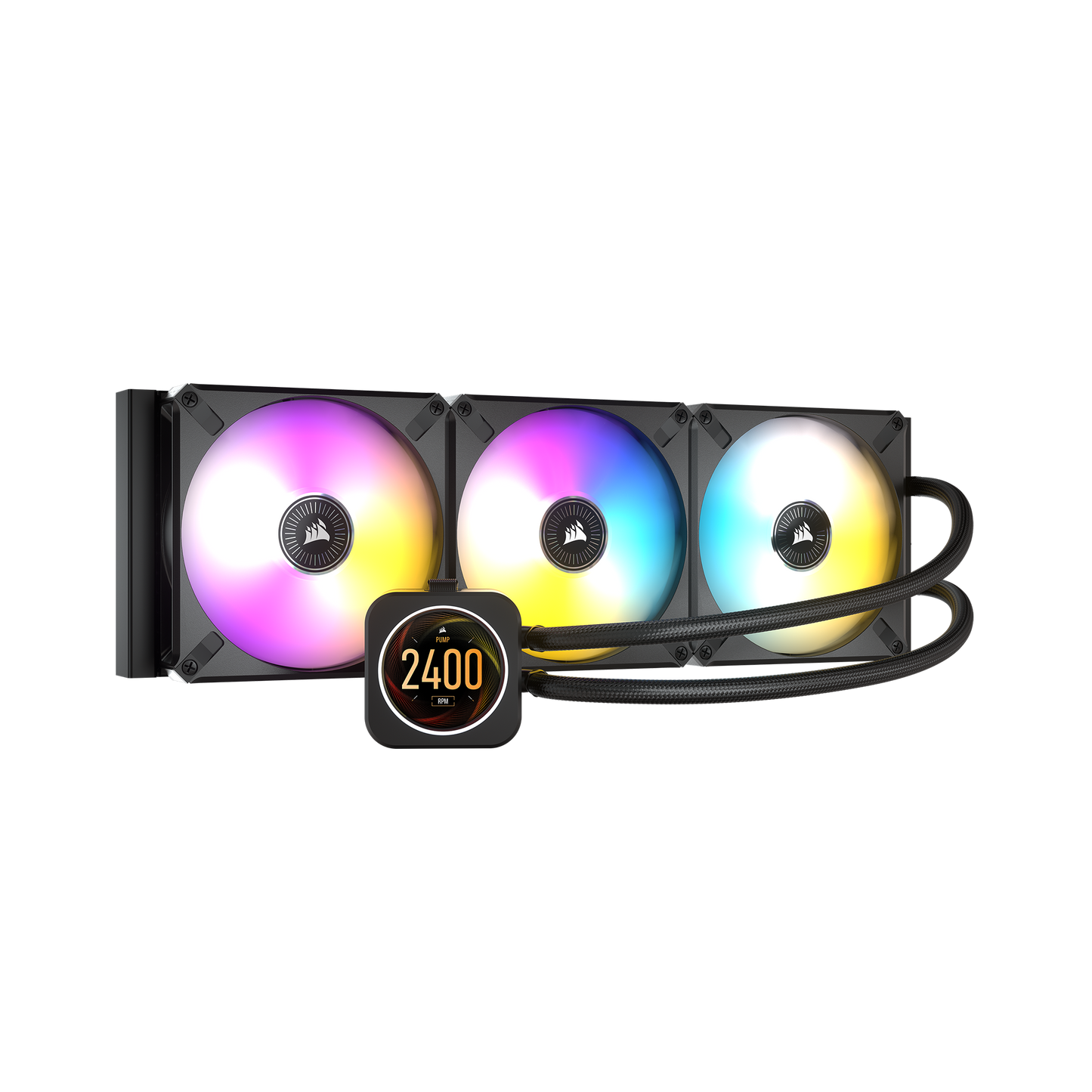

iCUE H170i ELITE LCD Display Liquid CPU Cooler
The CORSAIR iCUE H170i ELITE LCD Display Liquid CPU Cooler delivers powerful, customized cooling for the most ambitious PC builds, with a personalized LCD screen and three cutting-edge CORSAIR ML140 RGB ELITE PWM fans.
ELITE LCD
The best performing coolers from one of the biggest names in cooling, ELITE LCD all-in-one liquid CPU coolers offer a unique window into both your PC’s performance and your own style and personality.
YOUR OWN PERSONALIZED LCD DASHBOARD
Upload your own animated GIFs and images or choose from numerous pre-installed screens and lighting profiles for groundbreaking system lighting and customization options.
BRILLIANT IPS LCD DISPLAY
Showcase your favorite animated GIF, funniest meme, your team's logo, or any images you like on a custom 2.1" IPS LCD screen with 480x480 resolution and ultra-bright 600cd/m² backlight.
HIGH-PERFORMANCE PUMP HEAD WITH RGB LED RING
Don't sacrifice performance to thermal throttling. A powerful, low-noise pump head ensures you can squeeze every last MHz out of compatible CPUs.
SPLIT-FLOW COPPER COLD PLATE
An optimal cold plate design and a high-density stack of 128 micro-skived fins-per-inch provides highly efficient cooling at all loads.
LGA 1700 READY
Each ELITE LCD cooler comes complete with all the mounting hardware you need for modern platforms, including AMD AM5, AM4 and Intel LGA 1200 and LGA 1700, and installs in just minutes.
The best performing coolers from one of the biggest names in cooling, ELITE LCD all-in-one liquid CPU coolers offer a unique window into both your PC’s performance and your own style and personality.
YOUR OWN PERSONALIZED LCD DASHBOARD
Upload your own animated GIFs and images or choose from numerous pre-installed screens and lighting profiles for groundbreaking system lighting and customization options.
BRILLIANT IPS LCD DISPLAY
Showcase your favorite animated GIF, funniest meme, your team's logo, or any images you like on a custom 2.1" IPS LCD screen with 480x480 resolution and ultra-bright 600cd/m² backlight.
HIGH-PERFORMANCE PUMP HEAD WITH RGB LED RING
Don't sacrifice performance to thermal throttling. A powerful, low-noise pump head ensures you can squeeze every last MHz out of compatible CPUs.
SPLIT-FLOW COPPER COLD PLATE
An optimal cold plate design and a high-density stack of 128 micro-skived fins-per-inch provides highly efficient cooling at all loads.
LGA 1700 READY
Each ELITE LCD cooler comes complete with all the mounting hardware you need for modern platforms, including AMD AM5, AM4 and Intel LGA 1200 and LGA 1700, and installs in just minutes.
SOCKET COMPATIBILITY
AM5, AM4, sTRX4/sTR4
LGA 1700, 1200, 115x, 2066, 2011
AM5, AM4, sTRX4/sTR4
LGA 1700, 1200, 115x, 2066, 2011
Cooling Warranty | 5 Year |
---|---|
Number of Fans | 3 |
Radiator Material | Aluminum |
Fan Dimensions | 140mm x 25mm |
Cooling Socket Support | Intel 1700, 1200, 1150, 1151, 1155, 1156, 1366, 2011, 2066 | AMD AM5, AM4, sTRX4, sTR4 |
Fan Airflow | 15 – 82.9 CFM |
Fan Static Pressure | 0.30 – 2.06 mm-H2O |
Noise Level | 10 – 31.8 dBA |
Radiator Size | 420mm |
iCUE Software | Yes |
---|---|
Fan Model | ML ELITE Series |
Tubing Length | 450mm |
Coldplate Dimensions | 56x56mm |
Tubing Material | Black Sleeved Low-Permeation Rubber |
Fan Control Method | Digital |
AMD Processors Supported | Ryzen Threadripper, Ryzen, Phenom II, Athlon II, FX, A-Series, Opteron, Sempron, Athlon 64 |
Intel Processors Supported | Core i9, i7, i5, i3, Pentium, Celeron |
Weight | 3.068 |
