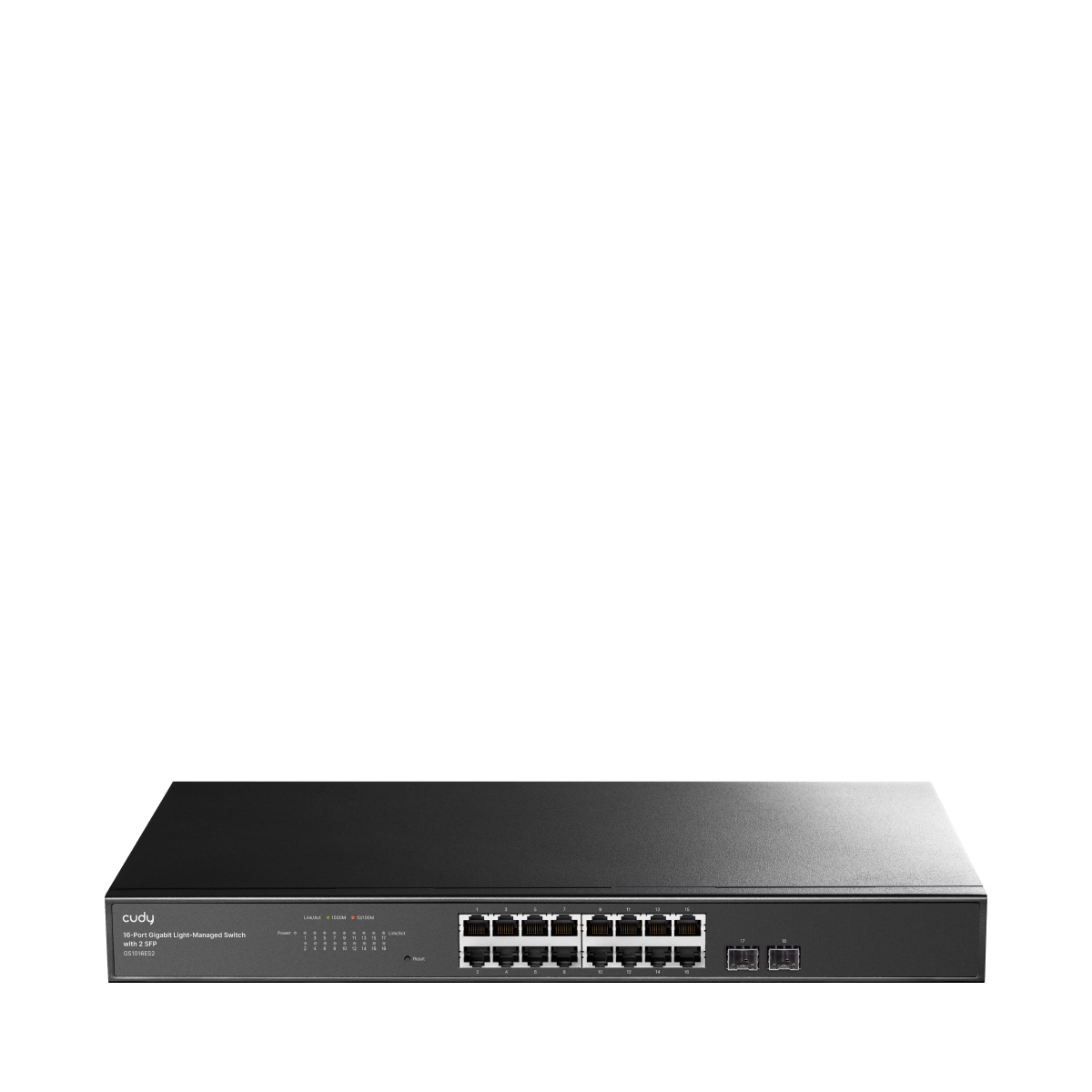

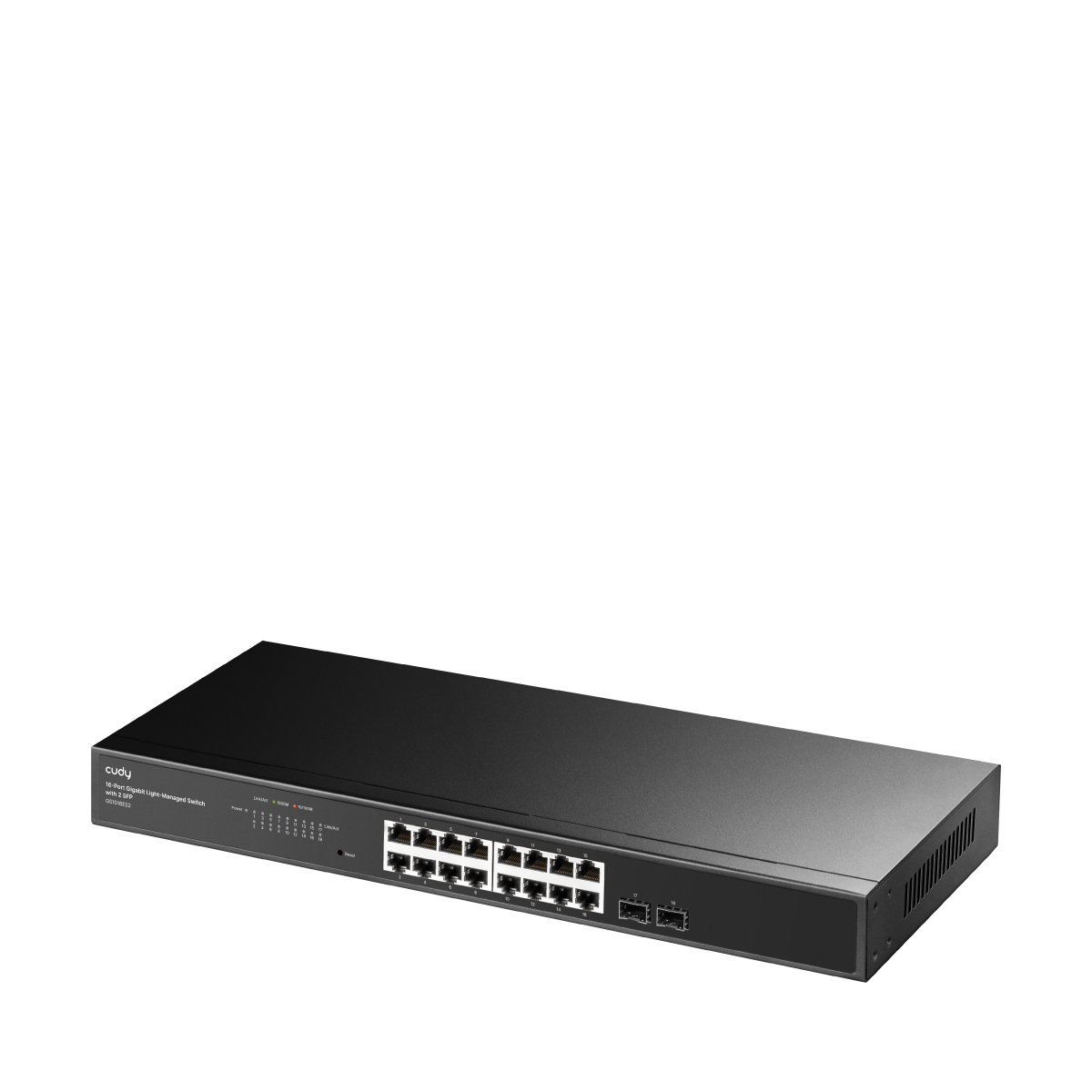

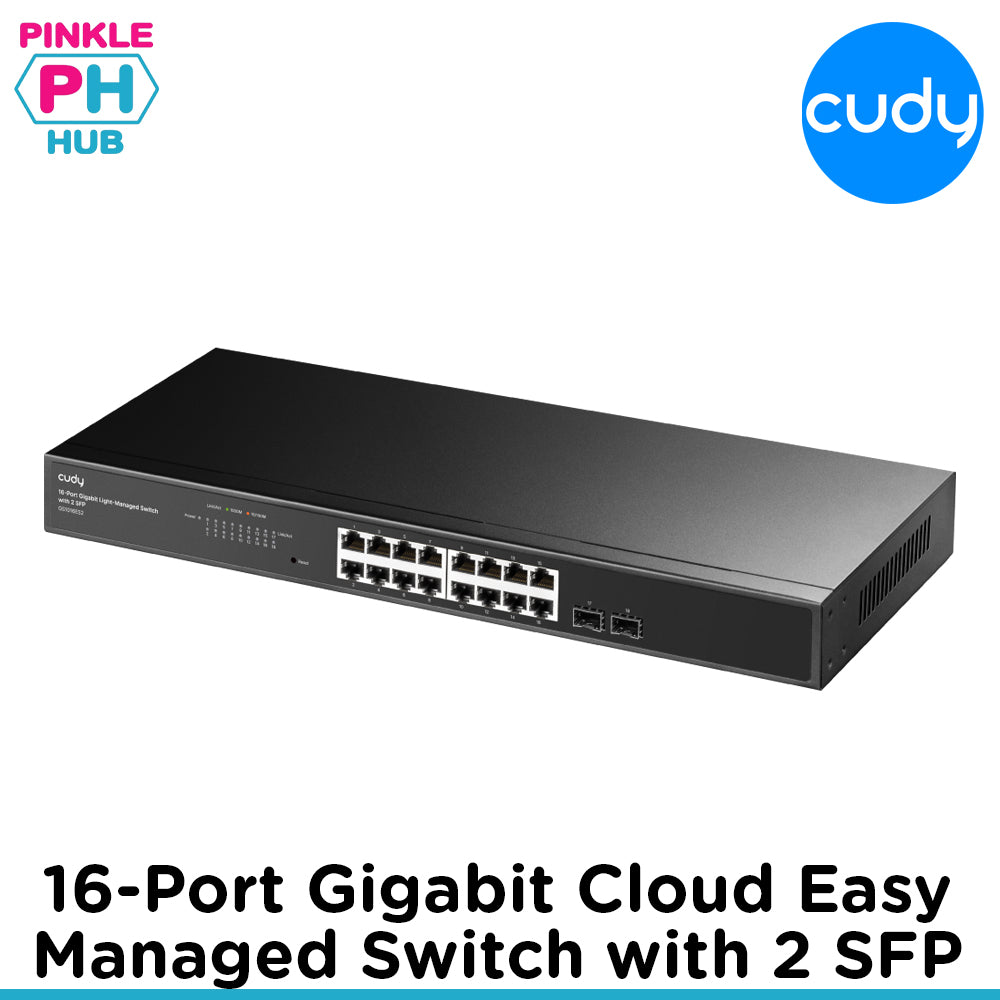

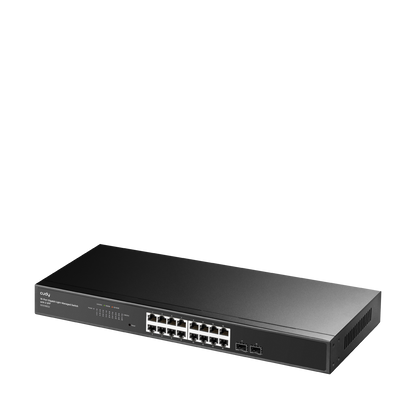

Cudy 16-Port Gigabit Cloud Easy-Managed Switch with 2 SFP

Brand : PinkleHub

SKU:  GS1016ES2

3 in stock

₱5,275.00
₱5,275.00
Sale! Sold out
Model Version GS1016ES2 1.0
Memory/Storage Flash/ROM 16 MB (128 Mbit) NOR
Interfaces 1.25G SFP Slots 2
Gigabit RJ45 Ports 16
SFP DDM Monitoring
Shielded RJ45 Port
Extend Mode Ports Configurable
VLAN Mode Ports Configurable
Buttons and LEDs LED
  • Power
  • Speed/Link/Act of Each Ethernet Port
Physical Buttons Reset Button
Performance Max Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 100 meters at Gigabit
  • Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note 250-meter transmission is available when the port speed is set at 10 Mbps in the software.
Optical Spec and Distance Depends on the Installed Optical Module
MAC Address Table 8192
VLANs 4096
Max Switching Capacity 36 Gbps
Max Forwarding Rate 26.78 Mpps
Jumbo Frame 15 KB
Packet Buffer 4 Mbit
Power Power Input Type AC Inlet
Basic Power Saving
Power Methods AC
Power Input 100-240V~ 50/60Hz
Max Power Consumption 7.8W
Idle Power Consumption 4.5W
Switching 802.3 Protocols
  • 802.3x Flow Control
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
  • 802.3ab 1000BASE-T
  • 802.3z 1000BASE-X
  • 802.3az Power Saving
802.1 Protocols
  • 802.1p: LAN Layer 2 QoS/CoS
  • 802.1q: VLAN Bridge Operation
  • 802.1ab: LLDP/LLDP-MED
Ethernet
  • Full Duplex
  • Half Duplex (CSMA/CD)
  • Auto-Negotiation
  • Auto MDI/MDIX
Forwarding Method Store-and-Forward
Port Management
  • Port On/Off
  • Port Negotiation Speed
  • Port Security/MAC Constraint
  • Port Trunk (Static Aggregation)
  • Port Mirroring
  • Data Rate Limit
  • Jumbo Frame Settings
  • Storm Control
  • Traffic Monitor
  • MAC Address Management
  • EEE (802.3az)
L2 Features
  • IGMP Snooping
  • Loop Prevention
  • Loop Detection
  • DHCP Snooping
  • LLDP Config and Neighbors
  • MTU VLAN
  • Port-Based VLAN
  • 802.1Q VLAN
  • DSCP QoS
  • 802.1p QoS
  • Port-Based QoS
  • 8-Queue
  • SP/WRR/WFQ Scheduling
Port Trunk Details Max 8 Ports per Group / Max 4 Groups
Port Mirroring Sessions 4
Reliability MTBF >200,000 h
Grounding Methods
  • Three-Prong Plug
  • Grounding Point
EMS IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level X Surge: Power: DM 4kV, CM 4kV; RJ45: CM 6kV
Environment Operating Temperature: 0~40 ℃ (32~104 ℉)
Storage Temperature: -40~70℃ (-40~158 ℉)
Operating Humidity: 10~90% non-condensing
Storage Humidity: 10~95% non-condensing
System Control Methods
  • Config Web Page
  • SNMP V1/V2
  • Cudy App
Firmware Upgrade Local Upgrade
Reliability Backup and Restore
Diagnostic Tools
  • Cable Status/Length Diagnosis
  • Ping
Languages
  • English
  • Bengali
  • German
  • Spanish
  • French
  • Portuguese
  • Russian
  • Arabic
  • Indonesian
  • Hindi
  • Urdu
  • Traditional Chinese
  • Simplified Chinese
Mechanical Dimension 440×180×44 mm
17.32×7.09×1.73 inches
Product Weight 1691.5 g (59.67 oz.)
Casing Material Metal
Installation
  • Desktop
  • Rackmount via Brackets

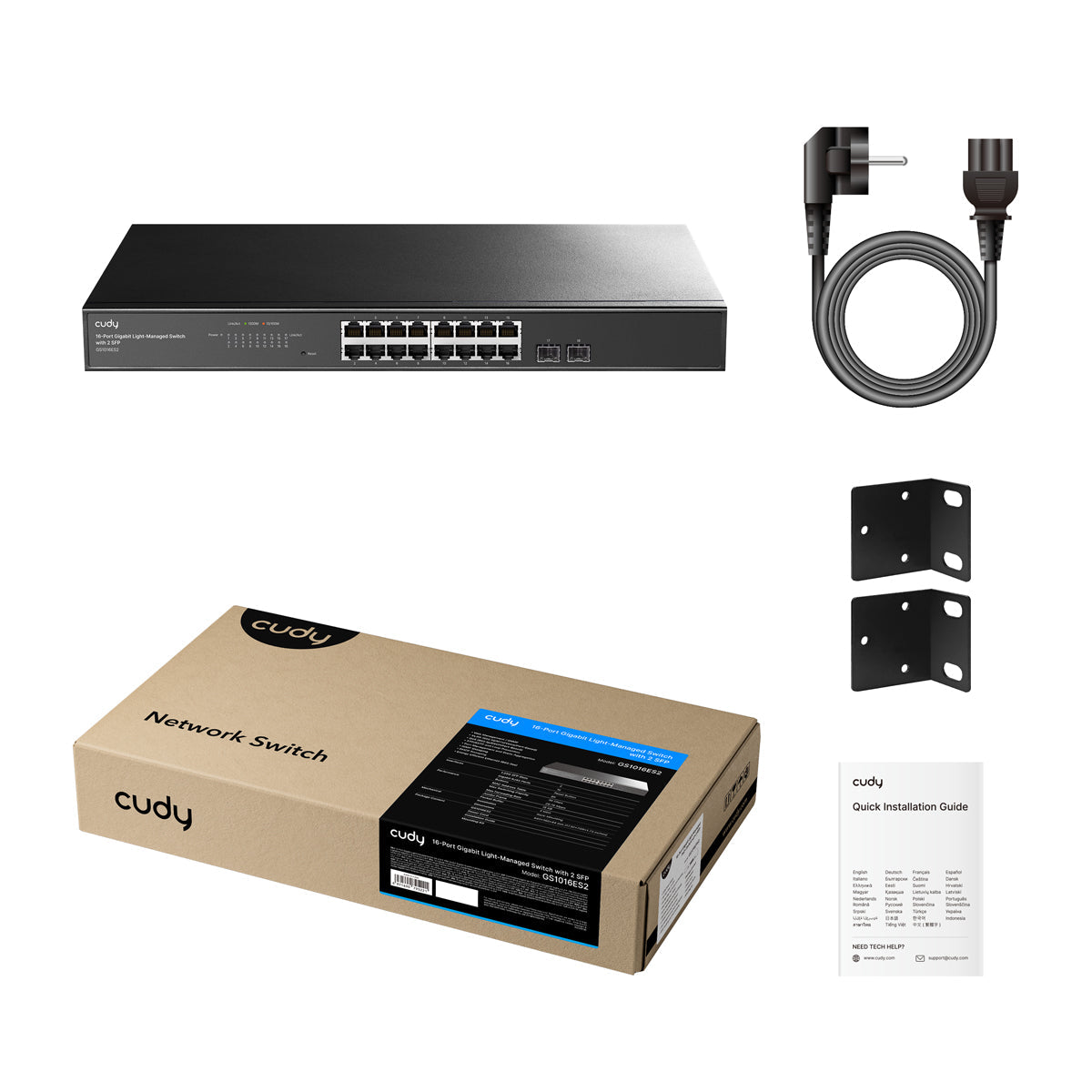

Package Content
  • GS1016ES2
  • Power Cord
  • Mounting Kit
  • Installation Guide
Ordering Information Retail Package Dimension 487×267×84 mm
19.17×10.51×3.31 inches
Retail Package Weight EU: 2354.6 g (83.06 oz.)
Units per Carton 5
Carton Net Weight EU: 11.8 kg (26.01 lbs)
Carton Gross Weight EU: 12.7 kg (28 lbs)
Carton Dimension 50×44×28.5 cm
19.69×17.32×11.22 inches
