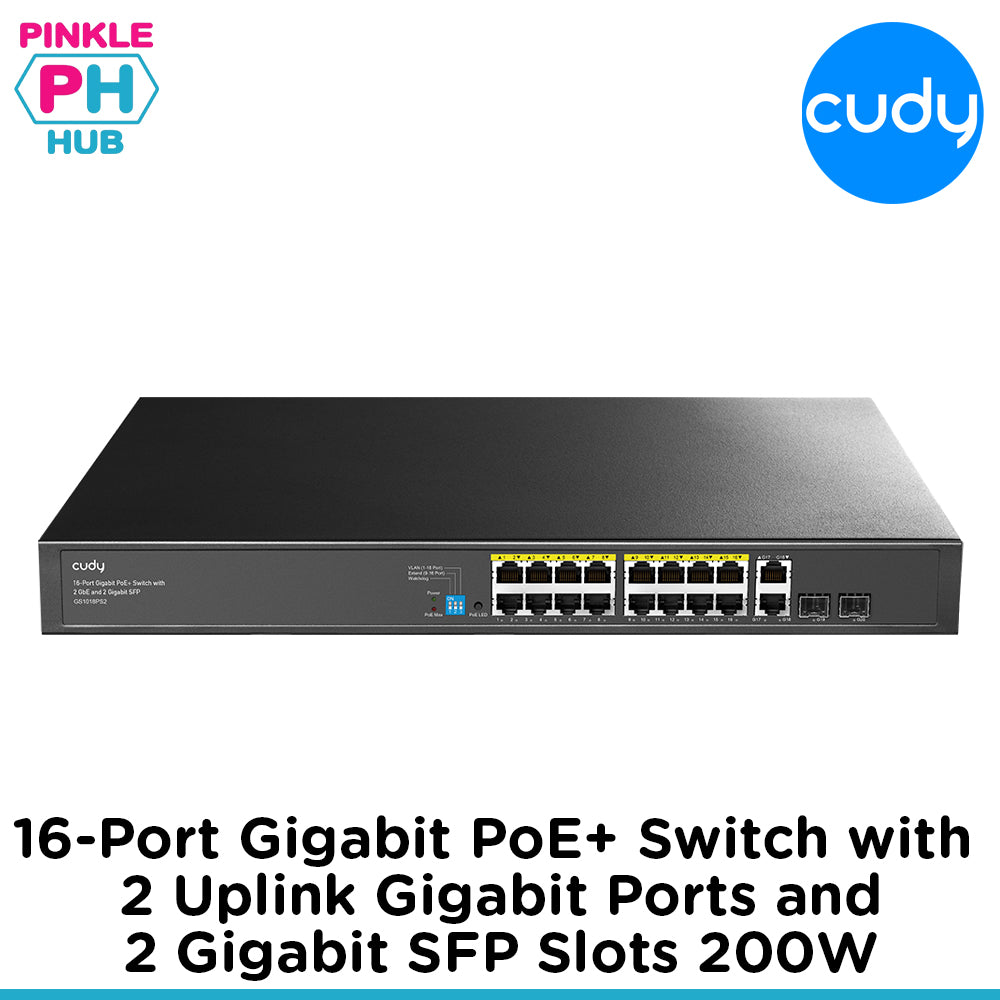

Cudy 16-Port Gigabit PoE+ Switch with 2 Uplink Gigabit Ports and 2 Gigabit SFP Slots 200W

Brand : CUDY

SKU:  GS1018PS2

Low stock: 2 left

₱10,440.00
₱10,440.00
Sale! Sold out
Model Version GS1018PS2 3.0
Interfaces 1.25G SFP Slots 2
Gigabit RJ45 Ports 18
Gigabit RJ45 PoE Ports #1~#16
Max Power on a Single PoE Port 30W
PoE Port Notes The PoE ports comply with IEEE 802.3at/af standards.
PoE Priority Intelligent Power Management:
Automatically disconnect the lastly powered device when power exceeds budget.
Shielded RJ45 Port
Extend Mode Ports #9~#16
VLAN Mode Ports #1~#16
Buttons and LEDs LED
  • Power
  • PoE Status of Each PoE Port
  • Link/ACT of Each Ethernet Port
  • PoE Max Status
Physical Buttons
  • Extend On/Off
  • VLAN On/Off
  • PoE Watchdog On/Off
  • PoE LED Toggle
Physical Buttons Note The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade feature.
Performance Max Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 100 meters at Gigabit
  • Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
Optical Spec and Distance Depends on the Installed Optical Module
MAC Address Table 2048
VLANs 4096
Max Switching Capacity 40 Gbps
Max Forwarding Rate 29.76 Mpps
Jumbo Frame 15 KB
Packet Buffer 3 Mbit
Power Power Input Type AC Inlet
Power Methods AC
Power Input 100-240V~ 50/60Hz
Power Supply 200W
Max Power Excluding PoE 18W
Switching 802.3 Protocols
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
  • 802.3ab 1000BASE-T
  • 802.3z 1000BASE-X
  • 802.3x Flow Control
  • 802.3af PoE
  • 802.3at PoE
Ethernet
  • Full Duplex
  • Half Duplex (CSMA/CD)
  • Auto-Negotiation
  • Auto MDI/MDIX
Forwarding Method Store-and-Forward
PoE Management Intelligent Power Management
Reliability MTBF >200,000 h
Grounding Methods Three-Prong Plug
EMS IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
Environment Operating Temperature: 0~40 ℃ (32~104 ℉)
Storage Temperature: -40~70℃ (-40~158 ℉)
Operating Humidity: 10~90% non-condensing
Storage Humidity: 10~95% non-condensing
Mechanical Dimension 440×180×44 mm
17.32×7.09×1.73 inches
Product Weight 2257.1 g (79.62 oz.)
Casing Material Metal
Installation
  • Desktop
  • Rackmount via Brackets

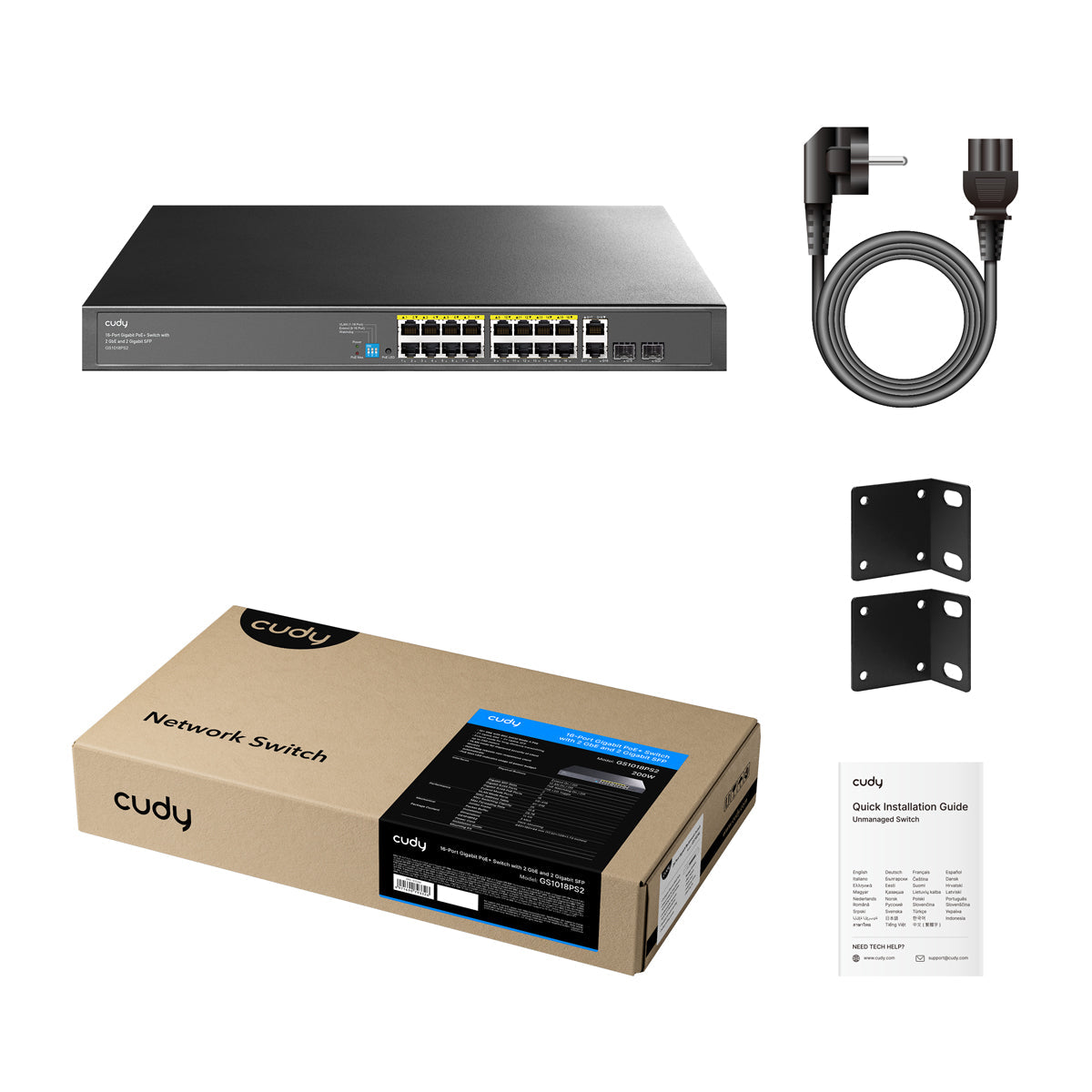

Package Content
  • GS1018PS2
  • Power Cord
  • Mounting Kit
  • Installation Guide
Ordering Information Retail Package Dimension 487×267×84 mm
19.17×10.51×3.31 inches
Retail Package Weight EU: 2943.0 g (103.81 oz.)
Units per Carton 5
Carton Net Weight EU: 14.7 kg (32.41 lbs)
Carton Gross Weight EU: 15.8 kg (34.83 lbs)
Carton Dimension 50×44×28.5 cm
19.69×17.32×11.22 inches
