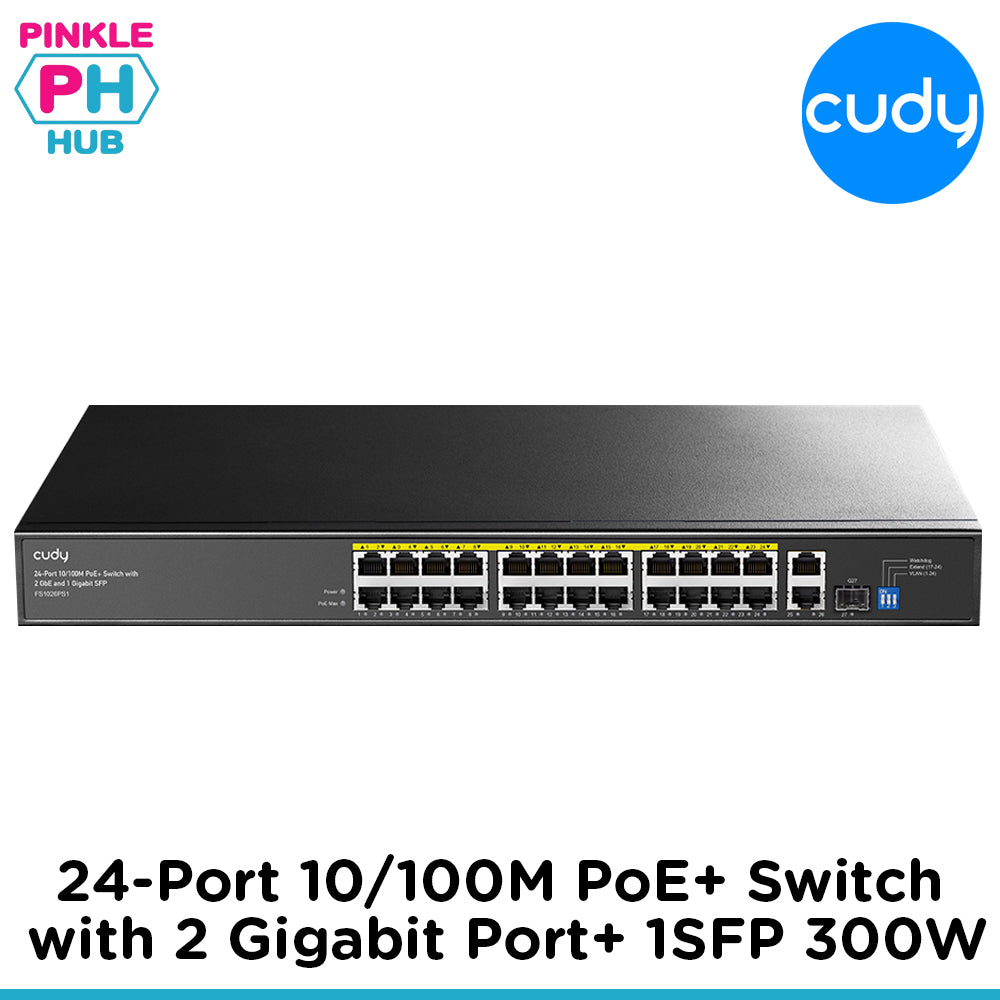

Cudy 24-Port 10/100M PoE+ Switch with 2 Gigabit Port+ 1SFP 300W

Brand : CUDY

SKU:  FS1026PS1

3 in stock

₱9,150.00
₱9,150.00
Sale! Sold out
Model Version FS1026PS1 4.0
Interfaces 1.25G SFP Slots 1
Gigabit RJ45 Ports 2
10/100 Mbps RJ45 Ports 24
10/100 Mbps RJ45 PoE Ports #1~#24
Max Power on a Single PoE Port 30W
PoE Port Notes The PoE ports comply with IEEE 802.3at/af standards.
PoE Priority Intelligent Power Management:
Automatically disconnect the lastly powered device when power exceeds budget.
Shielded RJ45 Port
Extend Mode Ports #17~#24
VLAN Mode Ports #1~#24
Buttons and LEDs LED
  • Power
  • Link/ACT of Each Ethernet Port
  • PoE Max Status
Physical Buttons
  • Extend On/Off
  • VLAN On/Off
  • PoE Watchdog On/Off
Physical Buttons Note The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade feature.
Performance Max Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 100 meters at Gigabit
  • Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note Gigabit speed is only available on the uplink ports. 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
Optical Spec and Distance Depends on the Installed Optical Module
MAC Address Table 2048
VLANs 2048
Max Switching Capacity 10.8 Gbps
Max Forwarding Rate 8 Mpps
Jumbo Frame 2 KB
Packet Buffer 2 Mbit
Power Power Input Type AC Inlet
Power Methods AC
Power Input 100-240V~ 50/60Hz
Power Supply 300W
Max Power Excluding PoE 7W
Switching 802.3 Protocols
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
  • 802.3ab 1000BASE-T
  • 802.3z 1000BASE-X
  • 802.3x Flow Control
  • 802.3af PoE
  • 802.3at PoE
Ethernet
  • Full Duplex
  • Half Duplex (CSMA/CD)
  • Auto-Negotiation
  • Auto MDI/MDIX
Forwarding Method Store-and-Forward
PoE Management Intelligent Power Management
Reliability Fans 1
MTBF >200,000 h
Fan Note Smart Cooling: The fan speed adjusts in real time based on power consumption.
Grounding Methods
  • Three-Prong Plug
  • Grounding Point
EMS IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
Environment Operating Temperature: 0~40 ℃ (32~104 ℉)
Storage Temperature: -40~70℃ (-40~158 ℉)
Operating Humidity: 10~90% non-condensing
Storage Humidity: 10~95% non-condensing
Mechanical Dimension 440×180×44 mm
17.32×7.09×1.73 inches
Product Weight 2208.9 g (77.92 oz.)
Casing Material Metal
Installation
  • Desktop
  • Rackmount via Brackets

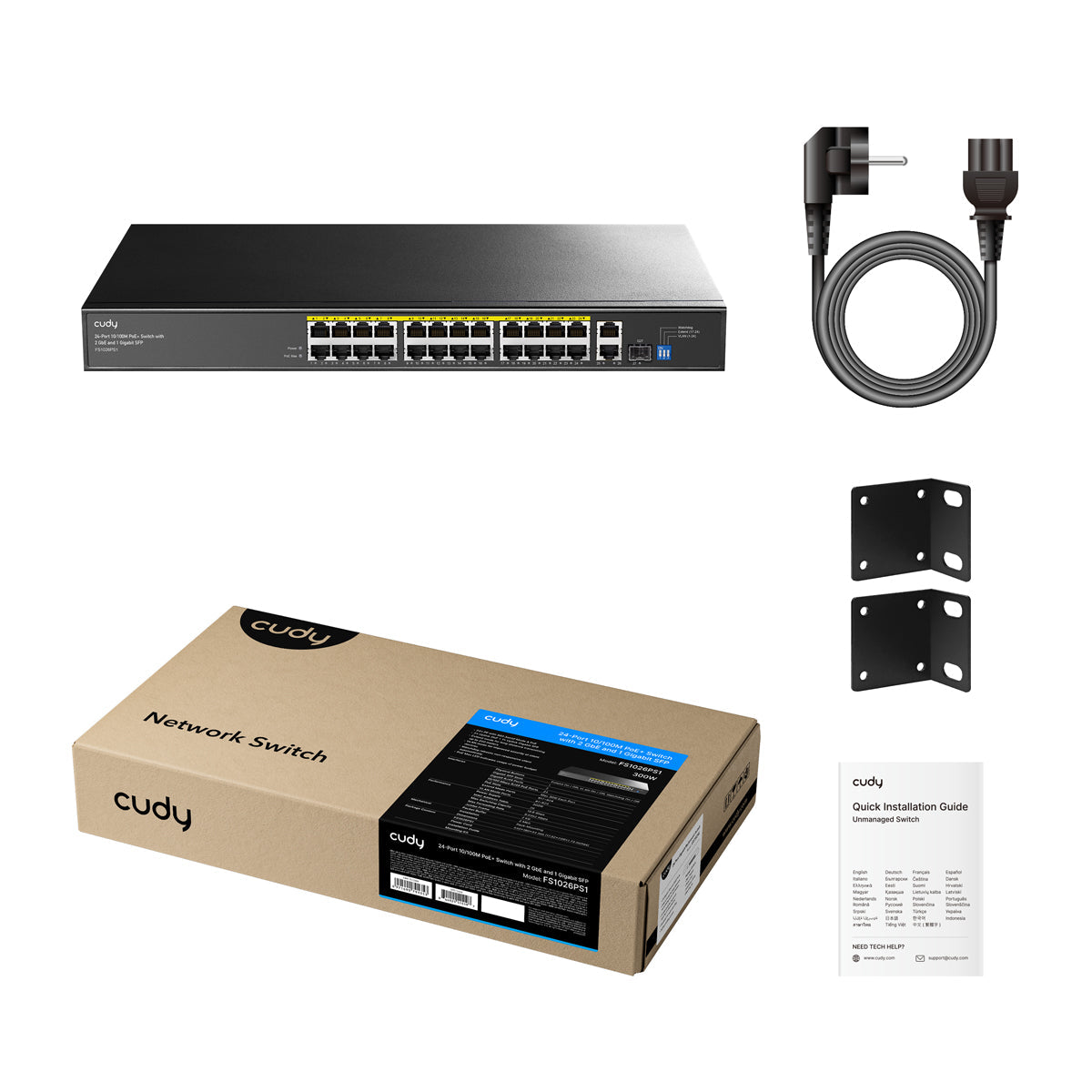

Package Content
  • FS1026PS1
  • Power Cord
  • Mounting Kit
  • Installation Guide
Ordering Information Retail Package Dimension 487×267×84 mm
19.17×10.51×3.31 inches
Retail Package Weight EU: 2888.6 g (101.89 oz.)
Units per Carton 5
Carton Net Weight EU: 14.4 kg (31.75 lbs)
Carton Gross Weight EU: 15.5 kg (34.17 lbs)
Carton Dimension 50×44×28.5 cm
19.69×17.32×11.22 inches
