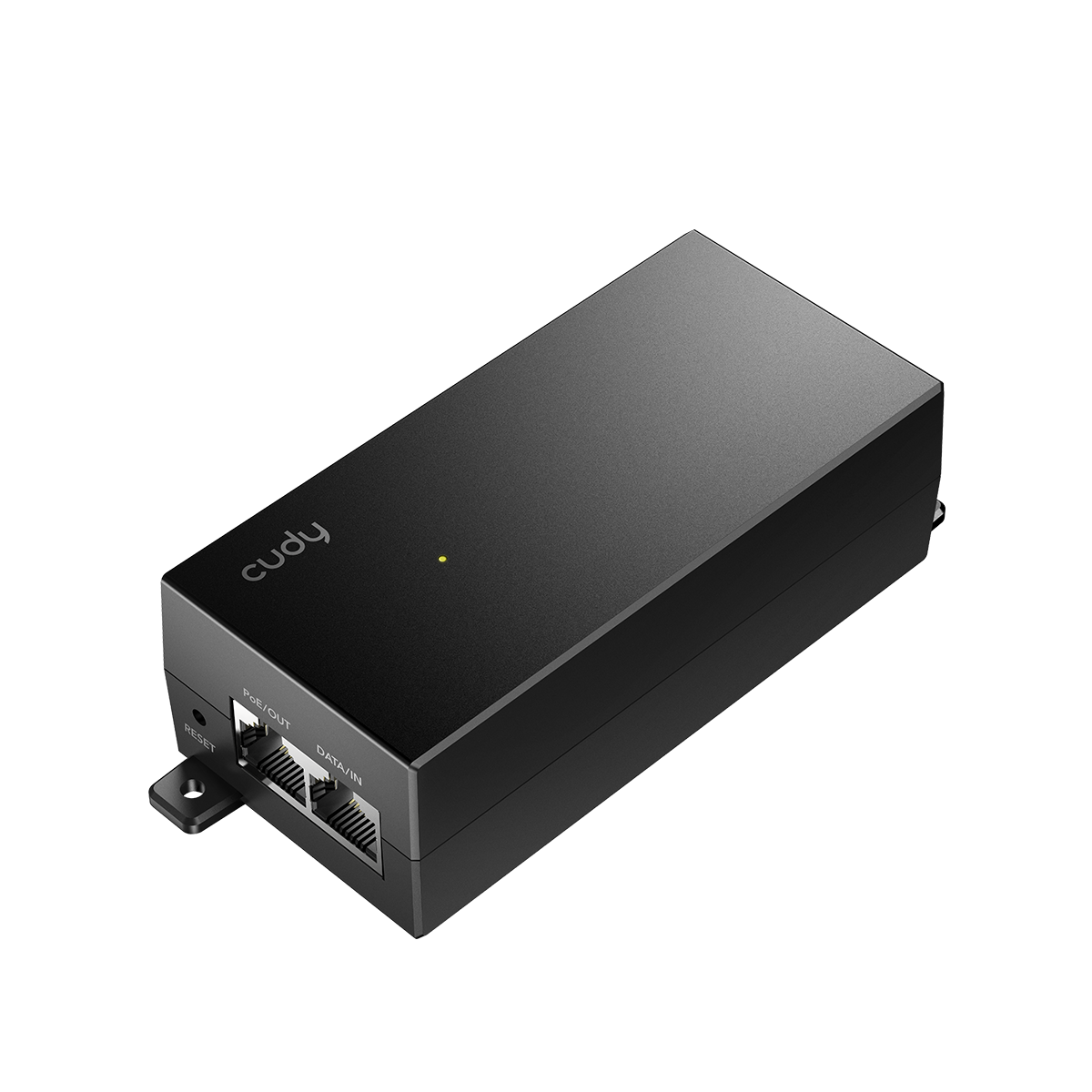

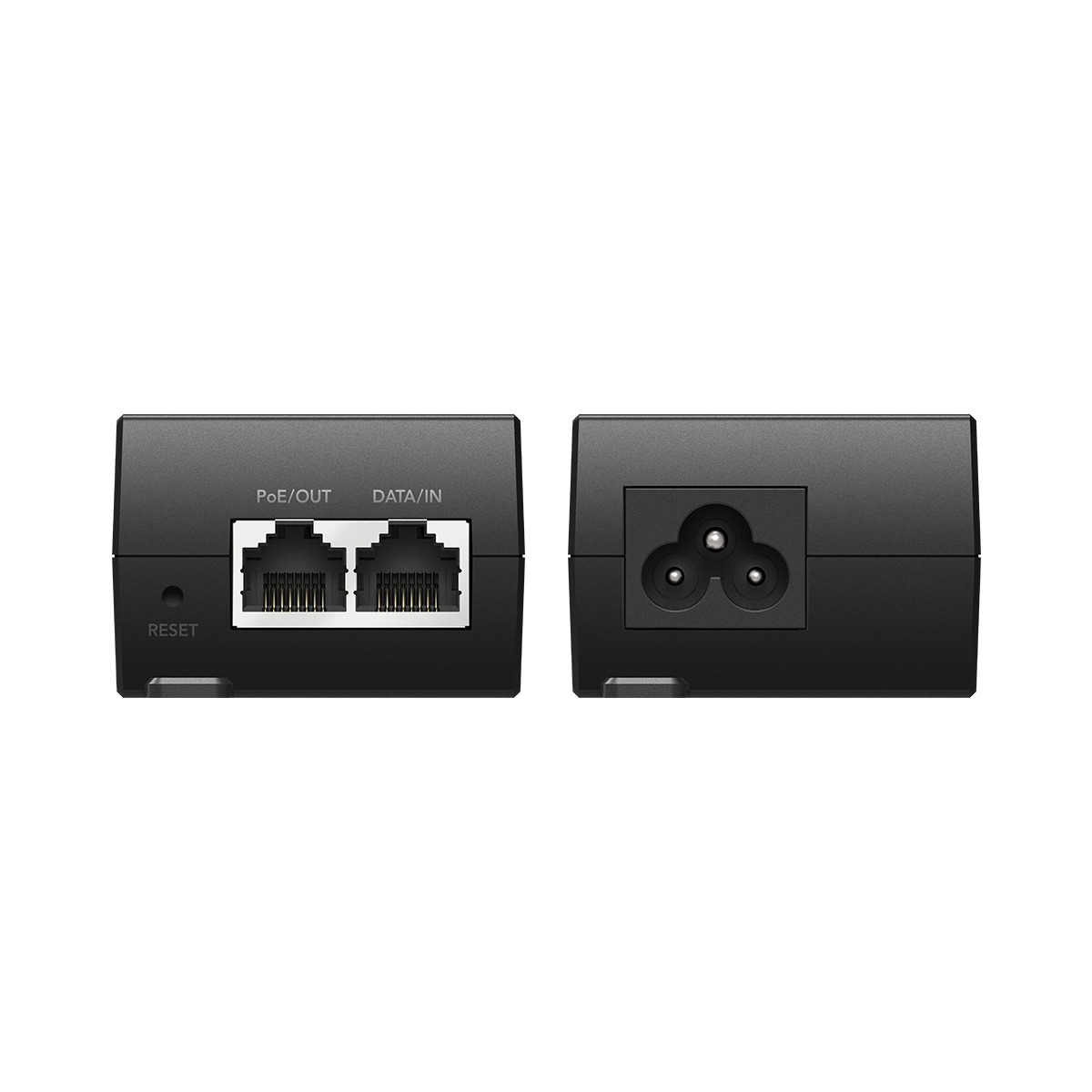

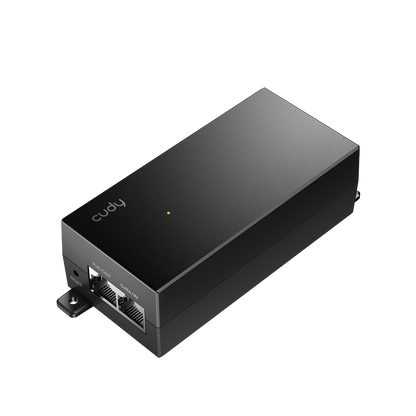

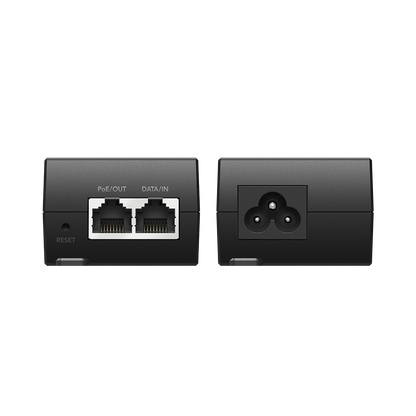

Cudy 30W Gigabit PoE+/PoE Injector

Brand : CUDY

SKU:  POE200

5 in stock

₱990.00
₱990.00
Sale! Sold out
Model Version POE200 2.0
Protocols 802.3 Protocols
  • 802.3i 10 Mbps over Twisted Pair
  • 802.3u 100 Mbps over Twisted Pair
  • 802.3ab 1 Gbps over Twisted Pair
  • 802.3af PoE
  • 802.3at PoE
PoE Uplink Stream 1× GbE
Downlink Stream 1× GbE, 802.3at/af
Downlink Pin Assignment Mode A
Transimission Distance
  • Cat. 5e or higher cable: 100 meters at Gigabit
  • Note: Total cable length from the uplink switch through the PoE adapter to the downlink device is measured as one segment
Buttons and LEDs Physical Buttons Reset Button
LED Power
Power Power Input Type AC Inlet
Power Methods AC
Power Input 100-240V~ 50/60Hz 0.8A
Max Power Output (W) 30W, 54V⎓0.56A
Reliability Power Protection
  • Surge Protection
  • ESD Protection
  • Overvoltage Protection
  • Short-Circuit Protection
EMC IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Above Level 4 Surge: Power: DM 4kV, CM 4kV; RJ45: CM 4kV
Grounding Methods Three-Prong Plug
Environment Ambient Operating Temperature: -10~40 ℃ (14~104 ℉)
Storage Temperature: -40~70 ℃ (-40~158 ℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 10%~95% non-condensing
Certifications FCC, CE
Mechanical Installation
  • Desktop
  • Wall-mount
Dimension 123×51×35 mm
4.84×2.01×1.38 inches
Casing Material Plastic
Product Weight 152.5 g (5.38 oz.)

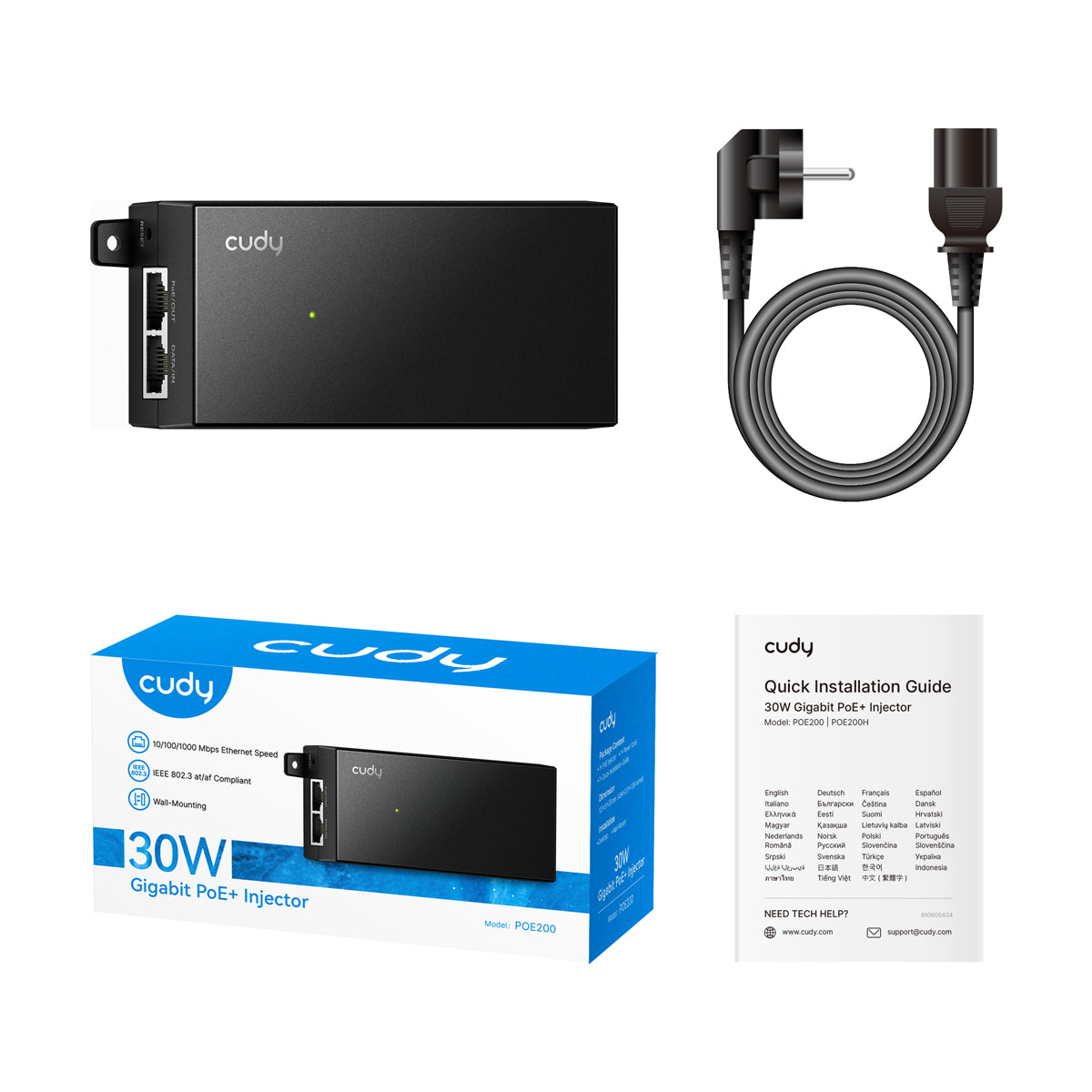

Package Content
  • POE200
  • Power Cord
  • Mounting Kit
  • Installation Guide
Ordering Information Retail Package Dimension 193×135×55 mm
7.6×5.31×2.17 inches
Retail Package Weight EU: 357.0 g (12.59 oz.)
Units per Carton 40
Carton Net Weight EU: 14.3 kg (31.53 lbs)
Carton Gross Weight EU: 14.9 kg (32.85 lbs)
Carton Dimension 35.2×33.1×32.6 cm
13.86×13.03×12.83 inches
Compatibility Compatible Products AP1300 1.0, AP1300 Outdoor 1.0, AP3000 1.0, AP1300_P 1.0, AP3000_P 1.0, POE25 1.0, POE15 1.0, AP1300 Wall 1.0, AP3000 Wall 1.0, AP3000E Wall 1.0, POE10 1.0, WR3000P 1.0, POE40 2.0, AP1300D 1.0, AP3000D 1.0, AP1200 1.0, AP3600 1.0, C200P 1.0, AP1300E Wall 1.0, POE10 2.0, POE25 2.0, POE15 2.0, IR04 1.0, AP1300 2.0, POE20 1.0, AP3000S 1.0
