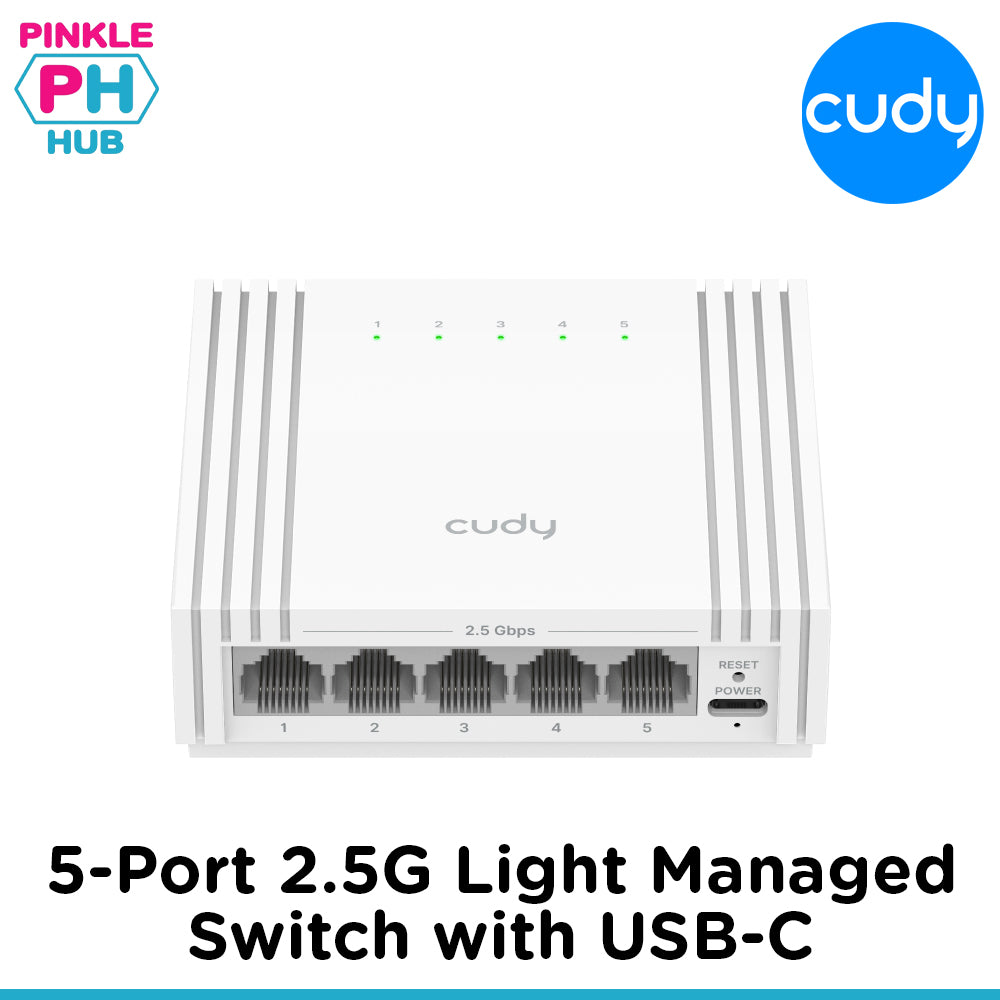

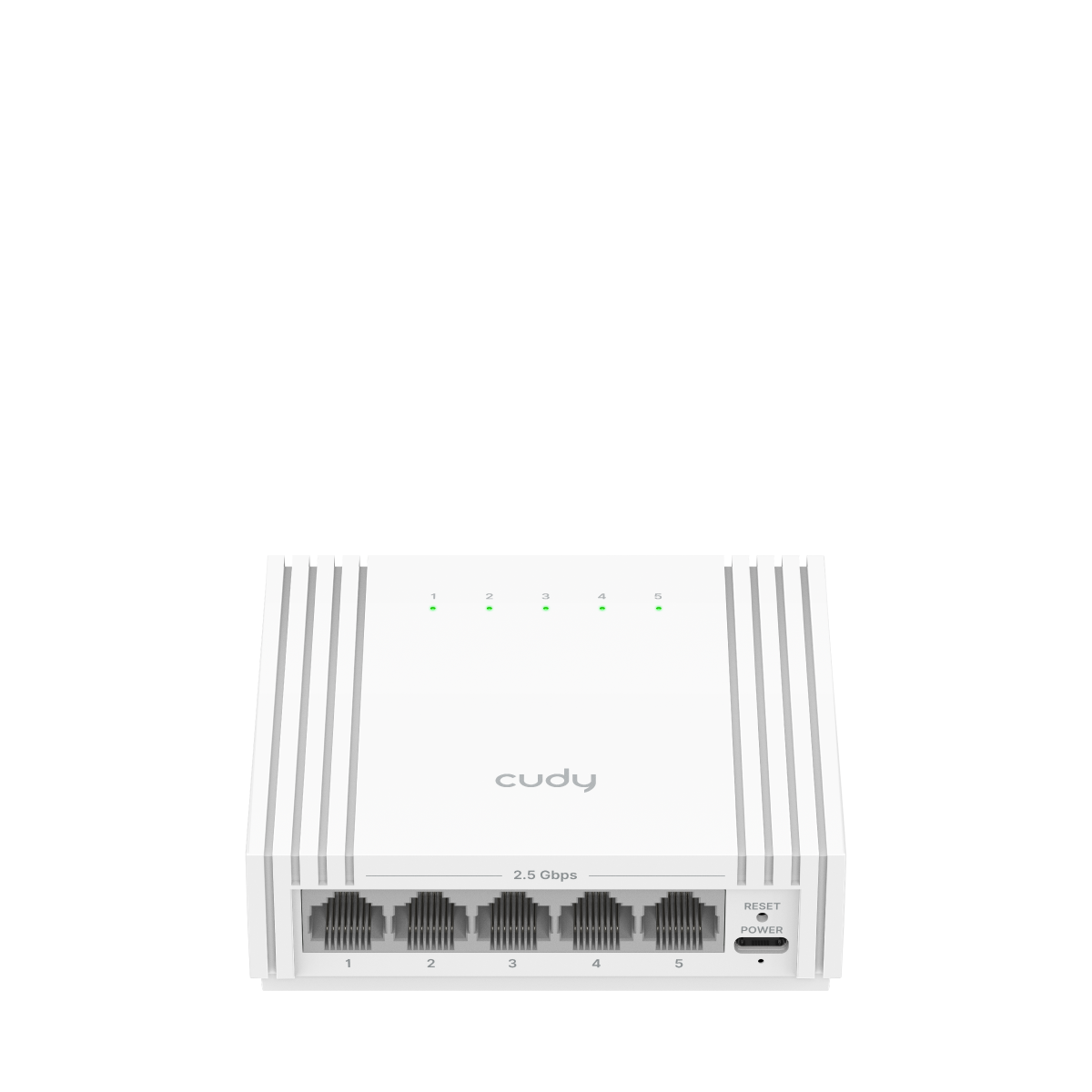

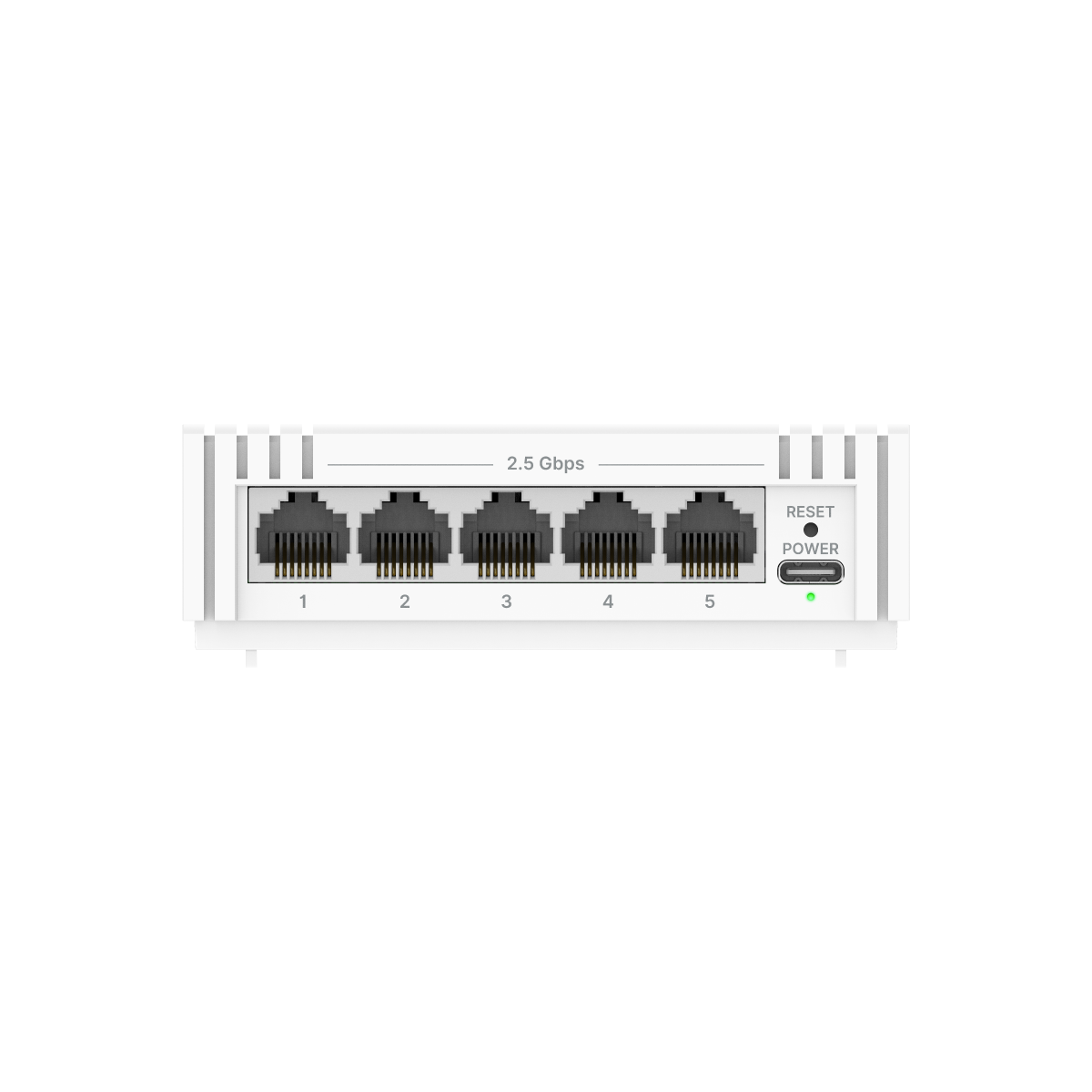

Cudy 5-Port 2.5G Light Managed Switch with USB-C

Brand : CUDY

SKU:  HS105U

Low stock: 2 left

₱3,550.00
₱3,550.00
Sale! Sold out
Model Version HS105U 1.0
Memory/Storage Flash/ROM 4 MB (32 Mbit) NOR
Interfaces 2.5G RJ45 Ports 5
Extend Mode Ports Configurable
VLAN Mode Ports Configurable
Buttons and LEDs LED
  • Power
  • Link/ACT of Each Ethernet Port
Physical Buttons Reset Button
Performance Max Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 100 meters at 2.5 Gbps
  • Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note 250-meter transmission is available when the port speed is set at 10 Mbps in the software.
MAC Address Table 4096
VLANs 4096
Max Switching Capacity 25 Gbps
Max Forwarding Rate 18.6 Mpps
Jumbo Frame 9 KB
Packet Buffer 4 Mbit
Power Power Input Type USB-C Port
Basic Power Saving
Power Methods DC
Power Input 4.8-18V⎓
Max Power Consumption 6W
Idle Power Consumption 1.6W
Switching 802.3 Protocols
  • 802.3x Flow Control
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
  • 802.3ab 1000BASE-T
  • 802.3bz 2.5GBASE-T
802.1 Protocols
  • 802.1p: LAN Layer 2 QoS/CoS
  • 802.1q: VLAN Bridge Operation
Ethernet
  • Full Duplex
  • Half Duplex (CSMA/CD)
  • Auto-Negotiation
  • Auto MDI/MDIX
Forwarding Method Store-and-Forward
Port Management
  • Port On/Off
  • Port Negotiation Speed
  • Port Security/MAC Constraint
  • Port Trunk (Static Aggregation)
  • Port Mirroring
  • Data Rate Limit
  • Jumbo Frame Settings
  • Storm Control
  • Traffic Monitor
  • MAC Address Management
  • EEE (802.3az)
L2 Features
  • Loop Prevention
  • Loop Detection
  • 802.1Q VLAN
  • DSCP QoS
  • 802.1p QoS
  • Port-Based QoS
  • 8-Queue
  • SP/WRR Scheduling
Port Trunk Details Max 4 Ports per Group / Max 2 Groups
Port Mirroring Sessions 1
Reliability MTBF >200,000 h
EMS IEC/EN 61000-4-2, Level 2 ESD: Contact: 4kV; Air: 8kV
IEC/EN 61000-4-5, Level 3 Surge: Power: DM 2kV, CM 2kV; RJ45: CM 4kV
Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 0% ~ 100% non-condensing
Storage Humidity: 10% ~ 95% non-condensing
System Control Methods
  • Config Web Page
  • Cudy App (Coming Soon)
Firmware Upgrade Local Upgrade
Reliability Backup and Restore
Diagnostic Tools Ping
Languages
  • English
  • Bengali
  • German
  • Spanish
  • French
  • Portuguese
  • Russian
  • Arabic
  • Indonesian
  • Hindi
  • Urdu
  • Traditional Chinese
  • Simplified Chinese
Mechanical Dimension 100×92×32.5 mm
3.94×3.62×1.28 inches
Product Weight 181.2 g (6.39 oz.)
Casing Material Plastic
Installation
  • Desktop
  • Wall-mount

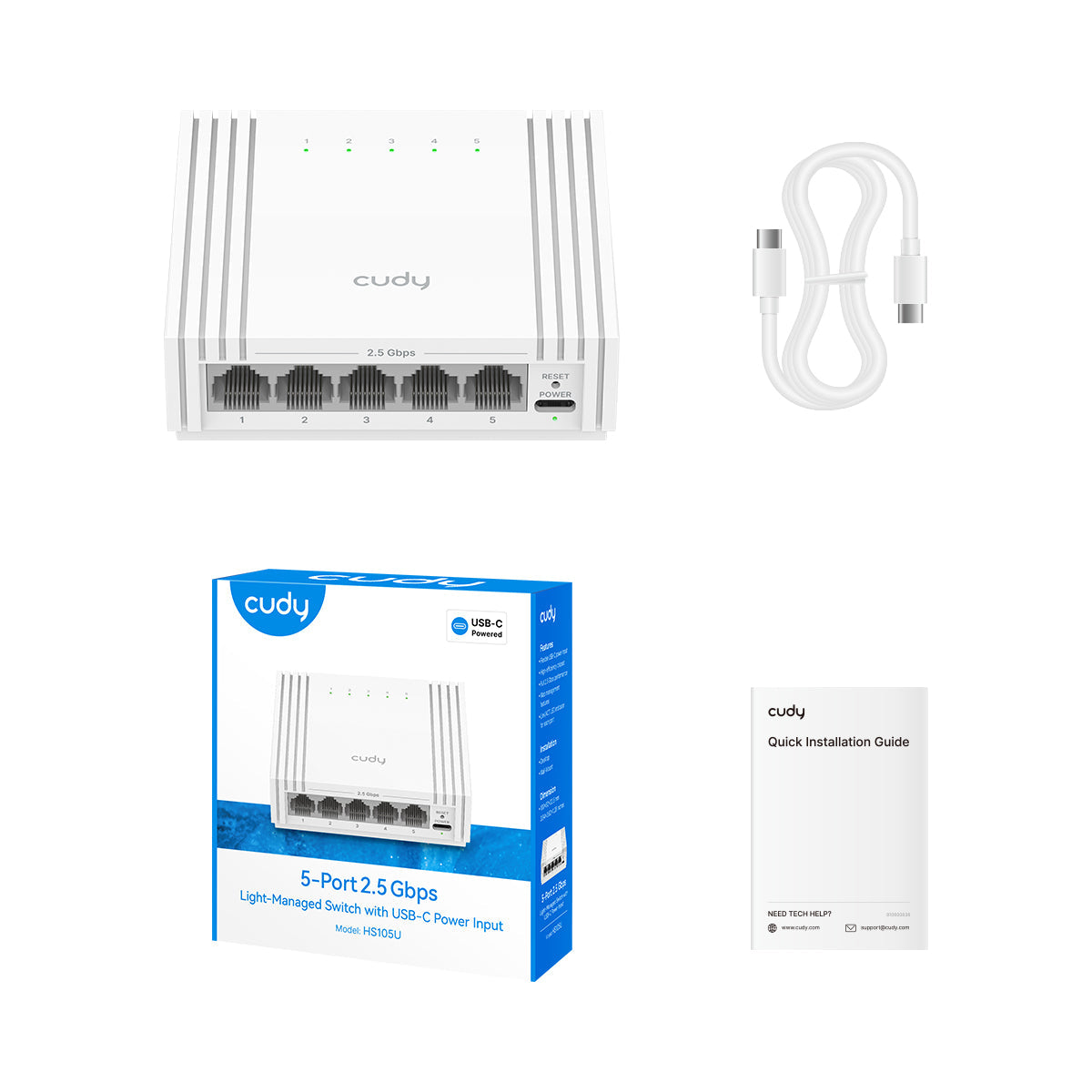

Package Content
  • HS105U
  • USB-C to USB-C Cable
  • Installation Guide
Ordering Information Retail Package Dimension 119×109×37 mm
4.69×4.29×1.46 inches
Retail Package Weight 274.5 g (9.68 oz.)
Units per Carton 60
Carton Net Weight 16.5 kg (36.38 lbs)
Carton Gross Weight 17.1 kg (37.7 lbs)
Carton Dimension 41.3×35.7×26.2 cm
16.26×14.06×10.31 inches
