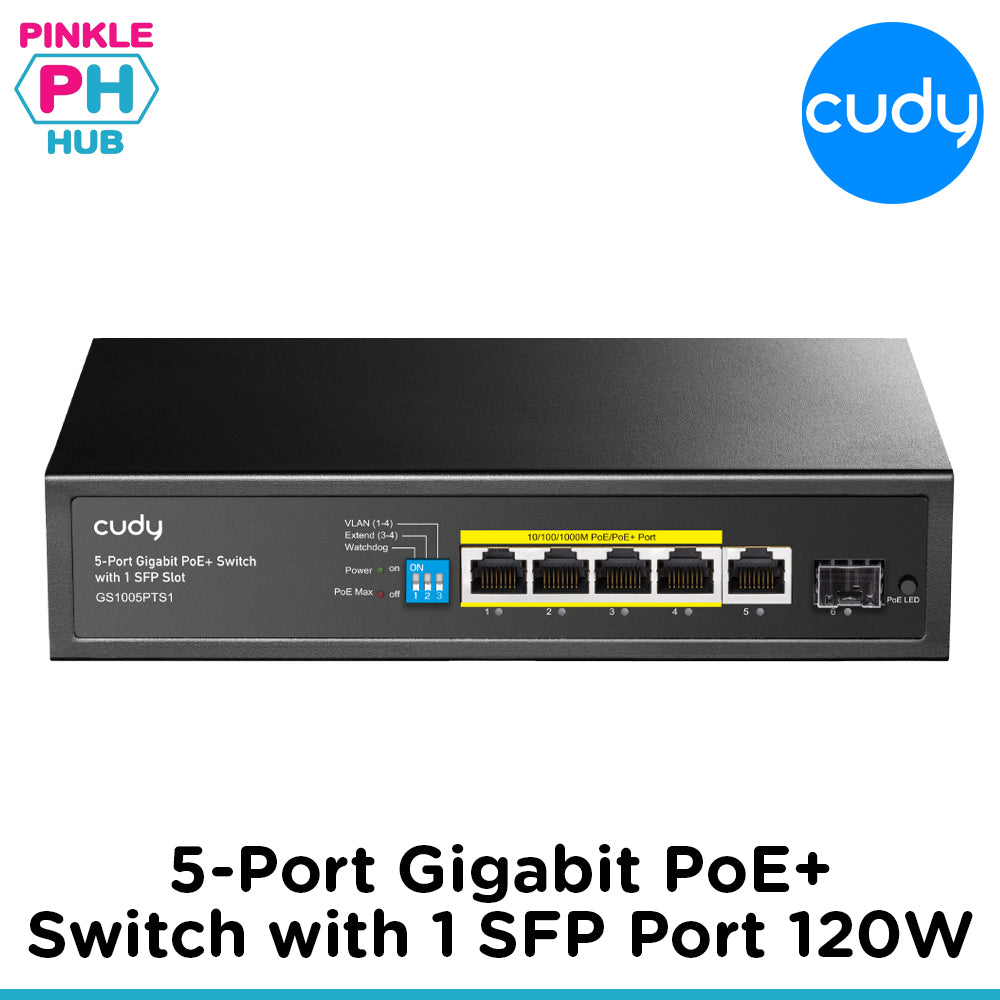

Cudy 5-Port Gigabit PoE+ Switch with 1 SFP Port 120W

Brand : CUDY

SKU:  GS1005PTS1 V2.0

Low stock: 2 left

₱2,340.00
₱2,340.00
Sale! Sold out
Model Version GS1005PTS1 2.0
Interfaces 1.25G SFP Slots 1
Gigabit RJ45 Ports 5
Gigabit RJ45 PoE Ports #1~#4
Max Power on a Single PoE Port Port 1: 60W
Port 2~4: 30W
PoE Port Notes PoE port #1 supports 30W 802.3at/af and enhanced 60W output, and the rest support 30W 802.3at/af standards.
PoE Priority Intelligent Power Management:
Automatically disconnect the lastly powered device when power exceeds budget.
Shielded RJ45 Port
Extend Mode Ports #3~#4
VLAN Mode Ports #1~#4
Buttons and LEDs LED
  • Power
  • PoE Status of Each PoE Port
  • Link/ACT of Each Ethernet Port
  • PoE Max Status
Physical Buttons
  • Extend On/Off
  • VLAN On/Off
  • PoE Watchdog On/Off
  • PoE LED Toggle
Physical Buttons Note The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade feature.
Performance Max Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 100 meters at Gigabit
  • Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
Optical Spec and Distance Depends on the Installed Optical Module
MAC Address Table 2048
VLANs 4096
Max Switching Capacity 12.5 Gbps
Max Forwarding Rate 8.929 Mpps
Jumbo Frame 16 KB
Packet Buffer 2 Mbit
Power Power Input Type AC Inlet
Power Methods AC
Power Input 100-240V~ 50/60Hz
Power Supply 120W
Max Power Excluding PoE 5W
Switching 802.3 Protocols
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
  • 802.3ab 1000BASE-T
  • 802.3z 1000BASE-X
  • 802.3x Flow Control
  • 802.3af PoE
  • 802.3at PoE
Ethernet
  • Full Duplex
  • Half Duplex (CSMA/CD)
  • Auto-Negotiation
  • Auto MDI/MDIX
Forwarding Method Store-and-Forward
PoE Management Intelligent Power Management
Reliability MTBF >200,000 h
Grounding Methods Three-Prong Plug
EMS IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
Environment Operating Temperature: 0~40 ℃ (32~104 ℉)
Storage Temperature: -40~70℃ (-40~158 ℉)
Operating Humidity: 10~90% non-condensing
Storage Humidity: 10~95% non-condensing
Mechanical Dimension 200×118×44 mm
7.87×4.65×1.73 inches
Product Weight 615.5 g (21.71 oz.)
Casing Material Metal
Installation
  • Desktop
  • Wall-mount

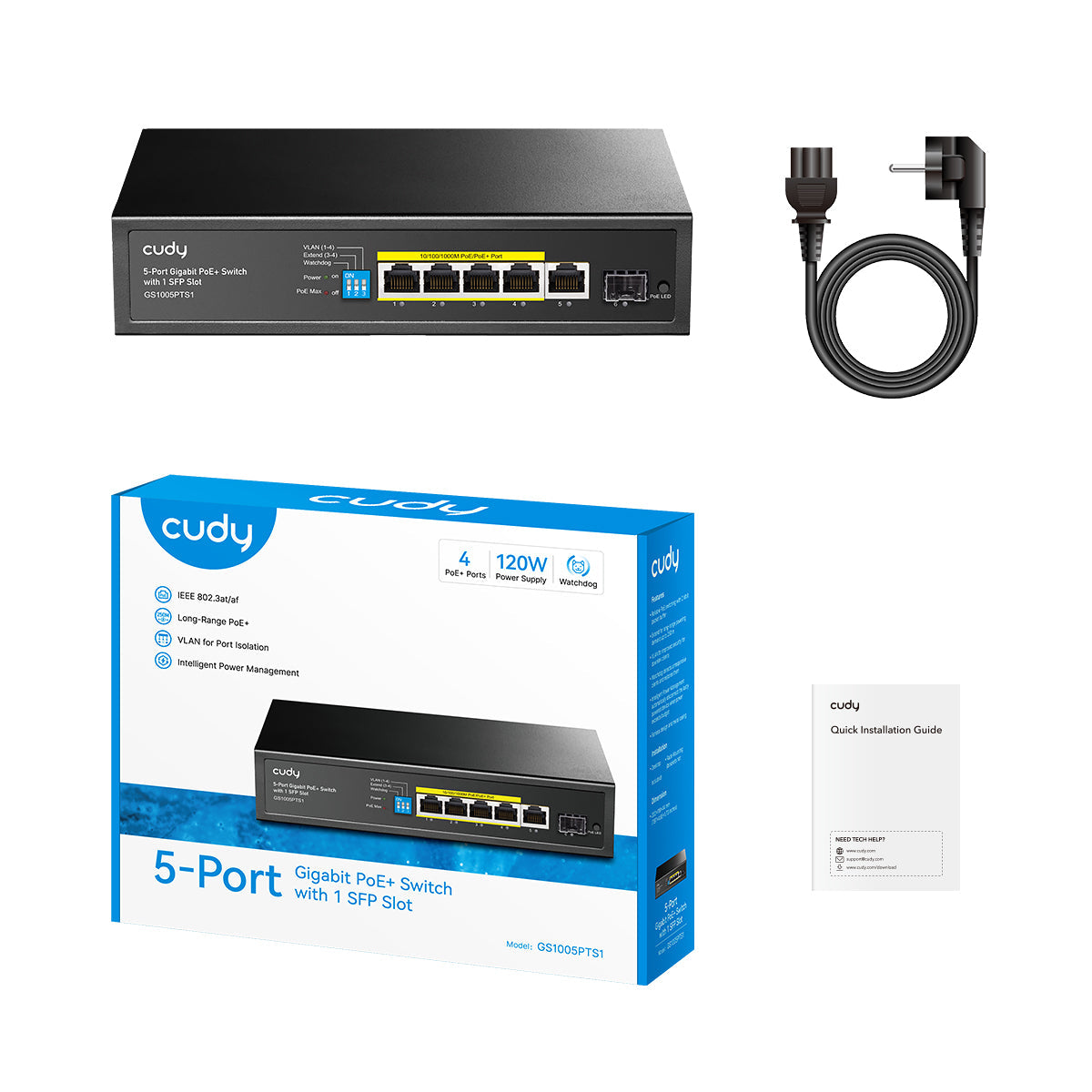

Package Content
  • GS1005PTS1
  • Power Cord
  • Installation Guide
Ordering Information Retail Package Dimension 249×207×60 mm
9.8×8.15×2.36 inches
Retail Package Weight EU: 1025.6 g (36.18 oz.)
Units per Carton 16
Carton Net Weight EU: 16.4 kg (36.16 lbs)
Carton Gross Weight EU: 17.3 kg (38.14 lbs)
Carton Dimension 51.4×42.9×27.2 cm
20.24×16.89×10.71 inches
