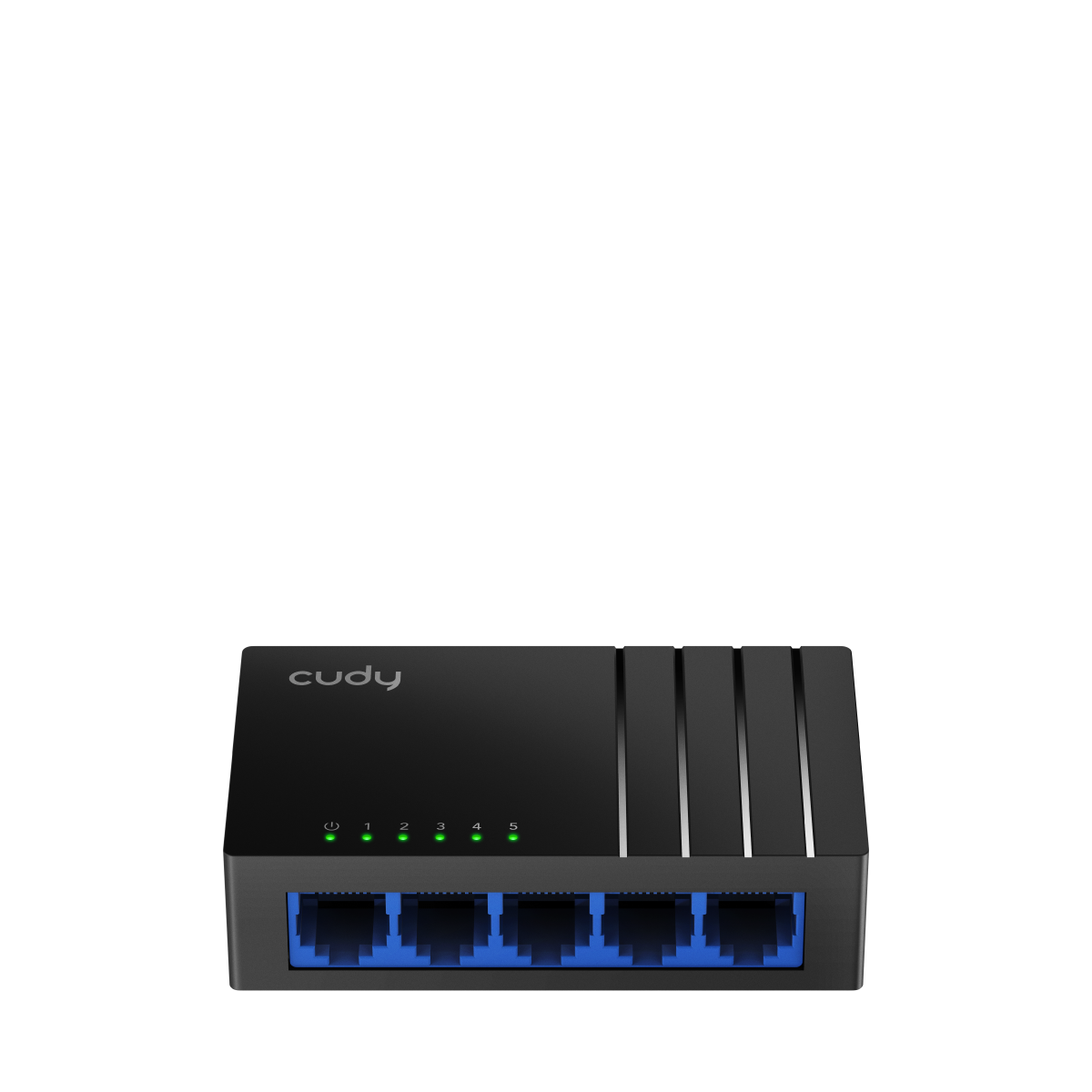

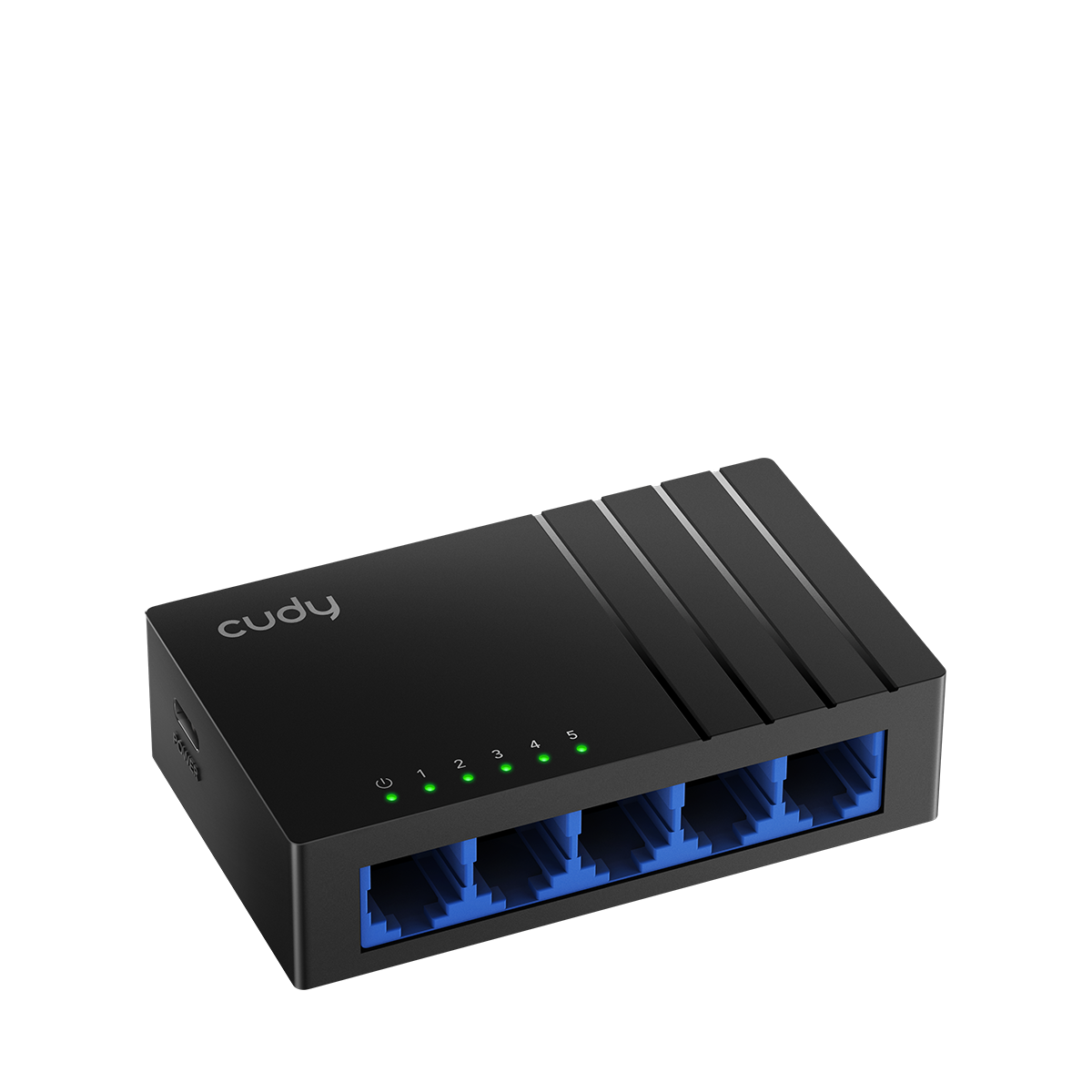

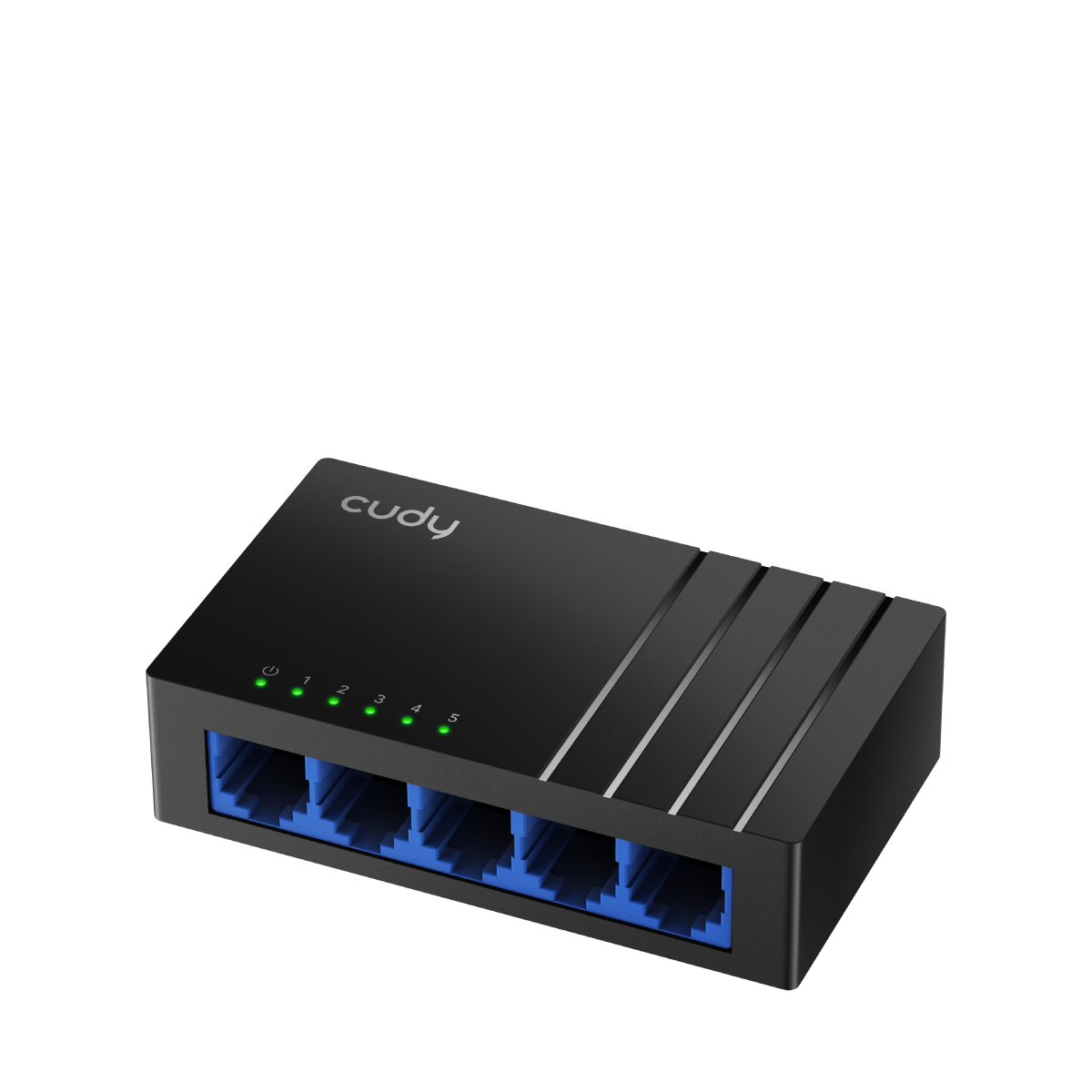

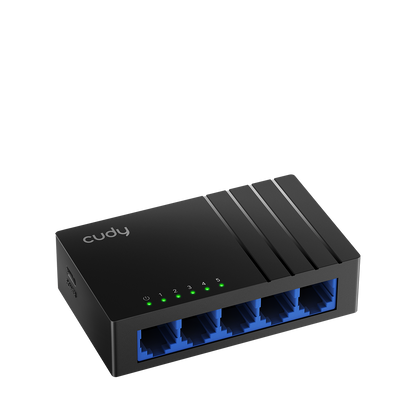

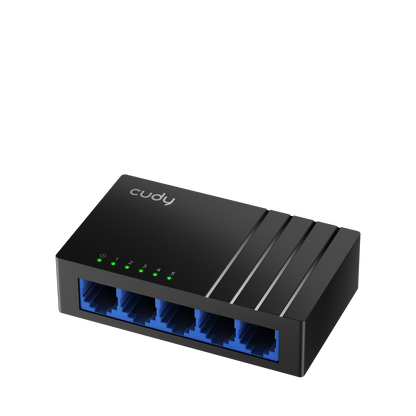

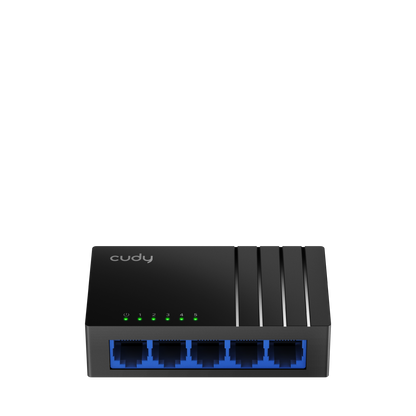

Cudy 5-Port Gigabit Switch with USB C

Brand : CUDY

SKU:  GS105D 7.0

3 in stock

₱615.00
₱615.00
Sale! Sold out
Model Version GS105D 7.0
Interfaces Gigabit RJ45 Ports 5
Buttons and LEDs LED
  • Power
  • Link/ACT of Each Ethernet Port
Performance Max Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 140 meters at Gigabit
MAC Address Table 2048
VLANs 4096
Max Switching Capacity 10 Gbps
Max Forwarding Rate 7.44 Mpps
Jumbo Frame 9 KB
Packet Buffer 1 Mbit

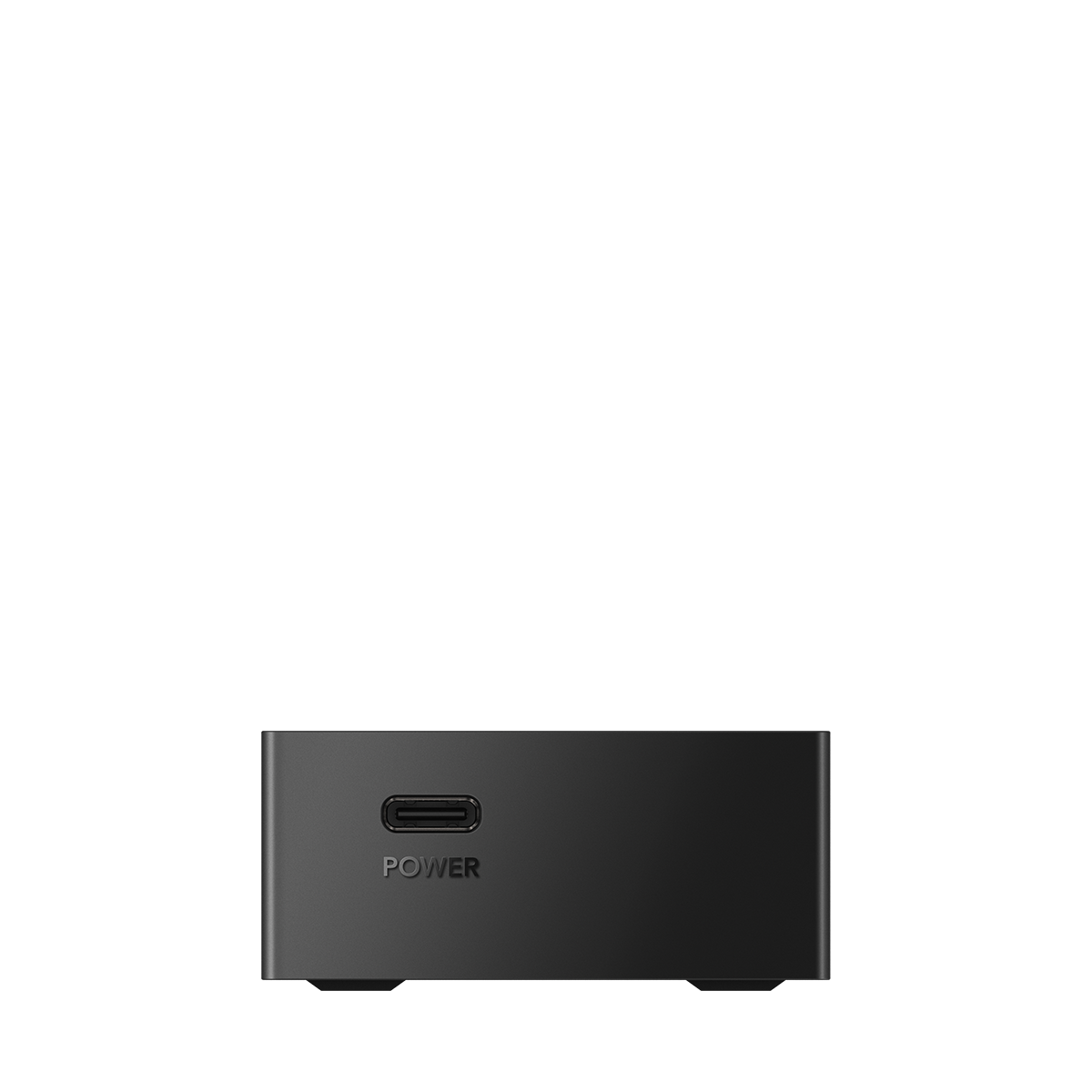

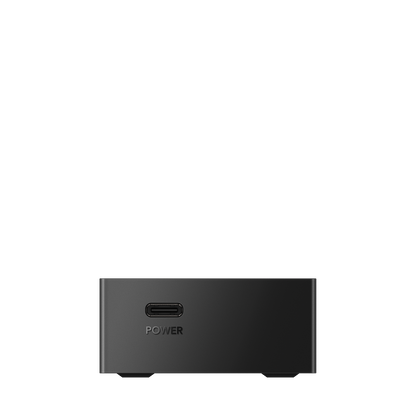

Power Power Input Type USB-C Port
Basic Power Saving
Power Methods USB-C
Power Input 5V⎓
Max Power Consumption 1.2W
Idle Power Consumption 0.2W
Switching 802.3 Protocols
  • 802.3x Flow Control
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
  • 802.3ab 1000BASE-T
Ethernet
  • Full Duplex
  • Half Duplex (CSMA/CD)
  • Auto-Negotiation
  • Auto MDI/MDIX
Forwarding Method Store-and-Forward
L2 Features IGMP Snooping
Reliability MTBF >200,000 h
EMS IEC/EN 61000-4-2, Level 2 ESD: Contact: 4kV; Air: 8kV
IEC/EN 61000-4-5, Level 3 Surge: 2kV
Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Mechanical Dimension 88×52.5×24 mm
3.46×2.07×0.94 inches
Product Weight 46.7 g (1.65 oz.)
Casing Material Plastic
Installation
  • Desktop
  • Wall-mount
Package Content
  • GS105D
  • USB-A to USB-C Power Cable
  • Installation Guide
Ordering Information Retail Package Dimension 105×80×32 mm
4.13×3.15×1.26 inches
Retail Package Weight 100.4 g (3.54 oz.)
Units per Carton 150
Carton Net Weight 15.1 kg (33.29 lbs)
Carton Gross Weight 15.8 kg (34.83 lbs)
Carton Dimension 43.2×35.3×33.8 cm
17.01×13.9×13.31 inches
